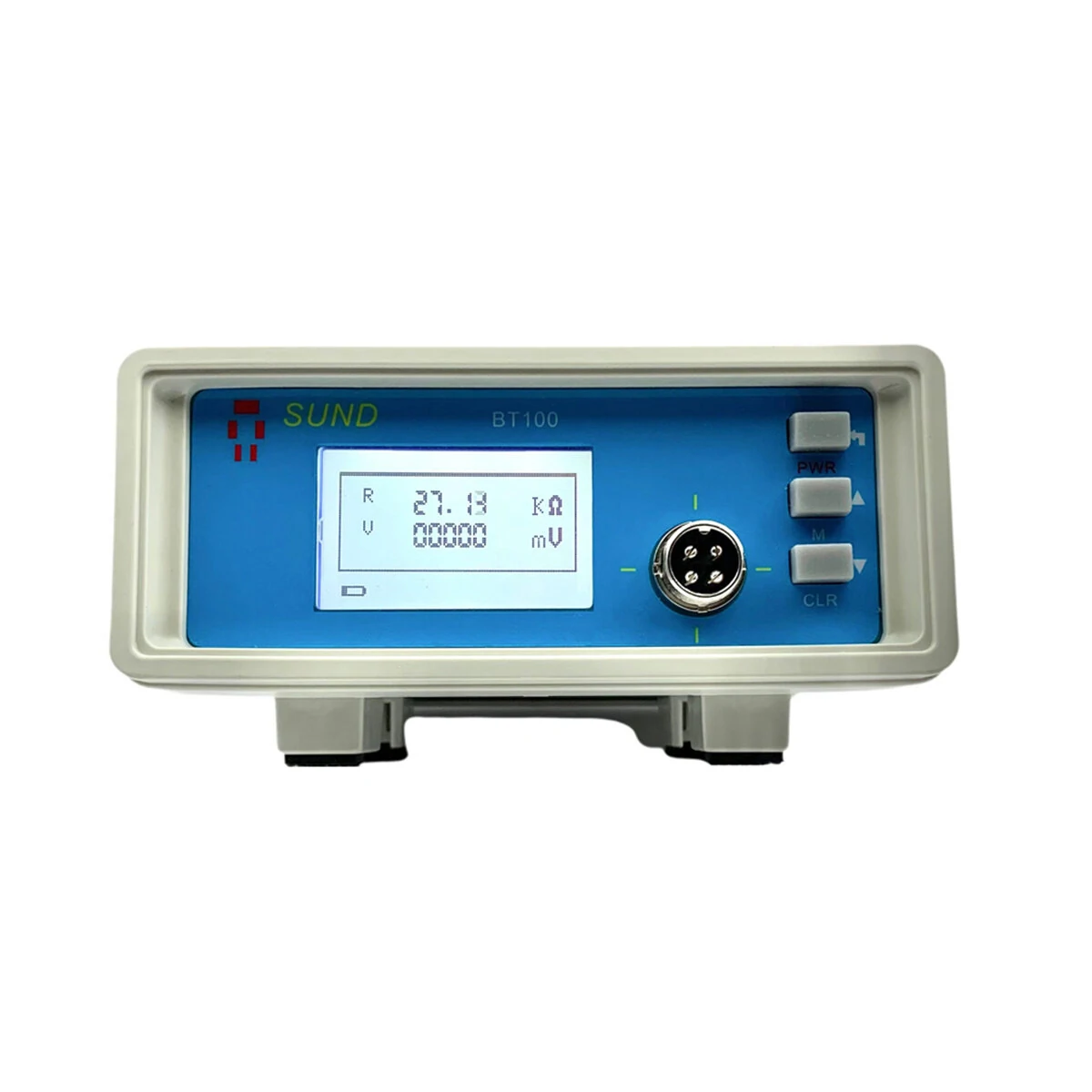

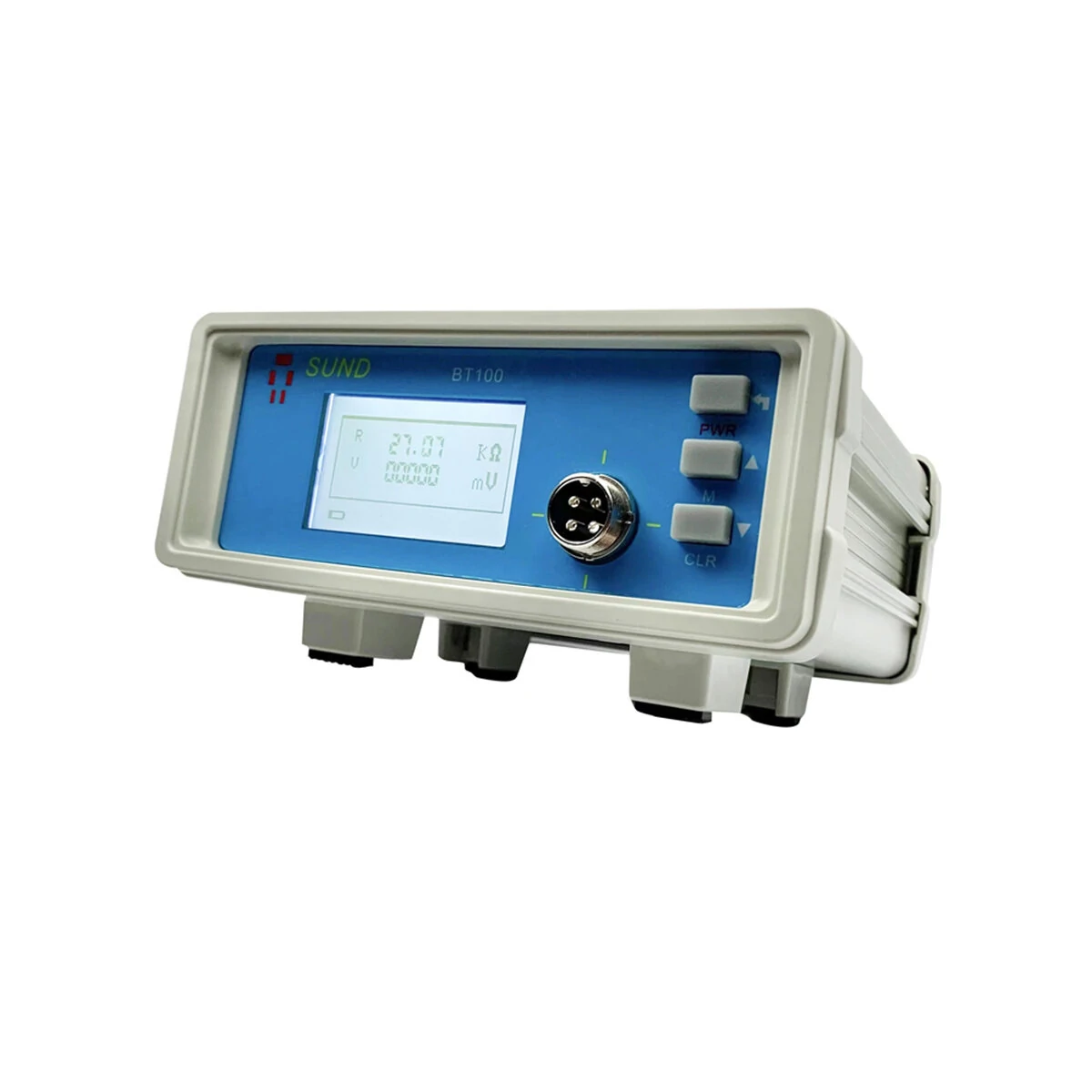

BT100 Battery Tester - Universal Voltage & Resistance Checker with LCD Backlight

Product Description

BT100 Desk Type Battery Tester Universal Battery Voltage Resistance Checker Normal External Trigger Modes LCD Display Screen with Backlight Automatic Shutdown RS232 Communication Protocol



This desk type battery tester is simple but effective. This tester is suitable for most batteries and it is easy to operate. The LCD display screen with backlight allows you to read the testing data more clearly. If you are interested in this product, come and have a try, it will not let you down.



Features:

Normal Trigger Mode: In the normal trigger mode, the instrument automatically tests the internal resistance and vol tage of the battery then send to RS232 serial port.

External Trigger Mode: Input low-level trigger pulse signal from BNC socket on the back of the instrument, The low-level time of the trigger signal is greater than 20ms,and the instrument tests once for each pulse, send the measurement results to RS232 port after measurement.

Large LCD Display Screen: This battery tester with large LCD display screen and backlight, you can turn on the backlight as needed.

Two Communication Transmission Format: The String modes is sends measurement results in ASCII format and the another mode is sends measurement results in hexadecimal format.

Automatic shutdown: The machine can be set to shut down automatically without any operation for 20-120 minutes.

Save Battery: With this tool, you can test battery voltage and resistance to determine whether the capacity of the battery is low or highly and keep you from wasting perfectly batteries.



Specifications:

Material: ABS

Communication baud rate: 115200bps

Stop bit: 1

Parity: none

Format: BF, AA, Vn, Vn+1, Vn+2, Vn+3, FF, EF

Adapter: EU Plug

Package size: 250 * 180 * 90mm / 9.8 * 7.1 * 3.5in

Package weight: 1263g / 2.8lb



Package included:

1 x Battery Tester

1 x Adapter with Plug

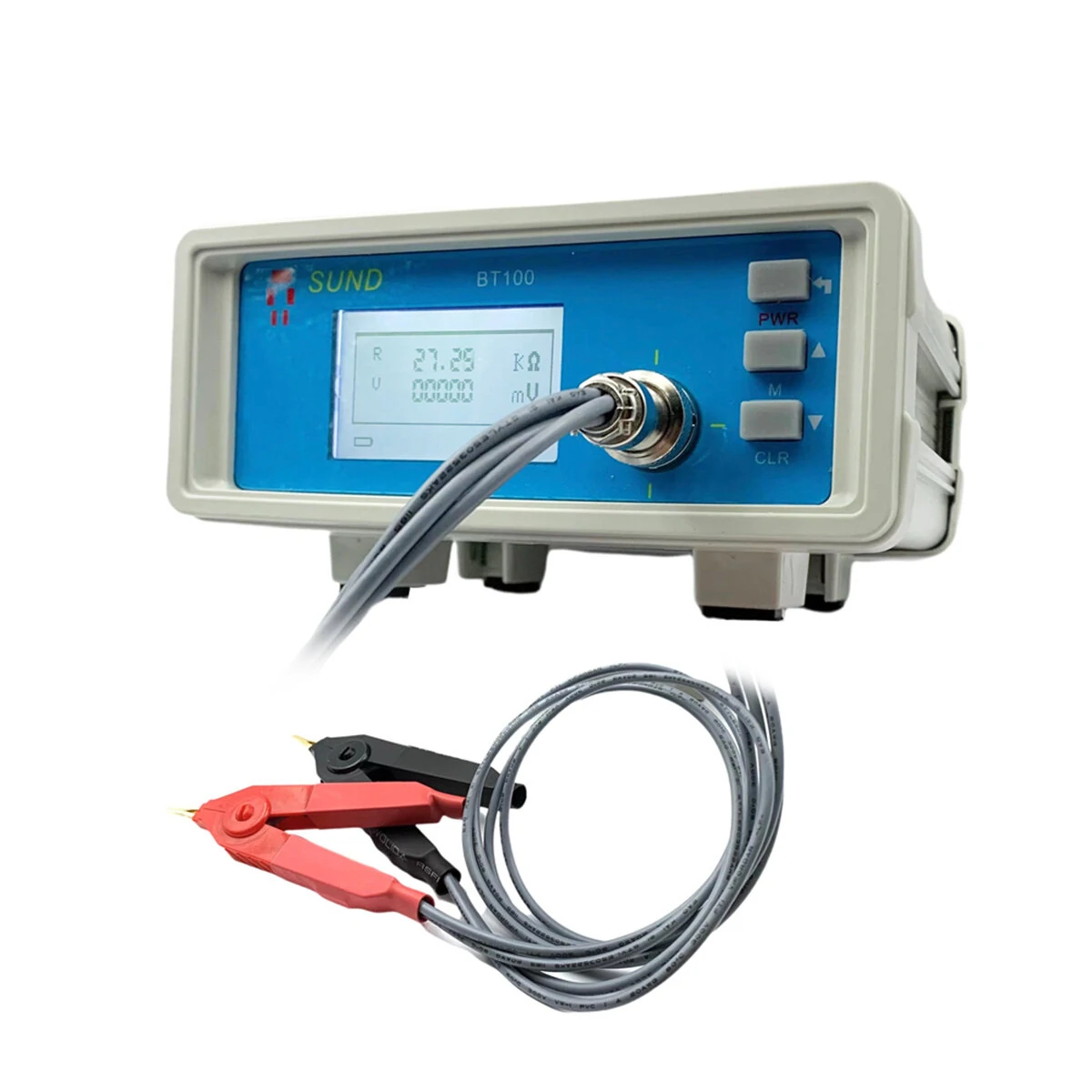

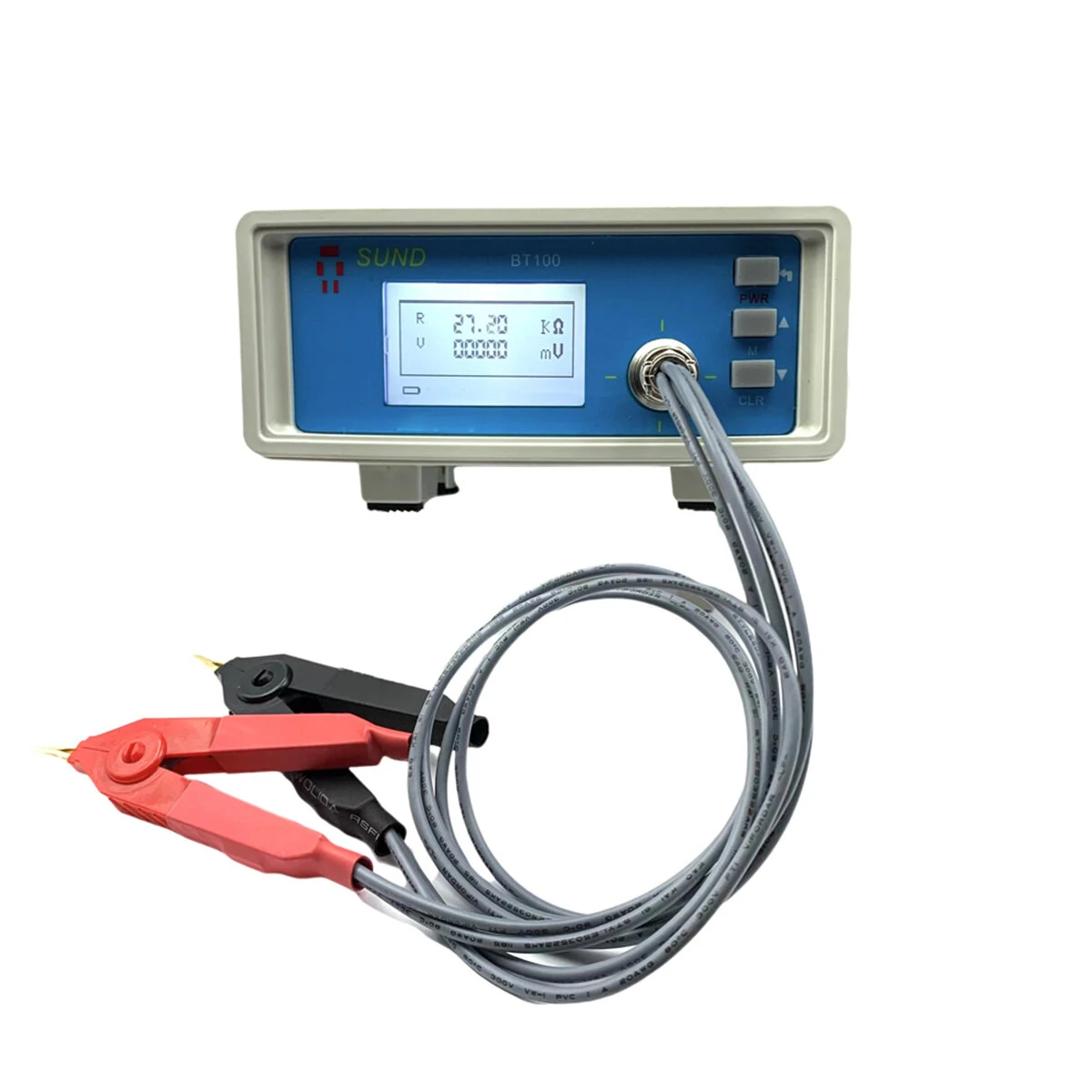

1 x Pair Testing Pen
