JSS57P3N Nema23 Closed Loop Stepper Motor | 3N.m Torque with Driver for CNC

Product Description

Description:

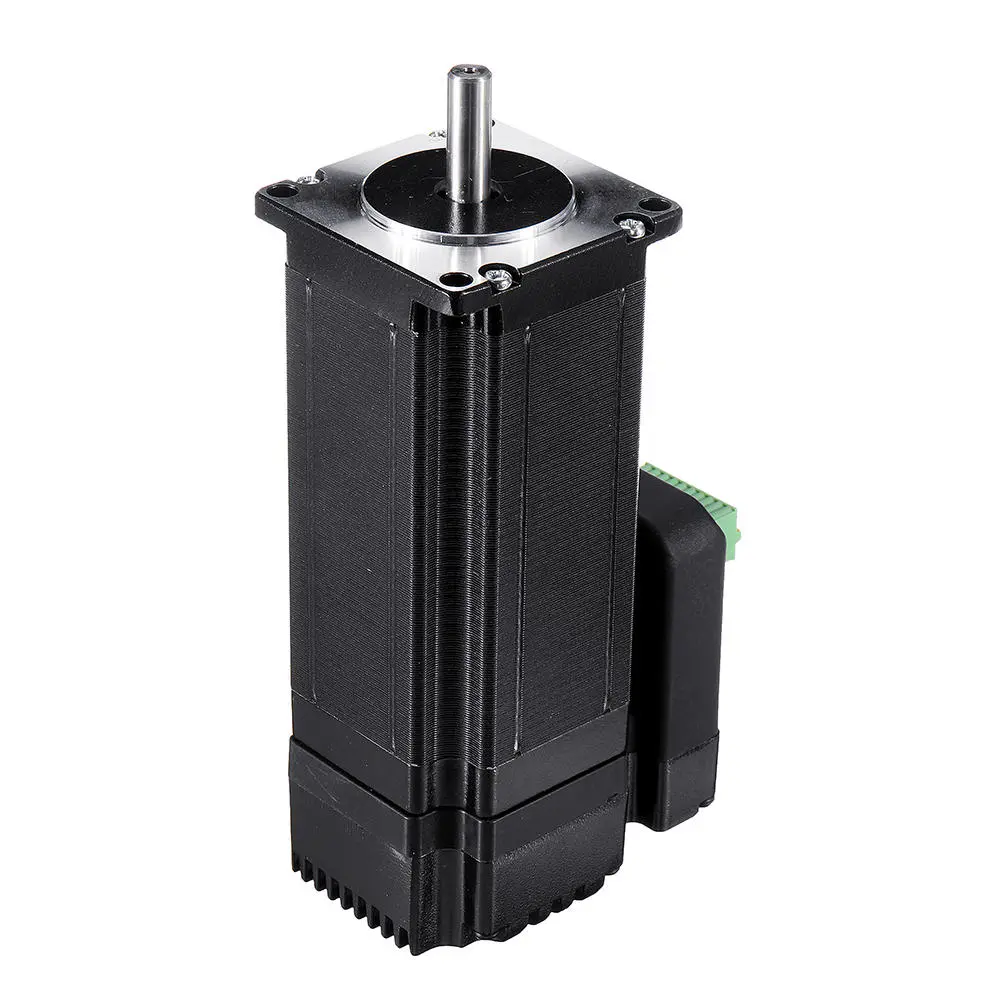

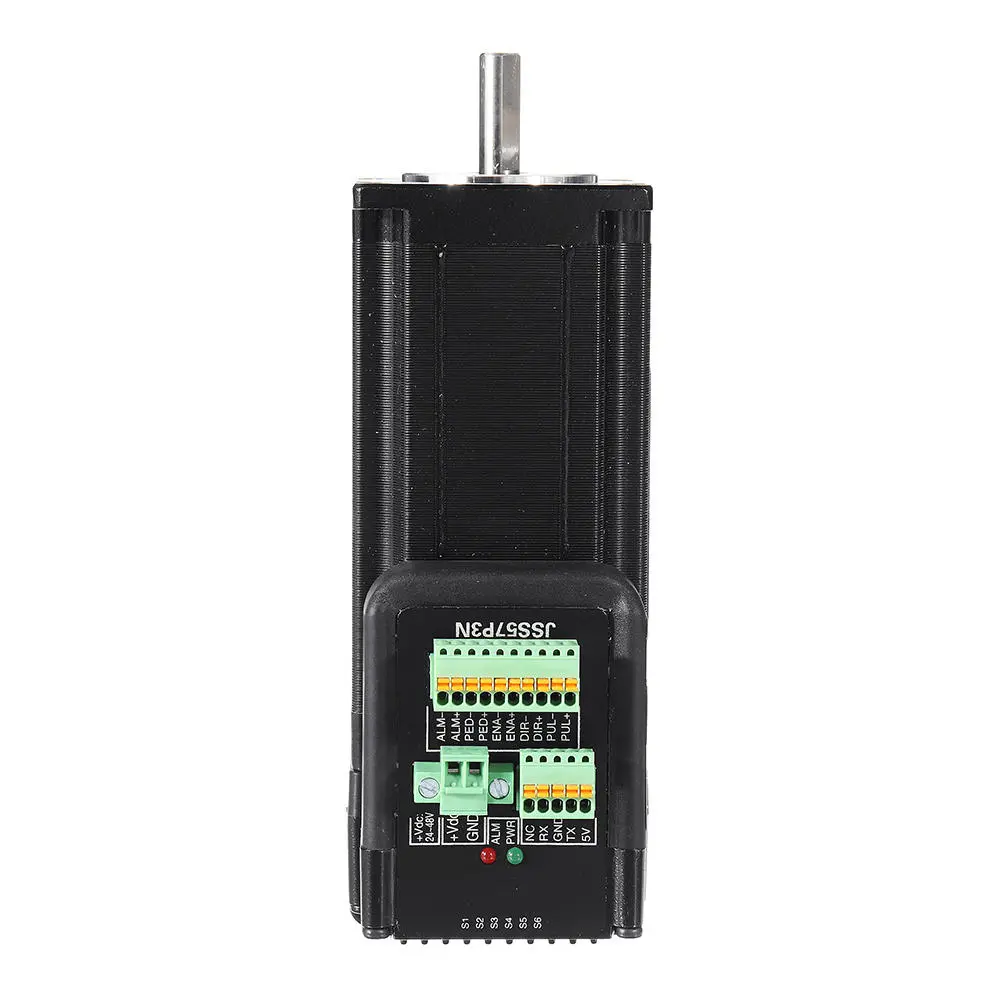

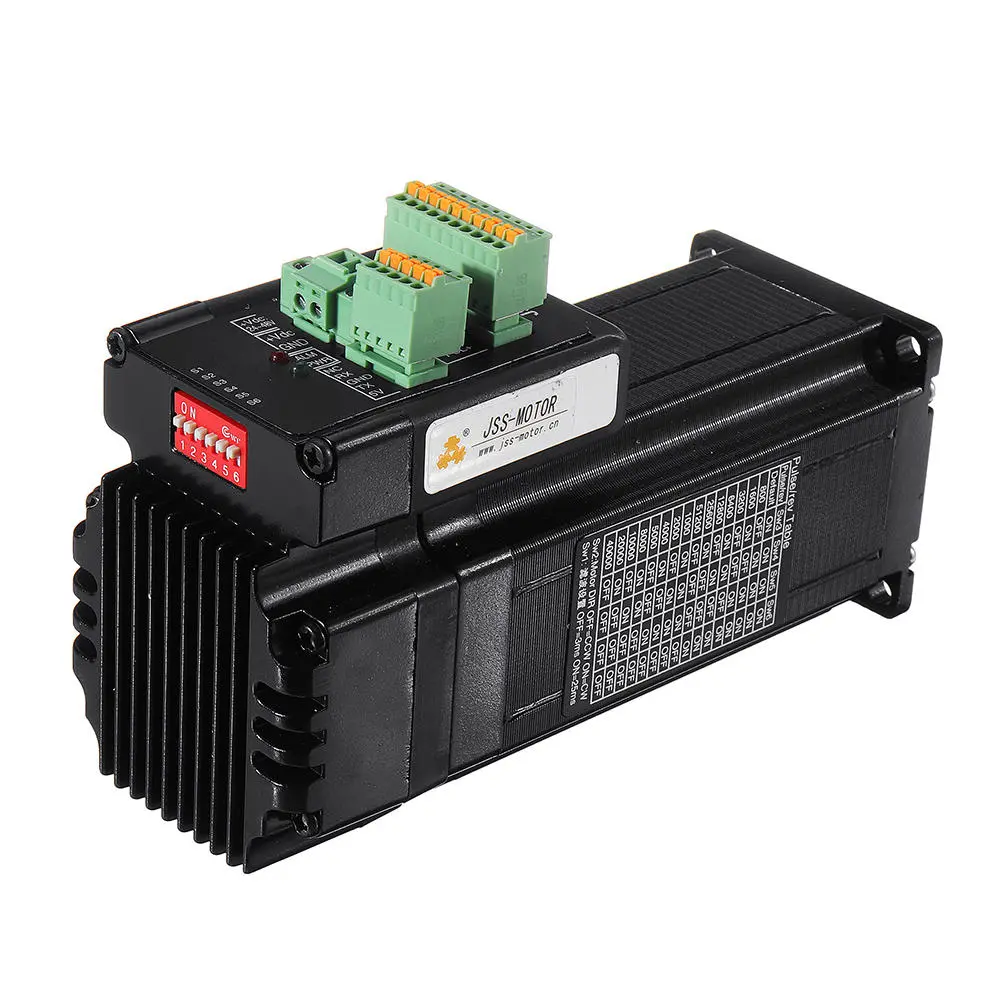

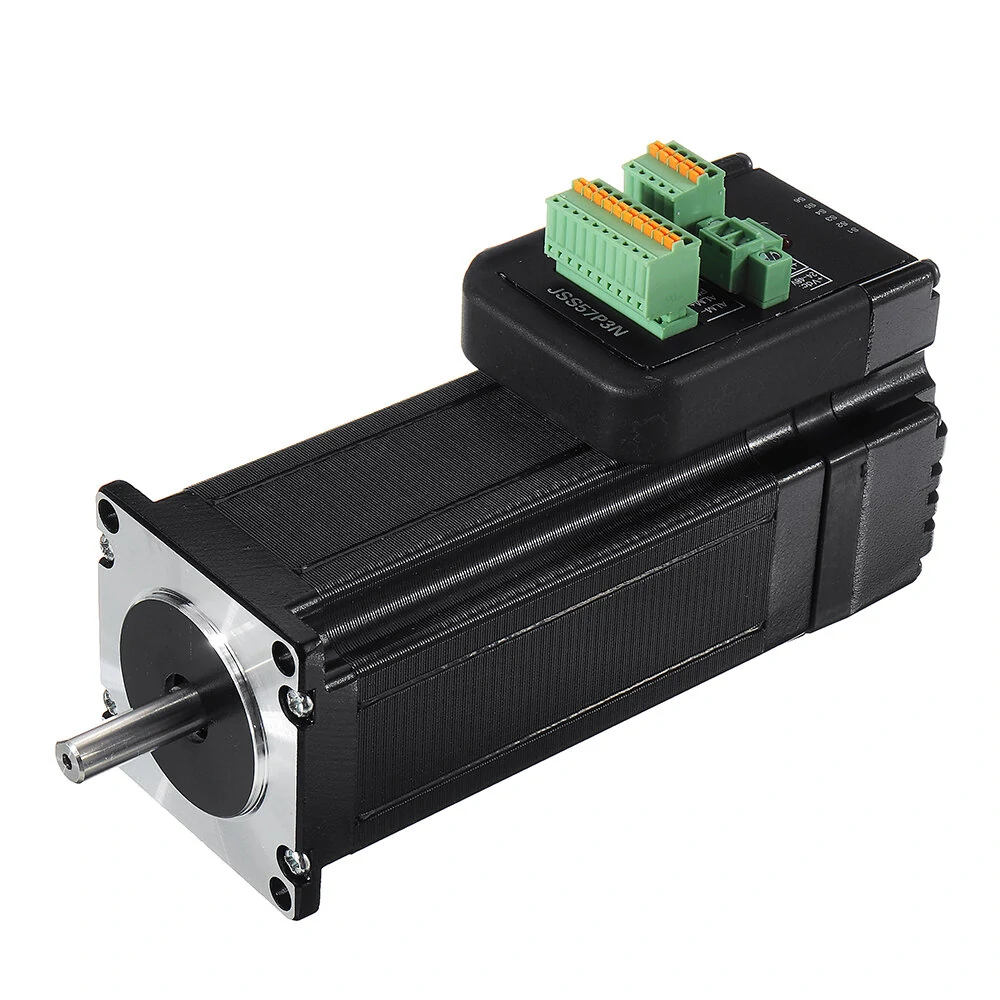

JSS57P3N Nema23 57 3N.m Integrated Closed Loop Stepper Motor Servo Motor with Driver for CNC
Specification:
Motor Type: Nema23
Motor Length: 112mm(Step Motor Length)+32mm
Shaft Diameter: 8mm
Voltage: 24-48VDC
Step Angle: 1.8??
Power: 0.18KW
Phase: 2
Rated torque: 3Nm
Rated current: 4.2A
Resistance: 0.7??10%??
Inductance: 3.0??20%mH
Class insulation: B
Weight: 1.9KG
Features:
1. Smooth rotating, stable operations, low noise
2. Automatically adjust position deviation without losing steps 3. Fast starting speed, high speed, high torque 4. The current is adjusted according to the load to reduce the motor temperature 5. With over-current, over-voltage, position excess and other protection 6. Maximum response frequency 2000 7. 16 kinds of subdivisions with a maximum of 51200 steps / revolution are available 8. Voltage range 24-48VDC
Package Included:
1 x 3N.m Integrated Closed Loop Stepper Motor
