HANPOSE Nema 11 Stepper Motor 28BYGH28 | 28mm 1A 0.08N.m 4-Lead for CNC Router

Product Description

Description:

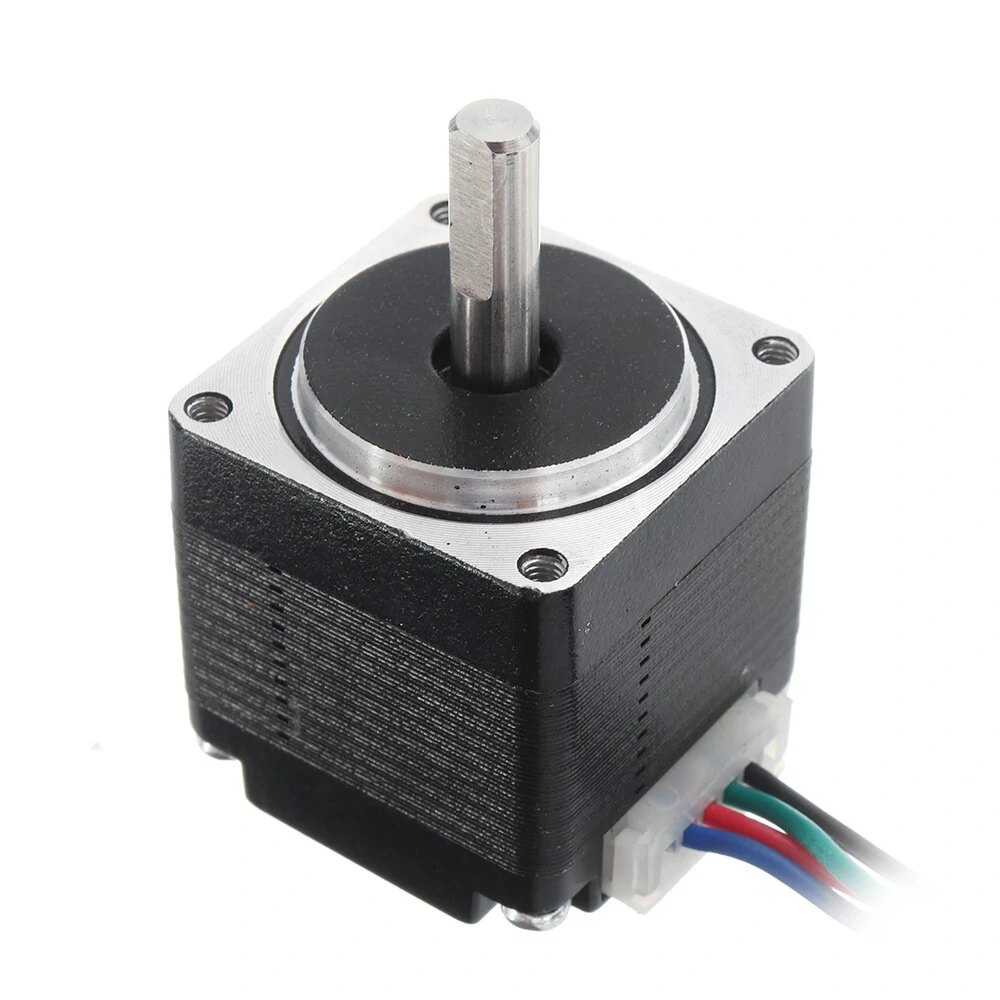

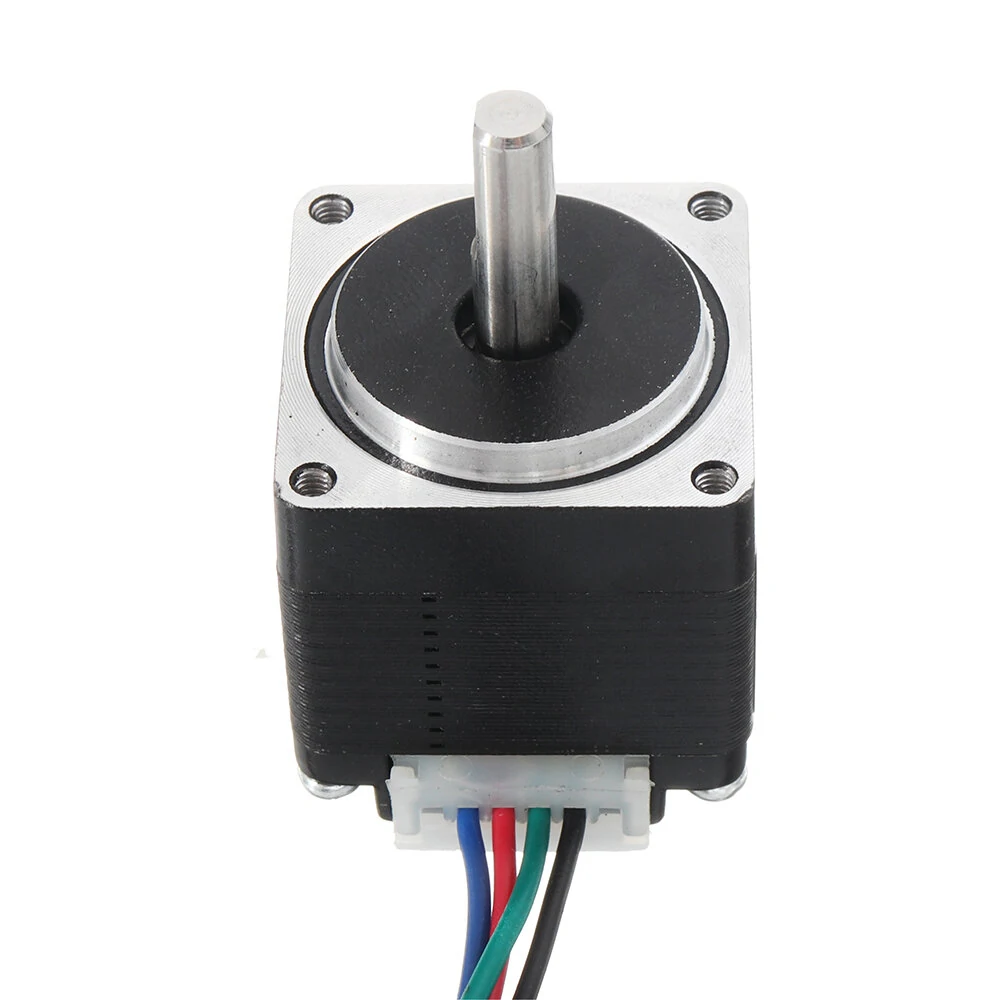

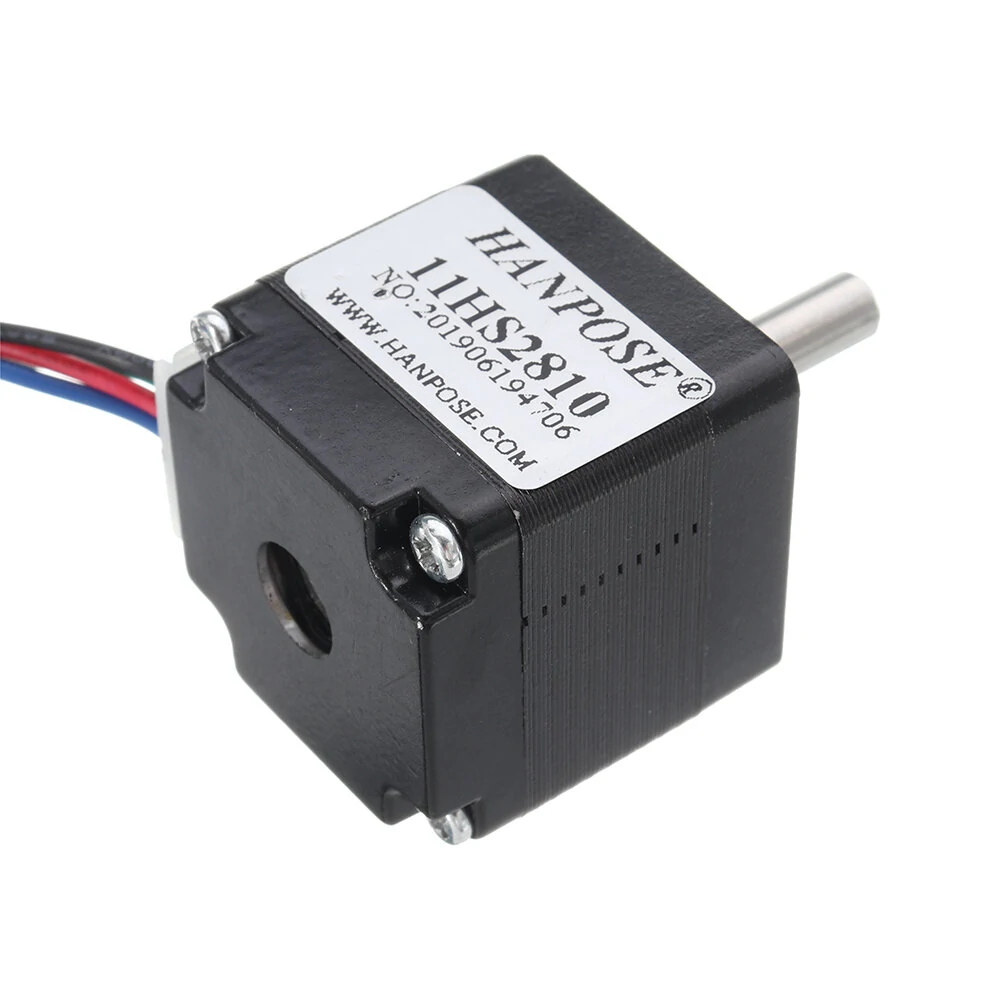

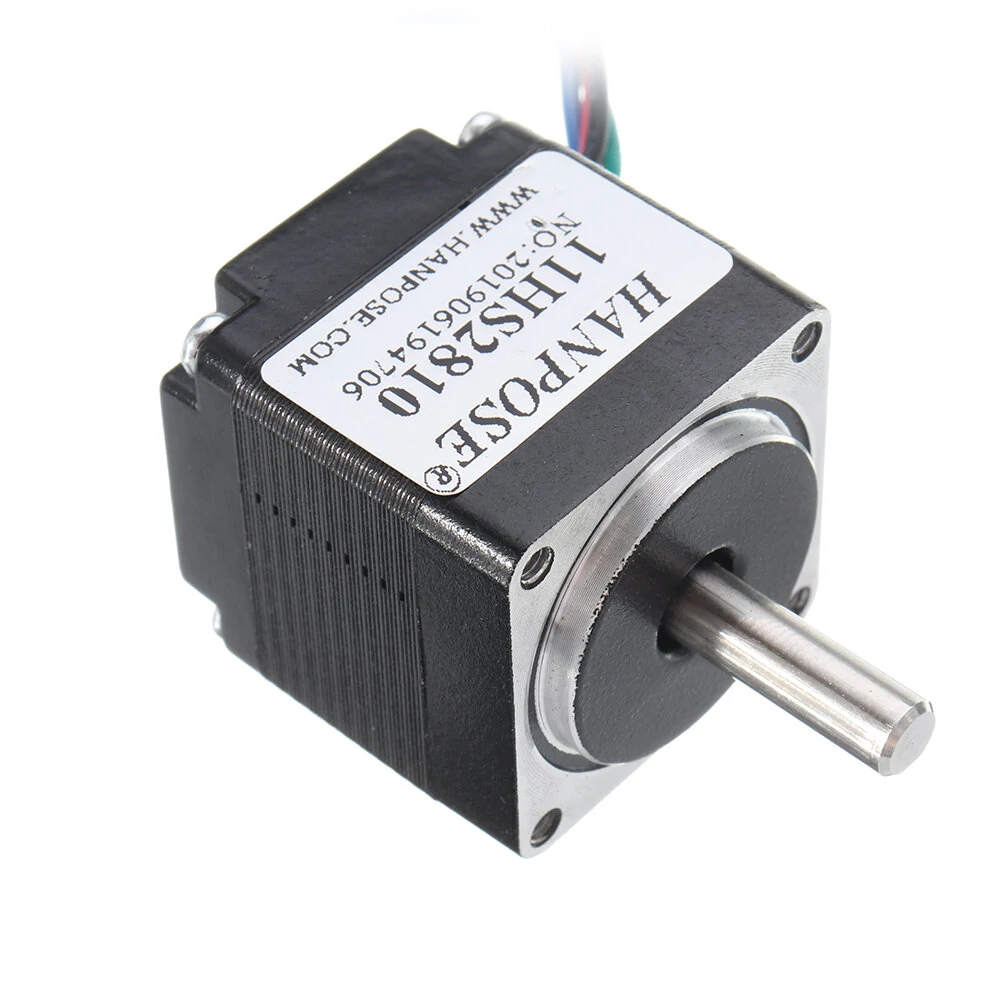

HANPOSE 11HS2810 28mm Nema 11 Stepper Motor 28BYGH28 1A 0.08N.m 4-lead for CNC Router
Certification: CE, ROSH, ISO, FCC
Color: Black(Surface Treatment)

Specification:

Model	11HS2810
Type	H ybrid
Phase	2
Step Angle	1.8??
Motor Size	28*28 mm
Shaft	"D" shaft 20 x ??5mm
Outlet way	"4" line
Motor leads	30cm
Adapter drive	Two-phase step drive
Scope	3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser engraving, Automation Equipment, Non-standard Equipment, Placement machine ect.

Electrical Specifications:

Model No.	Step Angle	Motor Length	Rated Current	Resistance /Phase	Inductance /Phase	Holding Torque	Inertia Of Rotor	Lead	Weight
	( ??)	(L)mm	(A)	(??)	(mH)	(N.m)	(G. cm2)	(No.)	(g)
11HS2810	1.8	28	1.0	2.7	2.0	0.08	7	4	90

Features: 1. Low noise. 2. Low heat. 3. Smooth operation. 4. Good acceleration performance.
5. Color: Black(Surface Treatment) Package Included:
1 X 11HS2810 Stepper Motor
