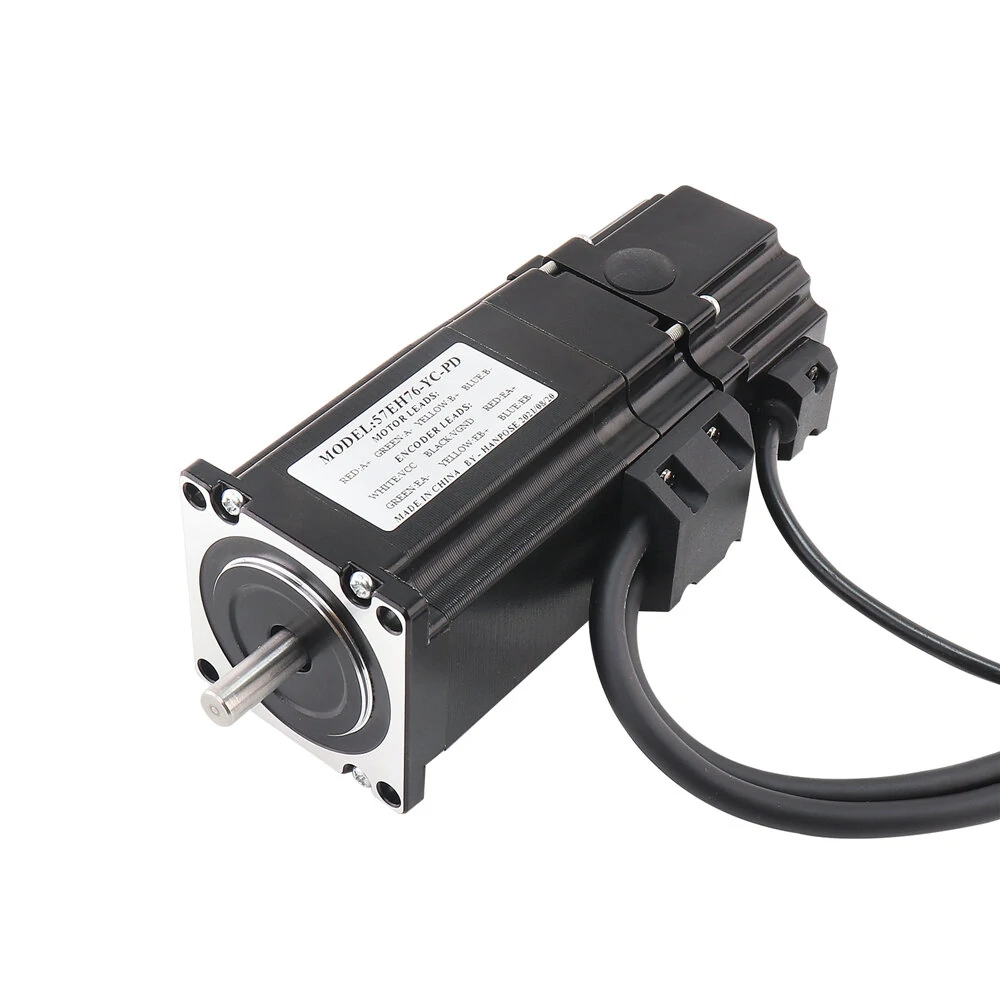

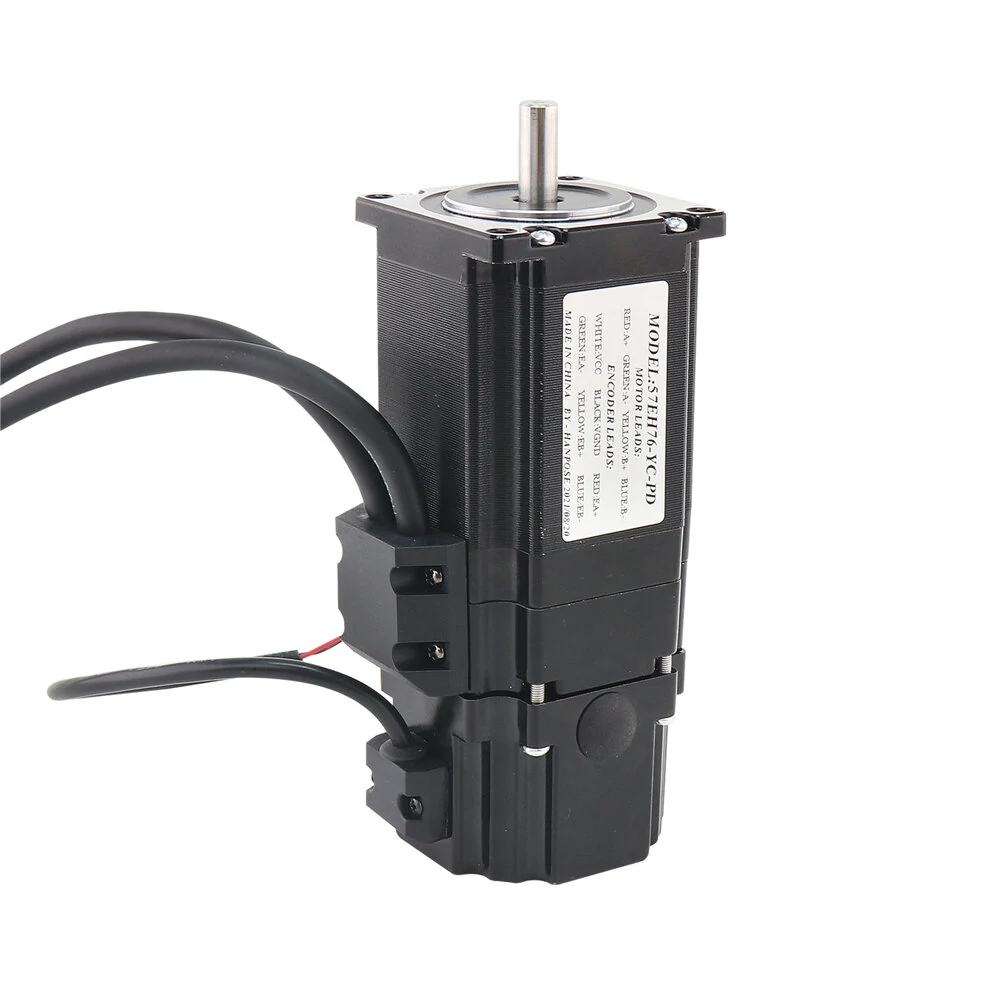

57EH76-YC-PD Closed-loop Stepper Motor | 4.0A 2.2N.m Nema23 with Driver & Brake
Product Description
Specifications:
Product Name: Stepping Motor Set

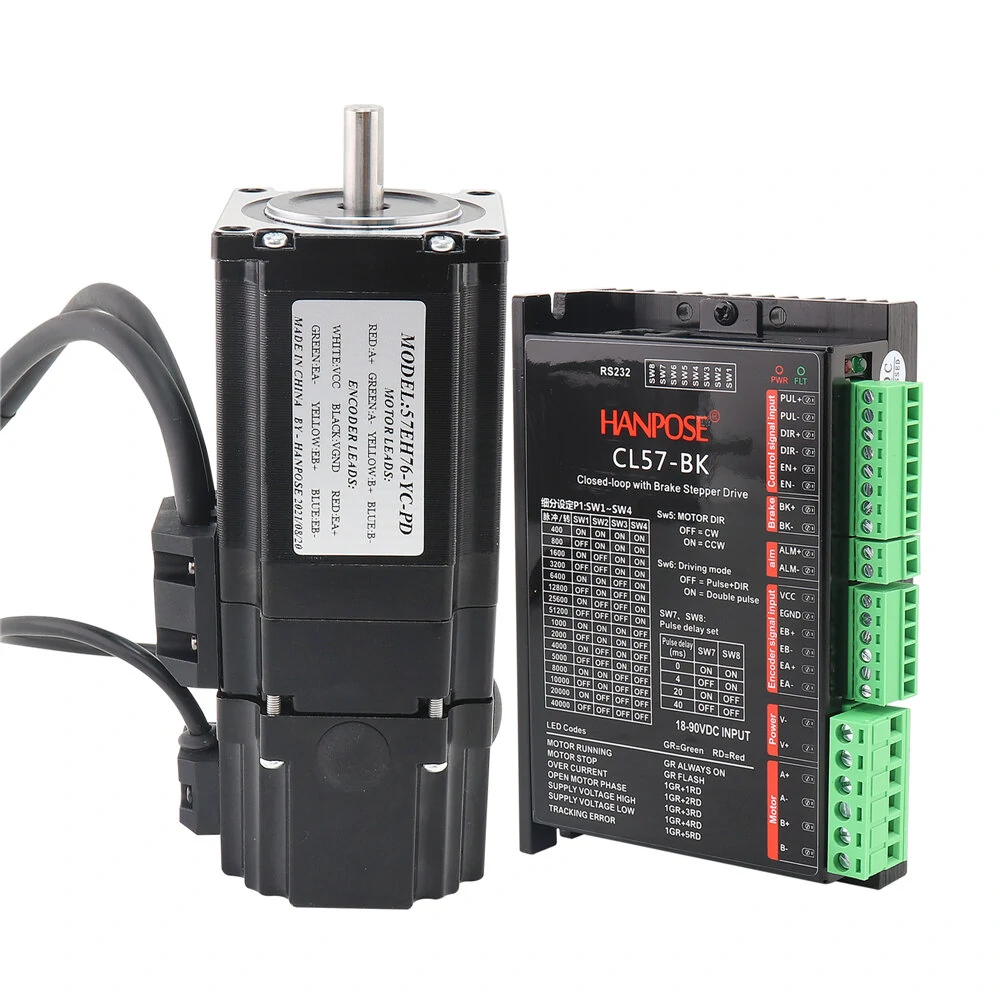

Model: 57EH76-YC-PD Motor, CL57-BK drive, 57EH76-YC-PD-CL57-BK motor set(optional)
| Drive mode | constant current drive |
| Drive voltage | 48V DC |
| Excitation method | 2 phase |
| Step angle error | 0.09mm |
| Step angle | 1.8?? |
| Radial runout max | 0.025mm |
| Rated voltage | 3.2V |
| Axial runout max | 0.075mm |
| Rated current | 2.8A |
| Insulation class | B |
| Rated resistance | 1.13?? ??10% |
| Insulation resistance | 100M?? @500VDC |
| Rated inductance | 3mH??20% |
| Operating temperature | -20??+50?? |
| Holding torque | 1.89Nm |
| Heat rise | 80K |
Features:
- High precision does not lose step
- Efficient and precise who smooth
- Terminal wiring terminal (simple wiring)
- Fully enclosed power off brake + closed loop stepper motor
- Low heat (at rest, the current is almost zero, no heat)
- Smoothness (Space vector current control algorithm and vector smooth filtering technology based on feedback encoder have a good resistance to the low-frequency resonance that troubles traditional stepper motors)
- High speed response (advanced servo control technology provides large torque output, making the system has and high dynamic response, stepping service speed can reach 600-2000RPM)

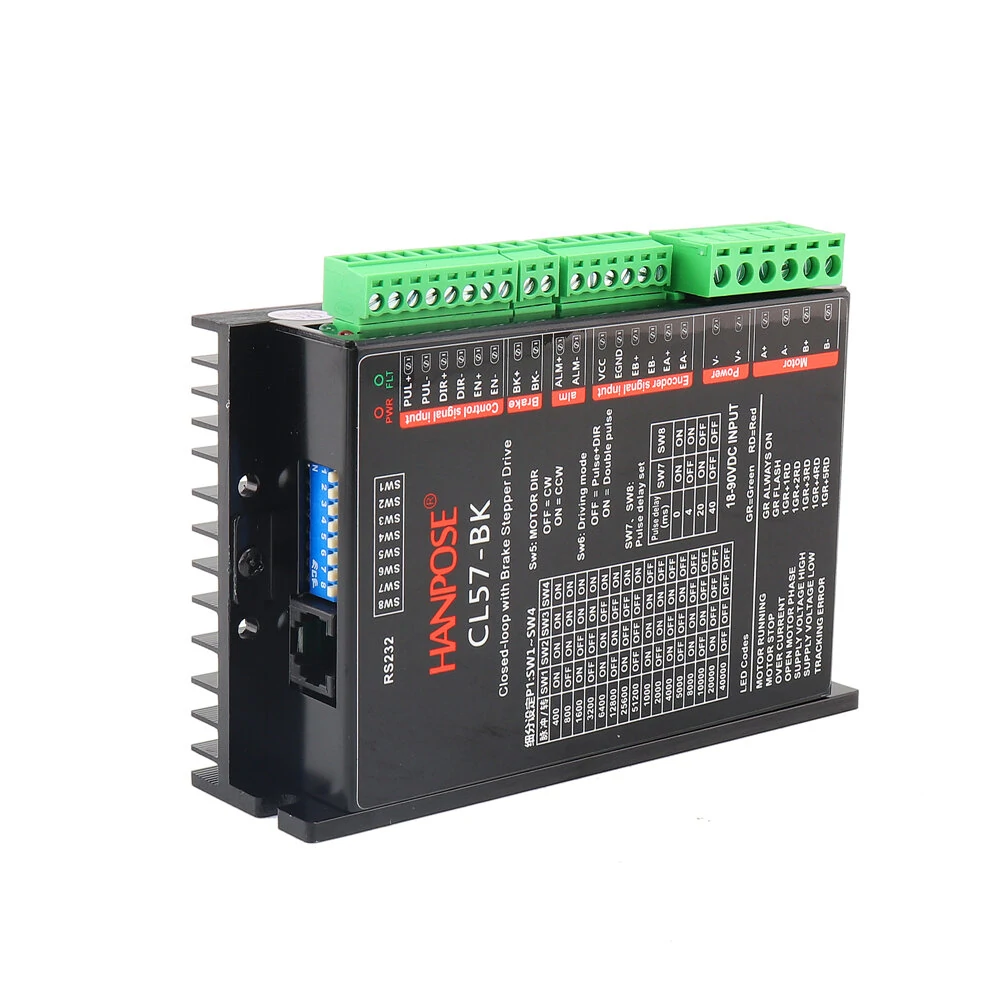

- New 32 bit DSP digital 57 closed loop stepper motor driver, engraving machine, CNC equipment available. PWM current control, very low noise, high speed torque is 40% larger than ordinary driver.
Package Included:
1 Pc x Motor/Driver/ Motor + Driver
More Details:
