Machifit DC 12V 30-400rpm Gear Motor | For Lifts & Robotic Arms | 13GA050
$8.00
$9.26
-14% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Descriptions:

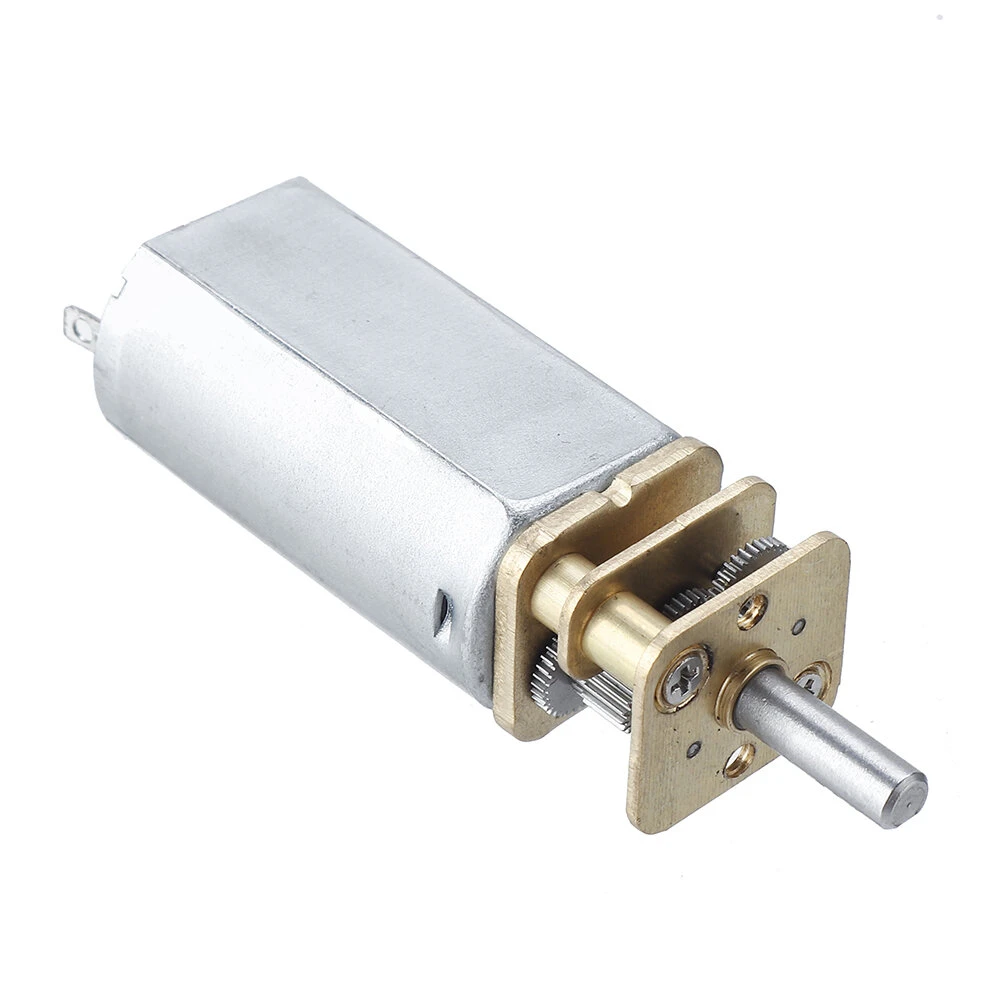

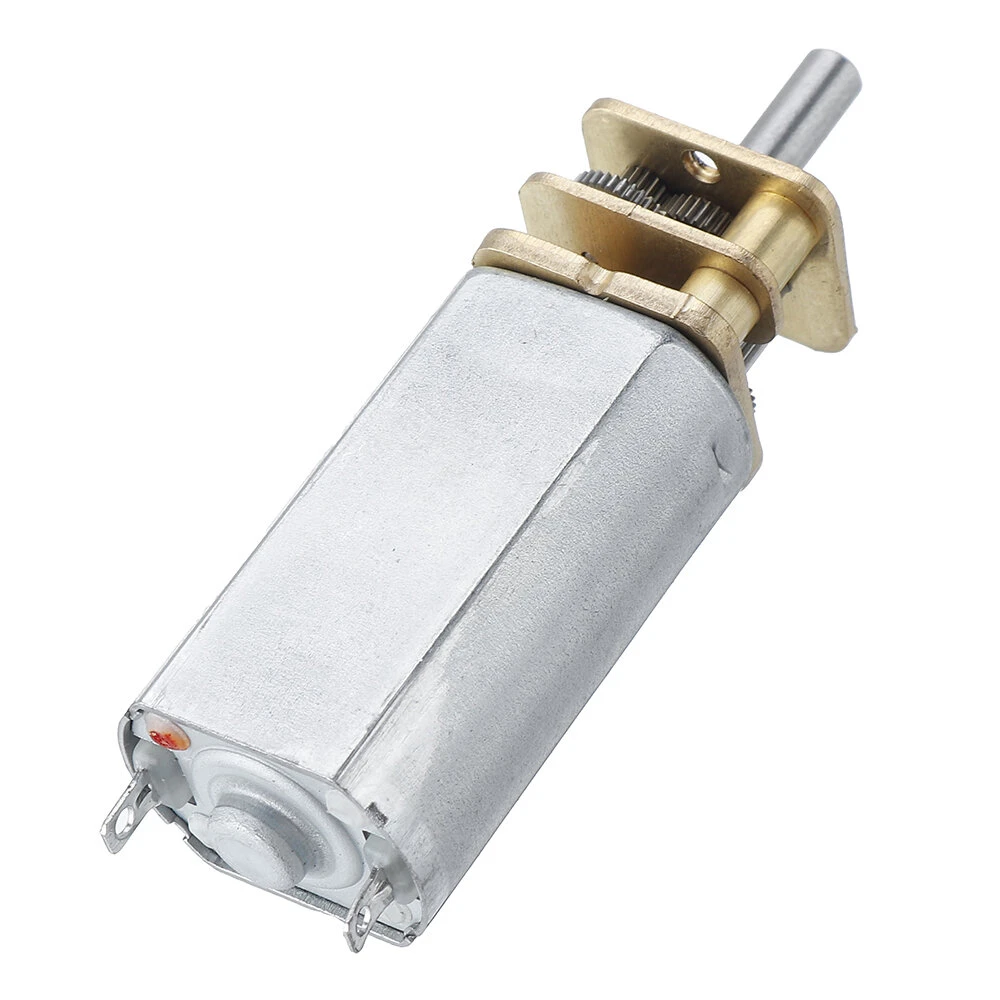

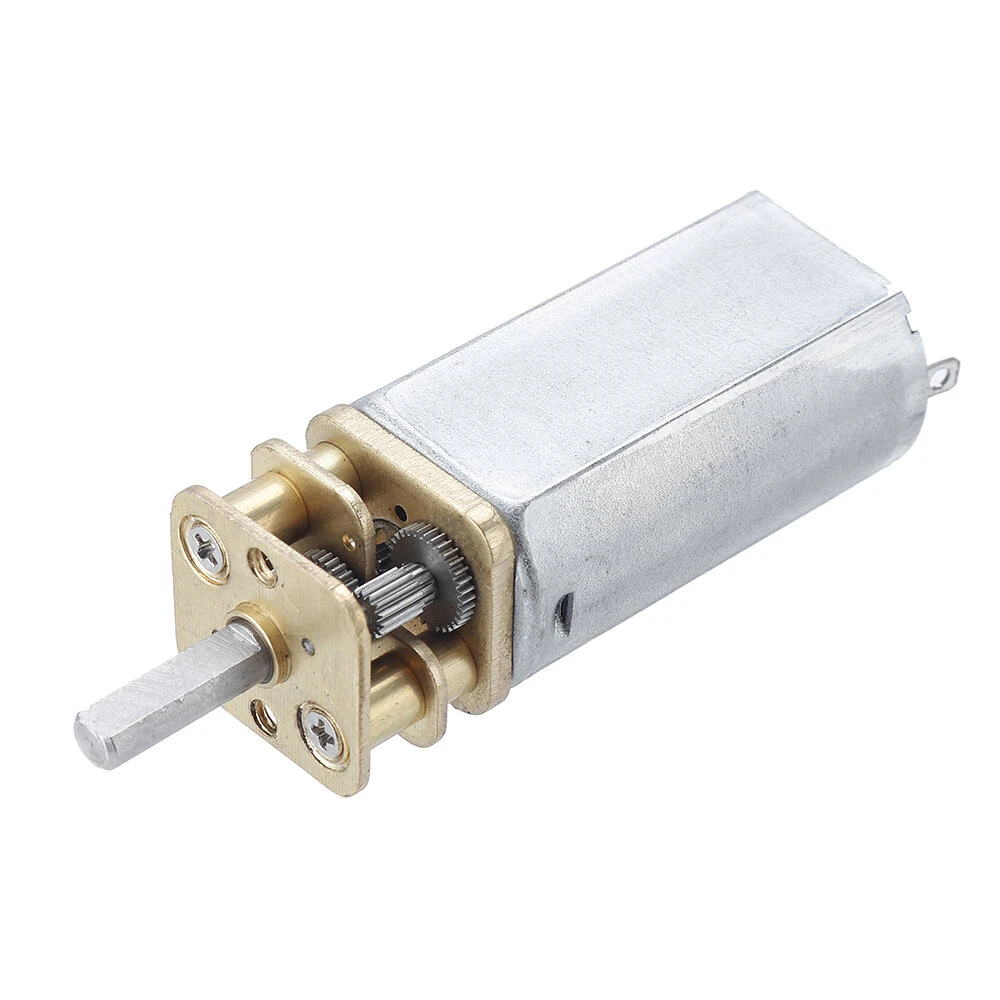

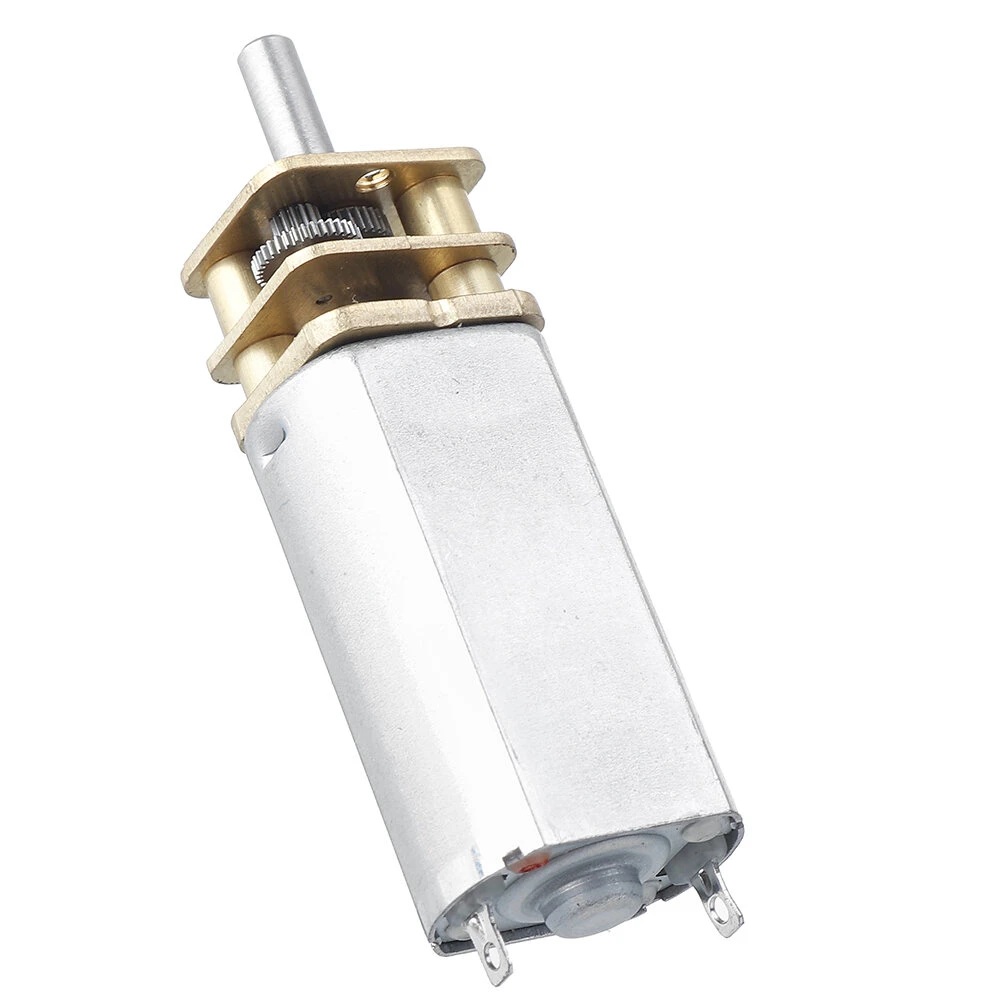

Machifit DC 12V 30-400rpm 13GA050 Reduction Gear Motor For Lifts Robotic Arms Robots Electronic Toys
Specifications:
Product Name | Reduction Gear Motor |
Model Number | 13GA050 |
Material | 304 Stainless Steel |
Color | Silver |
Rated Voltage | DC 12V |
Size | 13??12??37 mm |
Weight | 42g |
| Total Length | 48mm |
| Body Length | 37mm |
| Shaft Length | 10mm |
| Shaft Diameter | 2.5mm |
Quantity | 1 Pc ?? Reduction Gear Motor |
| Voltage | Gear Tatio | No Land Speed | No Land Current | Load Torque Speed | Load Torque Current | Load Torque Torque | Stall Current | Stall Torque |
| 12V | 1??330 | 30RPM | ??50MA | 27RPM | ??70MA | 560g.cm | ??1.1A | 7.4KG.CM |
| 12V | 1??150 | 60RPM | ??70MA | 56RPM | ??100MA | 480g.cm | ??1.1A | 6.4KG.CM |
| 12V | 1??100 | 100RPM | ??50MA | 83RPM | ??85MA | 340g.cm | ??1.1A | 5.0KG.CM |
| 12V | 1??62.5 | 200RPM | ??80MA | 165RPM | ??105MA | 240g.cm | ??1.1A | 4.45KG.CM |
| 12V | 1??50 | 400RPM | ??90MA | 345RPM | ??145MA | 180g.cm | ??1.1A | 3.85KG.CM |
Features:
-Suitable for electronic door locks, banks and their, medical equipment, robot transmission, security monitoring, etc.
-High-precision machining and forming steel gears.
-Tiny modulus, ultra-low noise, ultra-large torque, ultra-long life.
-Smooth operation and high work efficiency.
Package Included:
| 1 Pc ?? | Reduction Gear Motor |
