Machifit 24V DC Gear Motor with Encoder | 25GA370 Micro Reduction Motor & Speed Dial

Product Description

Descriptions:

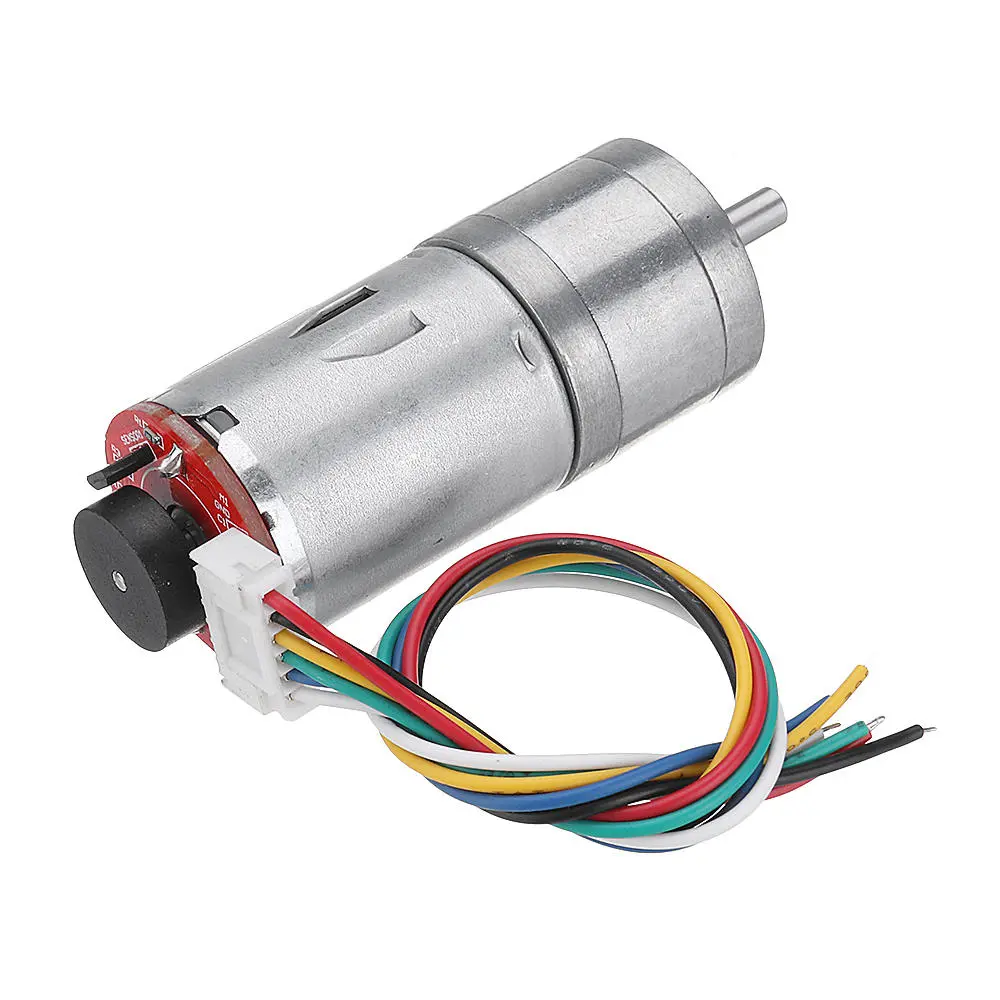

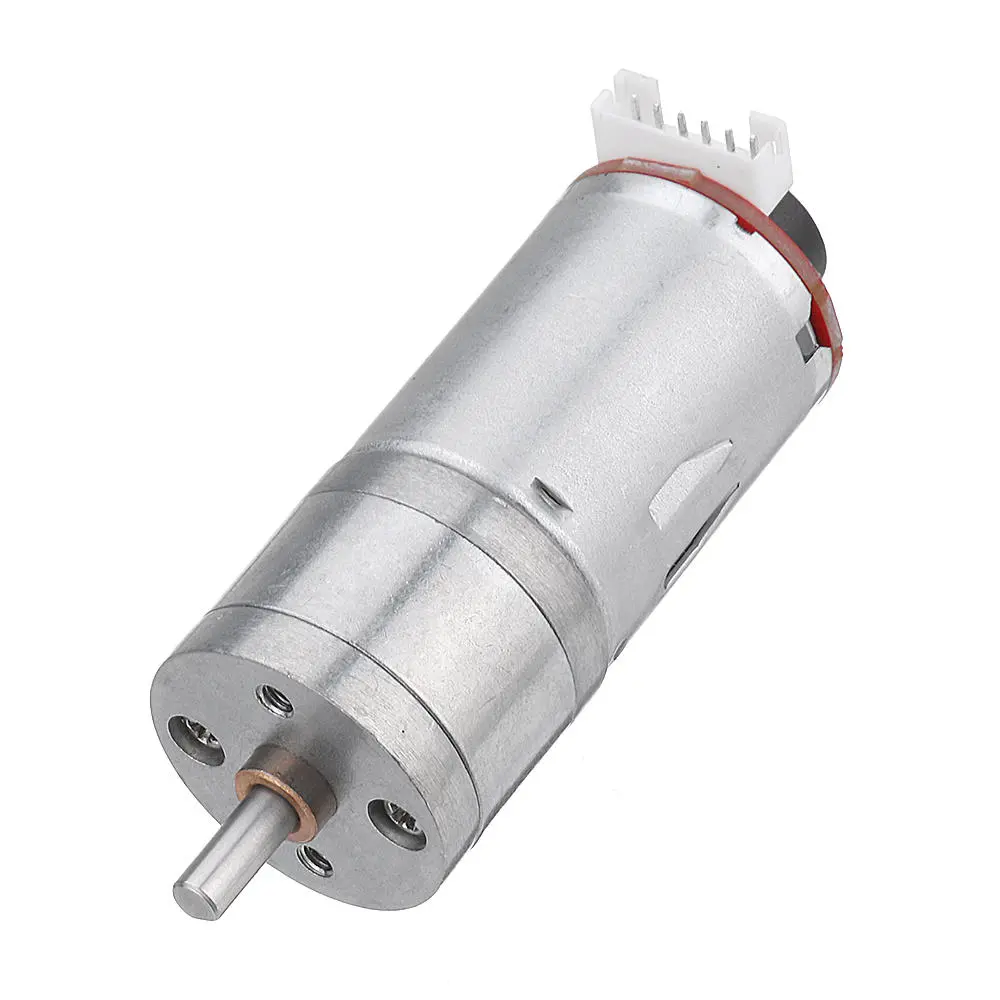

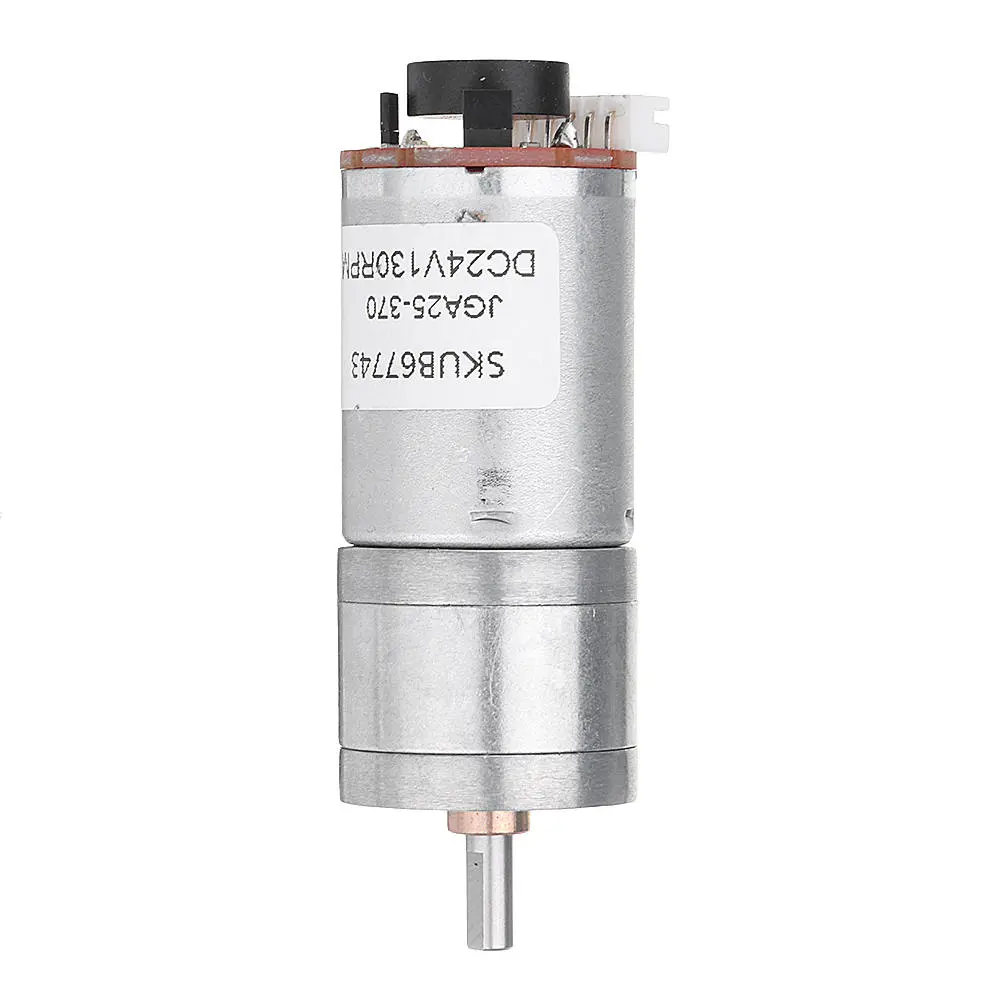

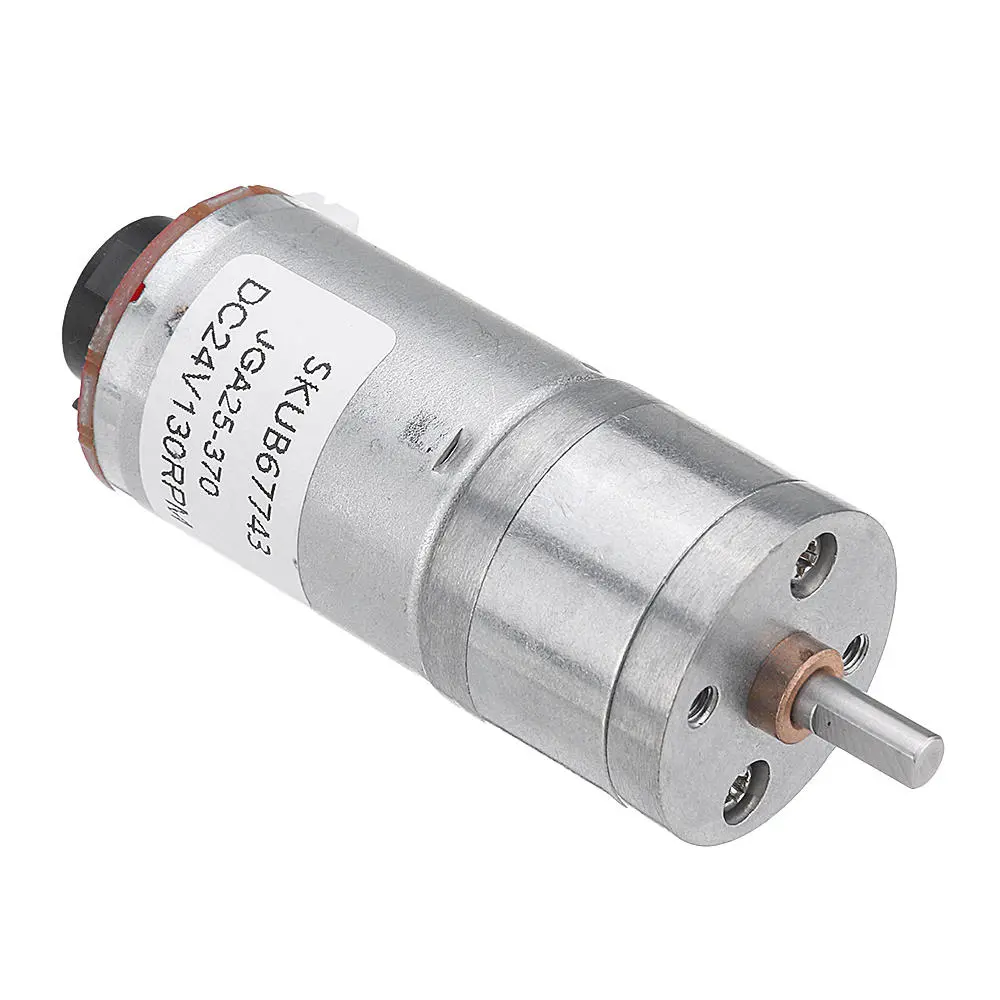

Machifit 25GA370 DC 24V micro gear reduction motor with encoder speed dial reducer
Specifications: Brand: Machifit Material: Metal Voltage: DC 24V
Power: 3W Speed Regulation: Yes
Rotate In Both Two Sides: Yes
Size(approach):
Output Shaft Dia.: 4mm
Line Length: 142mm
Axis Length: 12mm
Axle Shaft Length: 9.8mm
Applications: For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances,
robots, camera rocker electric paper-cutting paper machines, etc.
Wiring: Red: Motor power + positive (change can control motor forward and reverse) Black: Code power - negative (positive and negative can not be connected incorrectly 3.3-5V) Yellow: Signal feedback (11 signals from the motor) Green: Signal feedback (11 signals from the motor) Blue: Encoder power + positive (positive and negative can not be connected incorrectly 3.3-5V) White: Motor power - negative (change can control motor forward and reverse)
Parameter:

Voltage	RATIO	No-load		Rated-load			Stall
		Current (A)	Speed(rpm) ??10%rpm	Torque (kg.cm)	Speed(rpm) ??10%rpm	Current (A)	Torque (kg.cm)	Current (A)	Weight	L Size
DC 24.0V	1:12	0.04	12	9.7	9	0.16	??	??	91	27
DC 24.0V	1:35	0.04	35	3.3	27	0.16	??	??	89	25
DC 24.0V	1:60	0.04	60	2	46	0.16	7.3	0.6	90	23
DC 24.0V	1:130	0.04	130	0.9	100	0.16	4.4	0.6	88	21
DC 24.0V	1:620	0.04	620	0.2	477	0.16	0.9	0.6	83	17.5

Features:
- All the gear of metal mechanism Wear resistance, strong resistance to torsion, smooth transmission, compact structure. - D-shaped double axis D-shaped double shaft, excellent thermal conductivity. - Hall D-type encoder, 3-layer high-density molecular coating effectively isolates dust and has 10 times the life expectancy of ordinary layers. - Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.
Package Included:
1 Pcs x 24V Micro Reduction Gear Motor
