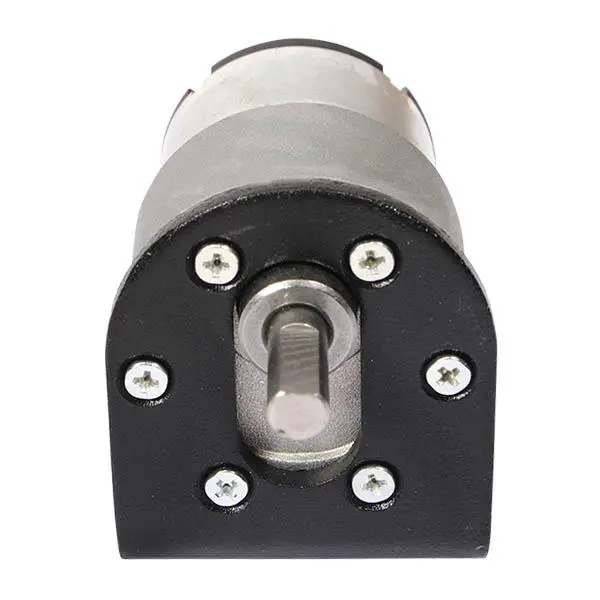

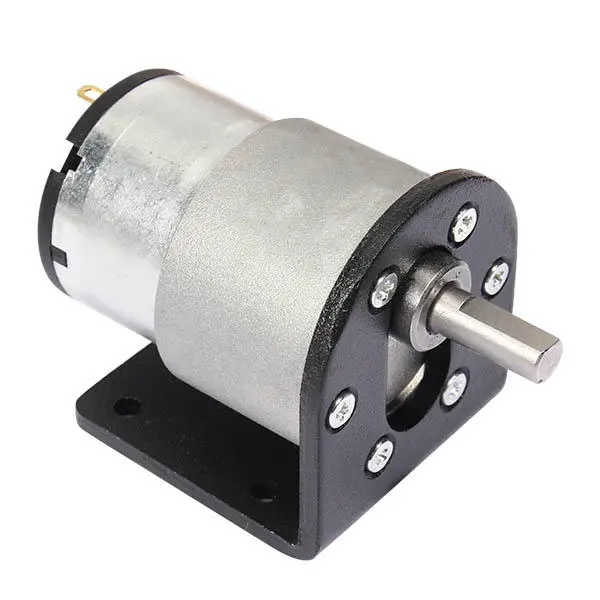

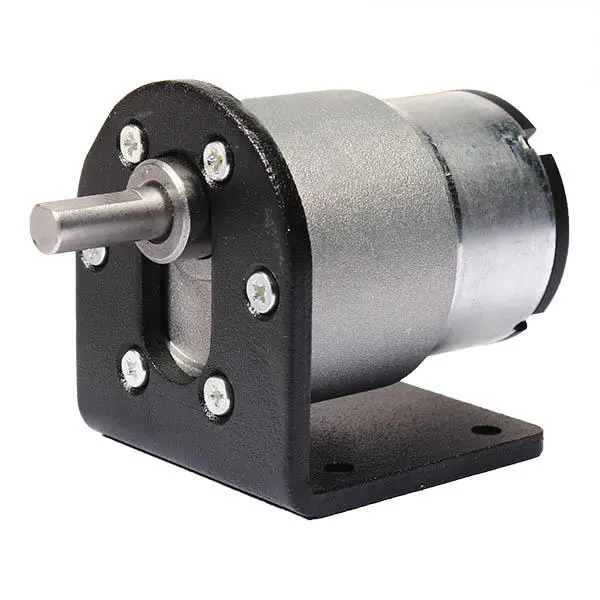

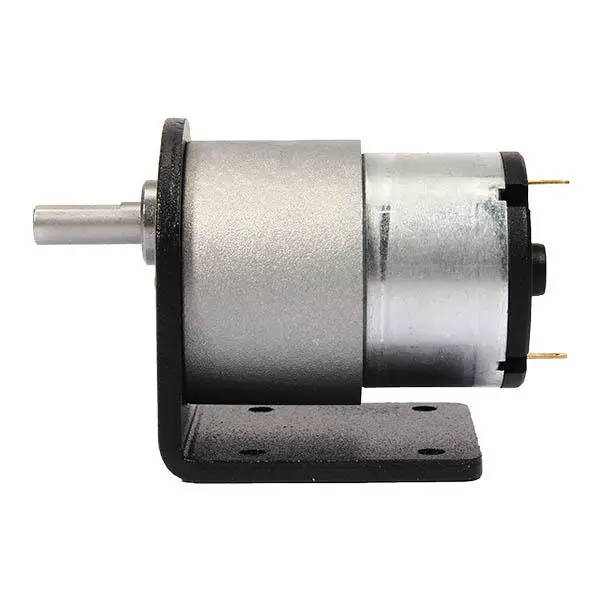

DC12.0V 85rpm Mini Gear Motor - 12V Electric Gear Box Motor
$18.00
$22.38
-20% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:DC12.0V 85rpm Mini Gear Motor Electric Gear Box Motor
Specification:
Material: Iron+ steel+ nylon
Voltage: 12.0V
No-load Speed: 85rpm
1. Standard Operating Conditions
| Item | Specification | Test Method |
| Rated Voltage | DC 12.0V | Multimeter |
| Gear Ratio | 1/86 | |
| Rotation | CW | Handle |
| Motor Position | All position in horizontal | Handle |
| Temperature | 0 - 30 Degree Celsius | Thermometer |
| Humidity | 30% - 95% | Hygroscope |
2. Performacnce of Motor
| Item | Specification | Test Method |
| No-load Speed | 7500 +/- 10%rpm | Flash Speed Indicator |
| No-load Current | 55mA (Max) | DC Power Supply |
| Stall Current | 1500mA (Max) | DC Power Supply |
| Stall Torque | 190g.cm | Torque Measure |
3. Performance of Gear Motor
| tem | Specification | Test Method |
| Output Speed | 85 +/- 10%rpm | Flash Speed Indicator |
| No-load Current | 100mA (Max) | DC Power Supply |
| Stall Current | 1500mA (Max) | DC Power Supply |
| Stall Torque | 14kg.cm | Torque Measure |
| Rated Torque | 2500g.cm | Torque Measure |
| Rated Current | 300mA (Max) | DC Power Supply |
| Rated Speed | 72+/- 10%rpm | Flash Speed Indicator |
| Noise | 52dB | Digital Sound Levd Meter |
4. Dimension
| tem | Specification | Test Method |
| The outside Shaft Length | 21mm | Vernier Calipers |
| Shaft End Play | 0.05 - 0.50mm | Frock |
| Screw Size | M3.0 (Allow the depth 3mm) | Frock |
| Diameter of Shaft | 6 x 12mm | Vernier Calipers |
| Outline Mounting Dimension | Refer to the outline Drawing | Callipe |
5. Product Drawing
Bracket Drawing
Curve Drawing
Package Included:
1 x Gear Motor
1 x Bracket
More Details:
