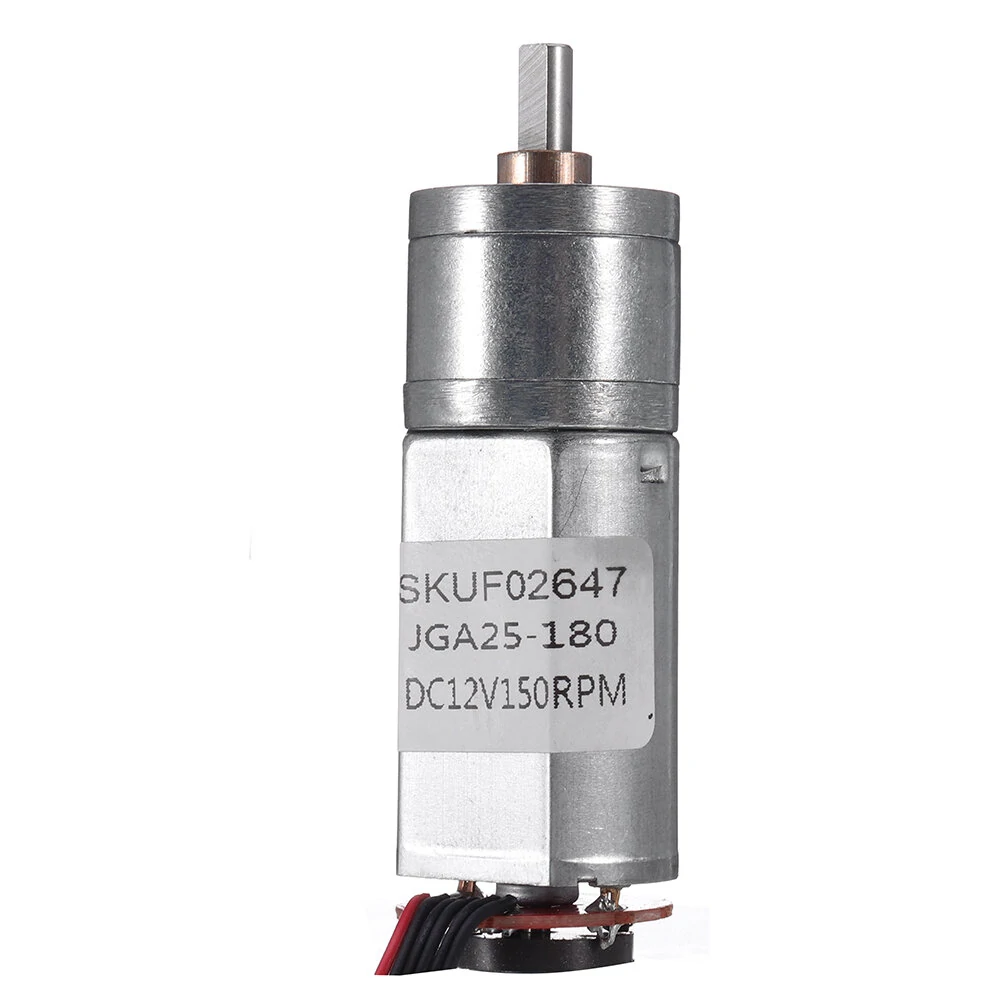

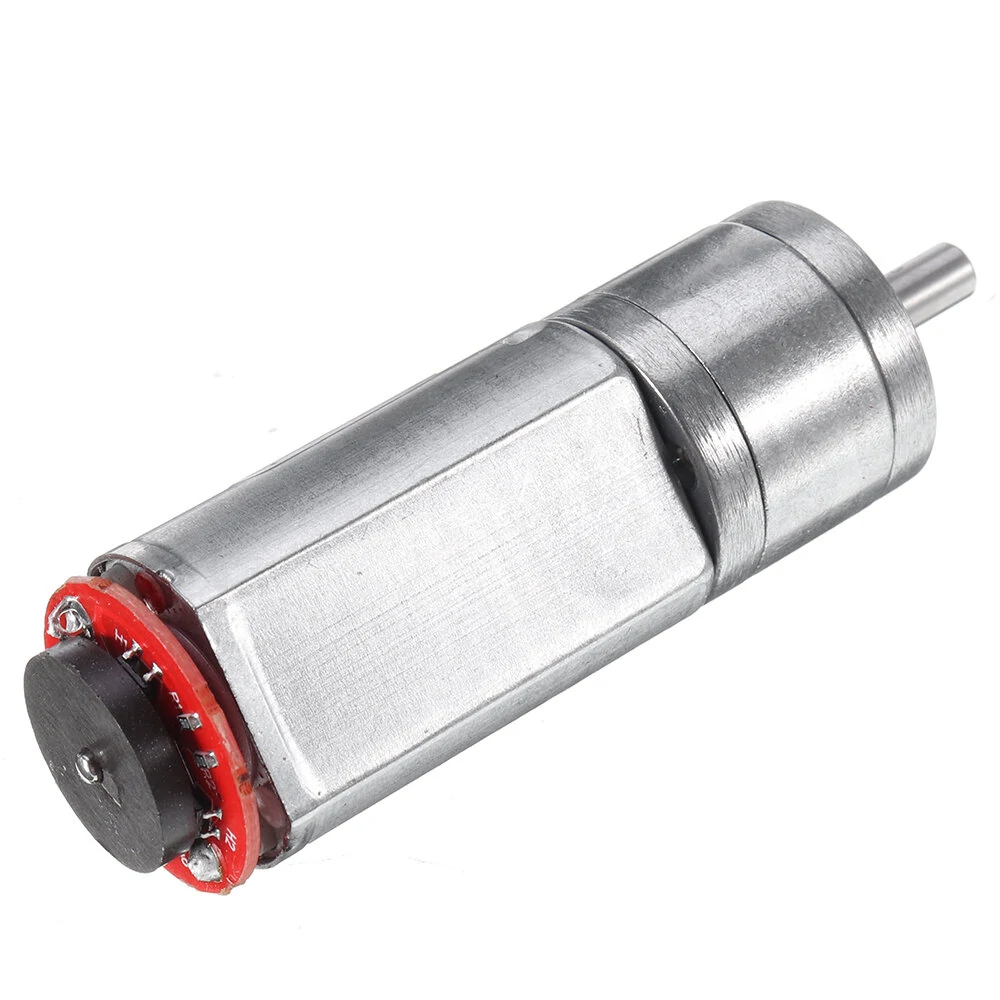

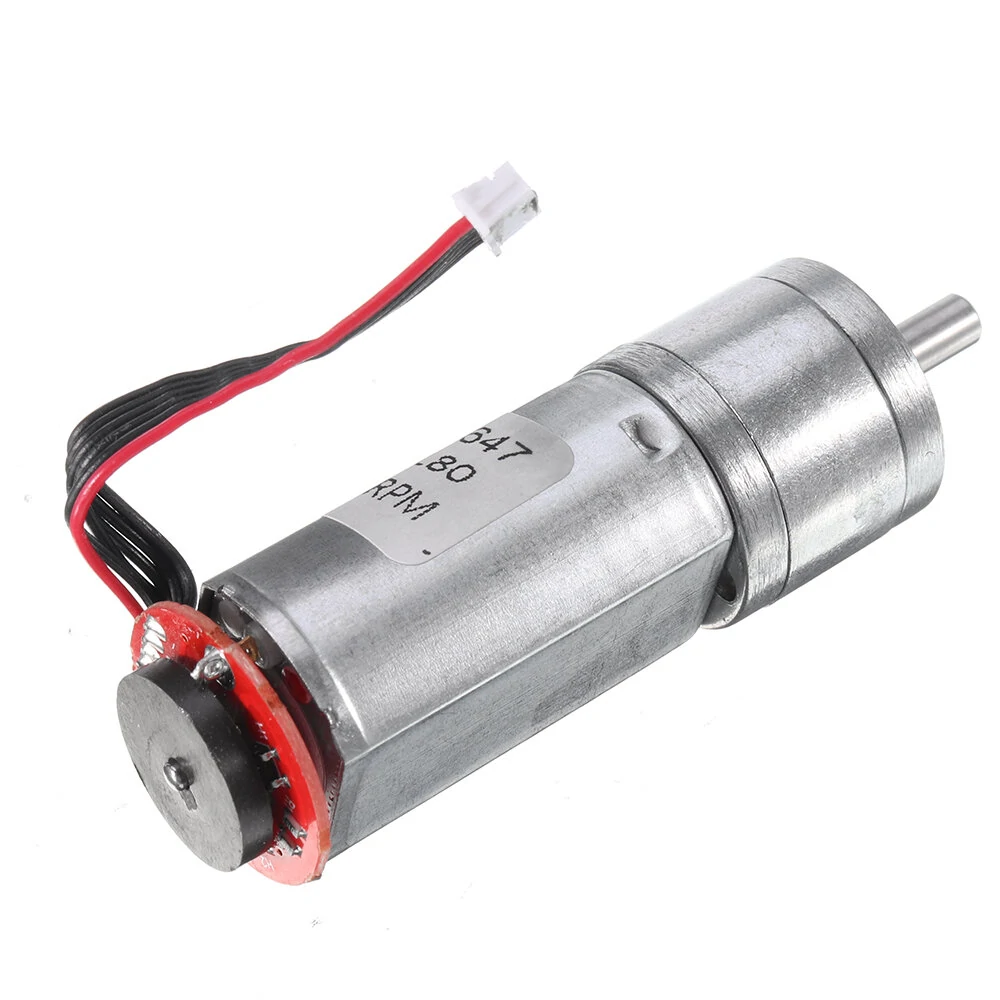

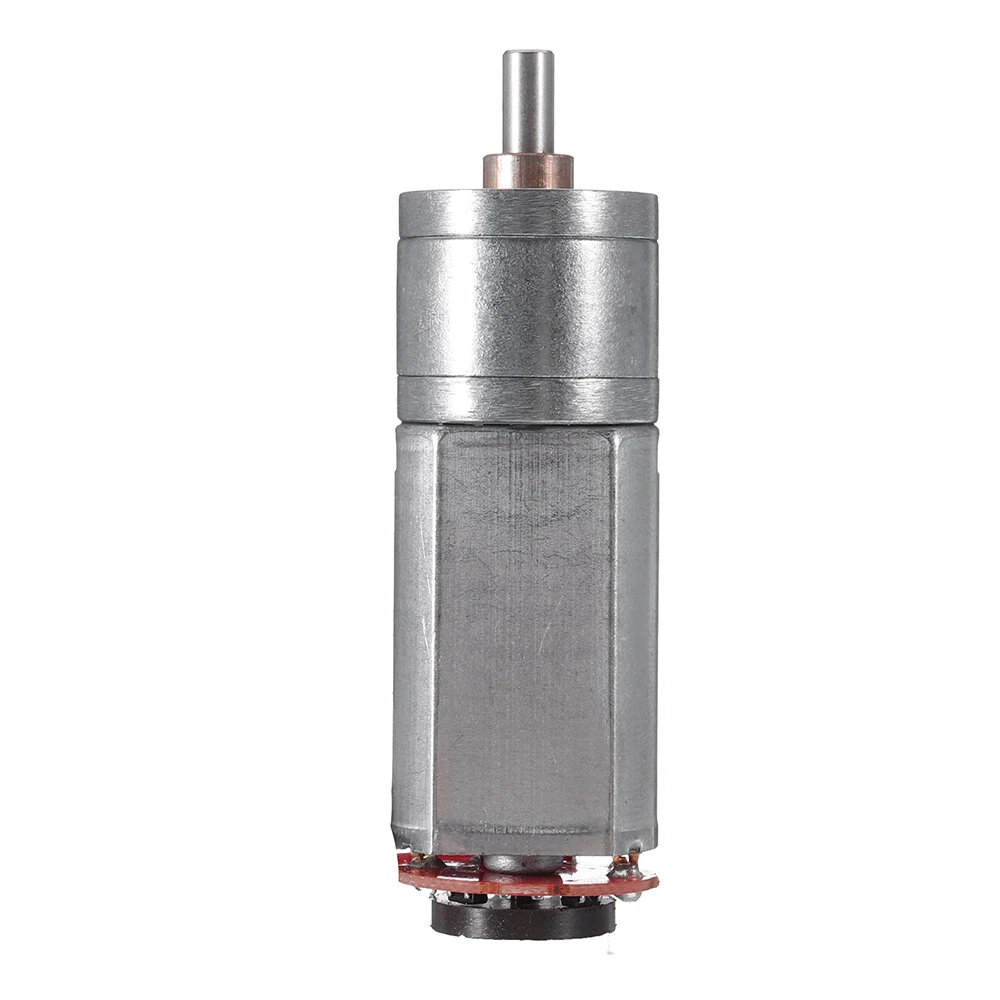

DC 12V 150RPM Gear Reduction Motor with Encoder & Speed Dial - 20GA180

Product Description

Descriptions:
Machifit 20GA180 DC 12V micro gear reduction motor with encoder speed dial reducer
Specifications:Brand: MachifitMaterial: MetalVoltage: DC 6V
Power: 3WSize(approach):
Output Shaft Dia.: 4mm
Line Length: 142mm
Axis Length: 12mm
Axle Shaft Length: 9.8mm
Applications: For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances,
robots, camera rocker electric paper-cutting paper machines, etc.

Wiring:Red: Motor power + positive (change can control motor forward and reverse)Black: Code power - negative (positive and negative can not be connected incorrectly 3.3-5V)Yellow: Signal feedback (11 signals from the motor)Green: Signal feedback (11 signals from the motor)Blue: Encoder power + positive (positive and negative can not be connected incorrectly 3.3-5V)White: Motor power - negative (change can control motor forward and reverse)

Parameter:

Voltage	RATIO	No-load		Rated-load			Stall
		Current (A)	Speed(rpm) ??10%rpm	Torque (kg.cm)	Speed(rpm) ??10%rpm	Current (A)	Torque (kg.cm)	Current (A)	Weight	L Size
DC 12.0V	1:130	0.1	130	0.8	100	0.5	4.4	2.6	88	21

Features:
- All the gear of metal mechanismWear resistance, strong resistance to torsion, smooth transmission, compact structure.- D-shaped double axisD-shaped double shaft, excellent thermal conductivity.- Hall D-type encoder, 3-layer high-density molecular coating effectively isolates dust and has 10 times the life expectancy of ordinary layers.- Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.
Package Included:
1 Pcs x 12V Reduction Gear Motor

More Details:
