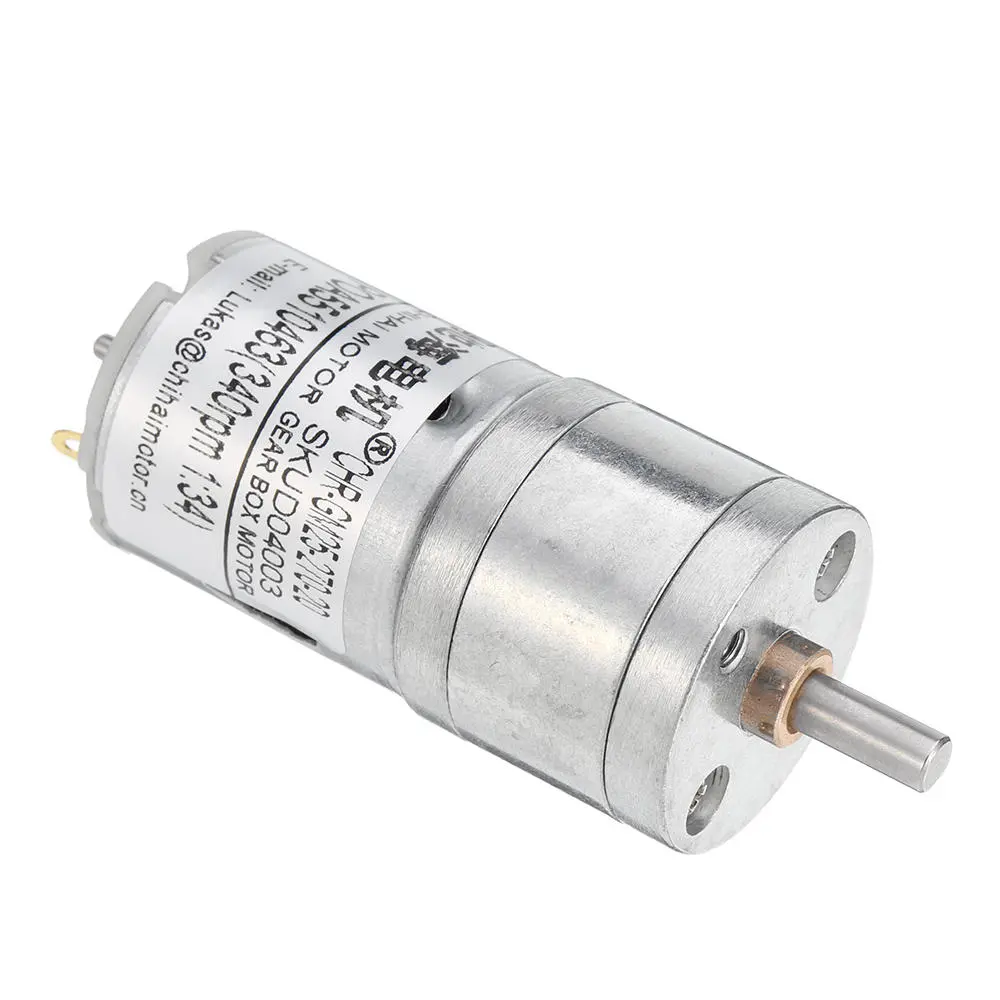

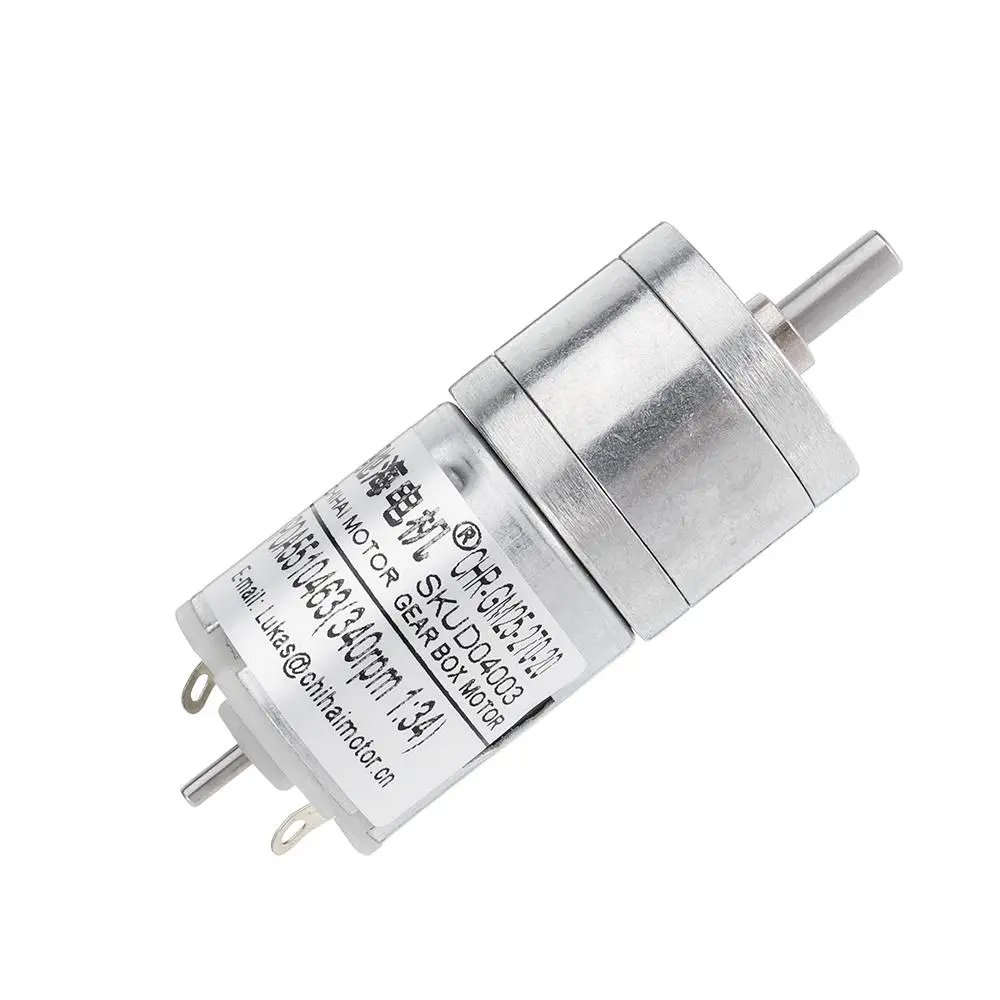

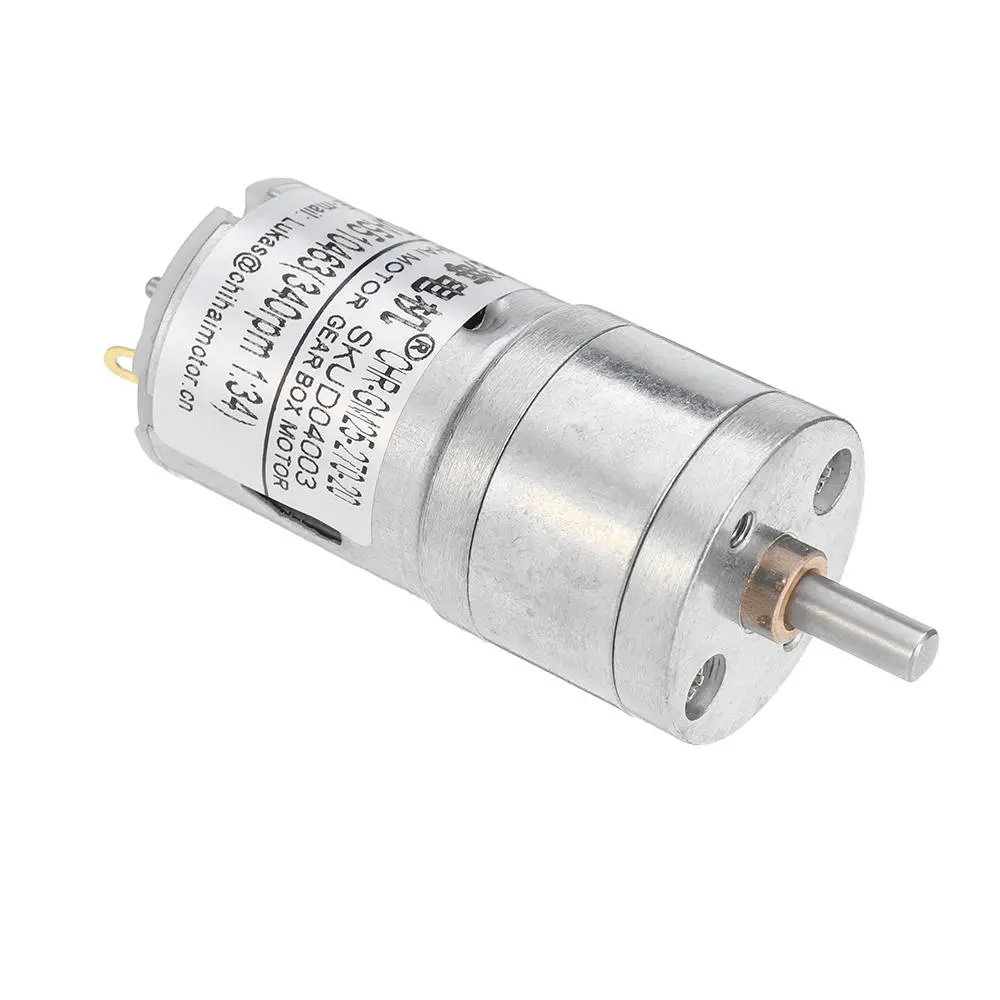

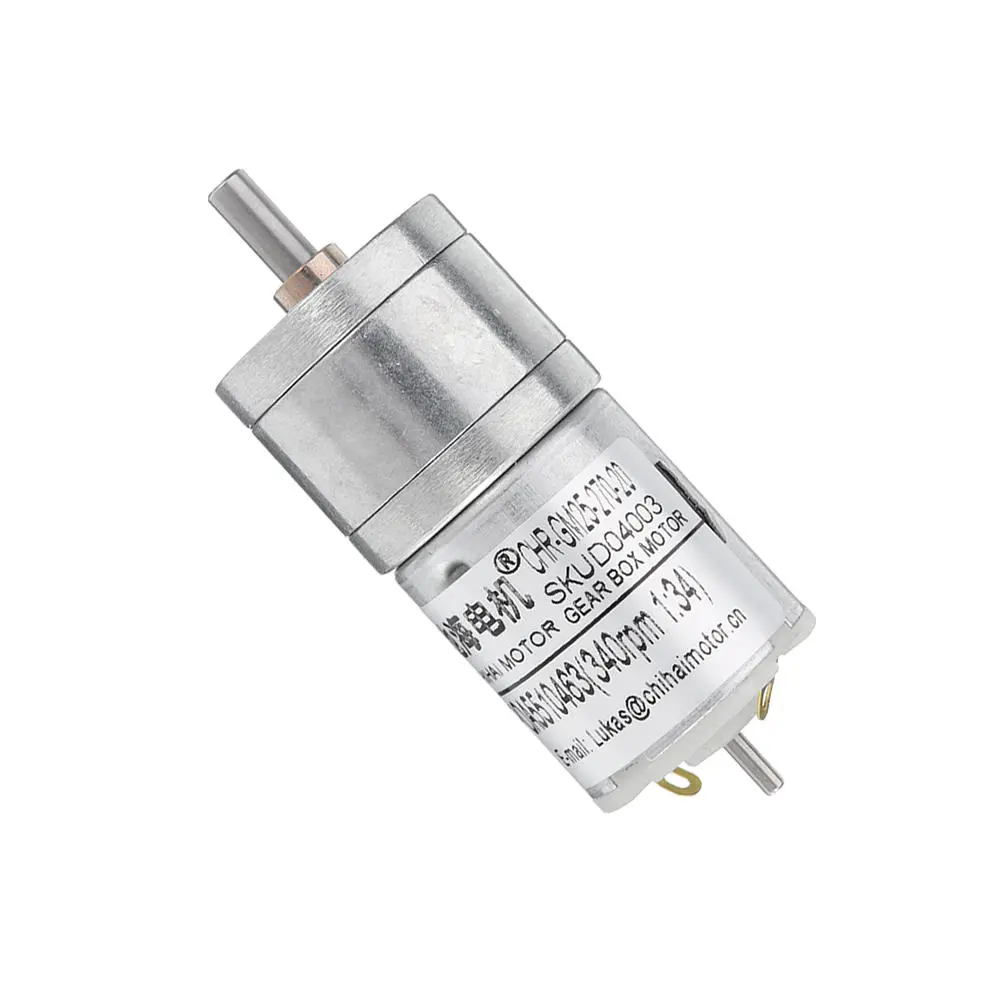

Chihai DC 7.4V Geared Motor - 340rpm or 550rpm Reduction Motor

Product Description

Description:
Chihai DC 7.4V 340rpm 550rpm Reduction Motor DC Geared Motor
Specification:
Model: CHR-GM25-270-20
Weight: 67g
Quantity: 1pcs

Type	A	B
Voltage	DC 7.4V	DC 7.4V
No-load speed	340rpm??10%	550rpm??10%
No-load current	??150mA	??150mA
Rated load	0.7kg.cm	0.5kg.cm
Rated speed	2300rpm??10%	3800rpm??10%
Rated current	0.9A max	0.9A max
Rated power	2.0W	2.0W
Stall torque	??2.4kg.cm	??1.6kg.cm
Stall current	??2.5A	??2.5A
Ratio	1:34	1:20

Features:
Metal gear reduction mechanism, strong magnetic torque. High strength, high efficiency, and low thrust conversion loss. Small resistance and strong conductivity.
Package Included:
1 x Reduction Motor
More Details:
