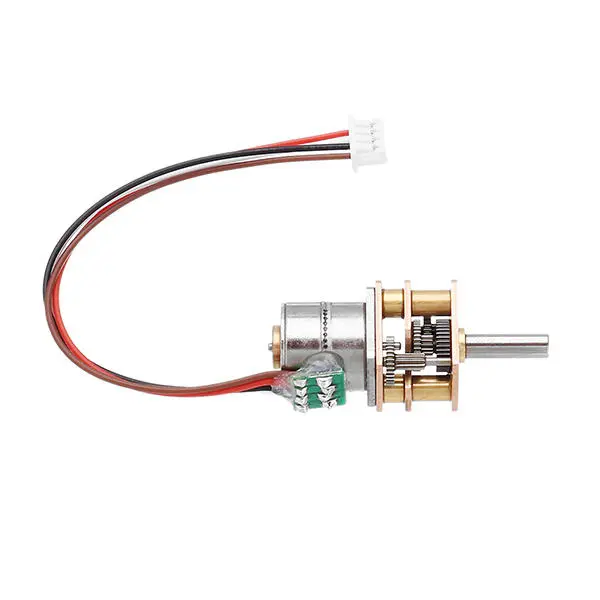

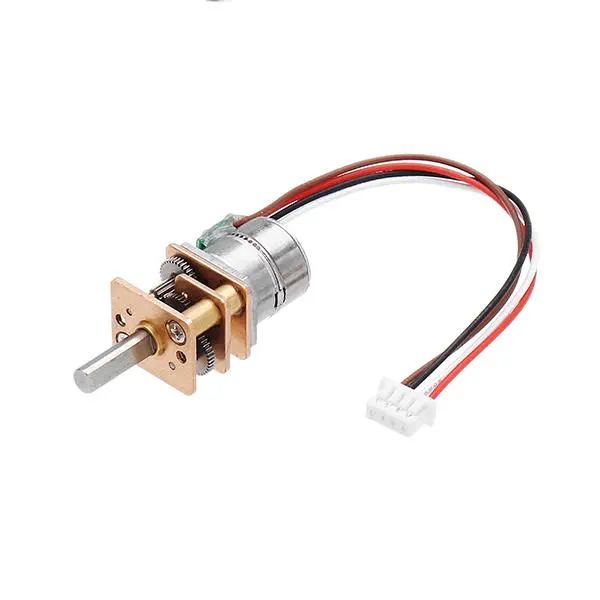

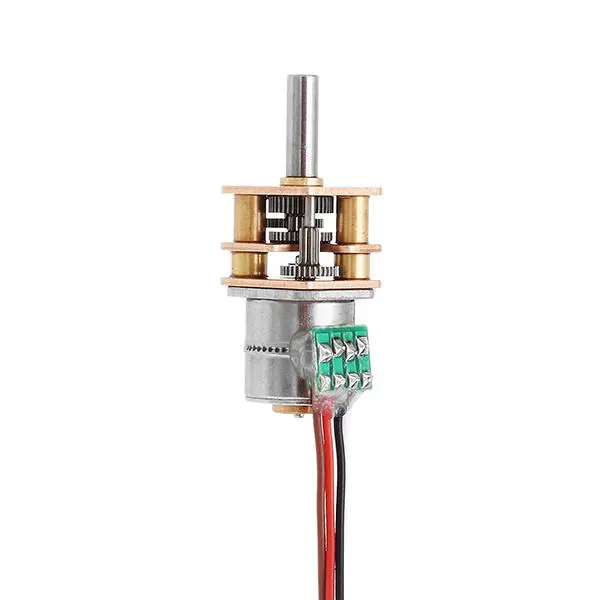

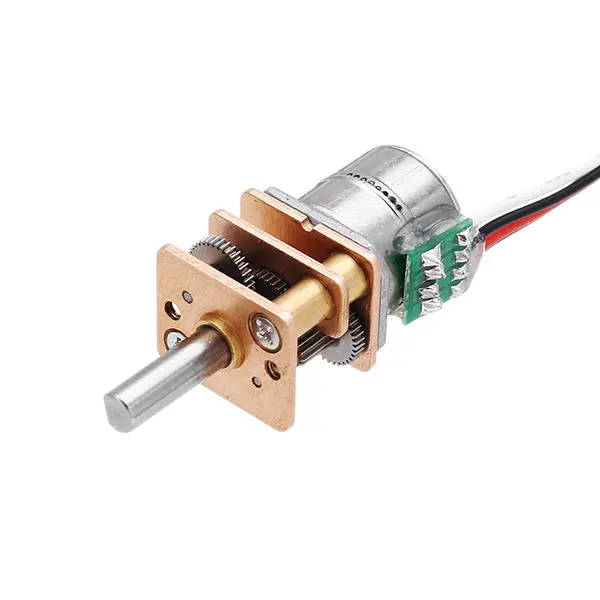

Chihai DC 5V Brushless Gear Reduction Motor - Electric Stepper Motor
$19.00
$23.98
-21% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:Chihai Motor DC 5V Electric Brushless Gear Reduction Motor Stepper Motor
Specification:
| Model | CHS-GM12-10BY |
| Voltage | DC 5V |
| Reduction ratio | 1:100 |
| Phase | 2 phase 4 wire |
| Step angle | 0.18?? |
| Phase current | 128mA/phase |
| Phase resistance | 39??7%ohm/phase |
| Phase inductance | 14.3mH/phase |
| Holding torque(kgf.cm) | 1.20 |
| Pull out torque | 0.30 |
| Max starting frequency | More than 1200pps |
| Response frequency | More than 900pps |
Features:
2 phase 4 wire motor. Durable and long service life.
Package Included:
1 X Gear Reduction Motor
