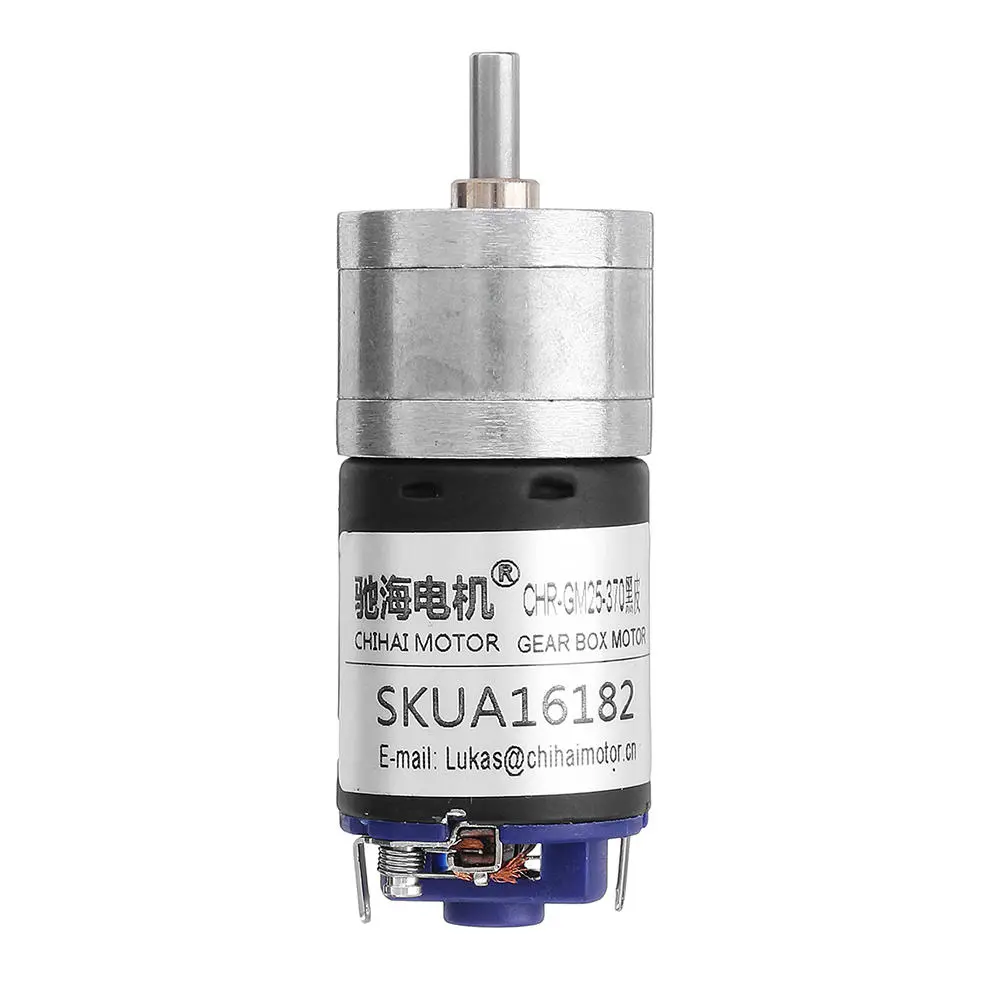

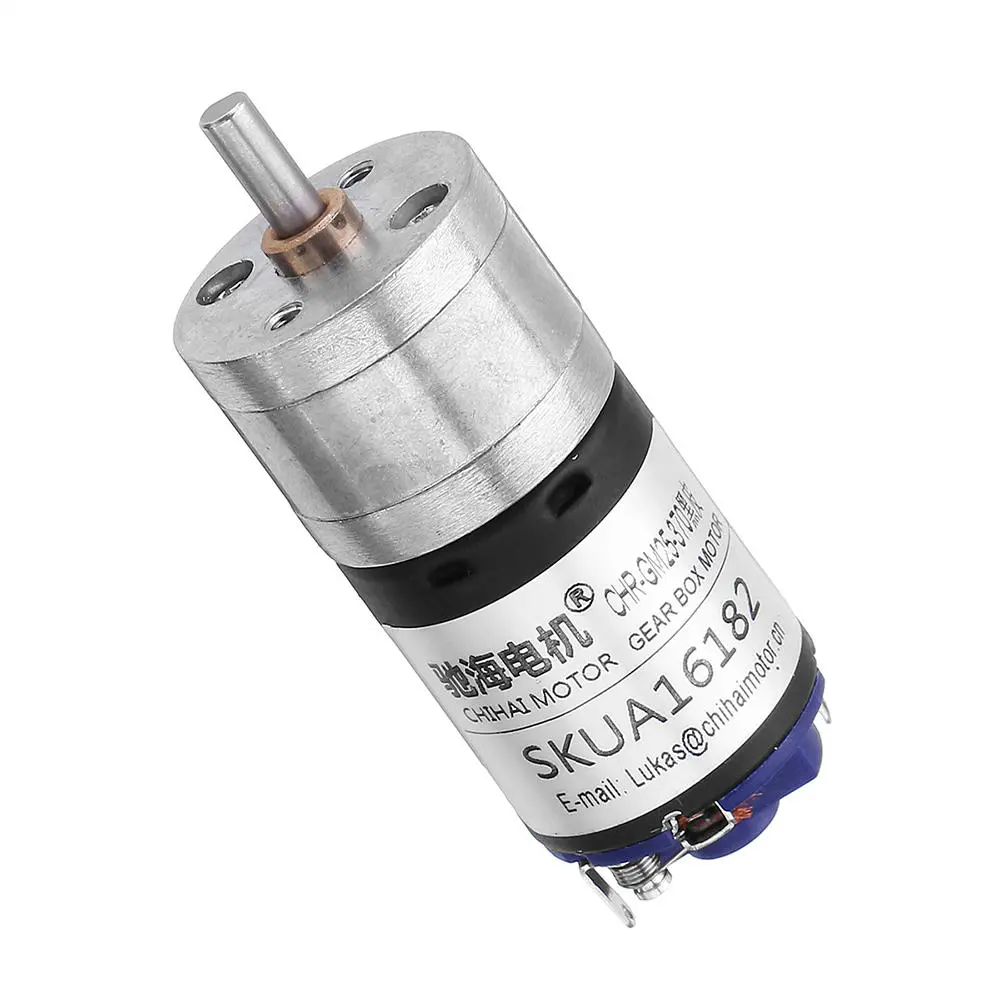

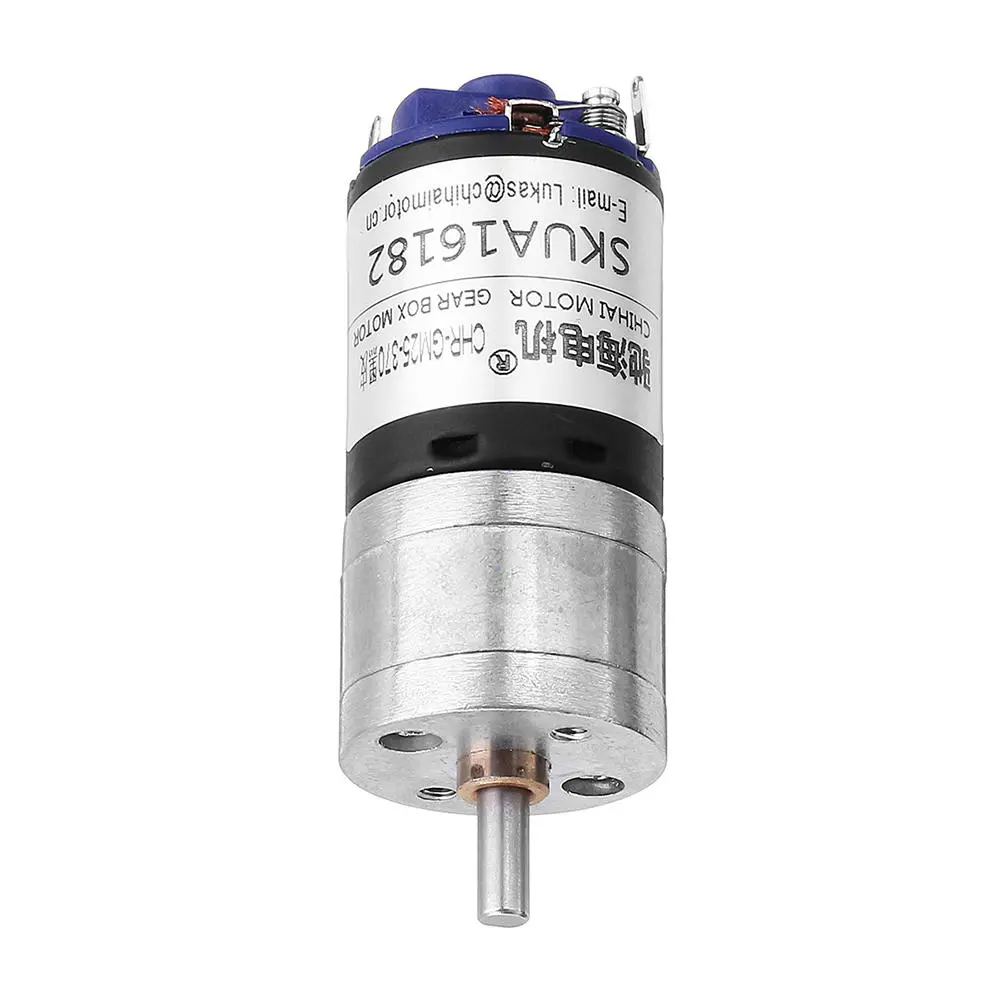

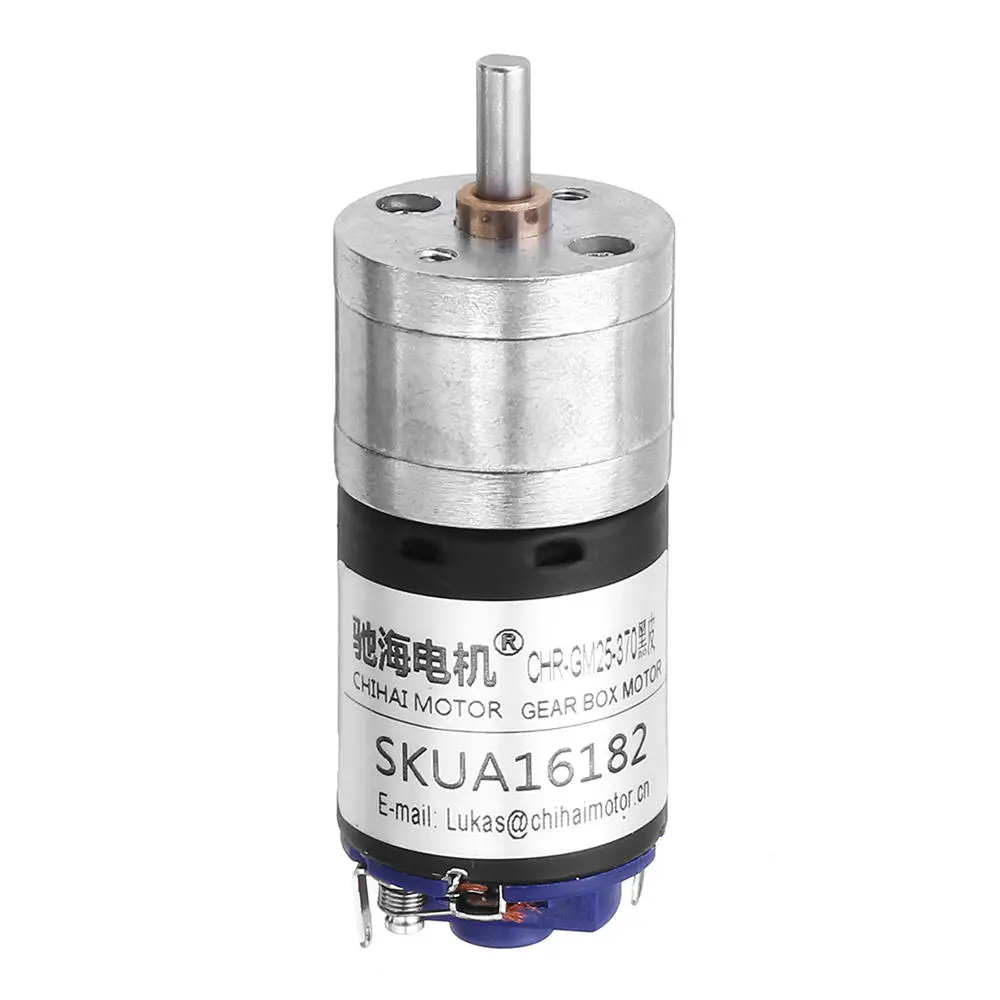

CHIHAI CHR-GM25-BK370 DC Gear Motor - 12V 2000RPM High Speed Strong Magnetic

Product Description

Description:
CHIHAI GM25-BK370 12V 2000rpm DC motor, high speed strong magnetic reduction motor.
Specification:

Type	CHR-GM25-BK370
Shaft diameter	4mm, D type
Voltage max	DC 1.5-12V
Working voltage	12V
Power max	26W
Reduction ratio	1:10
No load speed	2000RPM
No-load current	??600A
Rated torque	1.1kg.cm(0.10N.m)
Rated torque max	8.0kg.cm(0.8N.m)
Rated speed	1580RPM
Rated current	??2.7A
Plug the plug to turn the current	??16.0A
Speed reducer length	19.0L
Application	Office equipment, robot, camera rocker arm, home appliances.

Features:
1. Pure copper wire winding: the rotor part adopts pure copper group with small resistance and strong conductivity,
which increases the motor torque.
2. D type shaft : D type outlet shaft is more convenient for installation and is not easy to slip, saving installation time.
3. Extended carbon brush: tool type extended carbon brush, replaceable.
4. Long life, high torque, adjustable, low noise, positive and negative turn, stable.
Package Included:
1 X DC motor
