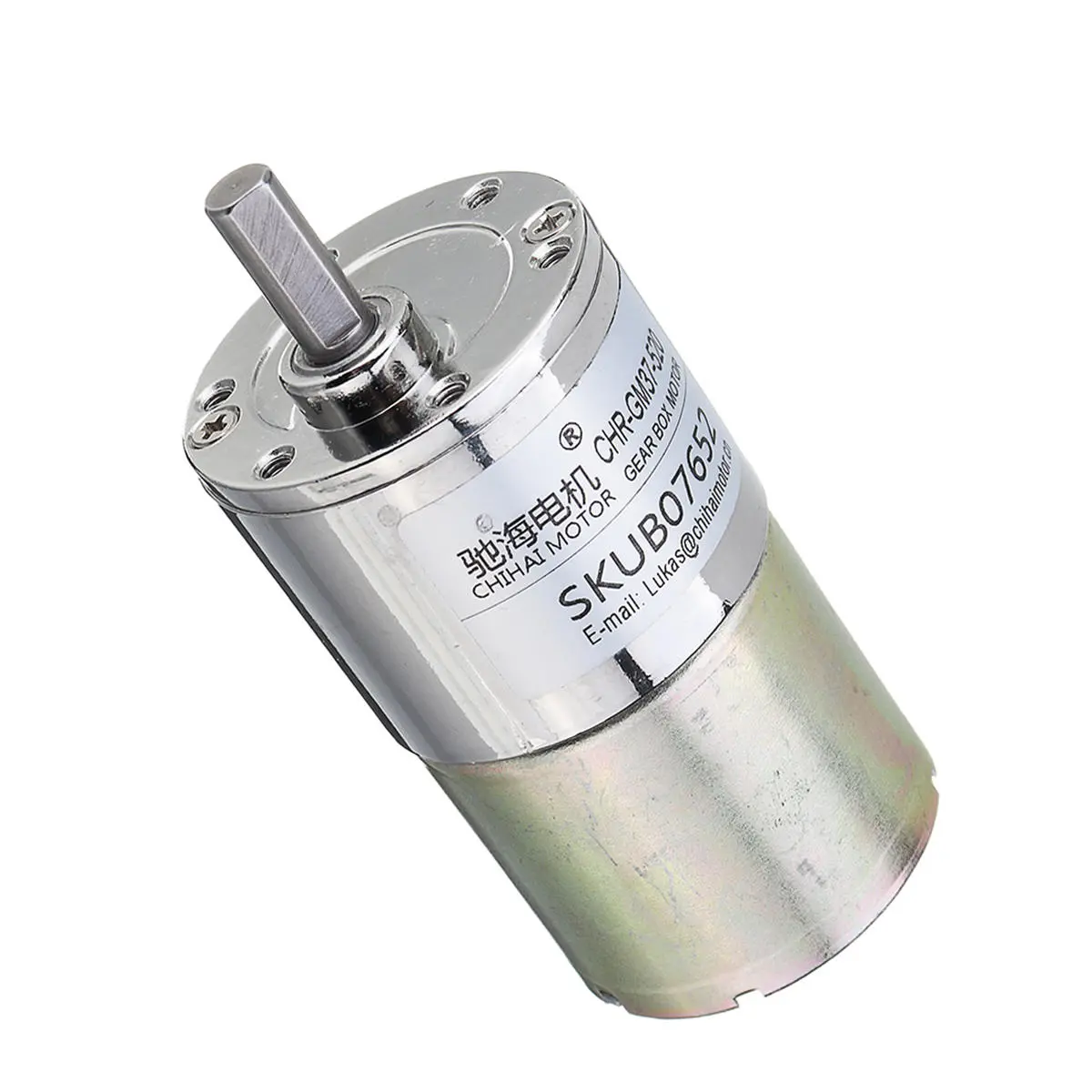

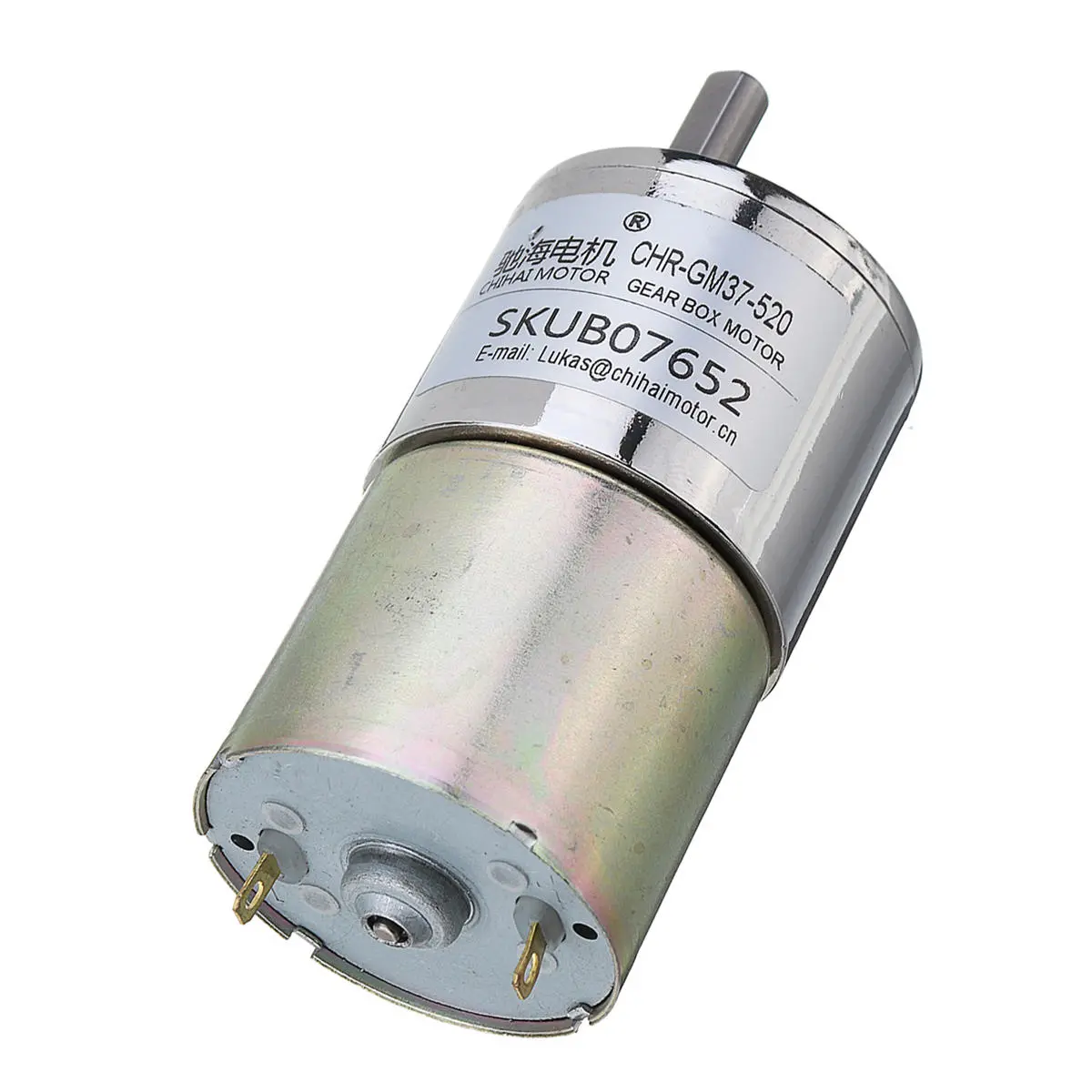

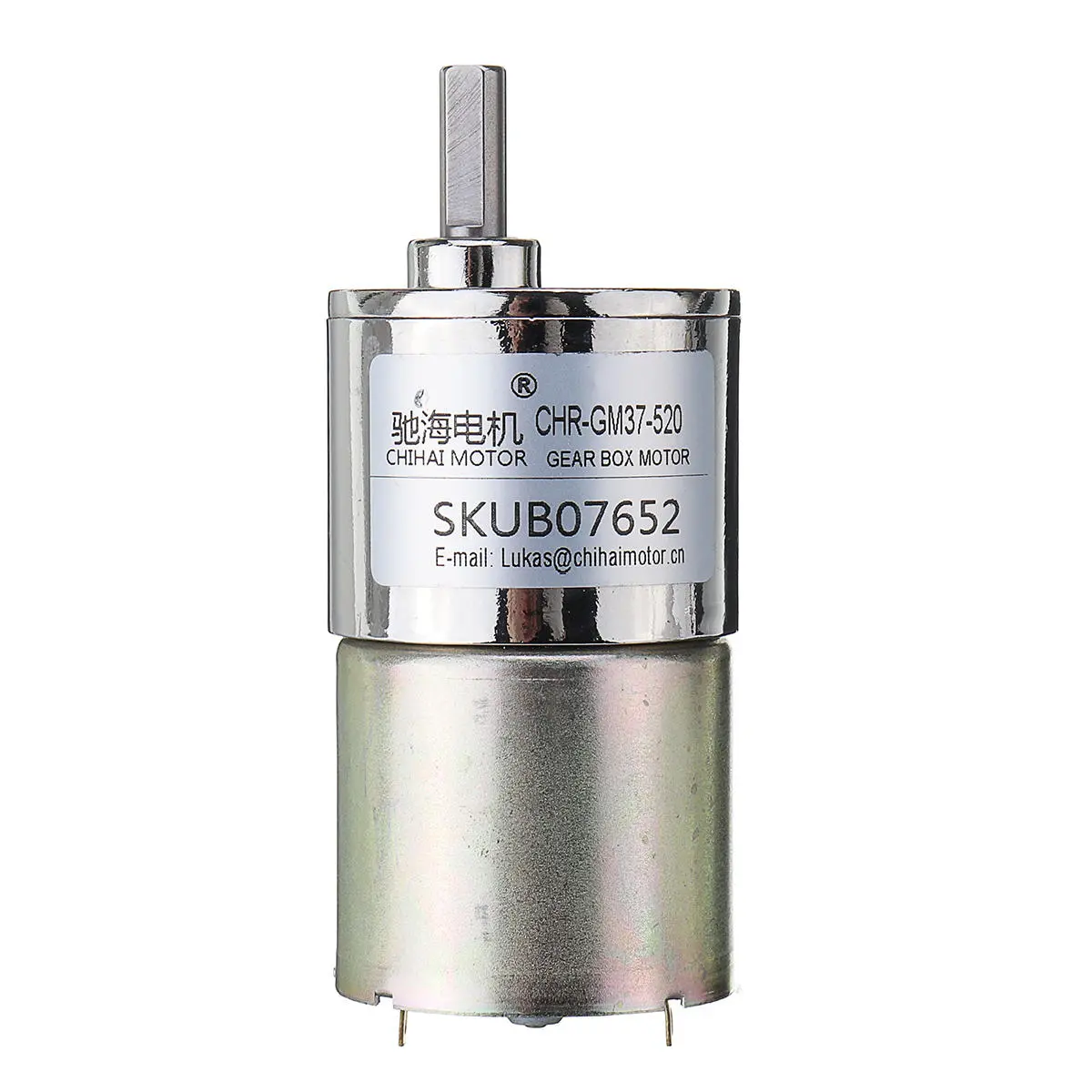

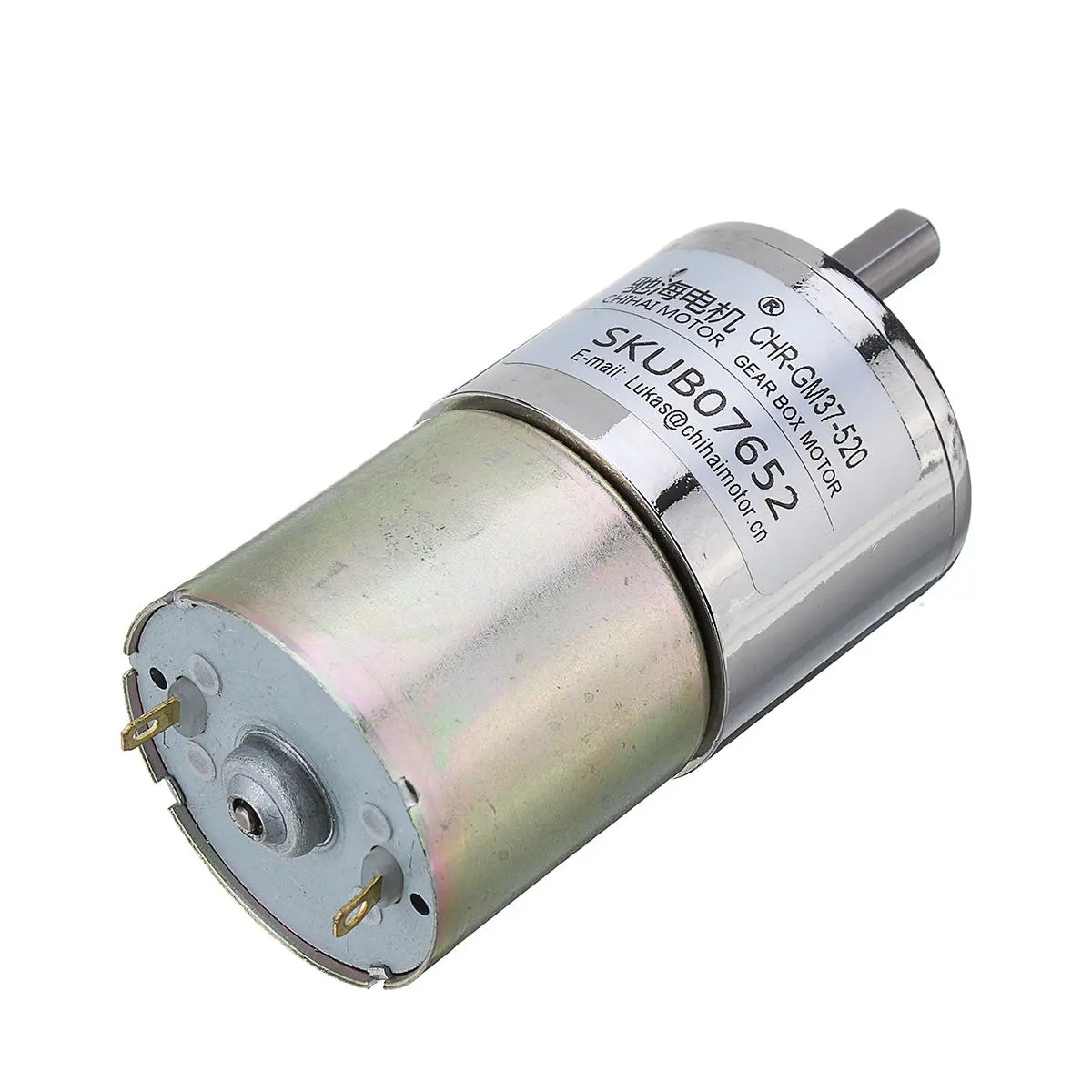

ChiHai CHR-37GB-520S DC Gear Motor - 12V 52RPM 1:150 Reduction Ratio

Product Description

Description:
ChiHai CHR-37GB-520S DC Motor 12V 1:150 52rpm Permanent magnet carbon brush reduction gear motor.
Specification:

Brand	ChiHai
Model	CHR-37GB-520S permanent magnet dc motor with brush speed reducer
Shaft diameter	Output shaft diameter: 6mm, D type D thickness 5.5mm
Outside diameter	Diameter: 37 x Lmm (excluding the size of outgoing shaft)
Shaft length	Length: 19.5mm
Application cases	Office automation, home automation, production automation, medical equipment, security equipment, robots, intelligent balance vehicles, etc.
Optional accessories	Motor mounting bracket, flange coupling, car tire and tire coupling, positive and negative drive, etc.

Parameter:

Warning: can't exceed 30kq.cm. Otherwise, it will cause gear damage.
Voltage	RATIO	No-load		Rated-Load			STALL
		current (mA)	speed (rpm)	Torque (kg.cm)	speed (rpm)	current (mA)	Torque (kg.cm)	current(mA) (mA)
DC 12.0V Max . Power 7.0W	1:150	??270	52	10.0	42	??1.4	??30	??6.5

Features:
1. Pure copper winding wire The rotor is made of pure copper with low resistance and high conductivity, which improves the motor torque. 2. All the gear of metal mechanism Wear resistance, strong resistance to torsion, smooth transmission, compact structure. 3. D axis font D-shaped shaft, more convenient to install, not easy to slide, save installation time. 4. Surface plating Beautiful appearance, anti - oxidation corrosion resistance, not easy to rust. 5. Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life. It is suggested that the reducer should be used in 20.0kg.cm rated load as much as possible, and there is a risk of damage if the reducer exceeds 20.0kg.cm.
Package Included:
1 X CHR-37GB-520S DC motor
