Chihai CHF-GM12-N20VA DC Gear Motor - 6/12V 8/15 RPM Permanent Magnet

Product Description

Descriptions:

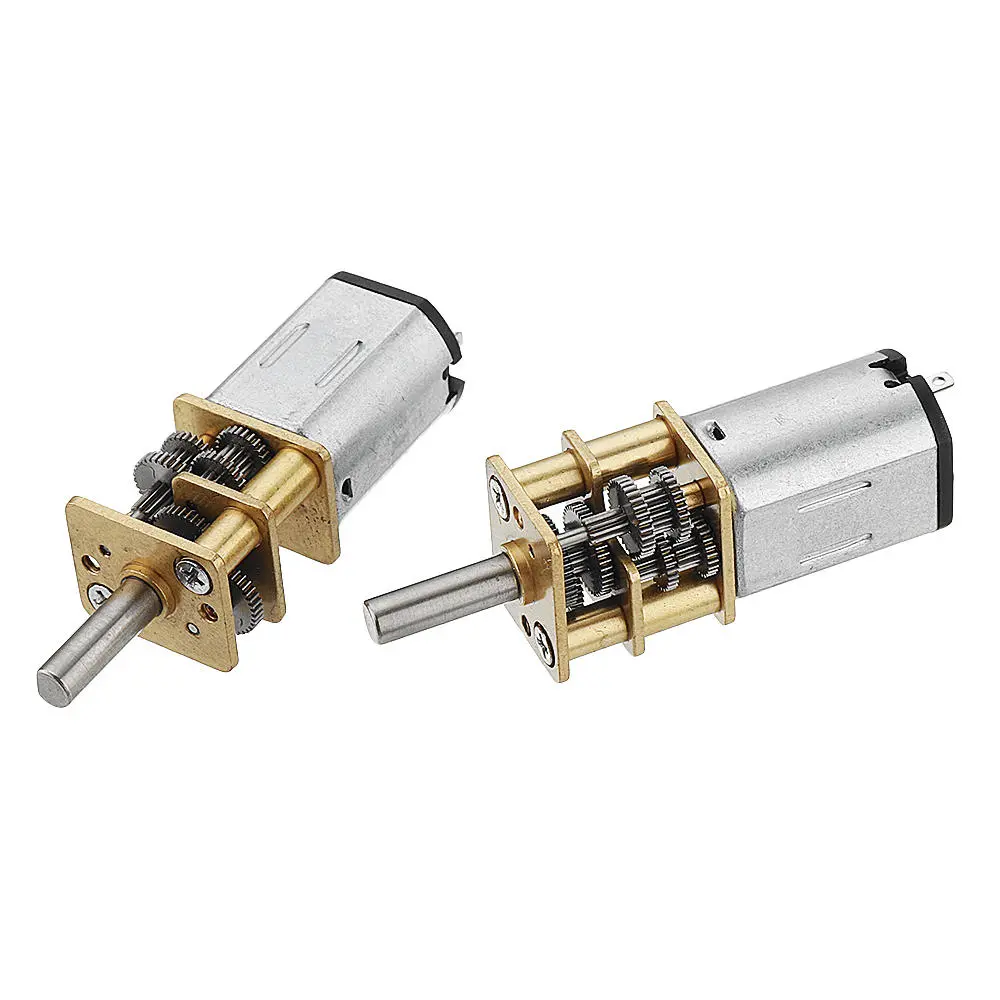

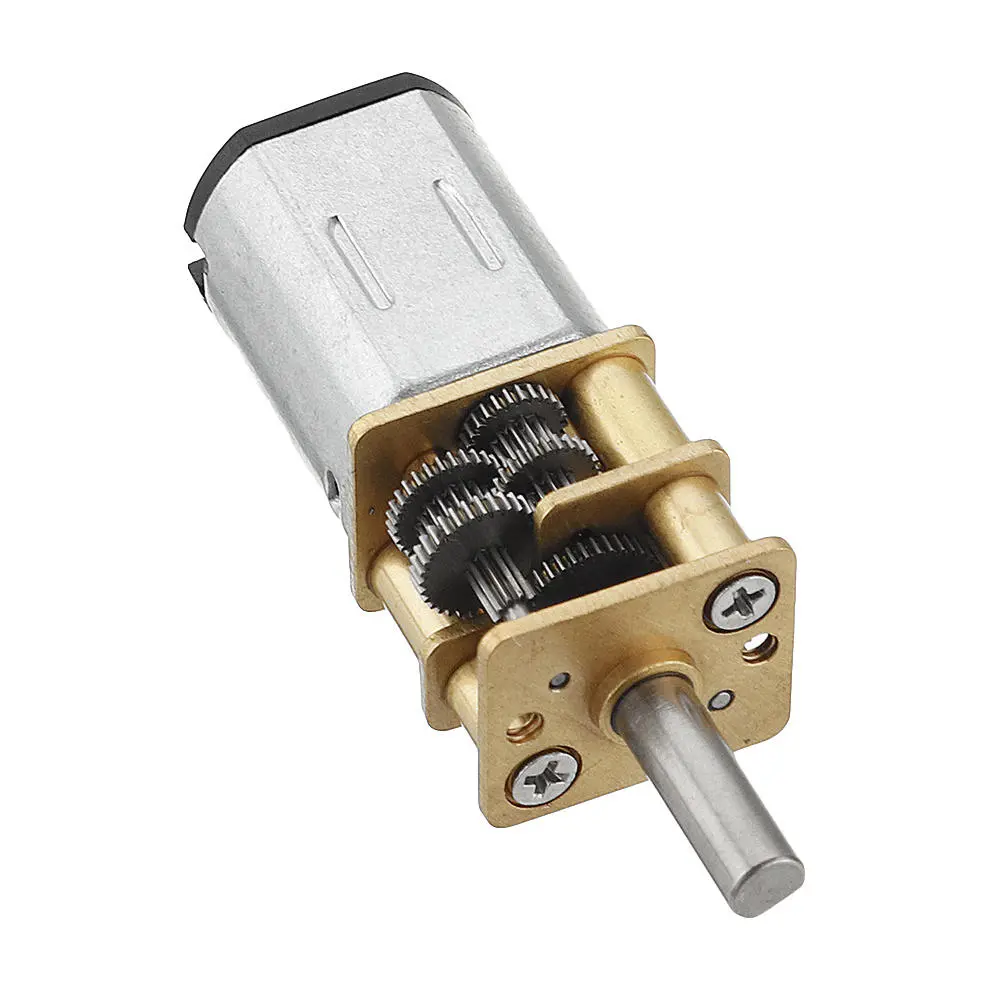

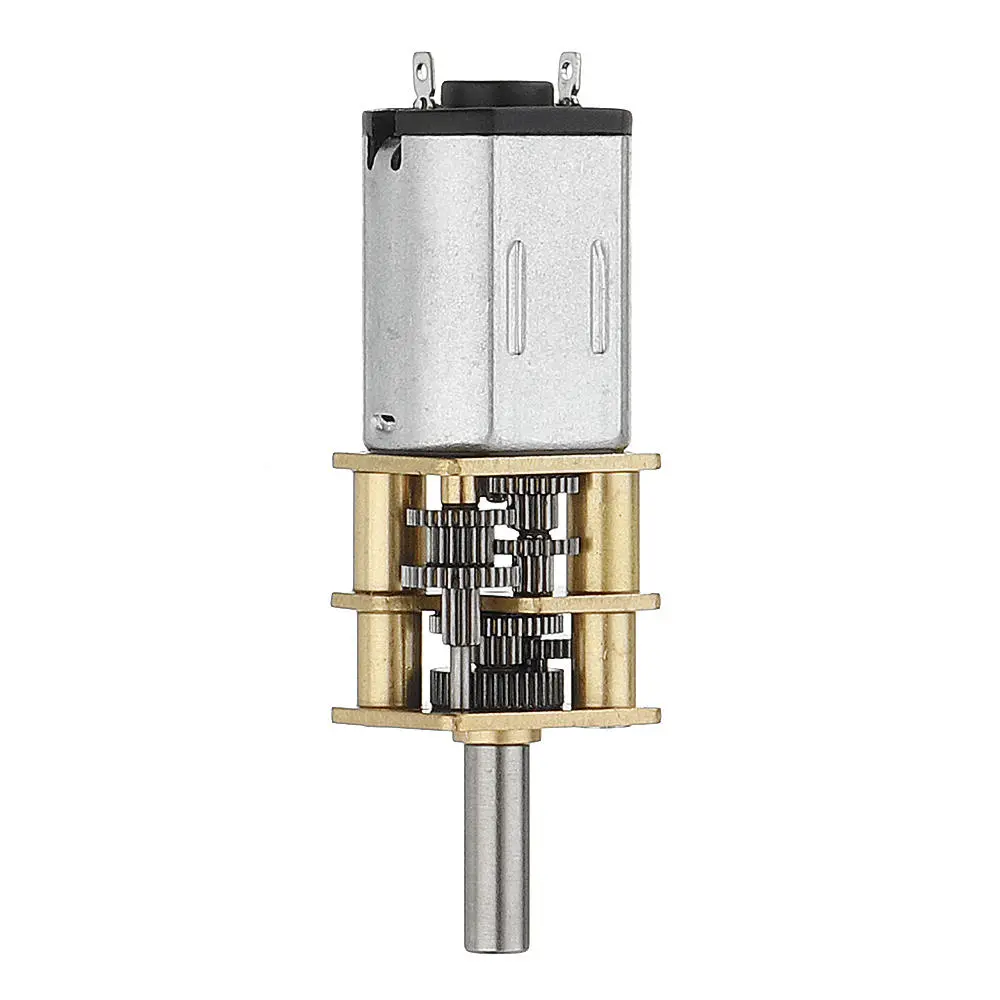

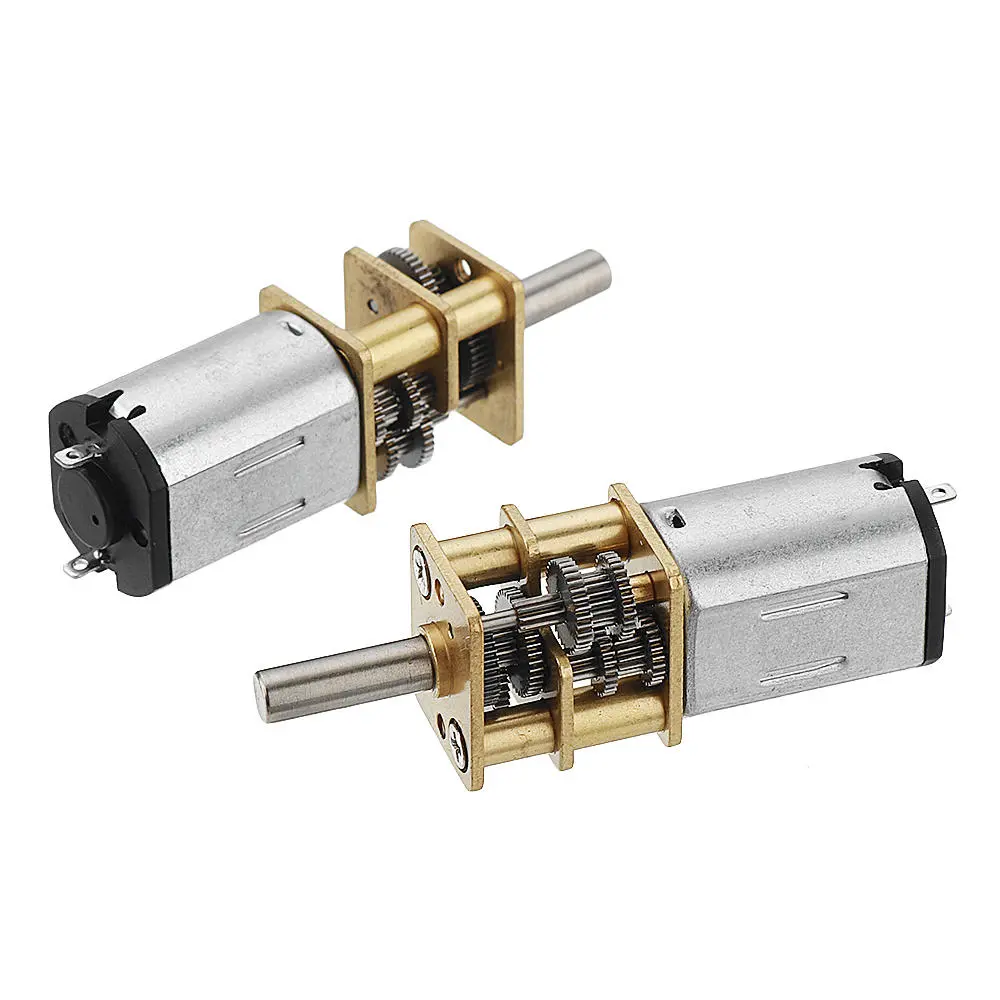

Chihai CHF-GM12-N20VA 6/12V 8/15rpm gear motor permanent magnet DC gear reduction motor
Specifications:
Brand: Chihai Motor
Model: CHF-GM12-N20VA Permanent Magnet DC Gear Reduction Motor

Type	Use voltage	Motor model	Reduction ratio	No load		Rated				Blocking
				Current	Speed	Torque		Speed	Current	Current	Torque
A	DC6.0V	A05	1:1000	??30mA	8rpm	2.50Kg.cm	0.25N.m	5rpm	??0.08A	??0.2A	??4.0Kg.cm
B	DC12.0V			??40mA	15rpm			12rpm	??0.1A	??0.3A

Note: The reduction ratio is 1:1000, the deceleration is relatively large, causing the torque of the whole machine to be too large.
It should not exceed the rated torque of 2.5kg.cm, and it is forbidden to block or externally give the opposite direction of operation.
Features:
- Permanent magnet DC gear reduction.
- Two Types to meet your different needed.
Package Included:
1 x Gear Motor
