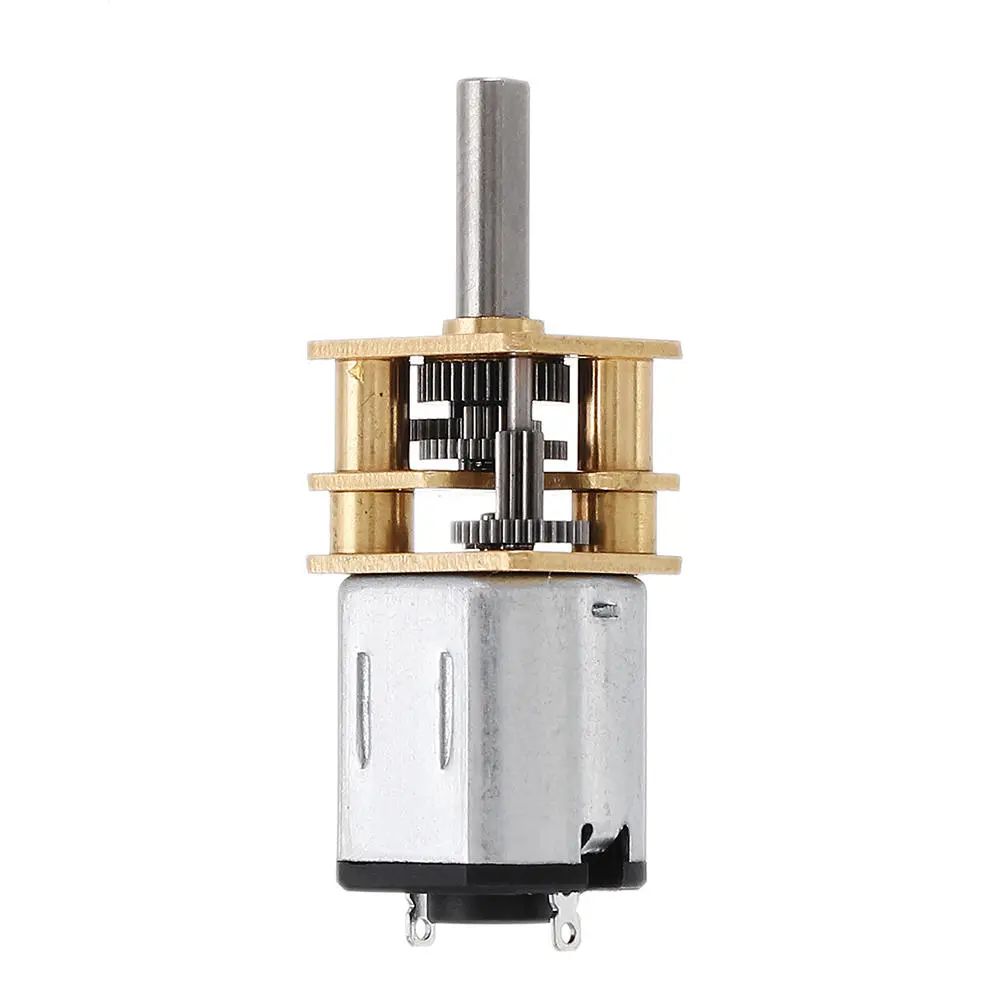

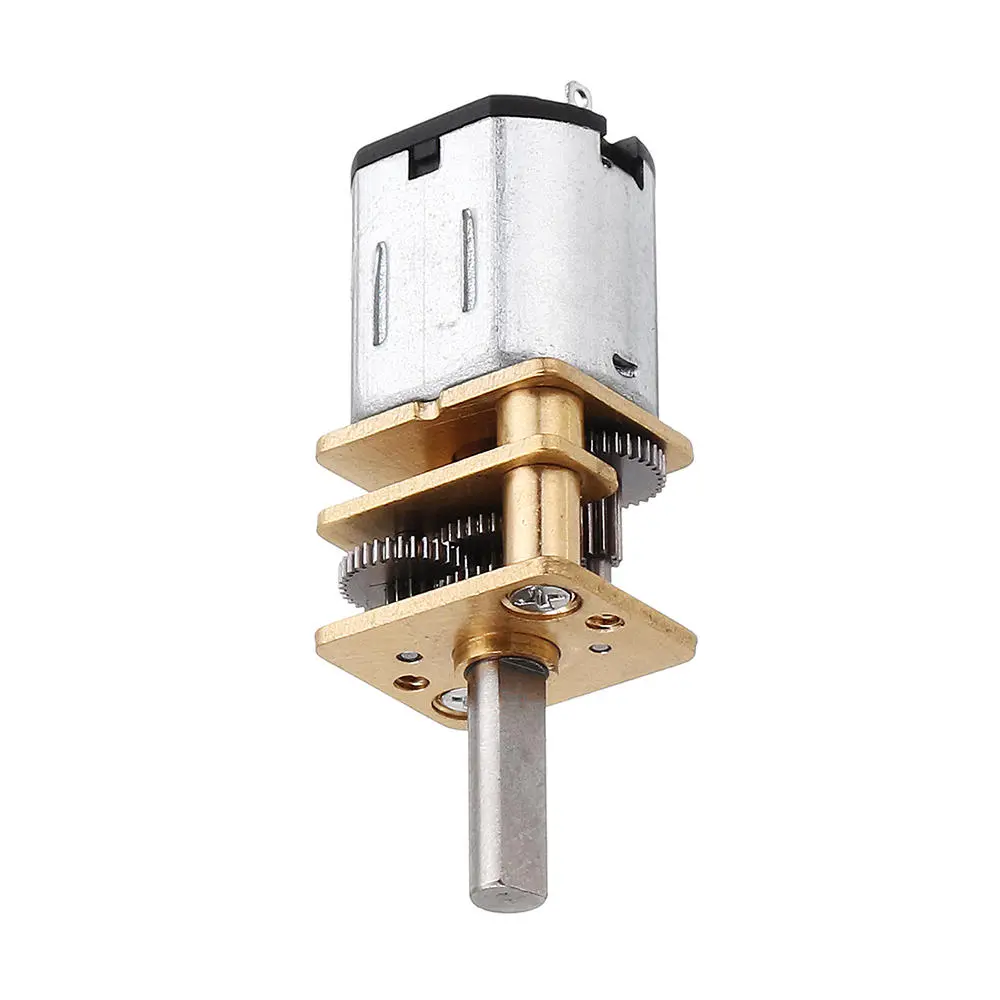

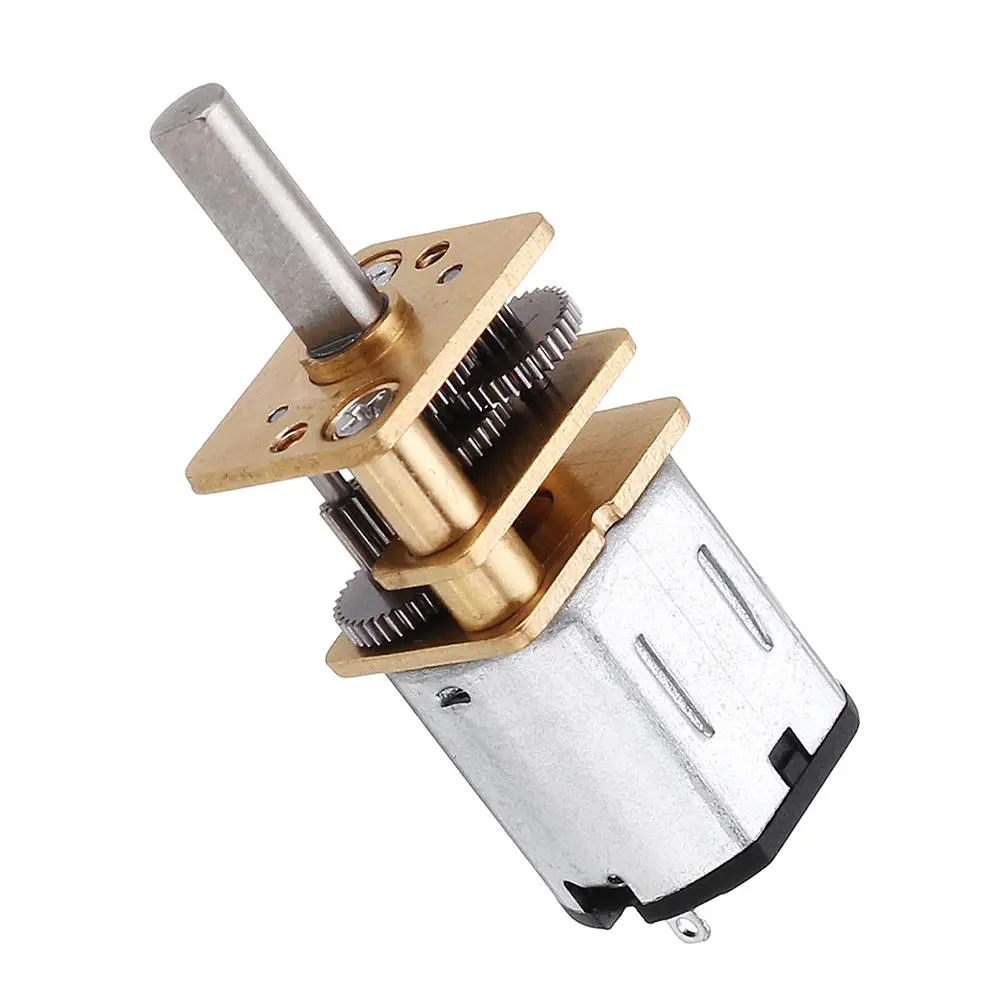

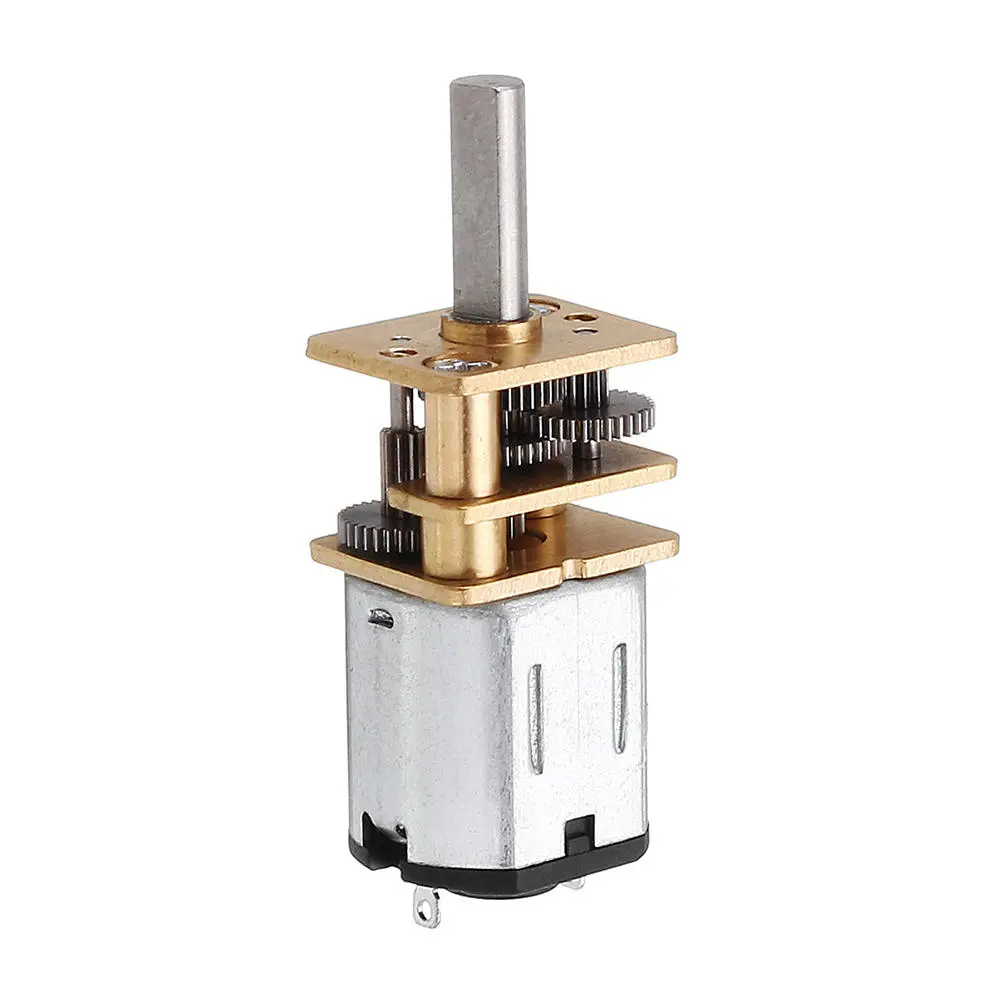

CHIHAI CHF GM12 N10VA Gear Motor - 3V DC 215 RPM 1:100 Ratio Permanent Magnet

Product Description

Description:
CHIHAI CHF GM12 N10VA DC 3V 215rpm 1:100 Ratio DC motor, permanent magnet micro reduction gear motor.
Specification:

Type	CHF GM12 N10VA 92 Type
Shaft diameter	3mm, D type
Shaft length	10mm
Voltage	DC 1.5V-6.0V
Working voltage	3V
Power max	0.42W
Reduction ratio	1:100
No-load current	??85A
No load speed	215RPM
Rated torque	400g.cm
Rated speed	105RPM
Rated current	??0.50A
Locked-rotor torque	??0.8kg.cm
Plug the plug to turn the current	??0.1A
Application	Office equipment, robot, camera rocker arm, home appliances.

Features:
1. All-metal gear: we use all-metal gear material to make it more wear-resistant and extend service life.
2.D type shaft : D type outlet shaft is more convenient for installation and is not easy to slip, saving installation time.
3. Three - layer copper plate: precision mold continuous stamping and good wear resistance, high temperature resistance and vibration.
4.High torque, adjustable,low energy consumption, low noise, stable life, long life, positive and negative turn.
Package Included:
1 X DC motor
