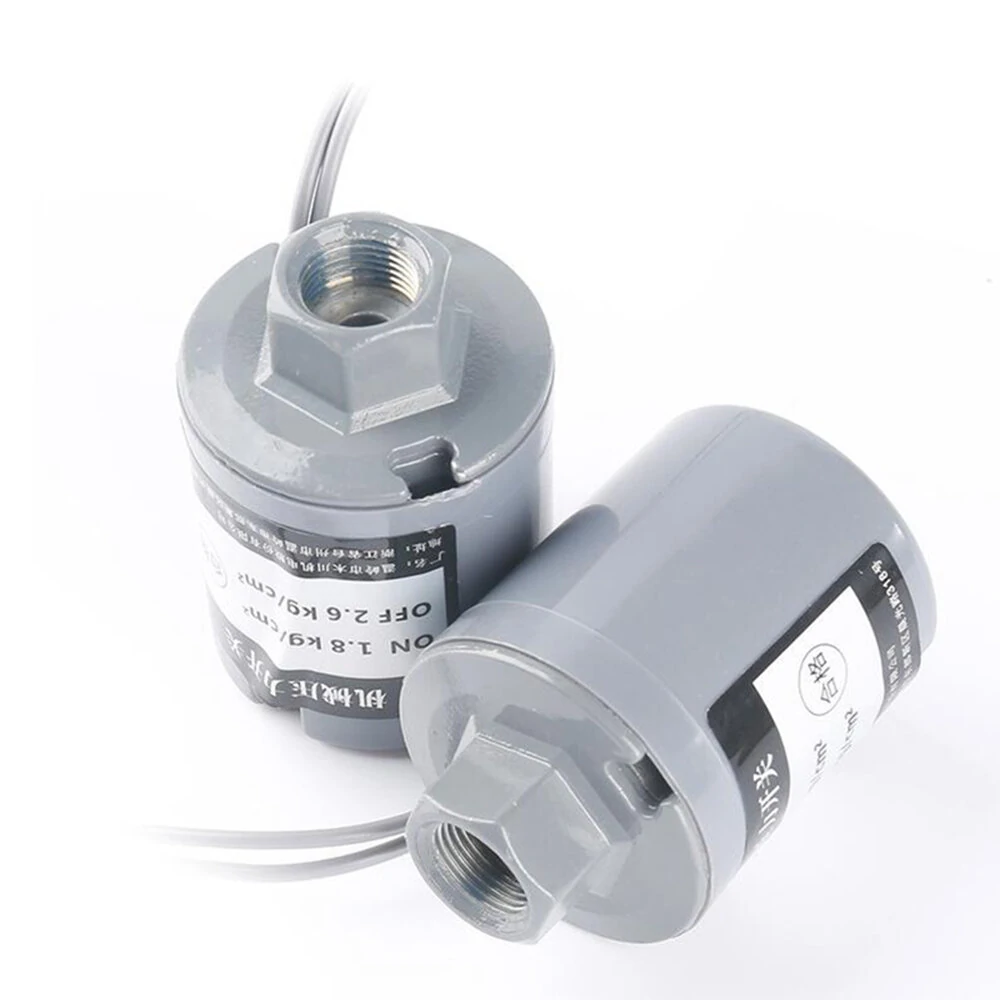

Automatic Water Pump Pressure Switch - AC 220V G3/8 Thread for 125W-750W Booster Pump

Product Description

Descriptions:

AC 220V G3/8" Male/Female Thread Automatic Water Pump Pressure Switch Mechanical Pressure Controllerl For 125W-750W Booster Pump

Specifications:

Product Name	Water Pump Pressure Switch
Material	Zinc Alloy +Plastic
Color	Grey
Type	Male/Female
Pressure Range	1.0-1.8 kgf/cm2 (On: 1.0kgf/cm2, Off: 1.8 kgf/cm2) 1.5-2.2 kgf/cm2 (On: 1.5kgf/cm2, Off: 2.2 kgf/cm2) 1.8-2.6 kgf/cm2 (On: 1.8kgf/cm2, Off: 2.6 kgf/cm2) 2.2-3.0 kgf/cm2 (On: 2.2kgf/cm2, Off: 3.0 kgf/cm2)
Max Voltage	AC220V
Max Current	16A
Male Thread Dia.	1/4"PT
Size	86x50mm (total length X outer diameter on the bottom)
Weight	About 186g
Quantity	1 Pc x Water Pump Pressure Switch

Features:

- The pressure switch is suitable for hot and cold water automatic pump, the other family booster pumps, pipeline pumps, etc.- It can automatically control the pump start and stop, simple operation, stable performance, protect the machine, saving power consumption and so on.
How To Adjust The Pressure?A. Turn on the tap, the water pump or motor does not stop running, switch adjust the pressure bigger; B. Shut off the tap, water pump not stop or frequency stop action, adjust the pressure smaller; C. Tuning adjustment, (semi-circle and a half tone ring) try to adjust to a suitable pressure position until the pump is working properly.
Package Included:

1 Pc x

Pressure Switch Control
