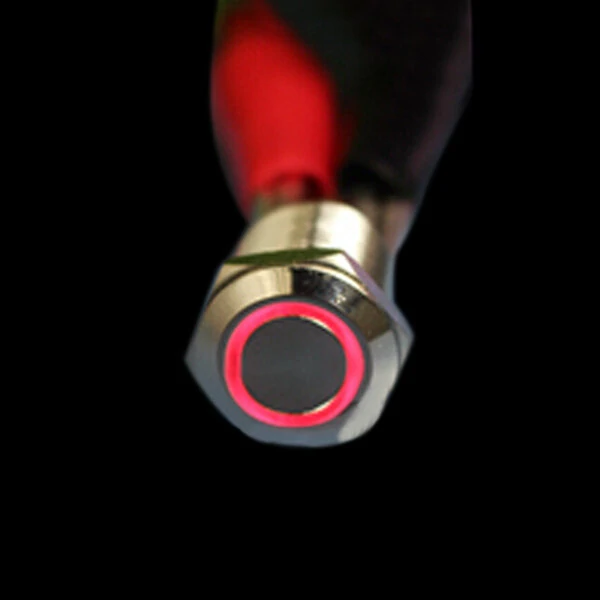

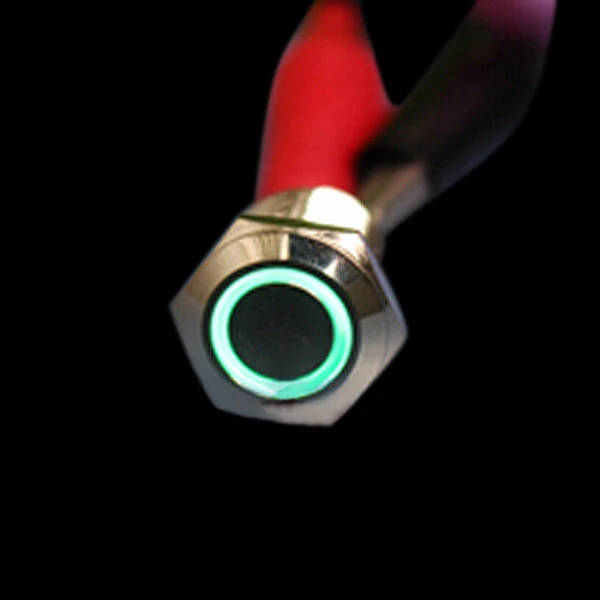

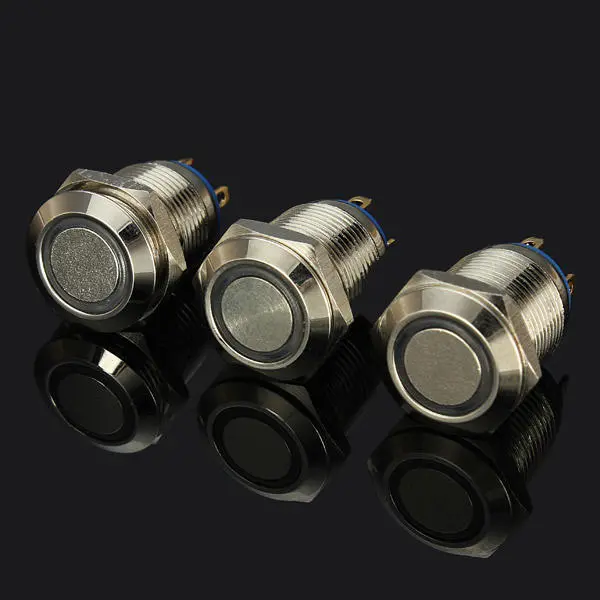

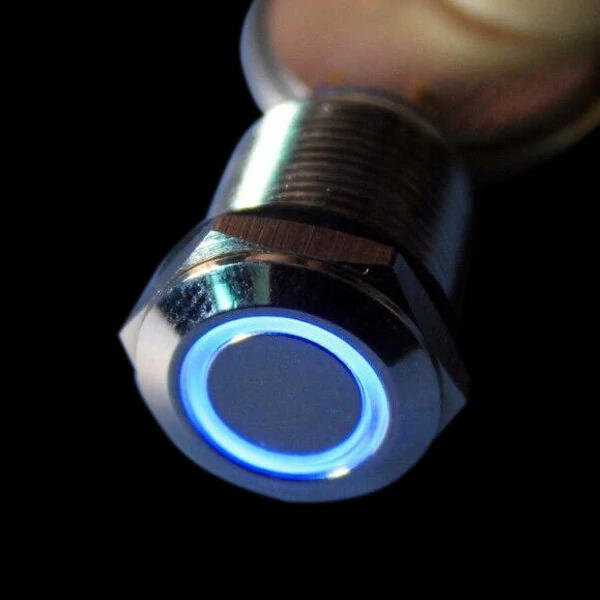

3V 12mm Momentary Push Button Switch - LED Illuminated & Waterproof
$12.00
$14.38
-17% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:3V 12mm Momentary Push Button Switch LED Switch Waterproof Switch
Feature: Resetable button switch, it is on when pressing and off automatically when not using it. Suitable for cars and computer case.
Specification:
| Operation Type | Resetable |
| Material of Contact | Silver alloy |
| Material of Button | Nickel plated brass / Stainless steel |
| Material of Enclosure | Nickel plated brass / Stainless steel |
| Protective Mode | Waterproof |
| Shape of Head | Flat |
| Mounting Hole Size | ??12mm |
| Switch Rating | 2A/3VDC |
| Working Voltage | 3V |
| Rated Thermal Current | 2A |
| Working Current | 2A |
| Contact Resistance | 50?? |
| Insulation Resistance | 1000M?? |
| Switch Combination | 1NO |
| Degree of Protection | IP67, IK08 |
| Machanical Life | 50,000 cycles |
| Color | Red, Blue, Green |
Mechanical Drawing:
Package Included:
1x Button Switch
