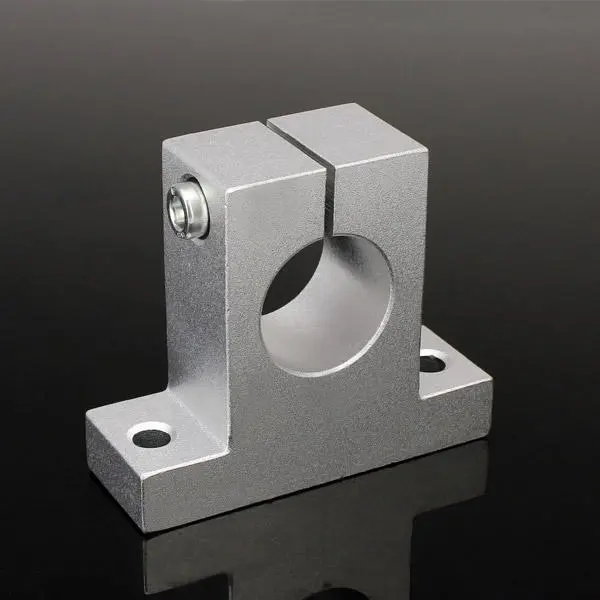

Shaft support units, commonly known as pillow block bearings or plummer blocks, are fundamental components in mechanical power transmission systems. Their primary function is to provide secure mounting and precise alignment for rotating shafts, ensuring smooth operation, reducing friction, and absorbing radial and axial loads. By housing a bearing within a robust, pre-aligned casing, these supports protect the bearing from contaminants and simplify installation, making them indispensable in countless industrial, agricultural, and manufacturing settings.
Key products within this category include standard pillow blocks, which offer a versatile and economical solution for general applications, and flange blocks, designed for mounting on vertical surfaces where space is limited. For applications requiring tension adjustment, such as in conveyor systems, take-up units (or slide blocks) allow for easy positioning to maintain proper belt or chain tension. These supports are typically constructed from high-grade cast iron or pressed steel for durability and are available with a variety of bearing inserts, including ball, spherical roller, and sleeve bearings, to match specific load, speed, and environmental requirements.
The benefits of utilizing proper shaft support are substantial. They dramatically extend the service life of both the shaft and the bearing by ensuring correct alignment, which minimizes wear, vibration, and energy loss. This leads to reduced maintenance costs, less unplanned downtime, and improved overall system efficiency. Whether you're maintaining existing machinery or designing a new system, selecting the right shaft support is a critical step in achieving reliable, long-term performance. Our comprehensive selection is designed to meet the demands of applications ranging from light-duty machinery to heavy industrial equipment.
**Choosing the Right Shaft Support: A Quick Guide**
Selecting the correct shaft support unit is crucial for optimal performance. First, identify your **shaft diameter**, as this determines the bore size of the bearing insert. Next, consider the **load type and magnitude** (radial, axial, or combined) and the operational speed to choose between ball bearing (higher speed) or roller bearing (higher load) types. The **housing material** (cast iron for heavy-duty, stamped steel for cost-effective light duty) and **sealing** (rubber seals, metal shields) should be selected based on the operating environment's exposure to dust, moisture, or chemicals.
**FAQ:**
**Q: What is the difference between a pillow block and a flange block?**
A: A pillow block mounts on a horizontal surface using bolt holes in its base. A flange block mounts on a vertical surface via bolt holes on its side, saving space.
**Q: How do I know if I need a take-up unit?**
A: If your application involves chains or belts that may stretch over time (like conveyors), a take-up unit allows for easy adjustment to maintain proper tension without moving the entire drive.
**Q: Can I replace just the bearing inside the housing?**
A: Yes, in most units, the bearing insert is a separate, replaceable component. This allows for cost-effective maintenance without replacing the entire housing.
Always refer to manufacturer specifications for load ratings, temperature limits, and lubrication requirements to ensure a perfect match for your application.
