SCS8UU Linear Rail Shaft - 200mm Rod with Bearing Block & Guide Support | CNC Parts

Product Description

Description:
200mm Linear Rail Shaft Rod with Bearing Guide Support and SCS8UU Bearing Block CNC Parts
Specification:

Optical Axis
Material	Stainless steel
Color	Silver
Diameter	8mm
Total Length	200x8mm
Rail Shaft Support
Material	Aluminum
Color	Silver
Hole diameter	8mm
Total length	41mm
Height	32mm
Linear Slide Block
Material	Aluminum
Color	Silver
Bore diameter	16mm
Hole diameter	8mm
Total length	33mm
Height	17mm

Features:
Good wear resistance and strength, high accuracy, hard to rust. Has good performances, low friction coefficients and long usage spans.
Suitable for Industrial automation equipment, stepper motor rails, such as 3D printers, engraving machine, XYZ module, slider, lifts etc. How to install: 1. Put Linear Slide Block into the Lead rod. 2. Then the Rail Shaft Support separately install at both ends of the Lead screw. 3. According to the size of you need to adjust the distance between the nut and Mounted ball bearing. 4. Put shaft coupling into the Lead screw beside the Mounted ball bearing.
Package Included:

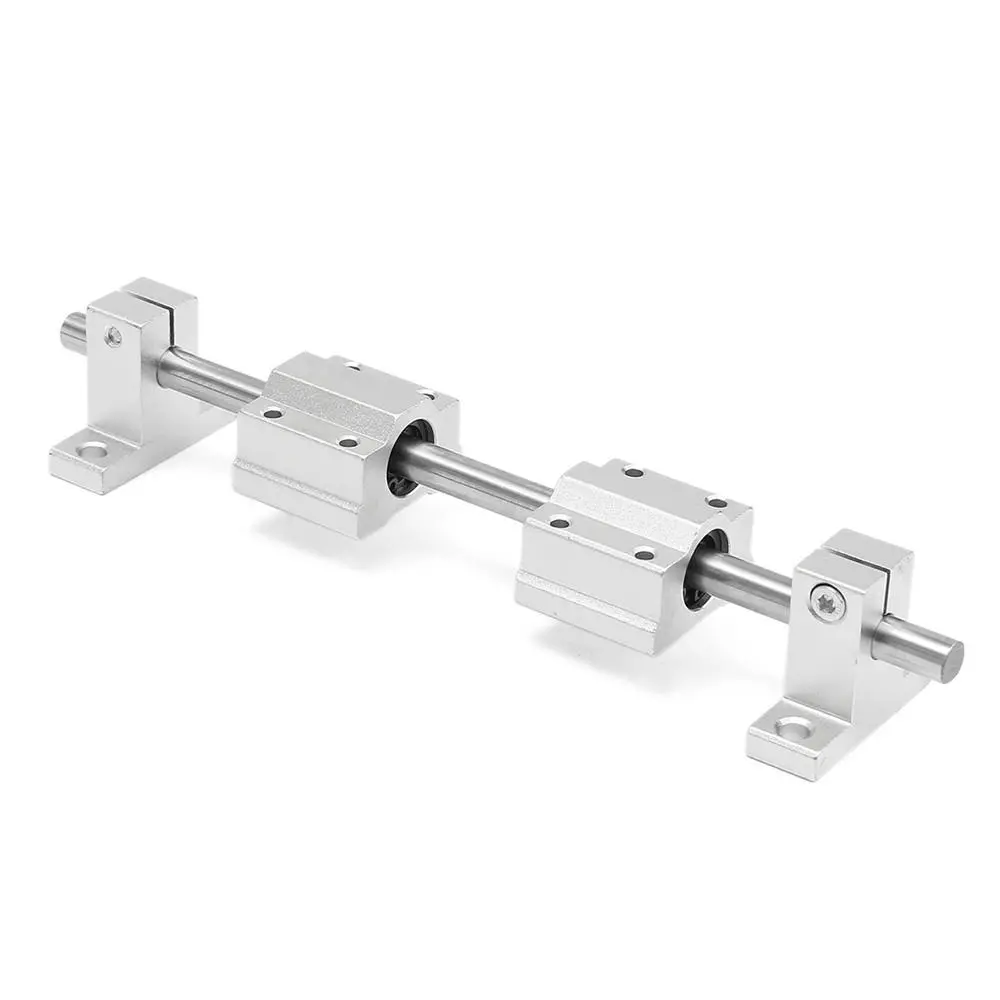

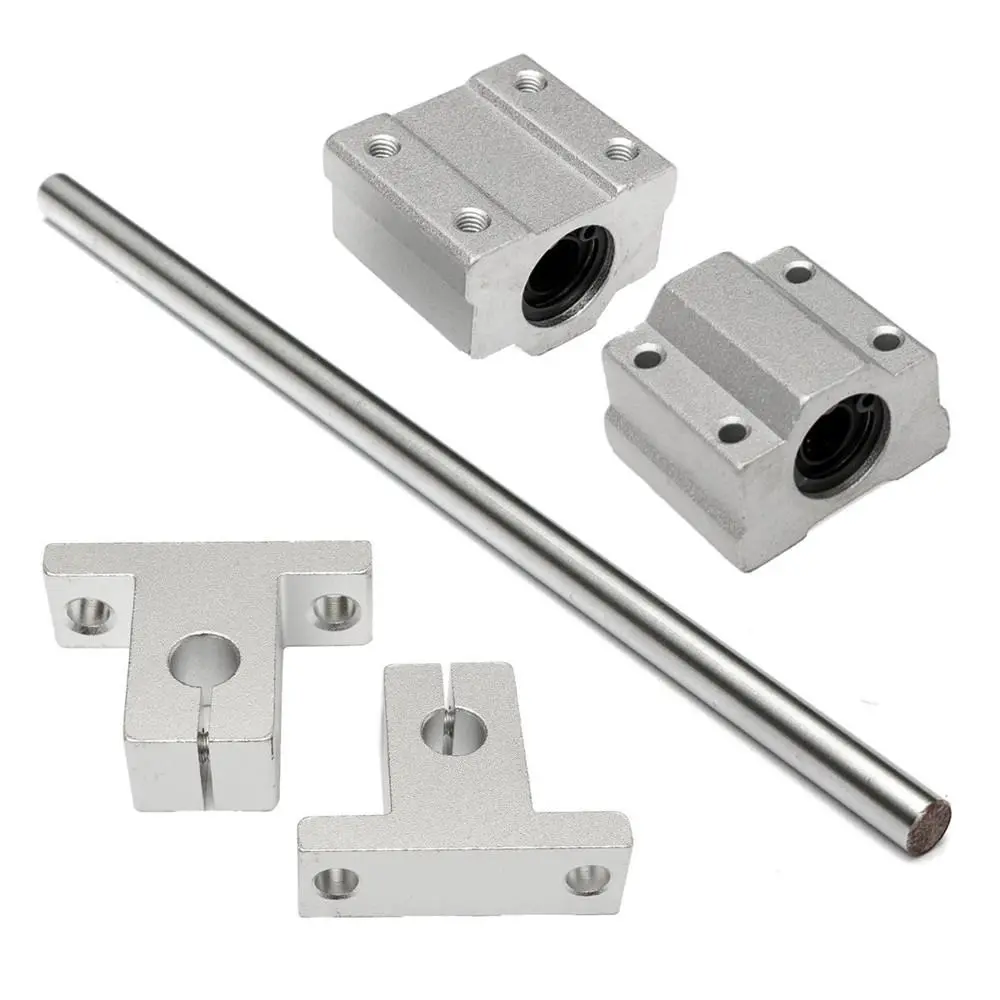

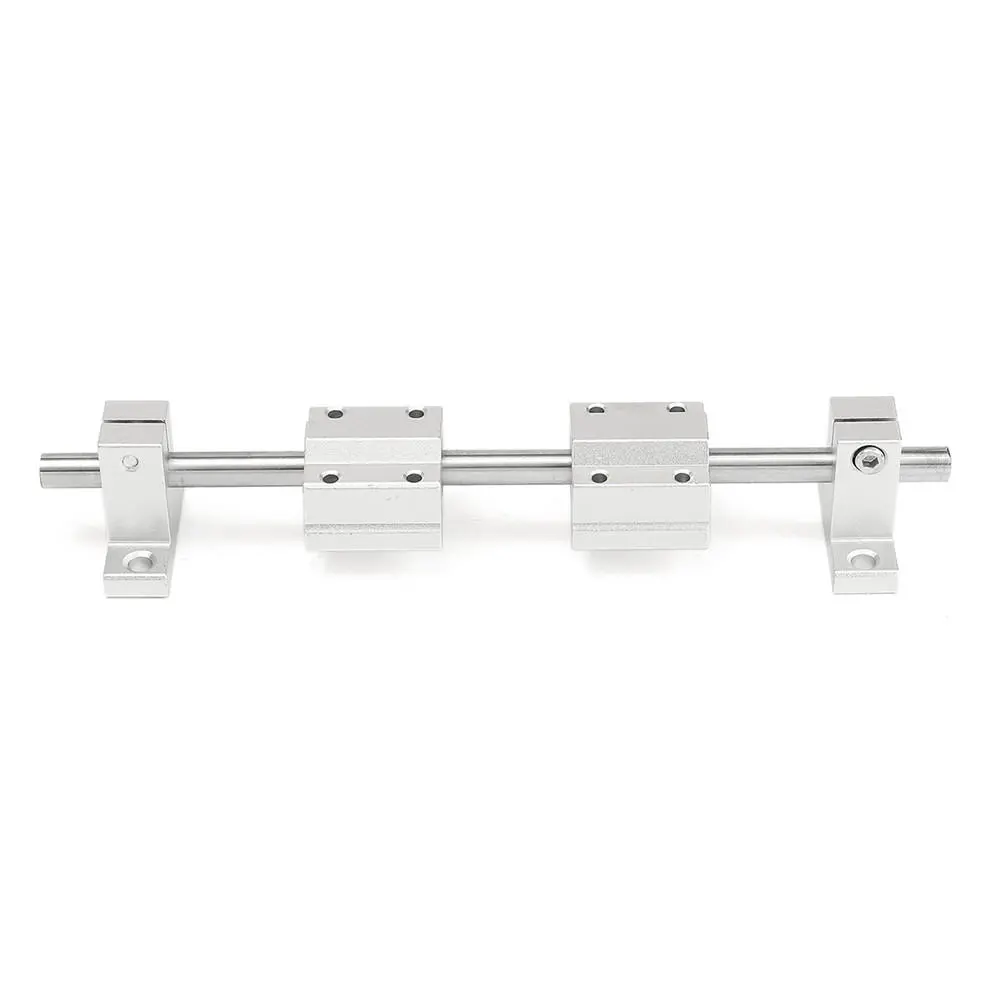

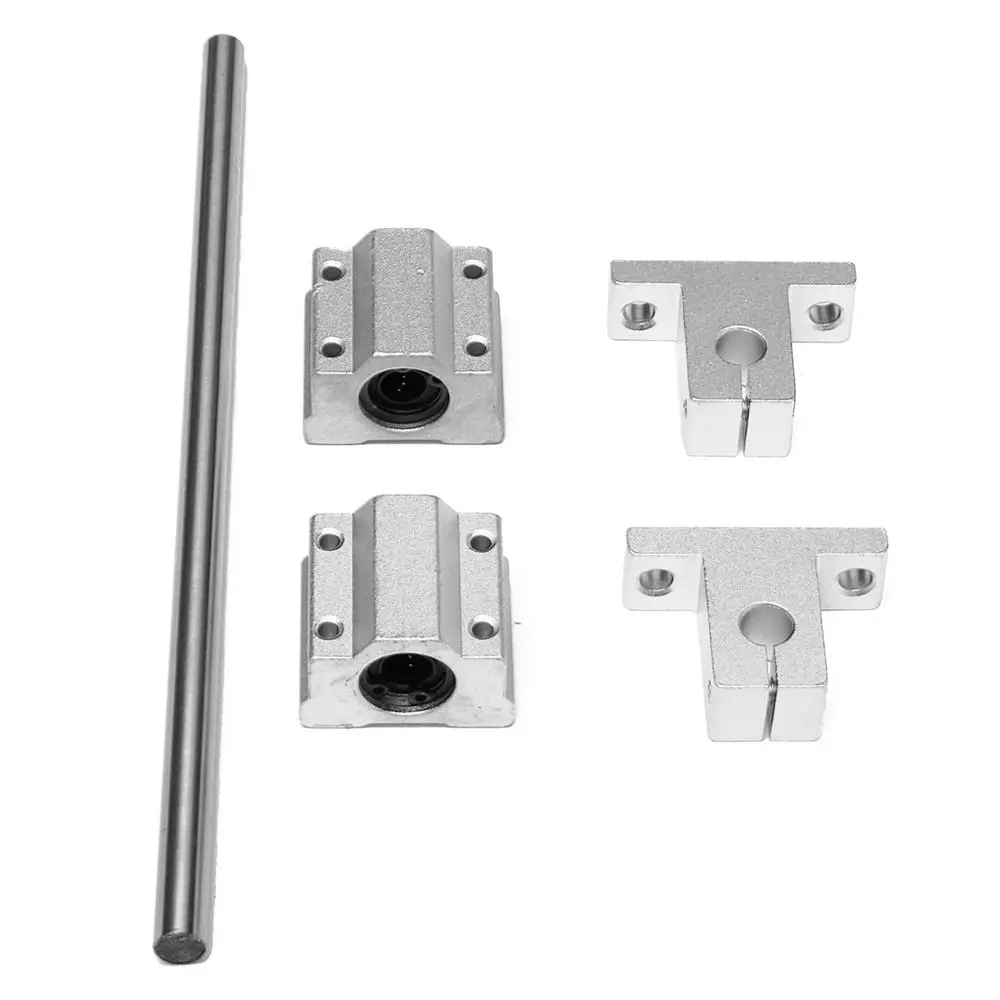

1 X Chrome Rod Rail Shafts 2 X SCS8UU Linear Bearing Aluminum Blocks 2 X SK8 Fixed Bearings
