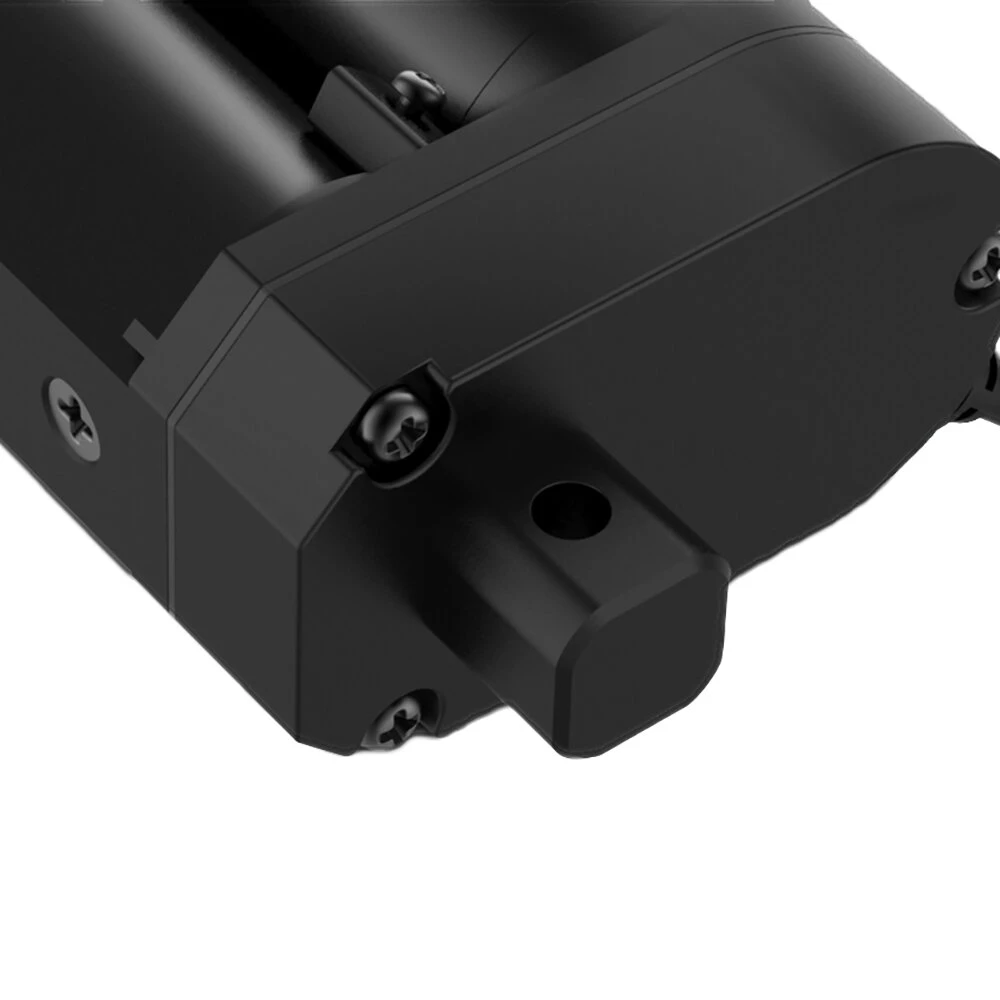

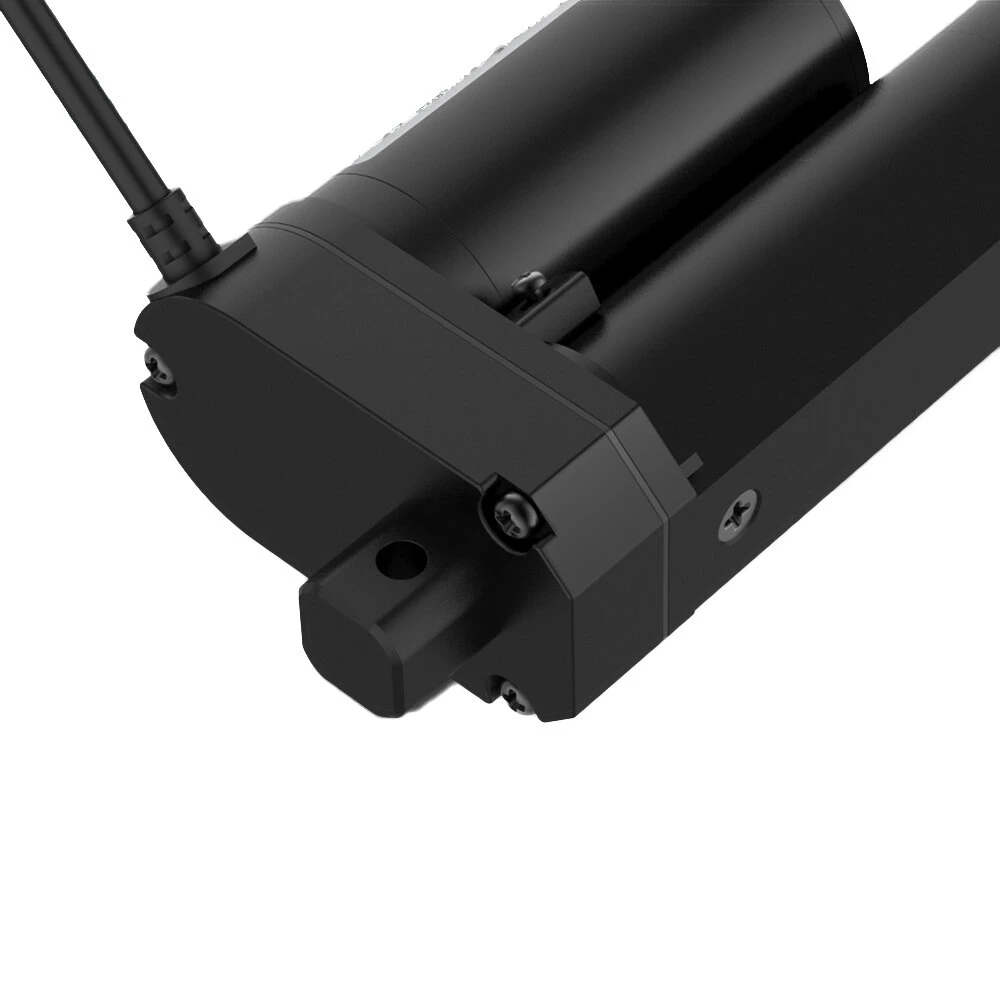

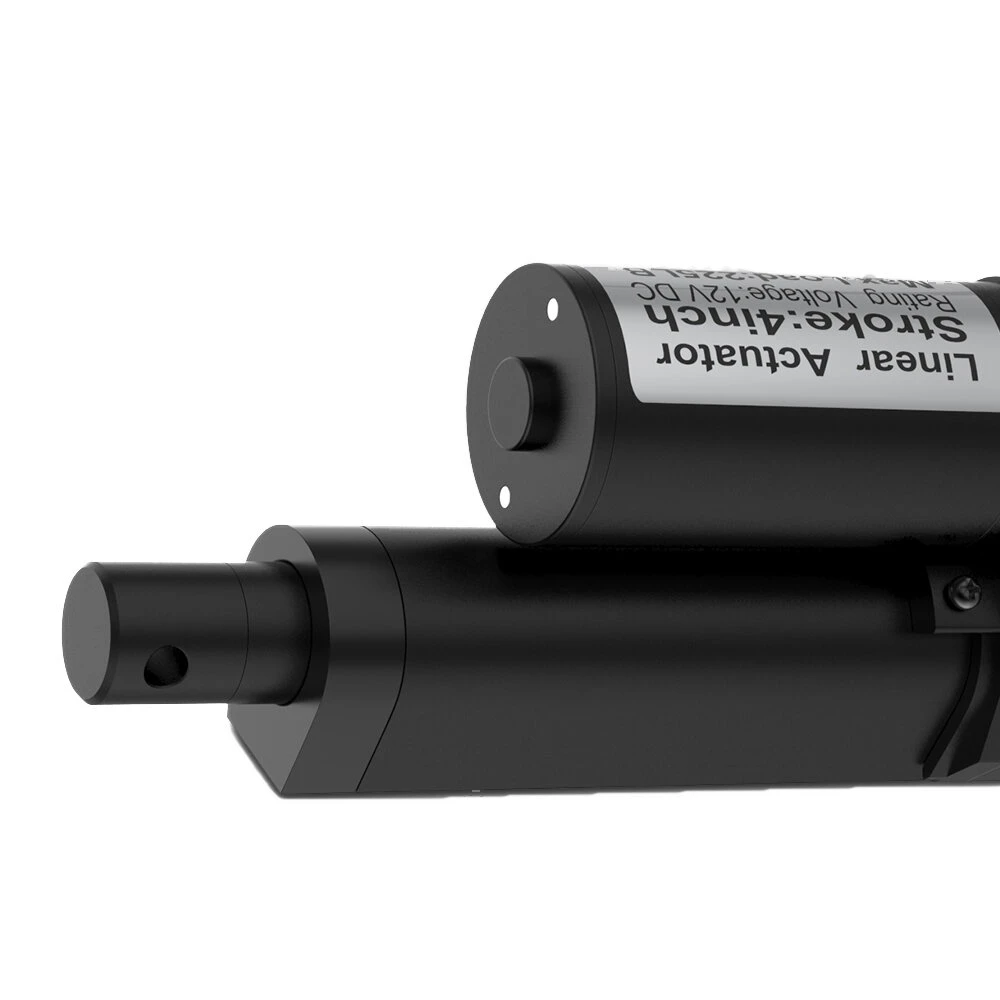

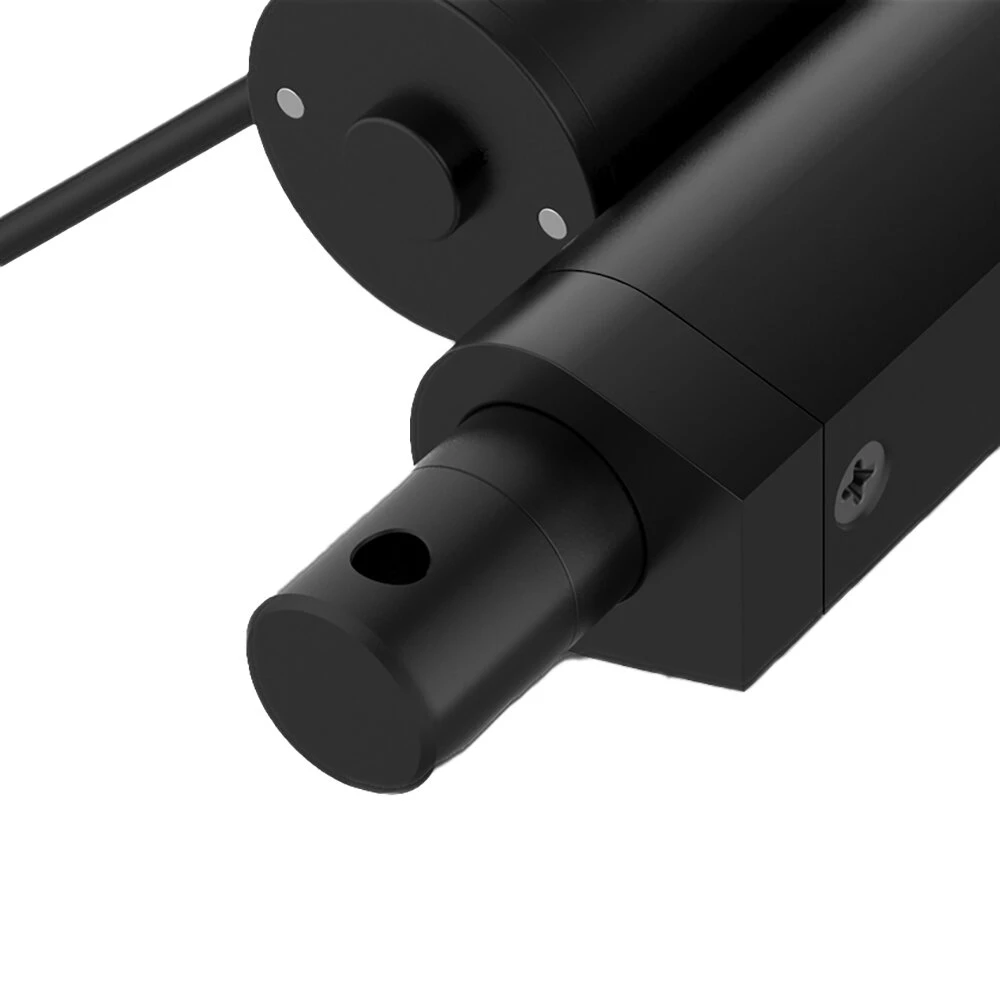

Machifit DC 12V Linear Actuator - 50mm Stroke | 100-1000N Force | Motor Controller
Product Description
Features:
- [Built-in limit switches]: Self-locking function. The telescopic rod will automatically stop when it reaches the top/bottom. Make sure the motor will not burn empty.
- [Stop Anywhere]: Cut off the power, it can be stop at any position, with machine lock, safe and secure.
- [Metal gears]: powder alchemy technology, pure metal gears, double strength and toughness.
- [Aluminum Alloy Material]: IP54 protection, is a power unit. The surface has undergone 27 polishing processes, and the structure design is tight.
- [Low Resistance More Power-Saving]: the wire uses oxygen-free pure copper as the conductor, low resistance, durable and safe to use.
Specification:
| Material | Aluminum alloy |
| Input Voltage | DC 12V |
| Rated power | 20W, Max. 30W |
| Ambient temperature | -20??C to + 75??C |
| Standard protection class | IP54 |
| Noise level | Less than 42dB |
| Stroke length | 50mm / 2inch |
| Retracted length | 155mm |
| Extended length | 205mm |
| Options | 100N 90mm per second / 150N 70mm per second / 180N 50mm per second / 200N 40mm per second / 230N 25mm per second / 250N 15mm per second / 300N 30mm per second / 500N 20mm per second / 700N 10mm per second / 1000N 5mm per second(optional) |
| Quantity | 1pc |
Force And Speed:
100N??10kg / 150N??15kg /180N??18kg / 200N??20kg /
230N??23kg / 250N??25kg / 300N??30kg / 500N??50kg /
700N??70kg / 1000N??100kg
If you would like other stroke, please click to check:
50mm Stroke ID: 1856841
100mm Stroke ID: 1856938
150mm Stroke ID: 1856986
200mm Stroke ID: 1856992
250mm Stroke ID: 1857010
Produce Included:
| 1 x | 12V Linear Actuator |
