Machifit 400W ER11 Spindle Motor | 12-48V Air Cooled for CNC Carving

Product Description

Description:

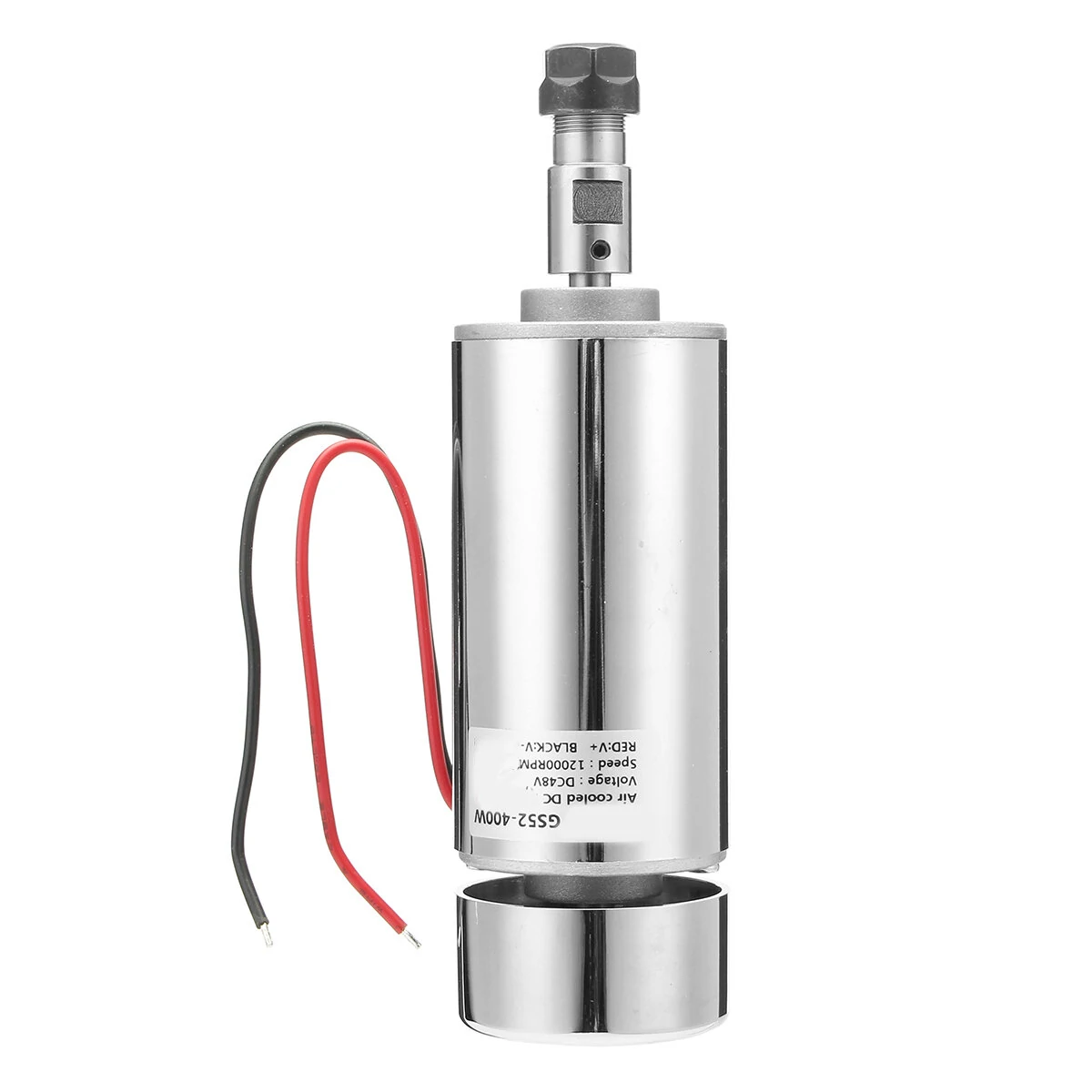

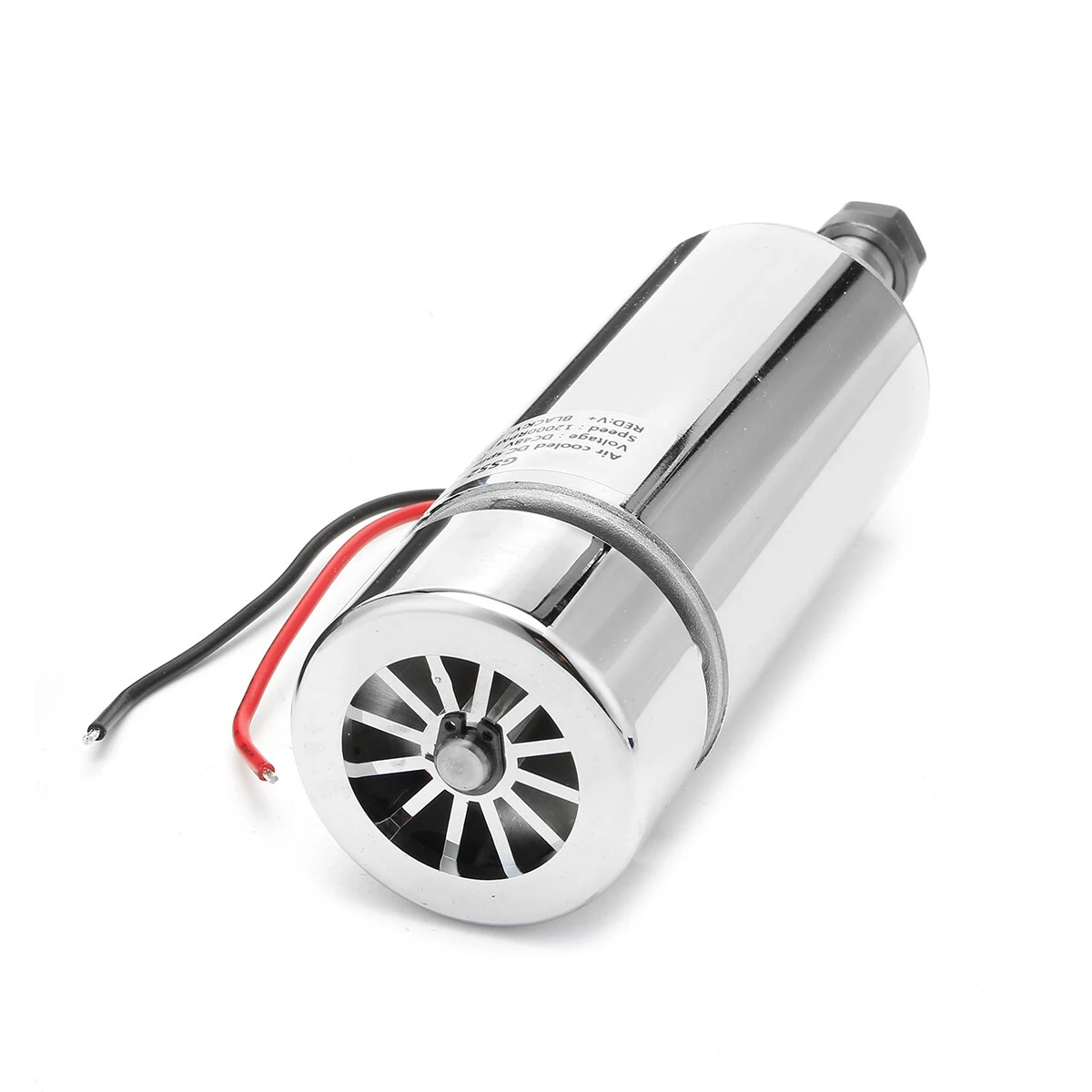

12-48V 400W ER11 Air Cooled Engraver Spindle Motor for CNC Carving
Specification:

Material	Metal
Work voltage	12-48VDC
Rotation speed	3000-12000r/min
Power	400W (ER11)
Torque	500mN.m
Insulation resistance	>2Megohm
Dielectric strength	400V
Diameter	52mm
Chuck part length	Arbor parts 35mm, (including nuts and sandwich 43mm)
Part chuck diameter	16mm

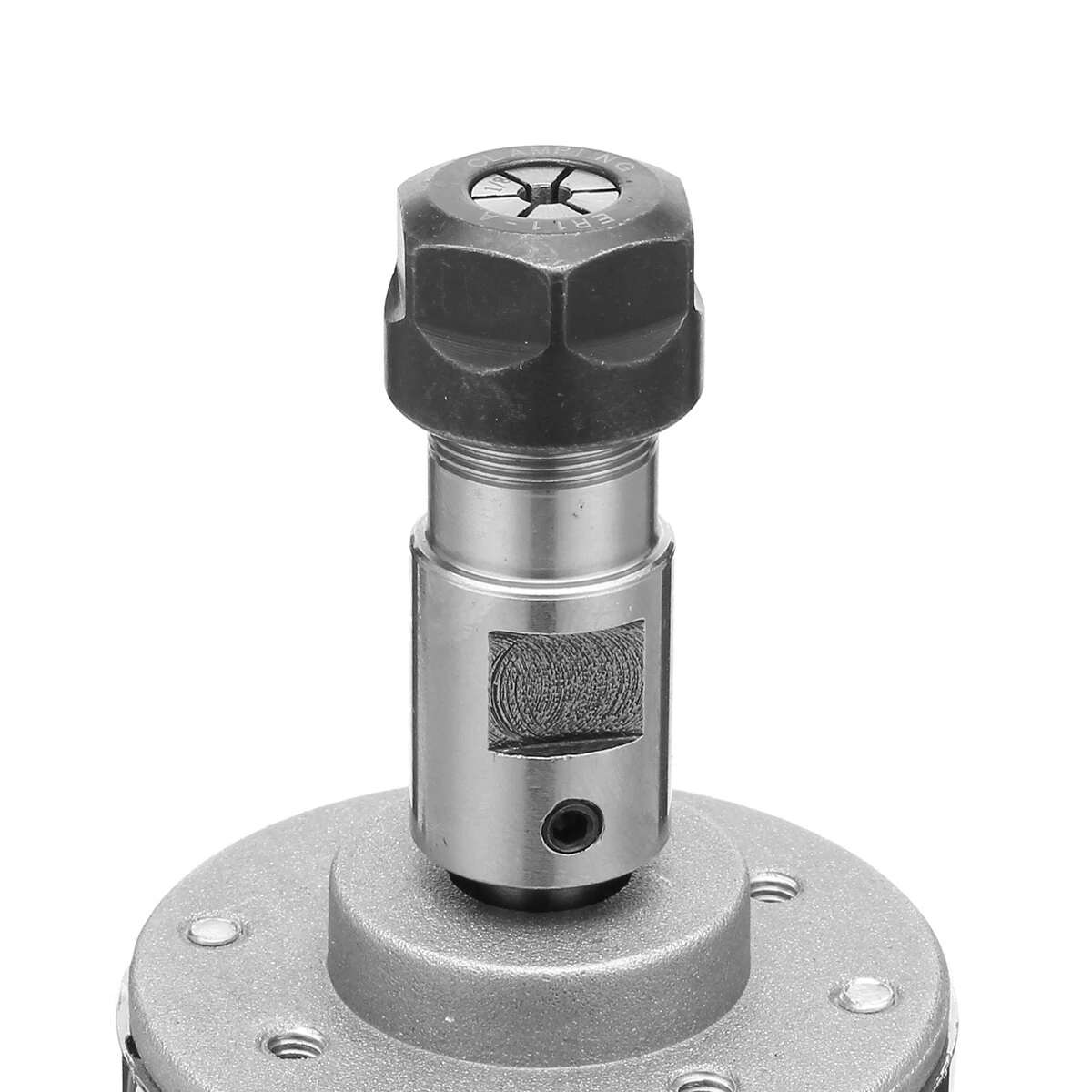

ER11 collect	3.175mm
Motor length	186mm (including gripping parts and motor)
Repeat accuracy	0.01-.03mm
Spindle runout	About 0.01-0.03

Features:
Wide voltage PWM DC brush motor speed controller. Applies to DC12-48V low voltage permanent magnet brushed DC motor.Rotation speed: 3000-12000r/min (12V-3000r/min, 24V-6000r/min, 36V-9000r/min, 48V-12000r/min).Can be used for engraving metal or nonmetal materials.This comes with air-cooled spindle can work long hours.Suitable for carving PCB, acrylic, drilling.
Package Included:

1 x	400W Air Cooled Spindle Motor

More Details:
