YIHAOGD YH YE 1µm TTL Linear Scale Encoder | 50-1100mm for CNC Lathe Milling DRO

Product Description

Description:
YIHAOGD YH YE 1??m TTL 50-1100mm Electronic Linear Scale Encoders Lathe Tool for 2/3 Axis Grating CNC Milling Digital Readout Display DRO
Resolution: 1??m
Specification:
YE 1U TTL Linear Scals/Linear Encoder/Linear Sensor/Linear Ruler Parameters 1. Travel (measuring) length: 0-1000mm / 0-40inch 2. Total (overall) length: Travel length + 142mm (0-1142mm) 3. Plug: DB9 4. Resolution: 0.001mm(1??) 5. Input voltage: 5V 6. Grating pitch: 0.02mm (50LP/min)
7. Cable length: 3 Meter
8. Normal size: About 22*34
9. Protection class: IP54
10. Signal: TTL

The Signal of 1?? Linear Optical Ruler/Linear Glass Scales/Linear Encoder/Linear Sensor
Pin 2 Black 0V
Pin 6 Green A
Pin 7 Red 5V
Pin 8 White B
Pin 9 Orange Z

Why buy 1u Linear Encoders?
Dust-proof, IP54 waterproof design
High quality bearing, reliable and durable 1.Eliminate machine tool position errors caused by thermal expansion, deformation of the drive mechanics, pitch issues and more. 2.High long-term speed stability. 3.Sturdy construction and high resistance to vibration. 4.Finer signal periods offer highest interpolation accuracy. 5.Compact, lightweight and easy to install. 6.Durable and dependable??functions properly even after many years of operation.
7.Sealed or enclosed linear designs available.

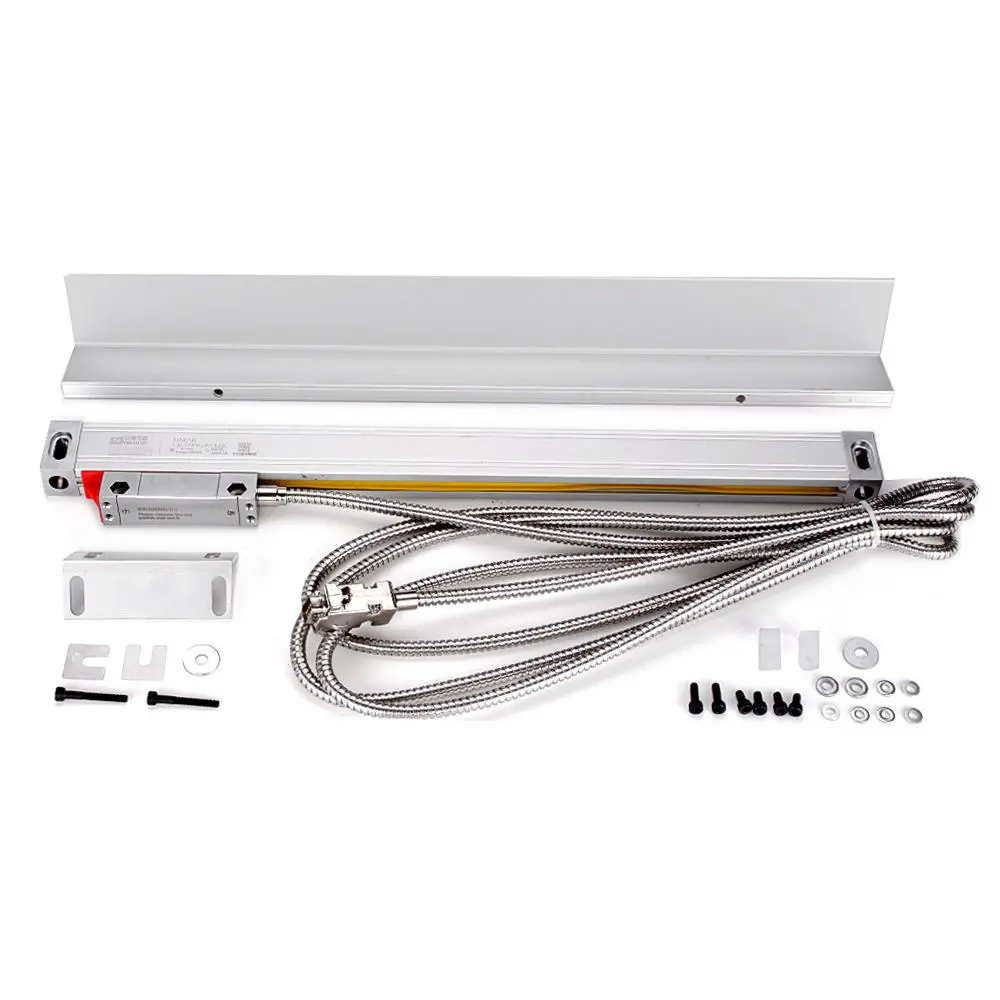

Package Included:
1 Pcs x Linear Sacle
1 Pcs x L plate
1 Pcs x Bracket
1 Pcs x Bag of screw
