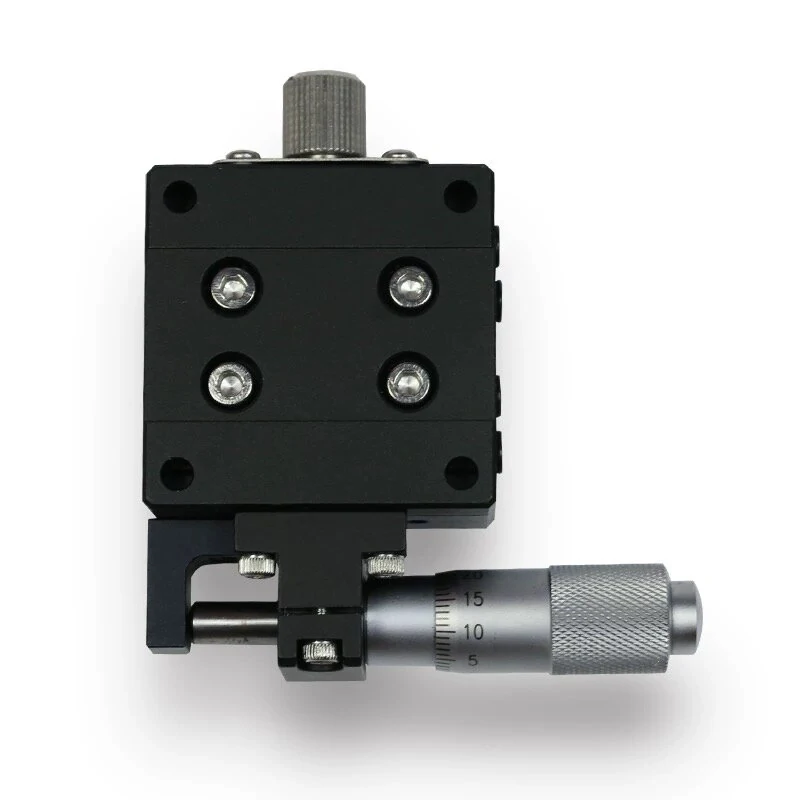

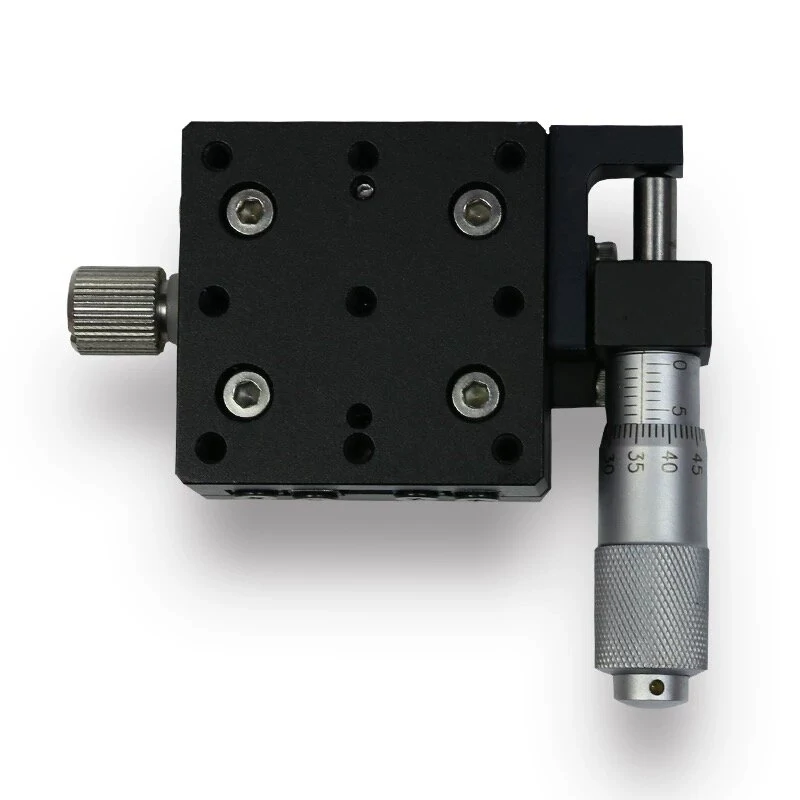

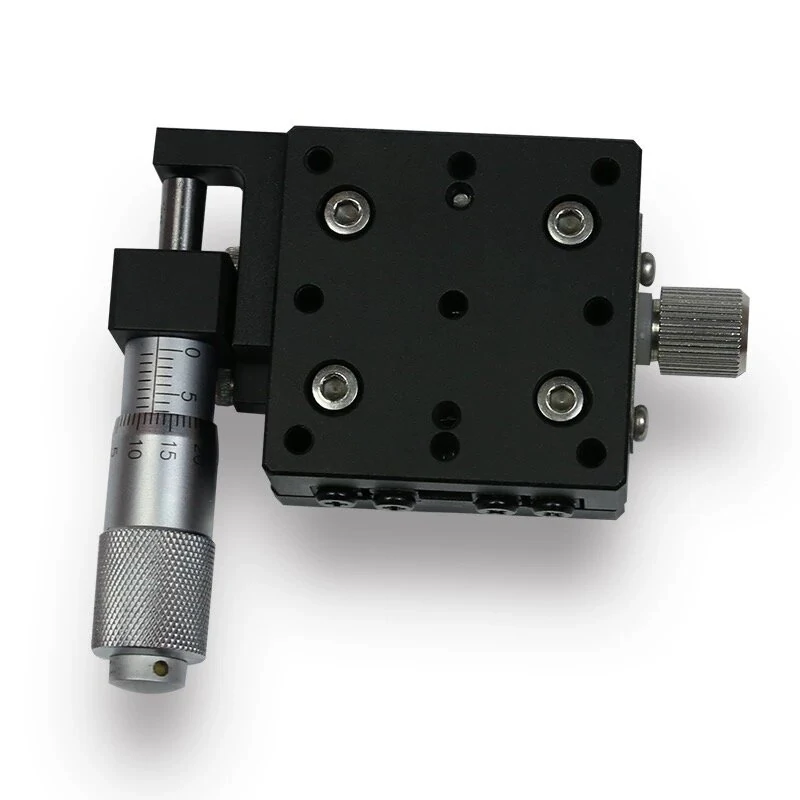

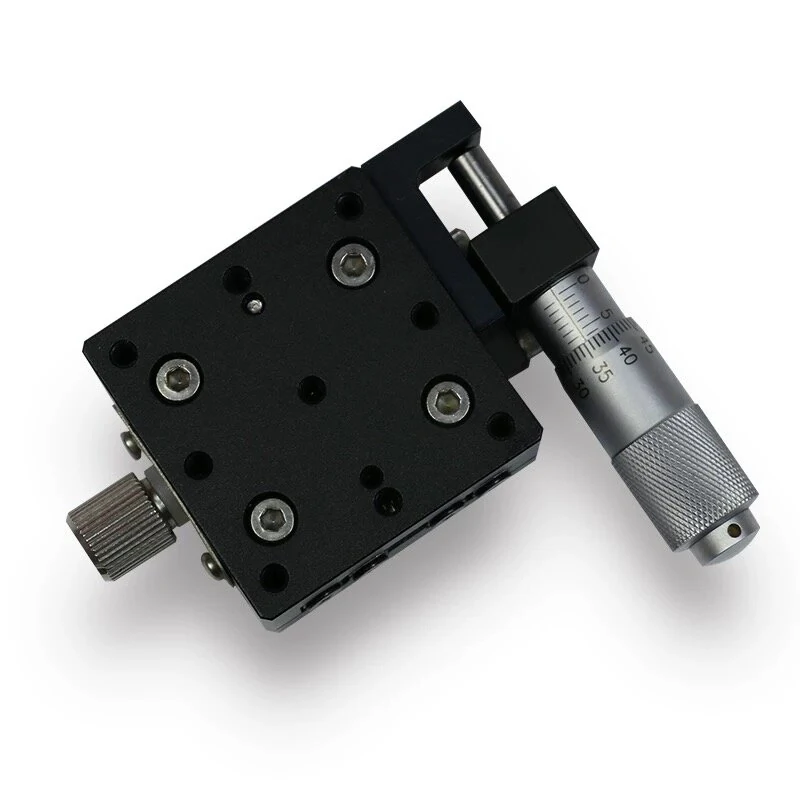

Machifit LX40 Manual Sliding Stage Platform | 40x40mm X-Axis CNC Table
$57.00
$70.38
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:
Machifit LX40-L LX40-R LX40-C X Axis 40x40mm Sliding Stage Platform Manual Displacement Sliding Table
Specifications:
| Product Name | Sliding Stage Platform Manual Displacement Sliding Table |
| Type | LX40-L LX40-R LX40-C |
| Direction of Movement | X-axis one degree of freedom |
| Can be Achieved | Linear displacement fine-tuning |
| Material | Aluminum alloy (black anodized surface) |
| Rail Type | V-type precision cross roller guide |
| Quantity | 1 Pc ?? Manual Displacement Sliding Table |
| Type | LX40-L | LX40-R | LX40-C |
| Table size | 40mm ?? 40mm | ||
| Movement amount | ??6.5mm | ||
| Table thickness | 18mm | ||
| Micrometer minimum reading | 10um / scale | ||
| Load | 29.4N (3kgf) | ||
| Accuracy | 10um | ||
| Straightness | 5um | ||
| Weight | 0.14KG | ||
| Minimum scale | 0.01mm | ||
| Accuracy | 0.01mm | ||
| Move parallelism | Less than 0.01mm/13mm | ||
| Parallelism | 0.02mm | ||
Features:
- The use of cross-roller guides enables high-precision and smooth movement.
- The main material is aluminum alloy, which is light in weight. Suitable for being built into other devices.
- The driving method is micrometer driving.
- Various multi-axis free combination sliding tables can be assembled and debugged freely according to your own requirements.
Package Included: (optional)
| 1 ?? | Manual Displacement Sliding Table ??LX40-L/LX40-R/LX40-C?? |
