Mach3 USB Controller - 4/6 Axis Wireless Handwheel & Pulse Generator for CNC
Product Description
Description:

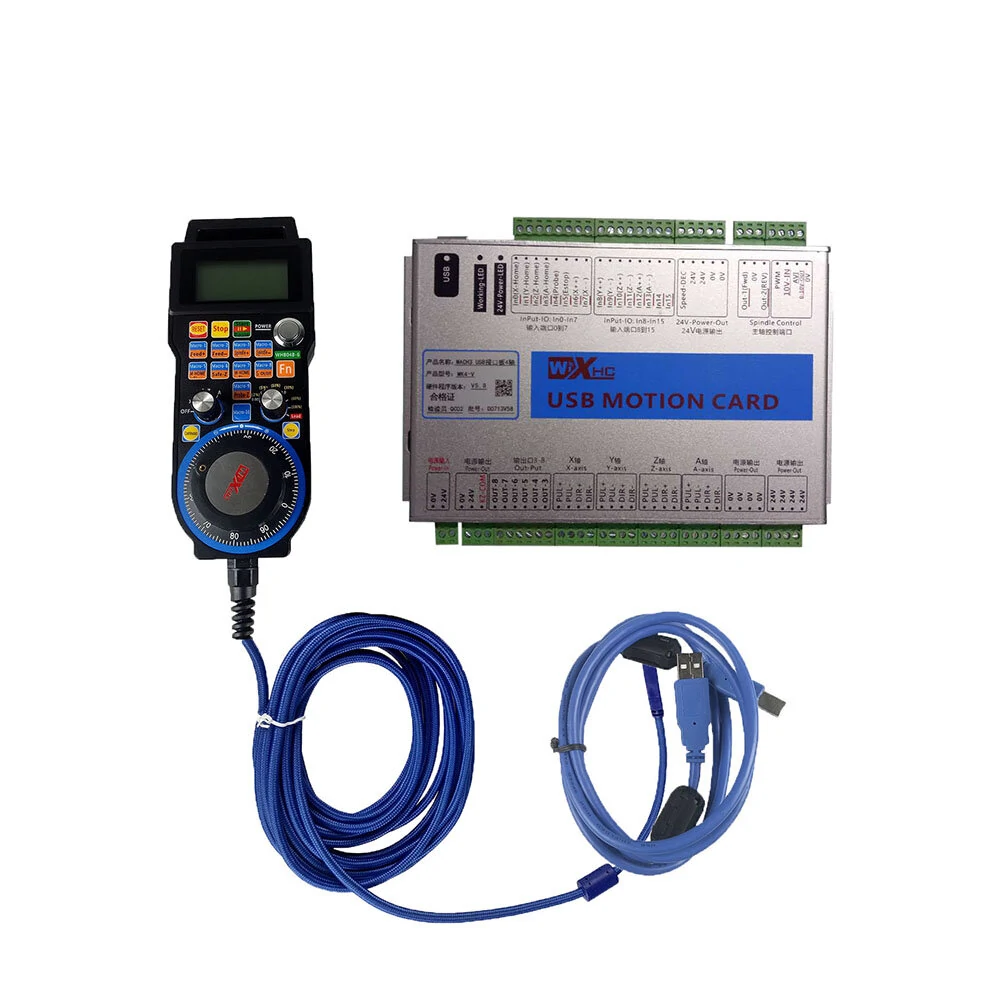

Mach3 Controller Kit Wired/Wireless Handwheel 4/6 Axis USB Controller Pulse Generator for CNC Engraving Machine
Specifications:
Handwheel Parameters | ||
Type | Wired/Wireless Handwheel | |
Axis | 4/6 Axis | |
Wireless Transmission Parameters | Communication Channel | ISM, 433MHZ |
Power Supply | 2x AA alkaline batteries (NOT included) | |
Wireless Transmission Distance | barrier-free 40meters | |
Encoder | 100PPR | |
Button | 16 (support 10 macro-code buttons) | |
Handwheel Performance Parameters | Transmitting Power | 10DB |
Receiving Sensitivity | -98DB | |
Display | 128*68 Dot matrix LCD backlight display | |
Material | ABS PC Alloy | |
Mach3 Motion Control Card Parameters | ||
Model | MKX-ET | |
Size | 184*127*30mm | |
Axis Output Control | Drive Current | Isolated open collector output: 5V, 20mA |
Drive | Pulse + direction output | |
Output Frequency | 2000KHZ | |
Axis Type | 4 axis: MK4-ET 6 axis: MK6-ET | |
Isolation Voltage | 3.5KV | |
Spindle Inverter Output (3 types of output modes ) | Analog Voltage Output | 0-10V |
PWM Output | 5V, 1KHZ, Duty; 0-100% | |
Pulse + Direction Output | Minimum output frequency: 15HZ Maximum output frequency: 4KHZ | |
8 IO Output | Drive Current | Isolation: 50mA, 25V |
Isolation Voltage | 3.5KV | |
16 IO Output | Input Current | Isolated input: 5mA Maximum voltage: 25V |
Isolation Voltage | 3.5KV | |
Communication Method | Ethernet Interface | |
USB Interface | Complies with USB2.0 standard | |
Features:
??Handwheel??

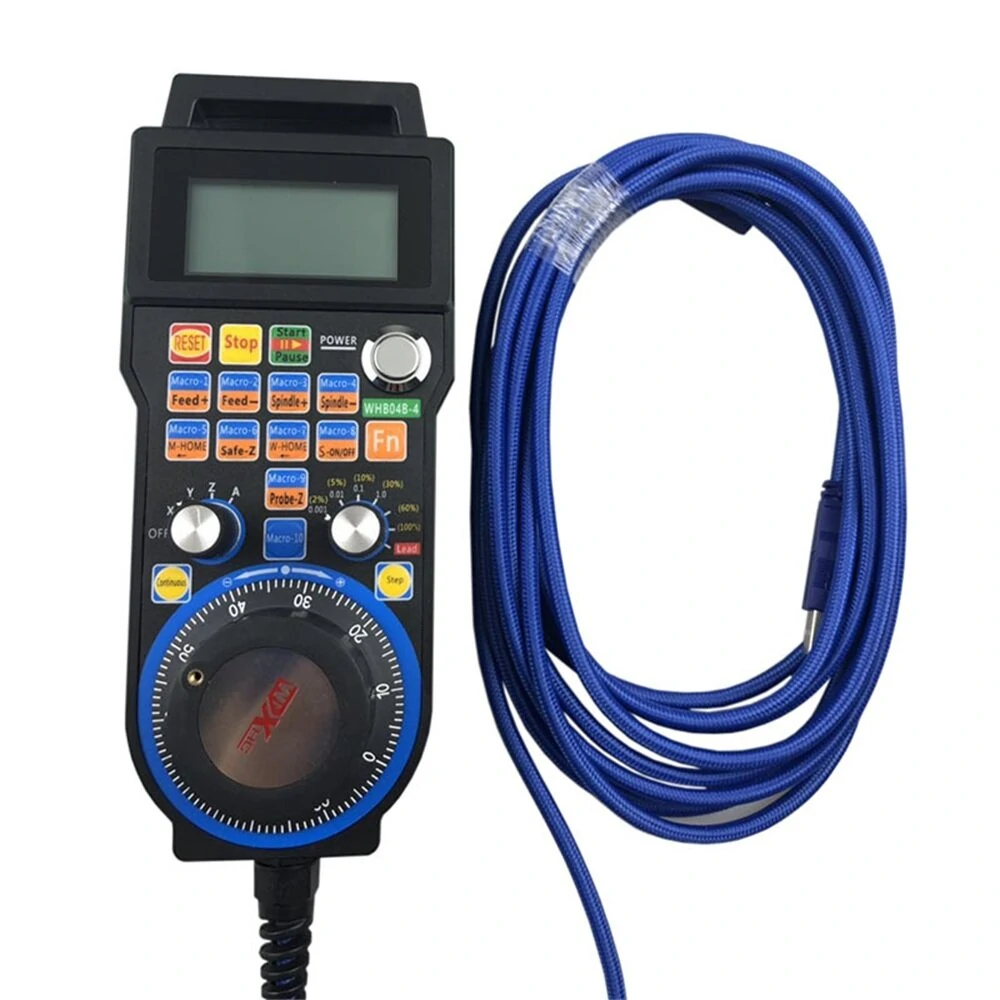

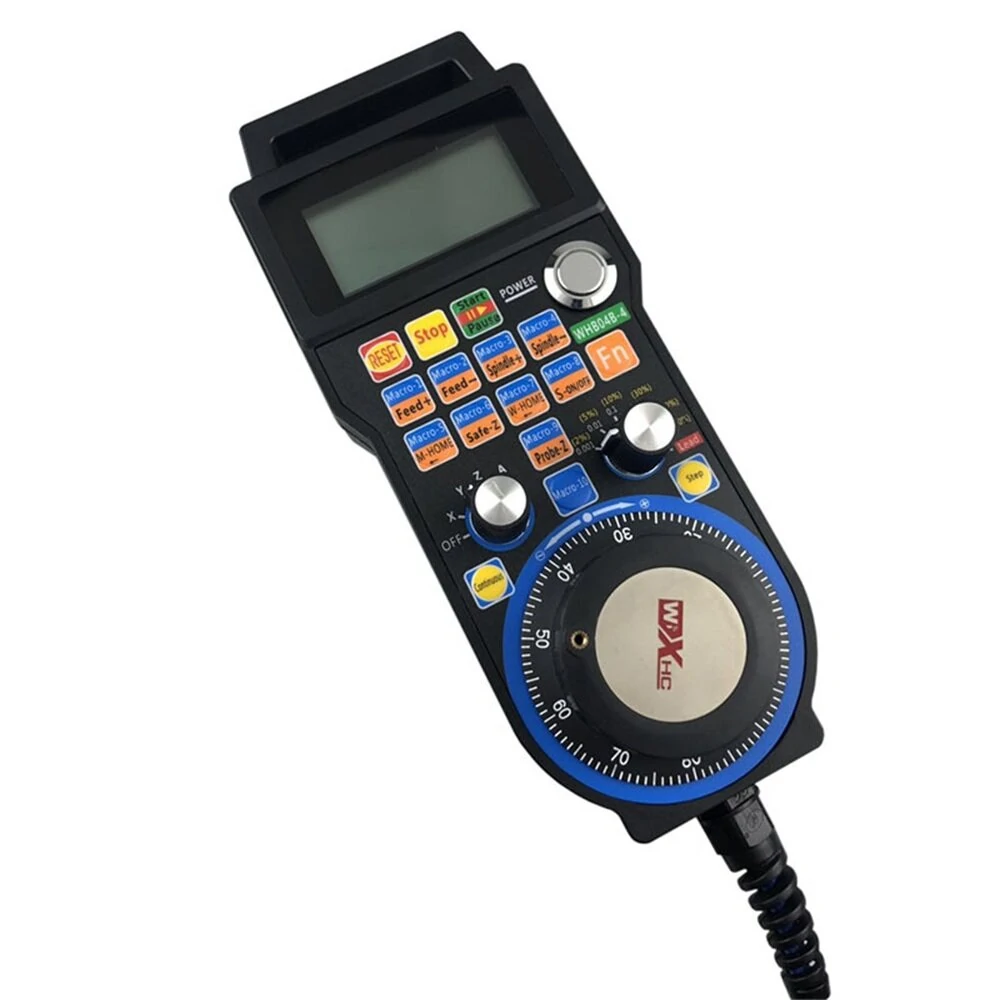

1. LCD Display - Display the machine coordinate and workpiece coordinate of the X Y Z A axis. Display spindle speed value, machining feed speed value.
2. Axis selection, rate band switch control - The axis selection band switch realizes the closing of the electronic handwheel and the selection control of the corresponding X Y Z axis functions.
3. Wide Application - Wired electronic handwheel, widely used in various industries such as engraving machine stone carving, advertising production, furniture production, nameplate production, mold production, CNC lathe, CNC cutting machine, etc.

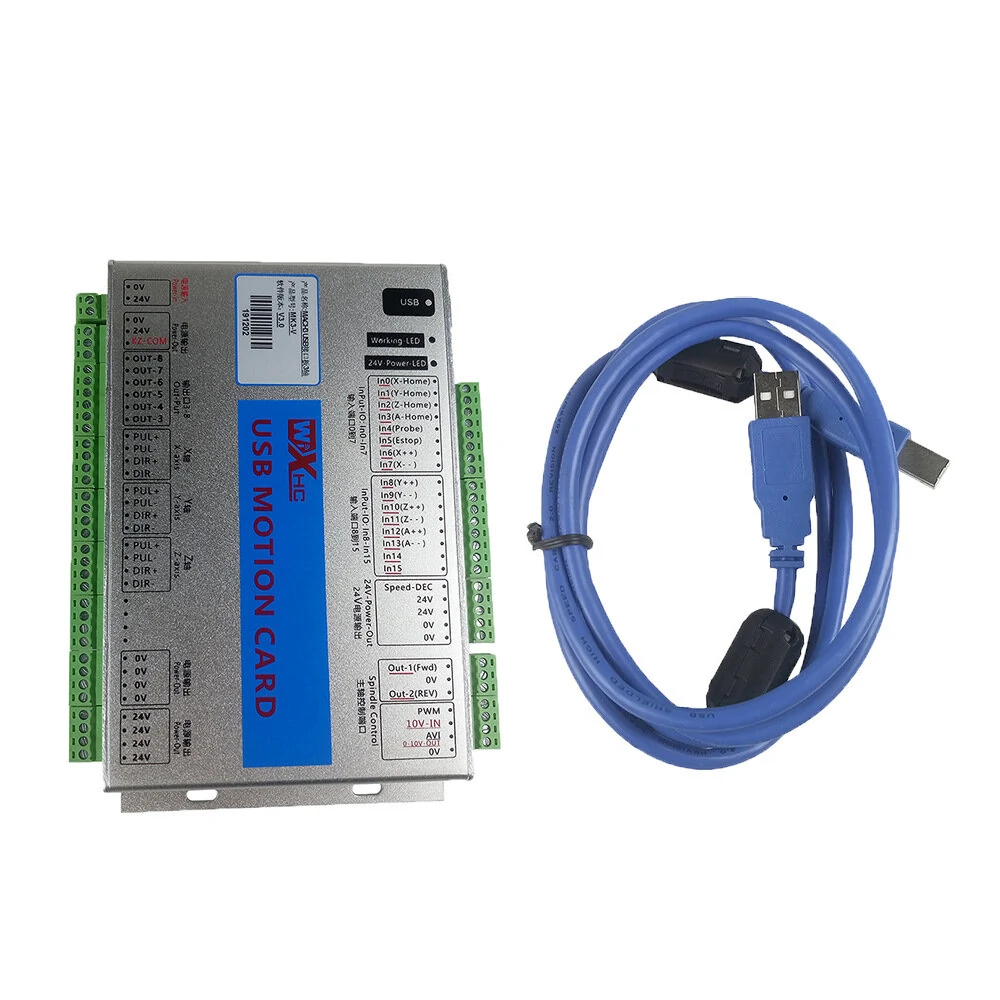

??Mach3 Motion Control Card??
1. Support all versions of Mach3, only suitable for Windows operating system, only supports Ethernet interface, the need for IP communication address settings.
2. Support spindle speed feedback function.
3. Support power-off resume function.
4. Support up to 10 meters Ethernet cable, no need to install the driver, plug and play;
5. Support up to 6-axis linkage, including jogging 6-axis linkage. (Depending on the model, the number of axes is different)
6. Has a 2000KHz pulse output, support differential signal output, support servo / stepper motor.
7. Has a status indicator, you can prompt the connection status, Mach3 connection status, operation, various status at a glance.
8. Aluminum housing, shielding interference, stable and reliable.
More to search:
MACH3 USB Motion Control Card Board ID: 1742678
MACH3 Ethernet Port Motion Control Card Board ID: 1742681
MACH4 USB Motion Control Card Board ID: 1742682
Mach3 Controller Kit | 1 X | MKX-ET motion card |
1 X | Handwheel | |
1 X | Ethernet cable | |
1 X | Driver disk | |
1 X | MACH3 trouble shooting Manual | |
1 X | MACH3 config and driver installation Manual | |
1 X | MKX ?CET user Manual | |
Handwheel | 1 X | Handwheel |
Note: Please note that the package included single handwheel or motion with handwheel set. It is optional.
