Hongdui HD-MG21 Mitre Gauge Fence | Fits Bosch Festool Dewalt | 50 Degree Angle

Product Description

Please note before purchasing: The size of the slide bar is universal and suitable for most table saws. It is possible that some individual sizes are not suitable. Please check the sizes on the page and compare them to see if they are suitable for your table saw.

Features:

1. HD-MG21-BS Mitre Gauge Fence's initial length is 360mm, can extend to 610mm. It's incredibly fit for Bosch Table Saw.

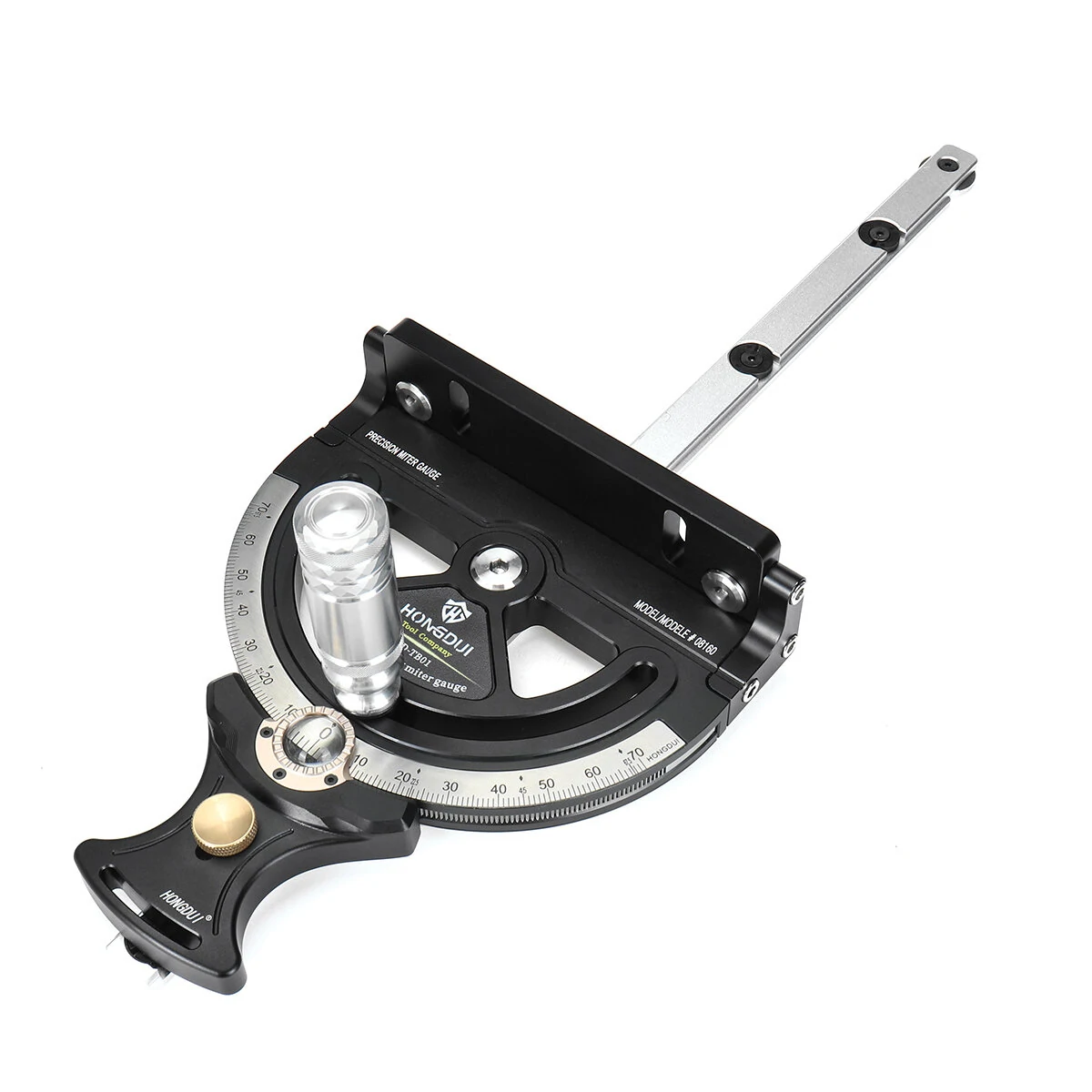

2. This Mitre Gauge has an angle range of 140 degrees, 70 degrees to the left and 70 degrees to the right, providing a wide range of angles for use on many projects.
3. Precision CNC machined metal gear plate, with one tooth for each degree, ensuring accurate adjustment throughout the entire 140 degree
range of this Mitre Gauge.
4. Fully adjustable mount on the Mitre Gauge which enables complete flexibility to adjust user mounted fences to be square to the saw blade
horizontally and square to the table vertically. This enables the user to achieve highly precise square cuts.
5. Built-in angle scale magnifier enhances the visibility of the degree angle scale line on the Mitre Gauge.

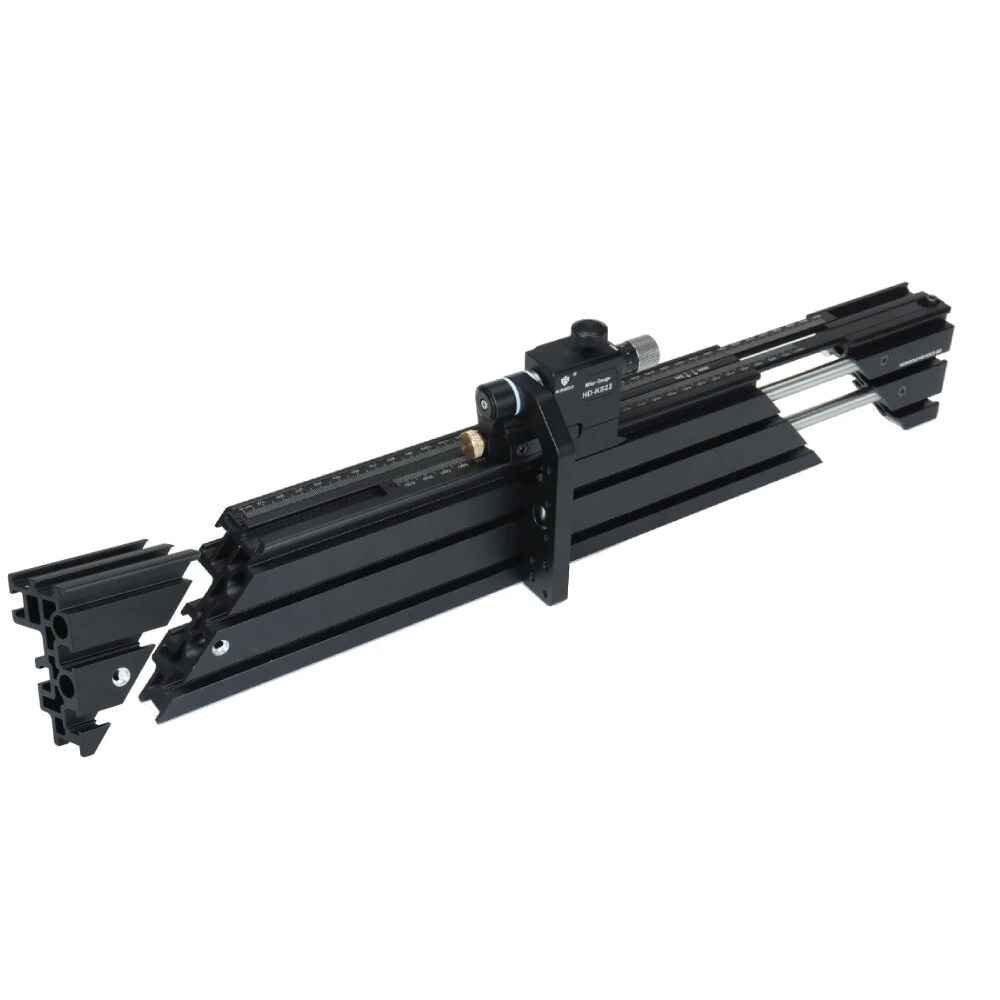

6. The Mitre Gauge fence can be used at a 50 degree angle, and the scale bar can also be used normally according to the scale.

Specifications:

Material: Aluminum Alloy/Stainless Steel

Color: Black/Silver/Red

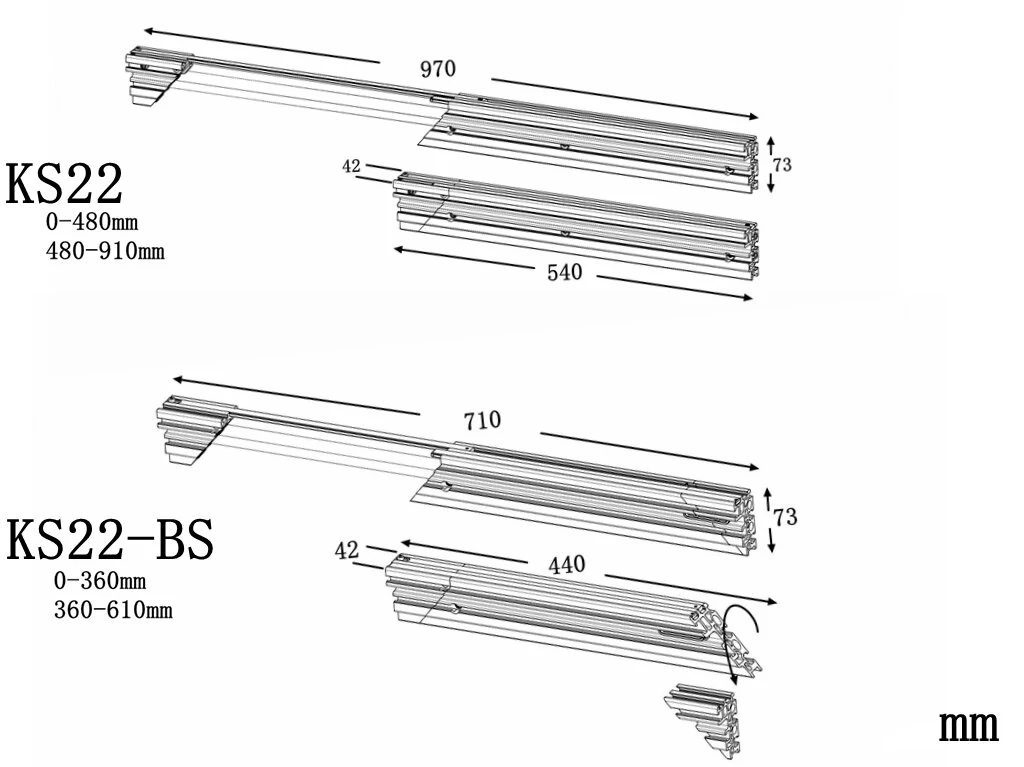

Miter Fence Size:

KS22-BS: 0-610mm(Initial length is 360mm)

KS22: 0-910mm(Initial lenght is 480mm)

Miter Bar Length: 450mm/480mm

Model:

General Style	KS22 Miter Fence + 480mm Long Miter Gauge (Standard 3/4 Type Slide Bar)
Customized	Default KS22-BS Miter Fence + 450mm Long Miter Gauge (Please contact the customer to provide the rail size after placing the order)

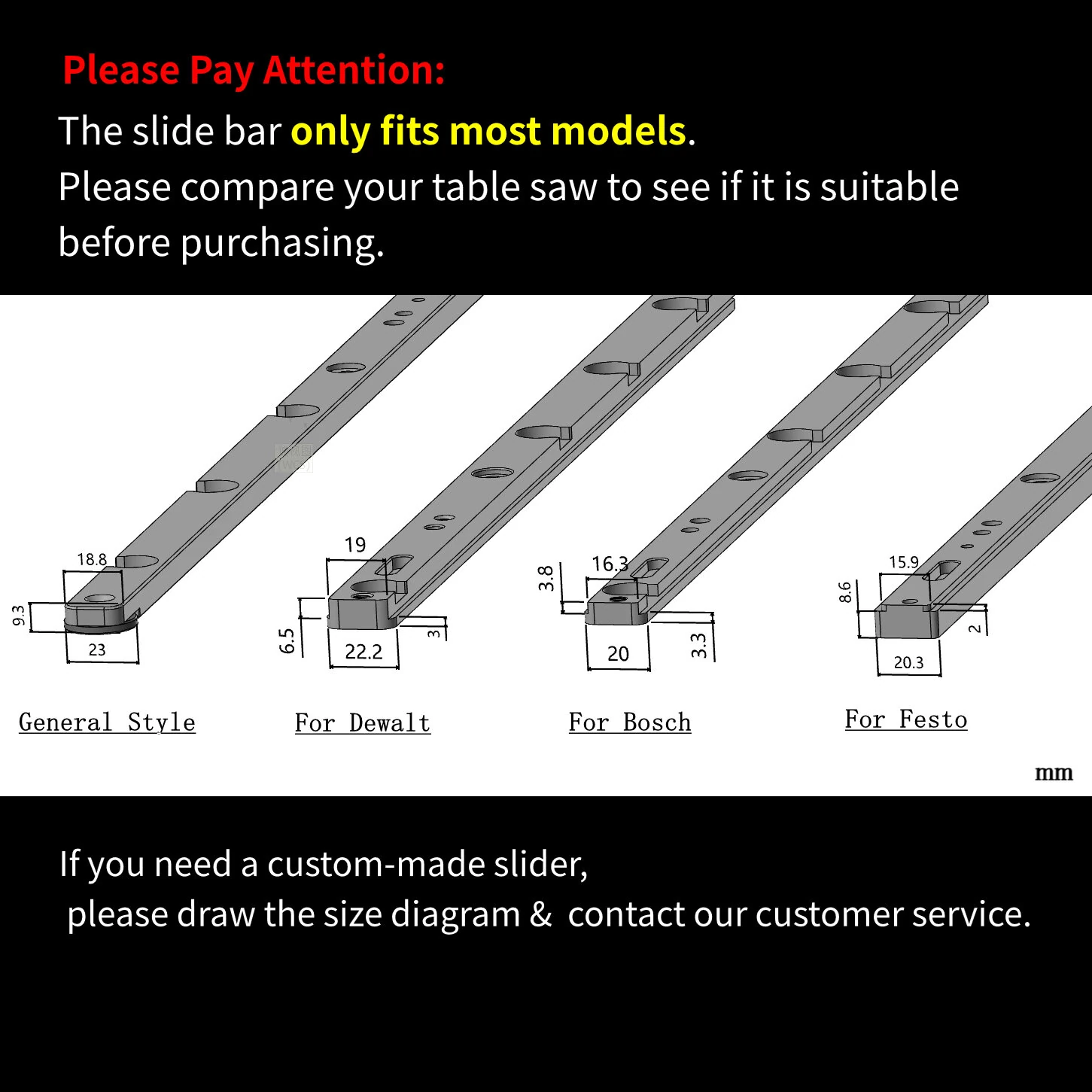

For Most Bocsh	KS22-BS Miter Fence + 450mm Long Miter Gauge (Slide Bar Size: A=16.3mm, B=3.8mm, C=3.3mm, D=20mm)
For Most Dewalt	KS22-BS Miter Fence + 450mm Long Miter Gauge (Slide Bar Size: A=19mm, B=6.5mm, C=3mm, D=22.2mm)
For Most Festool	KS22-BS Miter Fence + 450mm Long Miter Gauge (Slide Bar Size: A=15.9mm, B=8.6mm, C=2mm, D=20.3mm)

Package included(Suitable brands for your choice):

1 x Miter Gauge

1 x Miter Gauge Fence
