High-Precision Stainless Steel Wet Film Thickness Gauge | 25-3000um Hexagon Comb
Product Description
Description:

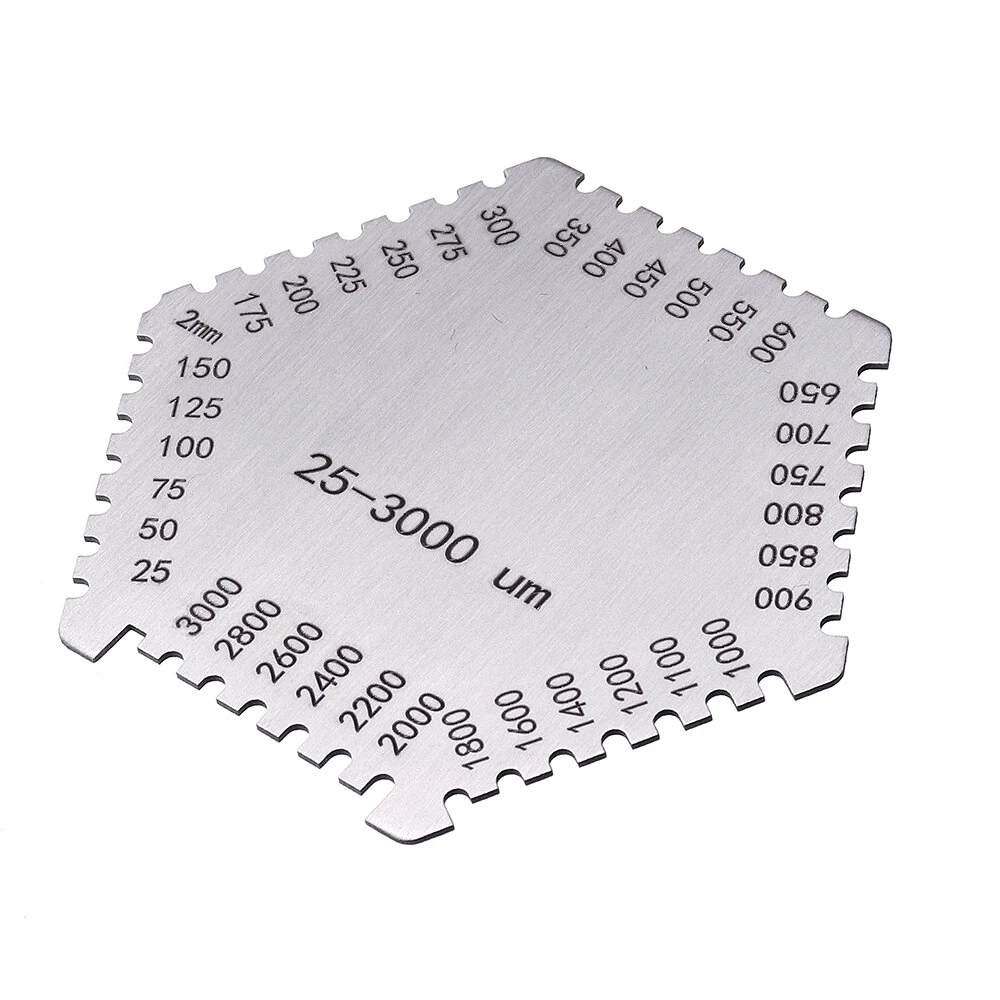

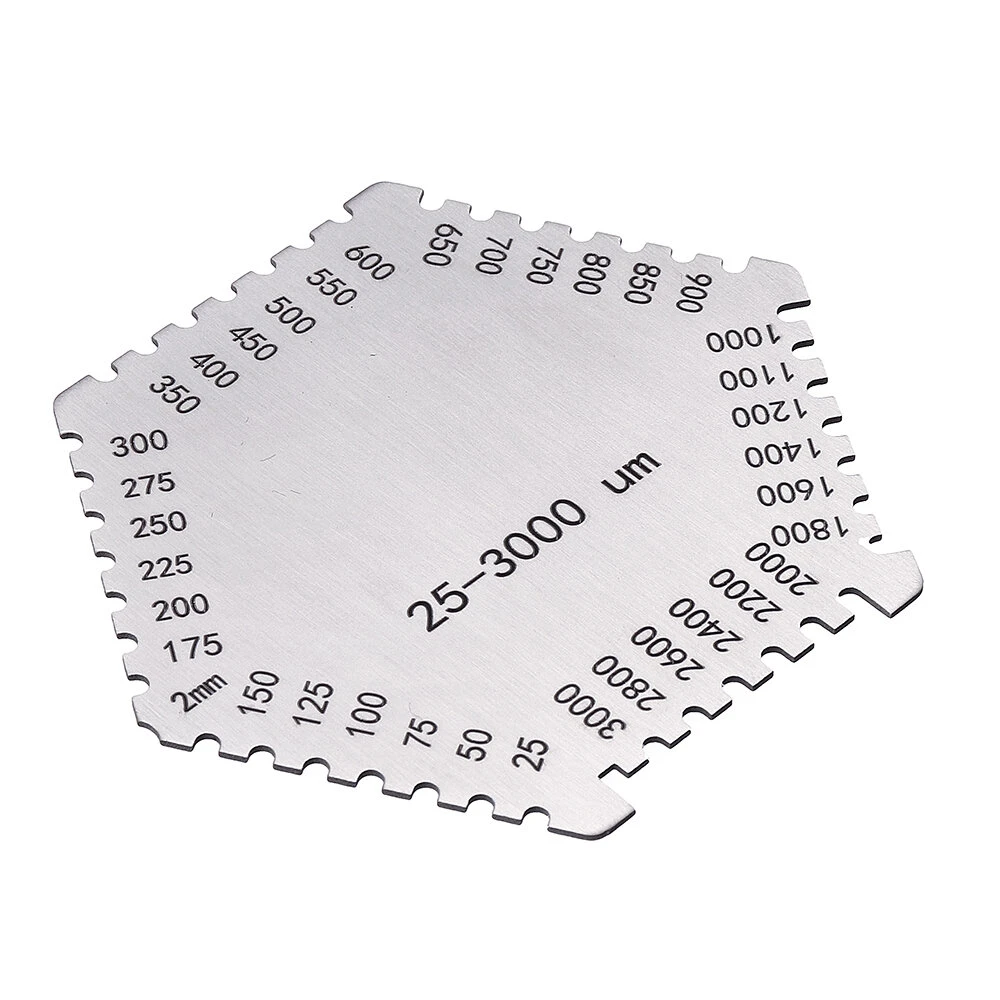

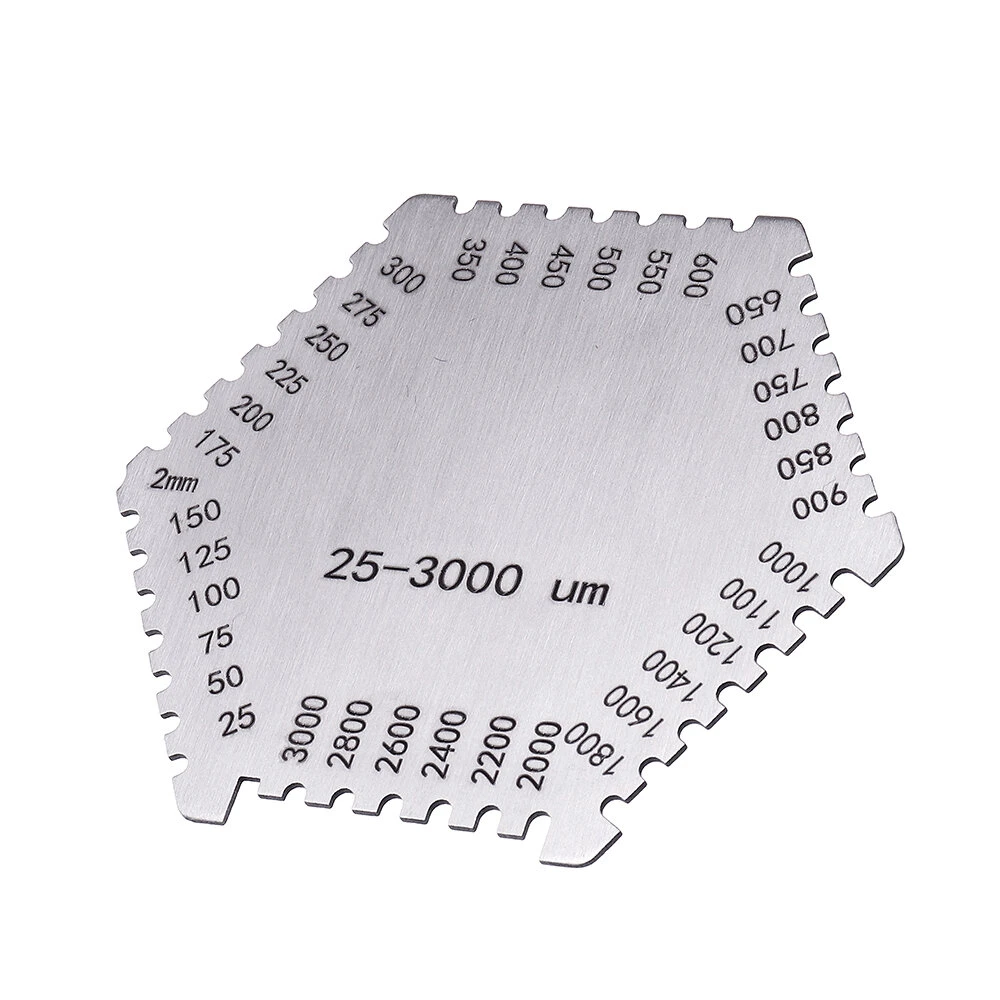

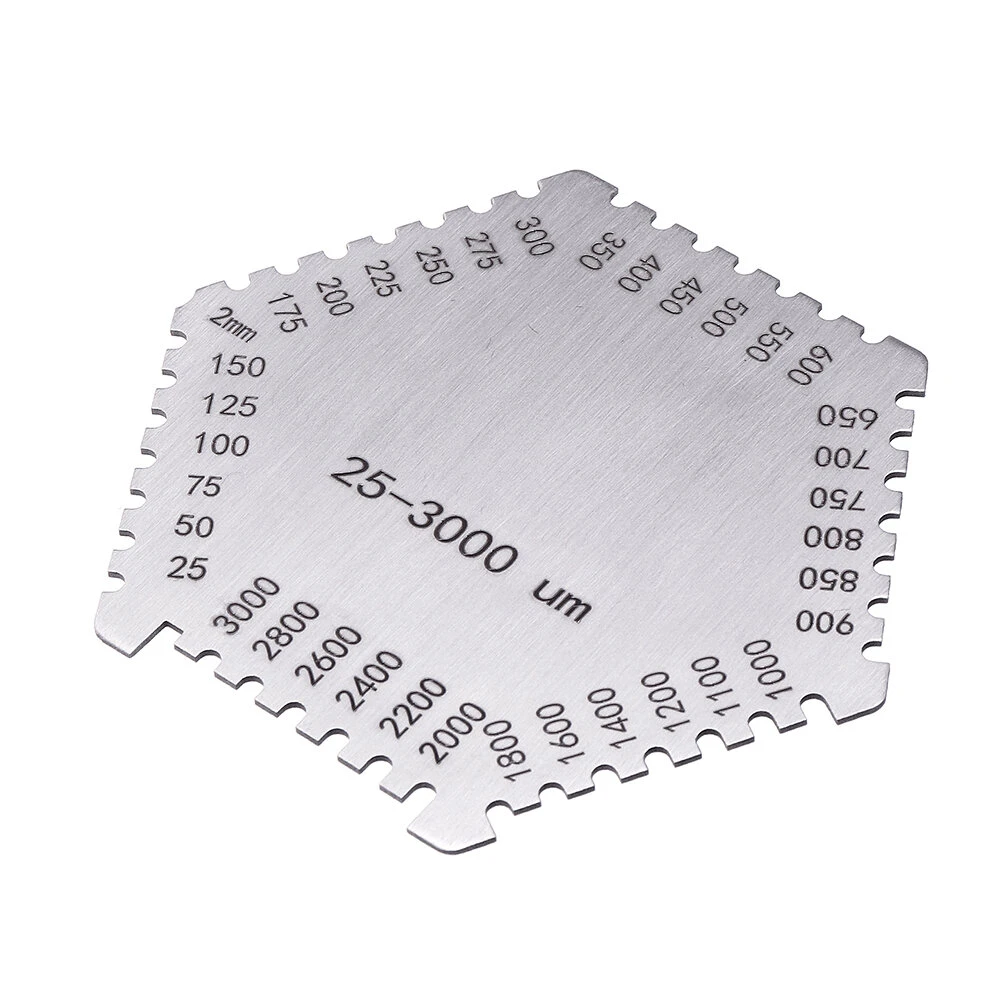

25-3000um High-Precision Stainless Steel Hexagon Wet Film Comb Paint Wet Film Thickness Gauge
Specifications:
| Product Name | Wet film thickness gauge |
| Material | Stainless steel |
| Scal Process | Infrared scale |
| Size | About 37*65*0.83mm/1.46*2.56*0.03" |
| Measuring Range | 25-3000um (mm) |
| Packing | Leather cover |
| Quantity | 1 Pc |
Features:
- This precision-formed stainless steel wet film comb is durable and reusable with a thickness range of up to 3000um.
- This wet film comb is made of stainless steel and has excellent rust resistance.
- Practical and convenient, easy to operate and easy to carry.
- The interval is detailed and the measurement accuracy is high.
- It is an excellent tool for measuring coating thicknesses such as paints and varnishes.
Instructions:
After the application, the wet film thickness gauge was placed vertically on the smooth surface of the wet film coating, the wet film thickness gauge was removed from the wet film, and the wet film thickness was measured.
The wet film thickness should be between the shortest tooth and the adjacent one, not the wet film.
Two measurements were taken at different locations using the same method to obtain a range of representative results.
After use, clean the wet film thickness gauge.
Package Included:
| 1 x | Wet film thickness gauge |
| 1 x | Leather cover |
More Details:
