Signal Fire AI-9 Orange Fusion Splicer | 9-in-1 6 Motor Machine | 5s Splice Bluetooth TFT

Product Description

Specifications:

Fiber alignment: Core/cladding

Motor number: 6 motors

Splicing time: 5 seconds

Heating mode: 15 seconds (customizable based on external environment)

Fiber type: Single-mode fiber (SMF/G.652), BIF/G.657; Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper fiber, drop cable

The cladding diameter: 80-150 ??m

Splicing loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS)

Splicing mode: Automatic focusing core alignment, conventional/high precision welding

Splicing way: Automatic, semi-automatic

Fiber holder: Three in one fixture

Battery capacity: 7800mAh, charging time ??3.5 hours; Can continuously weld and heat about 260 cores

Magnification: 300 (X or Y), 150 (X or Y)

Fiber diameter: Coating diameter: 80-150??m, Cladding diameter: 100-1000??m

Cutting length: Coating layer 250??m below: 8-16mm, Coating layer 250-1000??m: 16mm

Heat shrink tube: 60mm, 50mm, 40mm, 25mm

Tensile testing: standard 2N

Display: 5 inch TFT color display screen

External lighting: USB port for external LED light

Charge mobile device: USB port for charging mobile devices

Boot time: 1 second

Data is stored: Unlimited, internal storage 1000 groups, expandable

Wireless communication: Bluetooth 4.2, 2.4GHz, up to 60m range

Software upgrade: Mobile app update, Bluetooth synchronization

Management function: Remote monitoring via app, view welding records, set equipment usage limits

Interface: USB2.0 (Type A)

Return loss: Better than 60 dB

Product protection: Waterproof, dustproof, fall-proof

Power supply: Input AC100-240V 50/60Hz, output DC13.5V/4.8A

Work environment: Temperature: -15??C to +50??C, Humidity: <95% RH, Altitude: 0-5000m, Wind speed: <15m/s

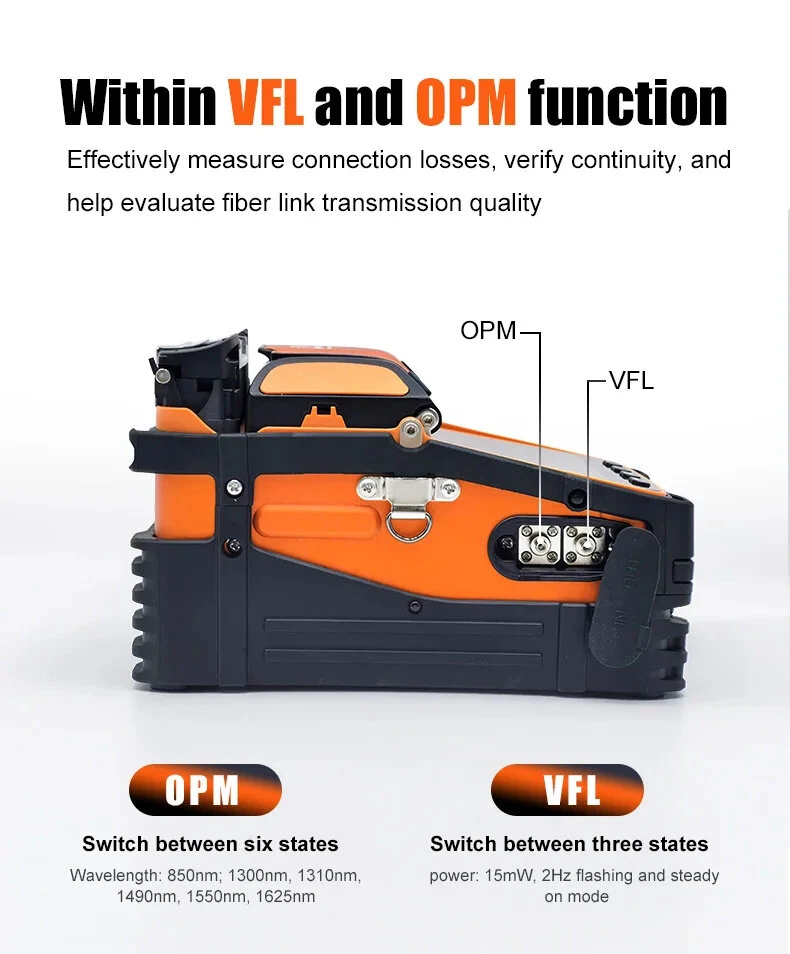

Visual Fault Locator: Power: 15mW, 2Hz flashing and constant bright mode

Optical Power Meter: Wavelengths: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm. Measuring range: -50 to +26dBm, Absolute error: <0.3dB (-50dBm to +3dBm range)

Features:

High Precision Splicing: Achieves 0.02dB (SM), 0.01dB (MM) splicing loss, ensuring optimal performance and minimal signal loss.

Versatile Fiber Compatibility: Compatible with a wide range of fibers, including single-mode, multi-mode, bare, tail, drop, and jumper fibers.

Quick Operation: Splicing time of just 5 seconds and customizable heater settings to adapt to various environments.

User-friendly Interface: Equipped with a 5-inch TFT color display, USB connectivity, and efficient battery management for prolonged usage.

Robust Data Management: Features unlimited storage with the ability to export data and Bluetooth 4.2 for seamless communication and updates.

Package Included:

Type A:

1 x AI-9 Orange 9IN1 Fusion Splicer

1 x Power Adapter (EU Plug)

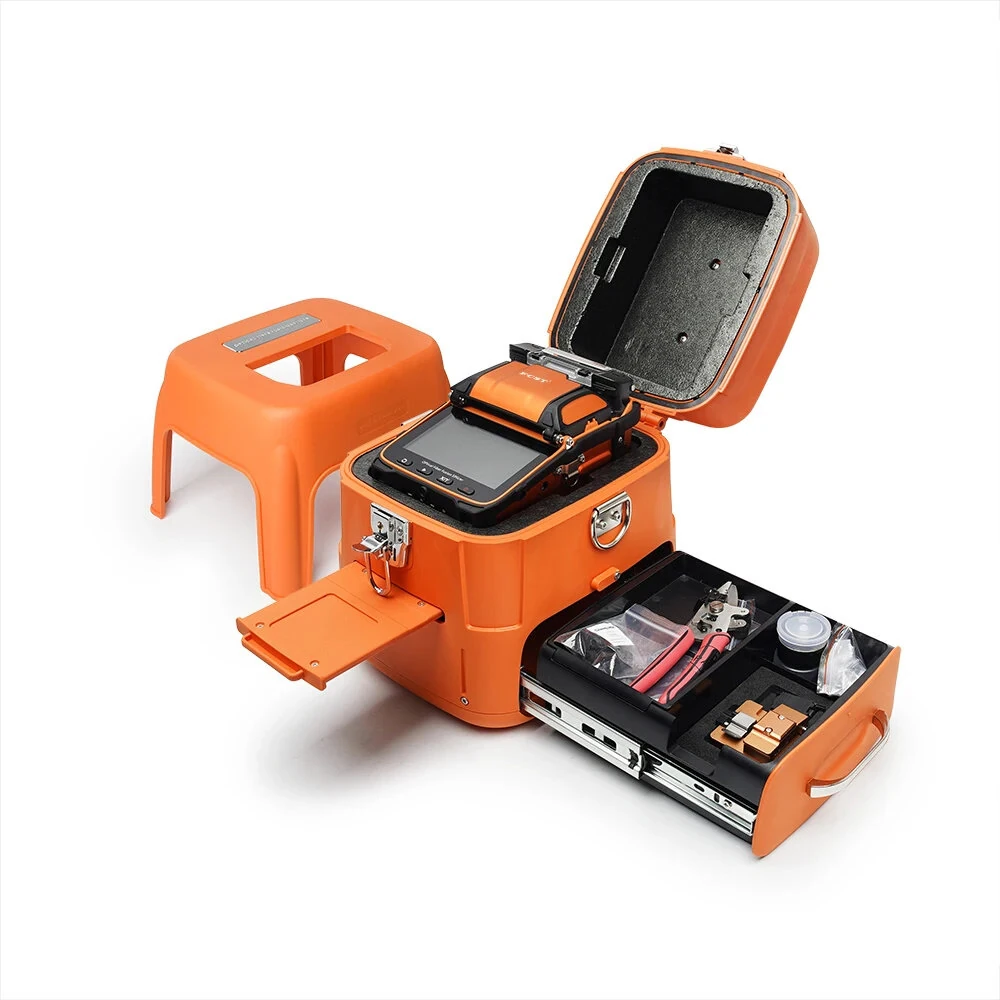

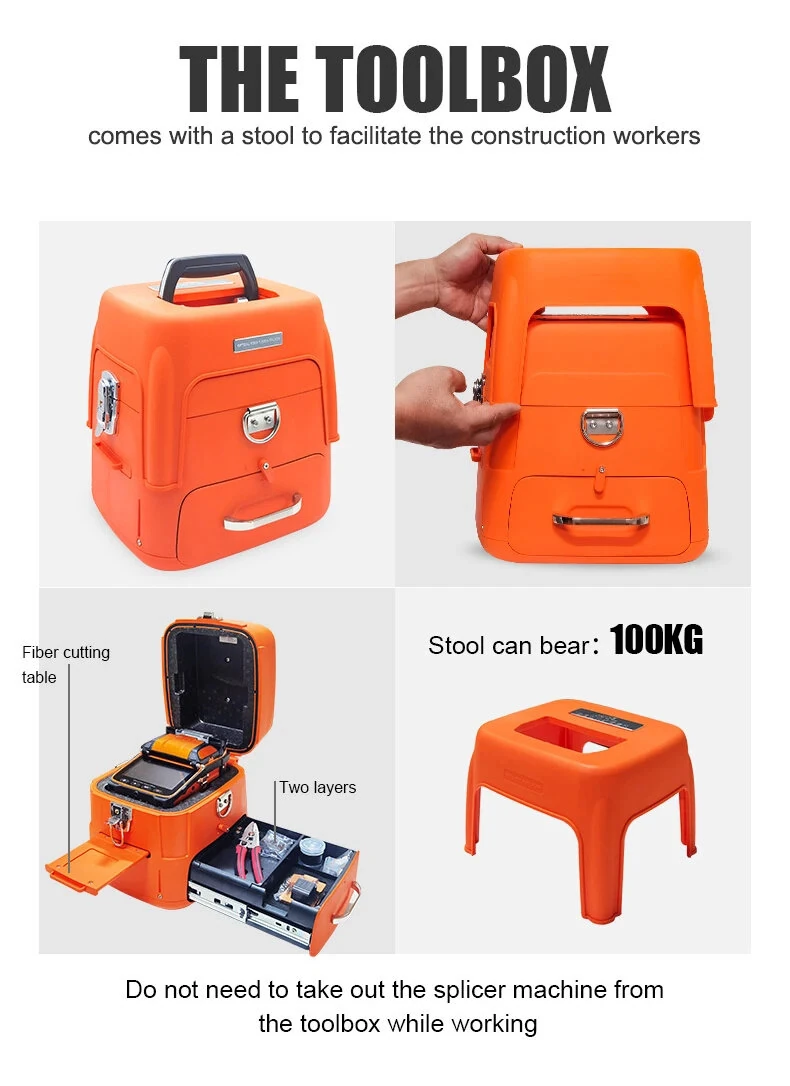

1 x Carrying Case

1 x User Manual

1 x USB Cable

1 x Cooling Tray

2 x Electrodes

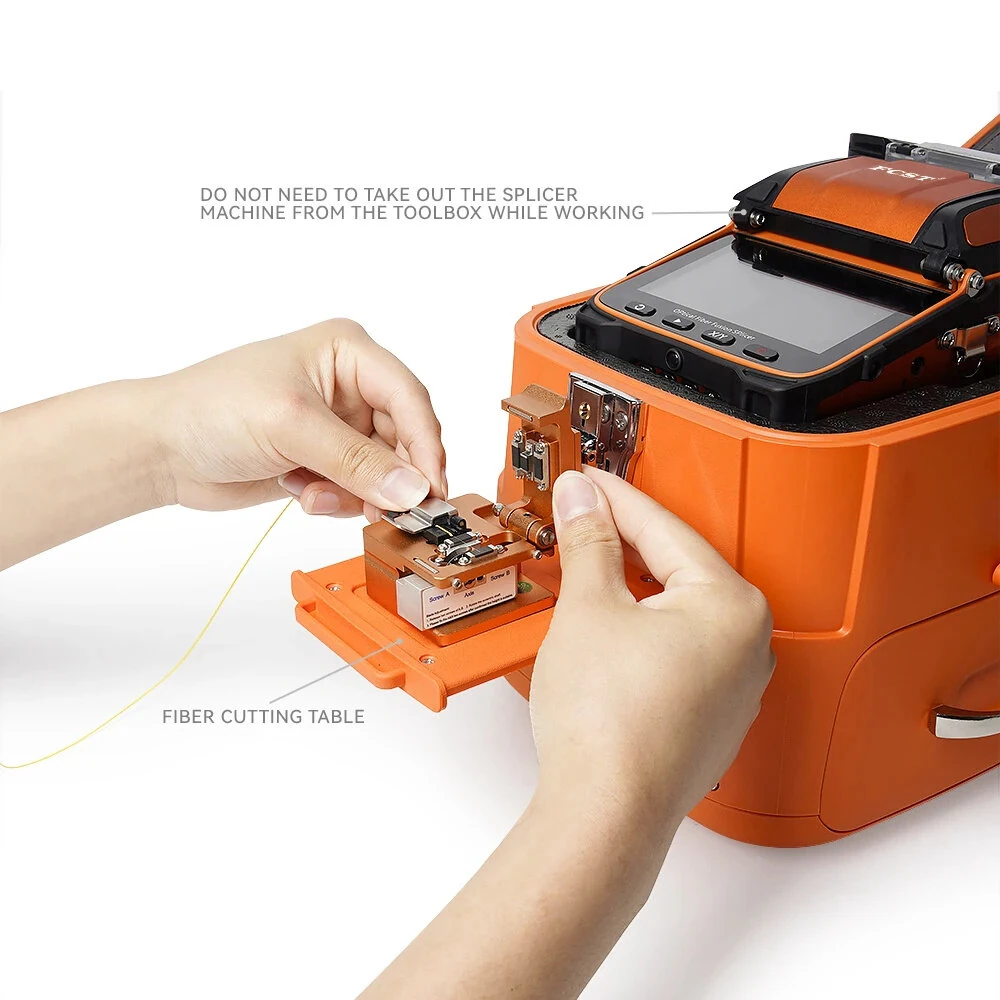

1 x Fiber Cleaver

1 x Stripper

1 x Alcohol Bottle

Type B:

1 x AI-9 Orange 9IN1 Fusion Splicer

1 x Power Adapter (US Plug)

1 x Carrying Case

1 x User Manual

1 x USB Cable

1 x Cooling Tray

2 x Electrodes

1 x Fiber Cleaver

1 x Stripper

1 x Alcohol Bottle
