Signal Fire AI-6C Fiber Optic Fusion Splicer | Automatic SM/MM | Fast Heating & Low Loss

Product Description

Specifications:

Fiber Alignment: Core/cladding alignment / Manual alignment

Splicing Time: 8 seconds

Heating Time: 18 seconds

Heating Mode: Automatic heating (Preheating)

Focus Mode: Six motors Auto focus

Applicable Fibers: SM(G.652& G.657), MM(G.651), DS(G.657), NZDS(G.655)

Splice Loss: 0.025dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS)

Control Technology: Real-time control and calibration of fusion ARC

Return Loss: Better than 60dB

Fiber Diameter: Cladding Diameter: 80?C150??m, Coating Diameter: 100-1000??m

Fiber Cleave Length: Coating less than 250??m: 8-16mm, Coating less than 250-1000??m: 16mm

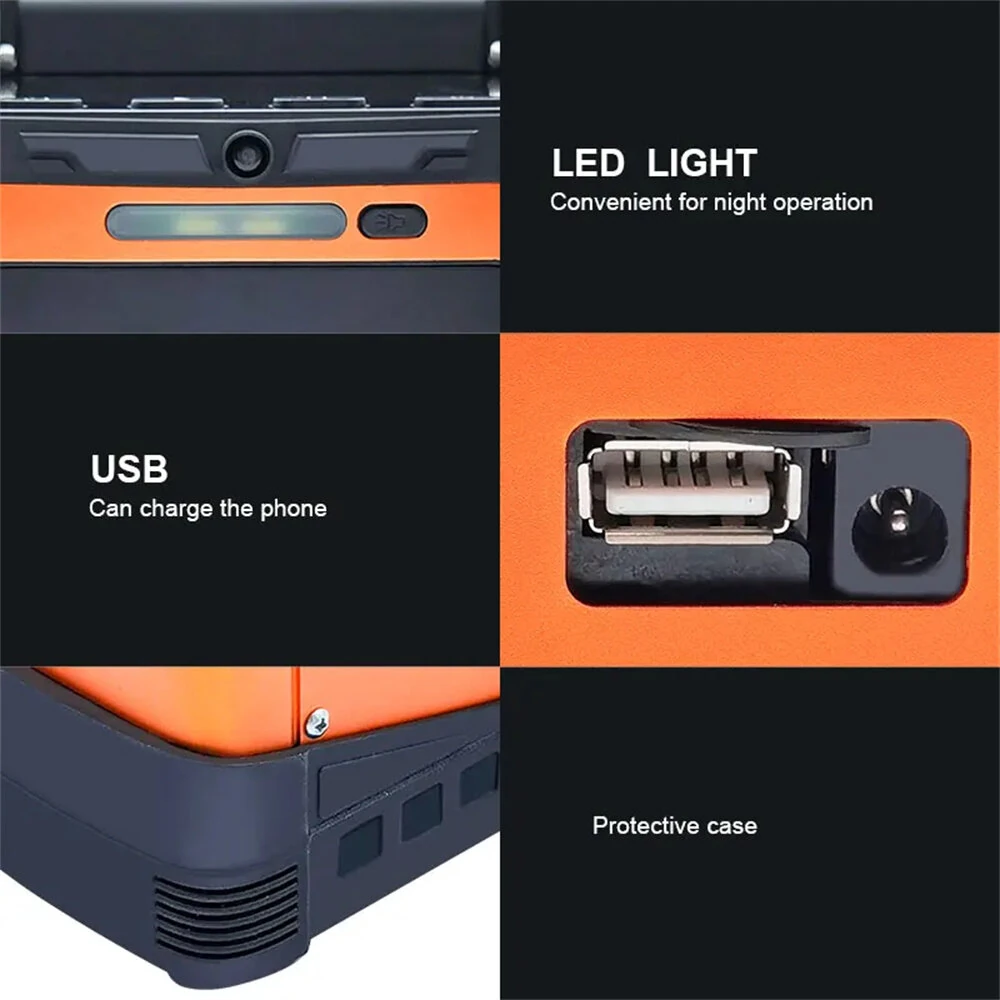

Built-in Lighting: Easy for night operation

Tension Test: Standard 2N

Fiber Holders: 3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi-fiber cable

Magnification: 300 for X or Y view, 150 for X or Y view

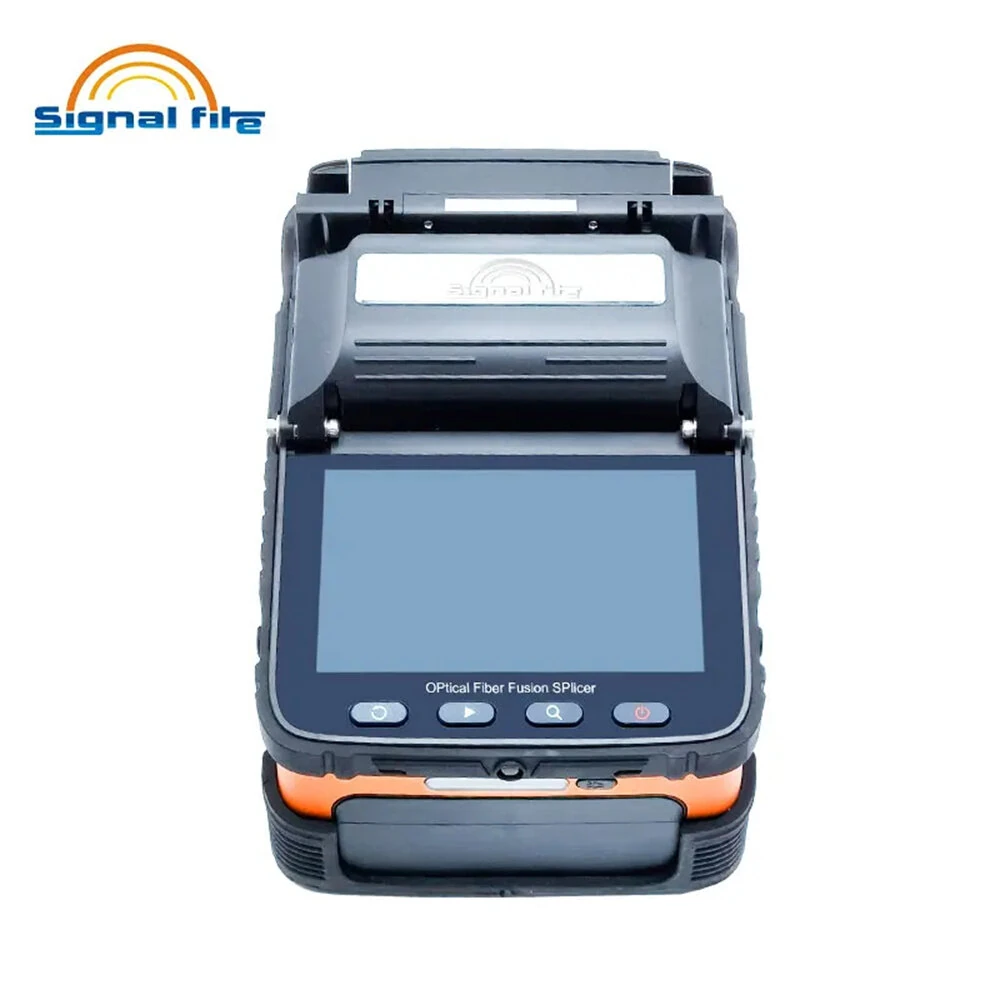

Screen: 5-inch TFT color display

Splicing Mode: Normal / High precision splicing

Splicing Record Storage: Synchronize to the phone, the server, to cloud storage unlimited

Built-in Battery: 5200mAh high-capacity lithium battery, charging time ?? 3.5 hours, continuous splicing, and heating about 160 times

Power Supply: Input AC100-240V 50/60Hz, Output DC13.5V / 4A

Operating Conditions: Temperature -15~+50??C, humidity: <95%RH (no condensation), working altitude: 0-5000m; resist max. wind speed: <15m/s

Shrinkable Tube: 60mm, 40mm

Features:

Fast and Efficient Operation: Achieve quick splicing with a time of only 8 seconds and heating in just 18 seconds.

Versatile Fiber Compatibility: Supports various fiber types including SM, MM, DS, and NZDS, making it ideal for diverse applications.

User-friendly Interface: Equipped with a 5-inch TFT color display and built-in lighting, it ensures easy and precise operations, even in low light conditions.

High-precision Technology: Real-time control and calibration of fusion ARC, ensuring optimal splice quality and low splice loss.

Robust Battery Life: Built-in 5200mAh lithium battery allows for continuous splicing and heating up to 160 times; fast charging in under 3.5 hours.

Package Included:

Type A:

1 x Fiber Optic Splicing Machine

1 x Toolbox

1 x AC Power Adapter (EU Plug)

1 x DC Power Cable

1 x User Manual

1 x Carrying Strap

1 x Cleaning Brush

1 x Fiber Cleaver

1 x Cooling Tray

1 x Additional Electrodes set

Type B:

1 x Fiber Optic Splicing Machine

1 x Toolbox

1 x AC Power Adapter (US Plug)

1 x DC Power Cable

1 x User Manual

1 x Carrying Strap

1 x Cleaning Brush

1 x Fiber Cleaver

1 x Cooling Tray

1 x Additional Electrodes set
