TOOLTOP M7 Thermal Imager - 256x192 IR Camera | 1-8x Zoom & Manual Focus

Product Description

Descriptions:

Mini thermal imager, Android ultra-far night vision thermal imaging, with the mobile phone APP can realize real-time thermal imaging picture viewing, photo and video recording, image super-resolution, pseudo-color switching, picture-in-picture overlay and other functions, widely used in outdoor observation, exploration and other fields.

Features:

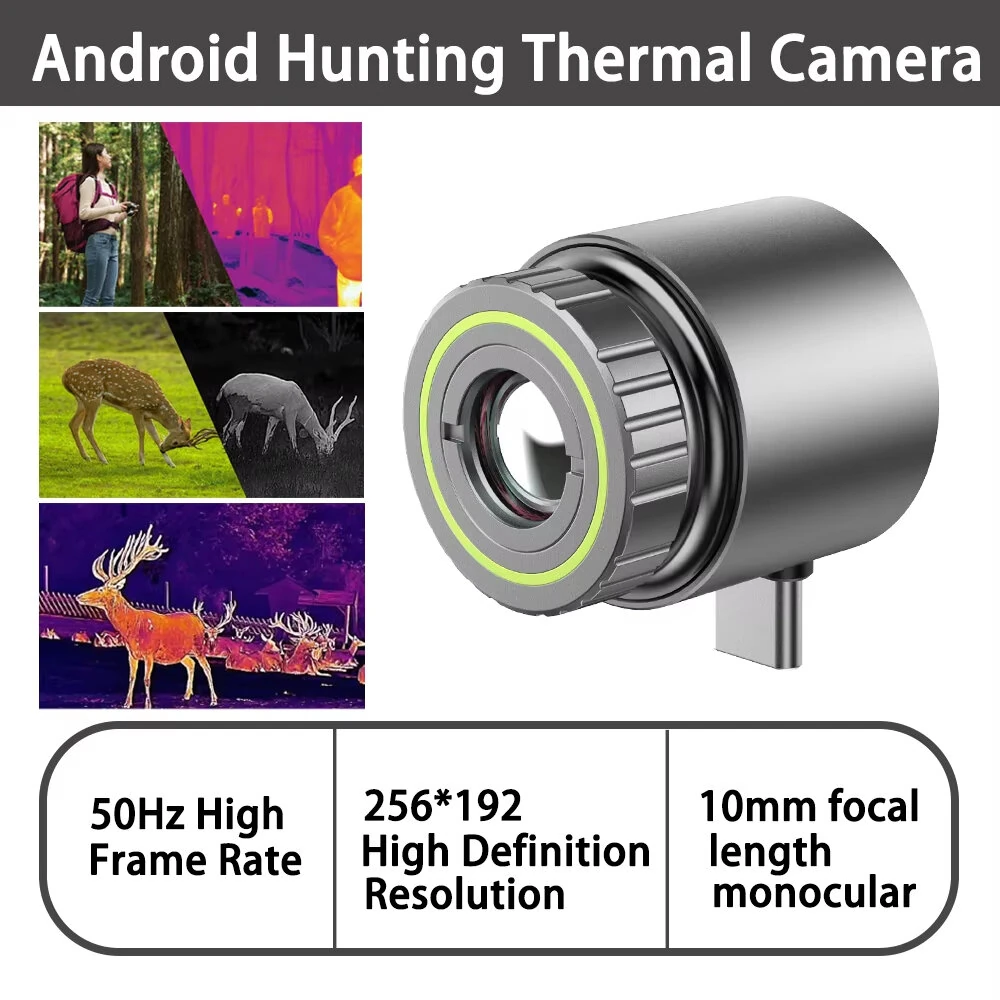

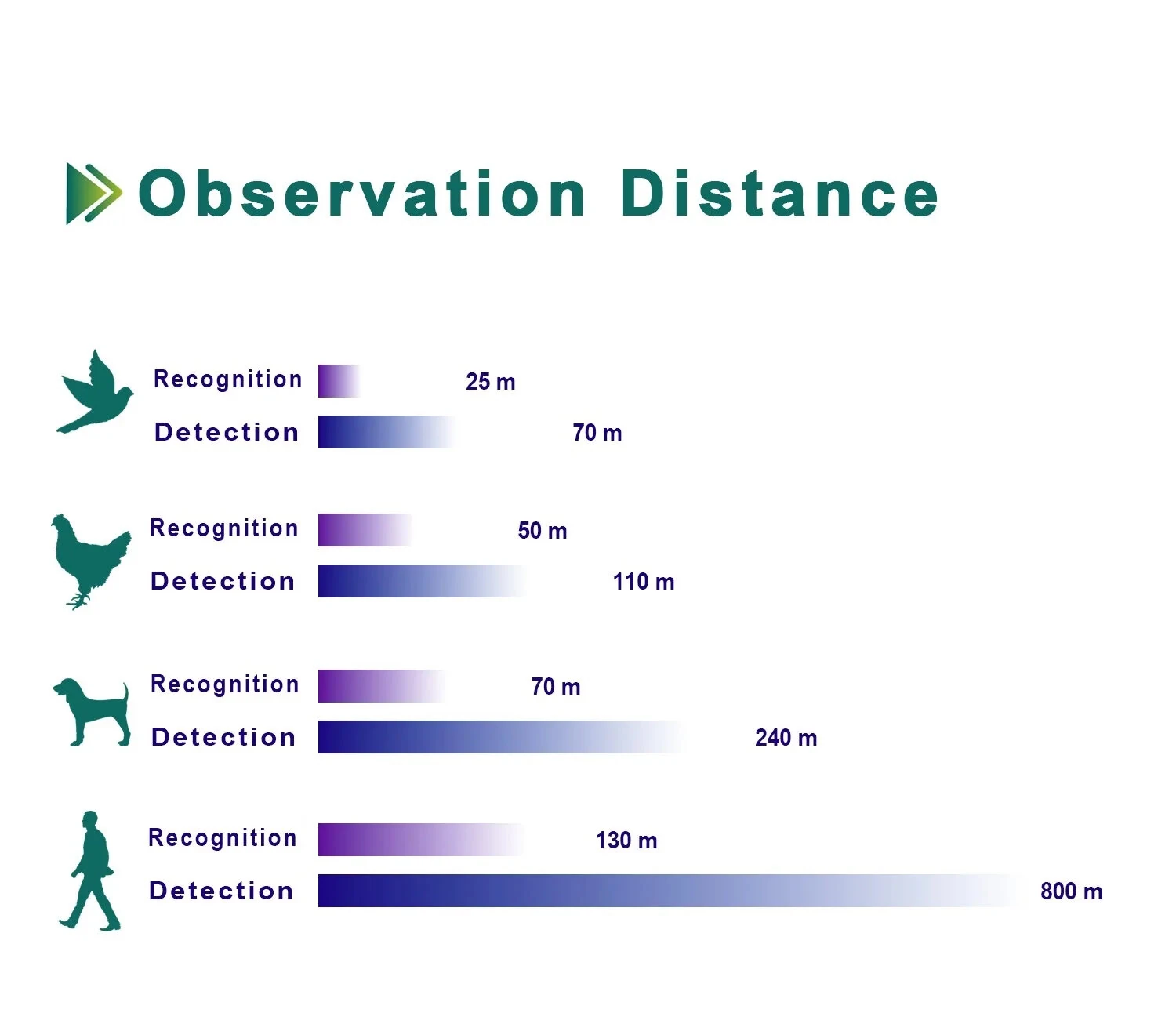

With 10mm focal length thermal imaging monocular, capable of testing Animal at up to 800 meters.

256x192 high-resolution infrared sensor for easy target test at night. Equipped with ISR function??when activated, it doubles image clarity.

1-8x continuous zoom and manual focus, ensuring clear images even at maximum magnification.

Jungle Mode is a proprietary image processing algorithm designed for forest and jungle environments, delivering high-quality rendering of both target objects and backgrounds to effectively highlight heat sources

Moveable cross cursor, easy to identify and accurately locate targets

Specifications:

Model: M7

Test Type: Vanadium oxide uncooled focal plane test

Effective Pixels: 256x192

Pixel Pitch:12um

Spectral Range:8um~14um

Sensitivity (NETD): ??40mK@f/1.0

Focal Length: 10mm

Field of View: H: 17.5??,V: 13.1??

Focus Control: Manual Focus

Color Palettes:6 (white hot/black hot/iron red/alarm/emerald/amber)

lmage Mode: General Mode/Raw Mode/Jungle Mode/Sketch Mode

Cross Cursor: Color & Style Switching Support

Thermal lmage Flip: Support

USB Port: TYPE-C

System Requirements: Android 6.0 or later

Power Supply: DC 5V

Power Consumption: 0.35W

Operating Temperature: -20??C~+50??C

Product Dimensions: ??26 mm x 29.5mm

Net Weight: 26g

Package List:

1x Thermal Imager

1x English User Manual
