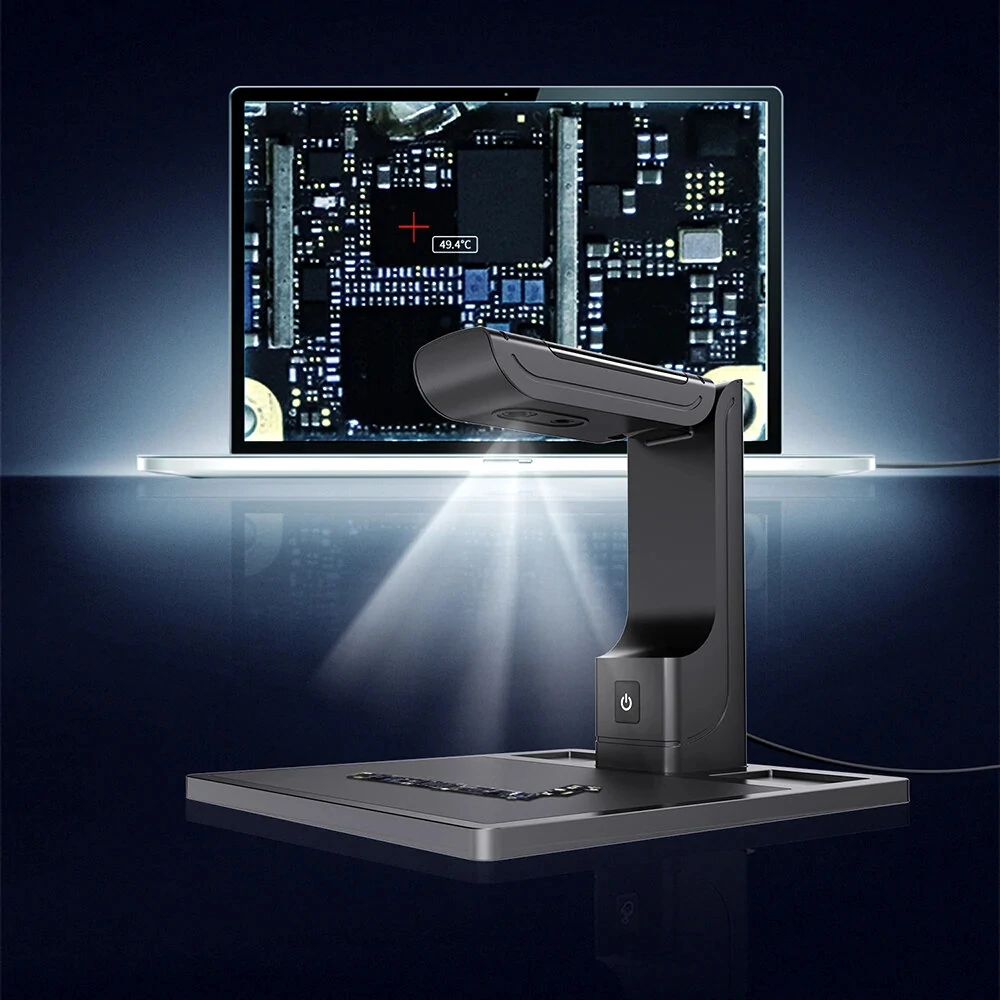

ShortCam II Thermal Imaging Camera - Wide Angle & Compact - Efficient Temperature Measurement

Product Description

Note: Silicone pad black/grey color is random

Features:

High Resolution & Wide Coverage: The ShortCam II thermal imaging camera is equipped with a 256x192 resolution for a clear and detailed view, featuring a wide field of view angle of 25 degrees by 18 degrees, ensuring a comprehensive diagnostic performance.

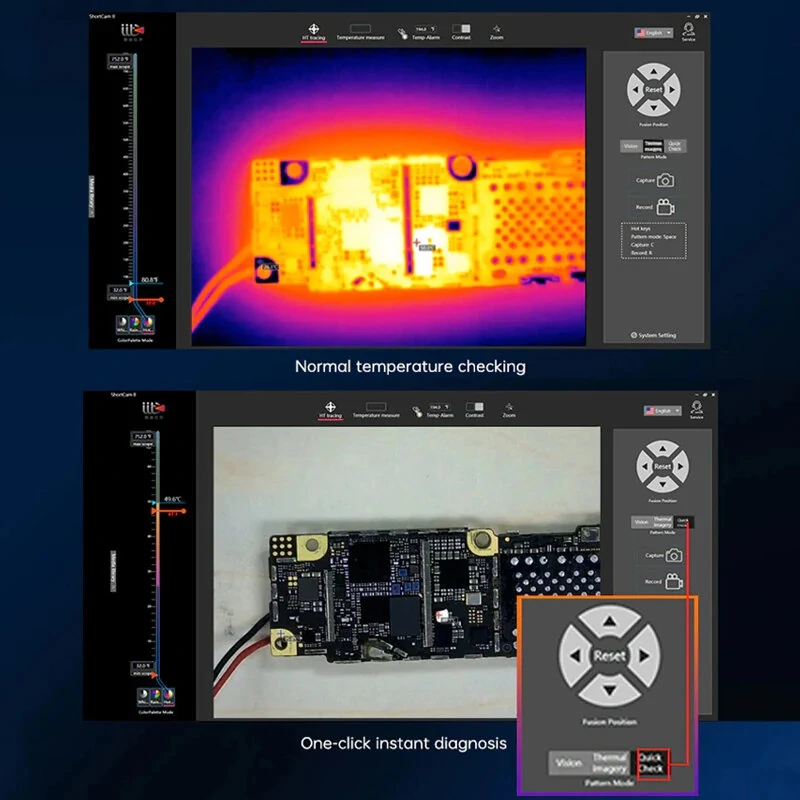

Practical Tools: This device provides application functions such as high and low-temperature tracking, partial amplification, comparative analysis, capture, and video recording. These features allow for fast and precise troubleshooting of PCB faults.

Efficient Temperature Measurement: Capable of performing full range temperature measurements with an accuracy of ??5 ?? or ??5%. It covers an extensive temperature range from -20?? to 550??, facilitating swift anomaly detection such as overheating or short circuits.

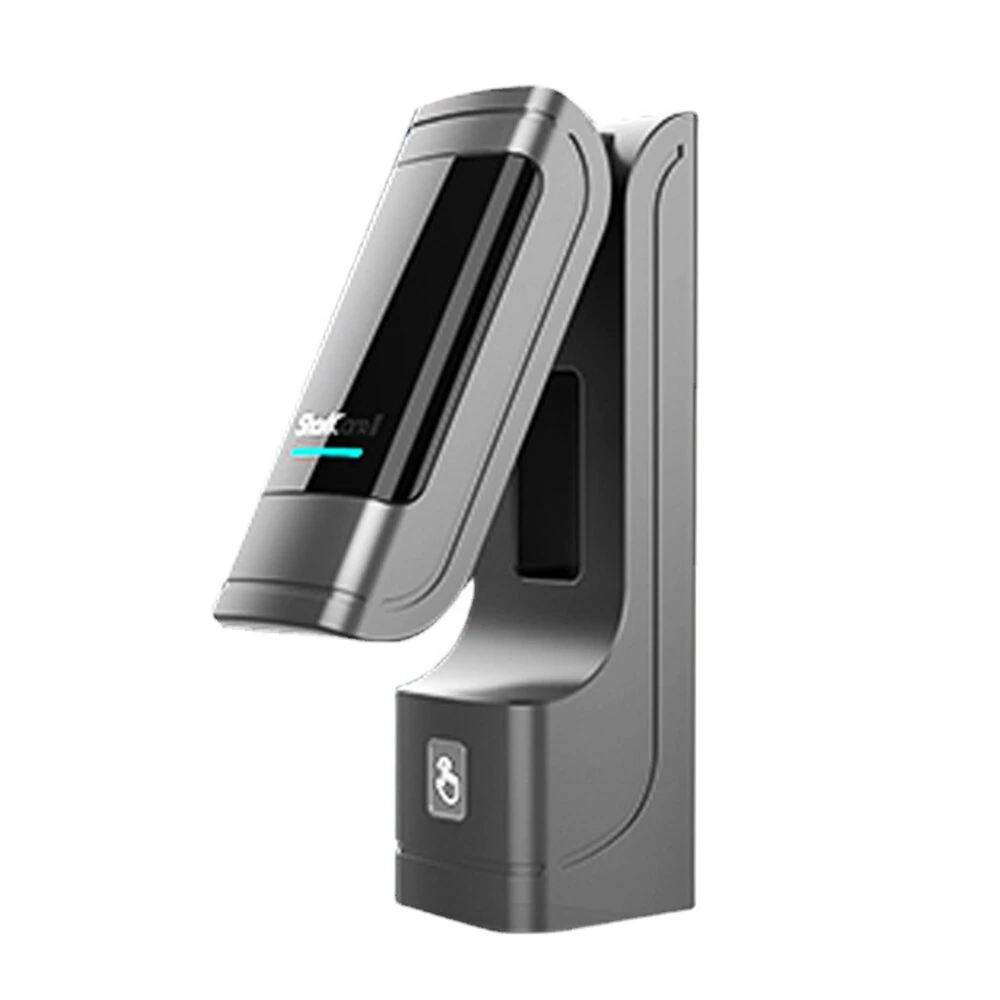

Compact Design & Power-Efficiency: With a compact size of 48mm * 48mm * 154mm, the ShortCam II consumes minimal power at just 2.5W.

Flexible Display Modes: Featuring a variety of display modes including visible light, partial fusion, and quick search for user-friendly operation. The storage formats for images and videos are standard JPEG and MP4 respectively, making data reading and transfer effortless.

Specifications:

Thermal imaging resolution: 256x192

Pixel size: 12 ??m

Wavelength range: 8-14??m

Field of view angle: 25 ?? * 18 ??

Visible light resolution: 2568H * 1448V

Interface: type-c

Display mode: visible light/partial fusion/quick search

Image display format: JPEG

Video storage format: MP4

Temperature measurement distance: 13cm

Temperature measurement accuracy: ?? 5 ?? or ?? 5%

Temperature measurement range: -20 ??~550 ??

Product size: 48mm * 48mm * 154mm

Output voltage/power consumption: 5VDC/2.5W

Storage temperature: -20 ??~60 ??

Working environment: 3 ??~45 ??

Package Included:

Type A:

1 x ShortCam II Infrared Thermal Imaging Camera

1 x Type-C Interface Cable

Type B:

1 x ShortCam II Infrared Thermal Imaging Camera

1 x Pad

1 x Type-C Interface Cable
