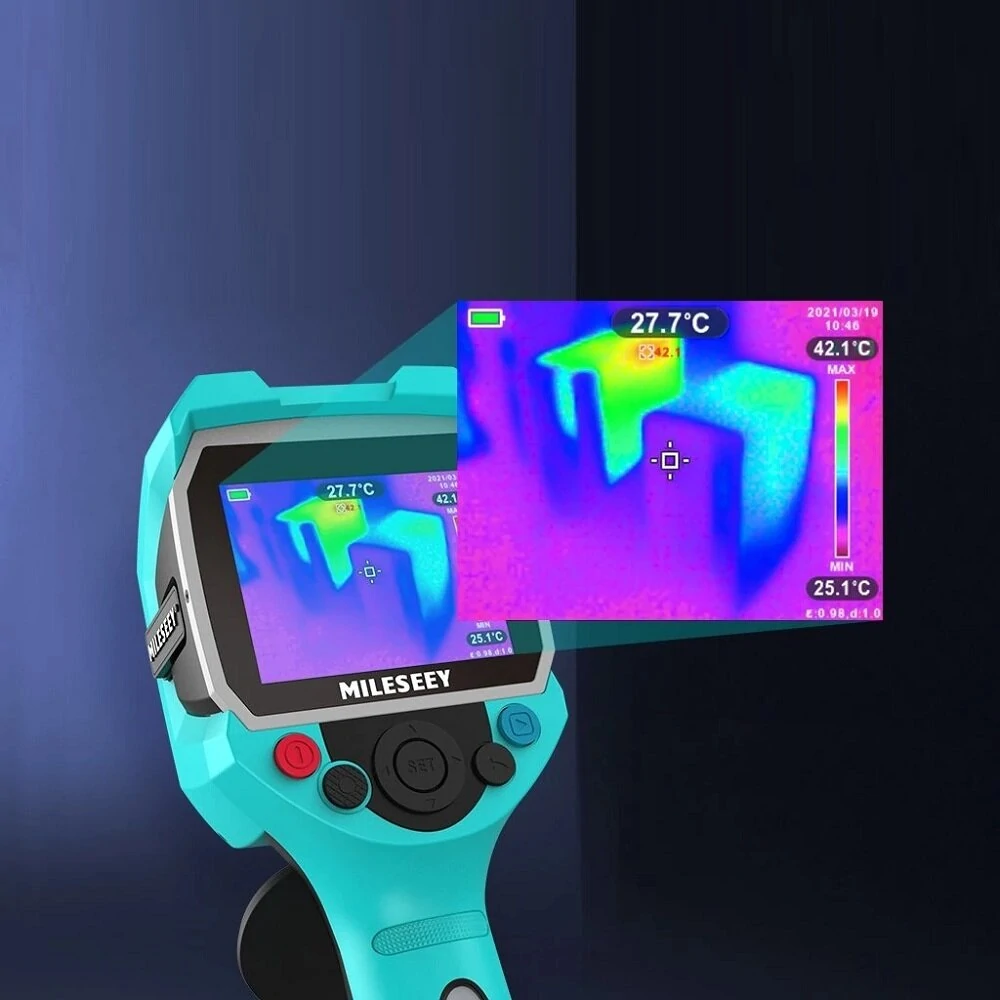

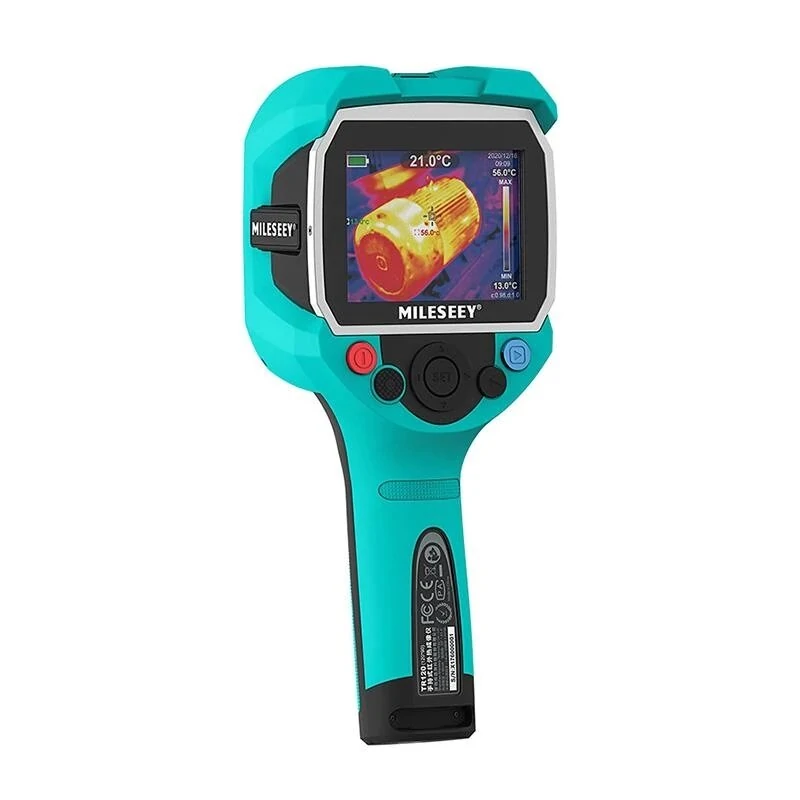

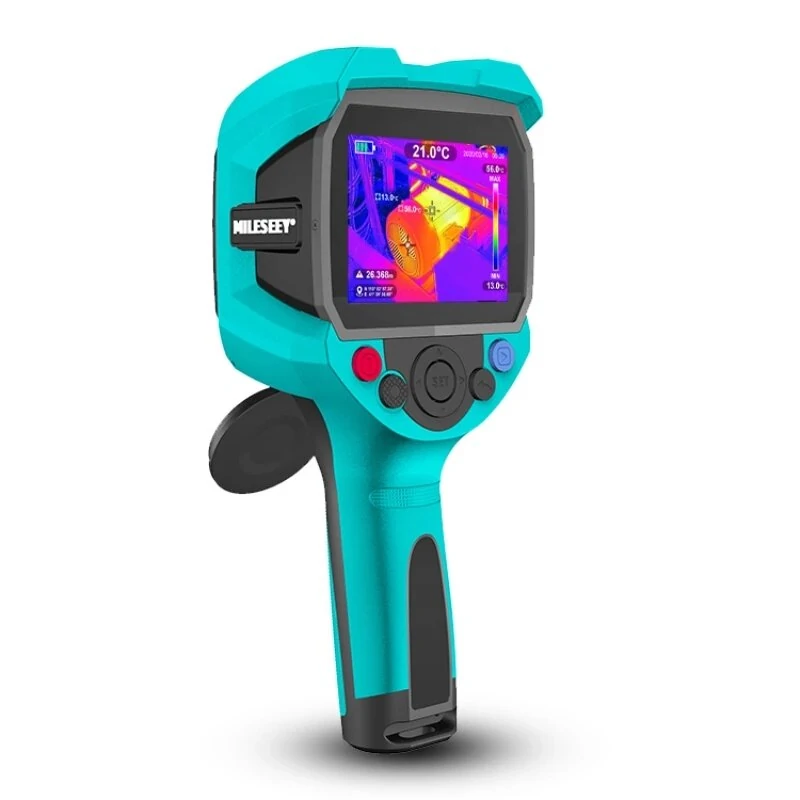

Mileseey TR120 Handheld Thermal Imager | 3.5 Display -20° to 400°C USB
Product Description
Features:

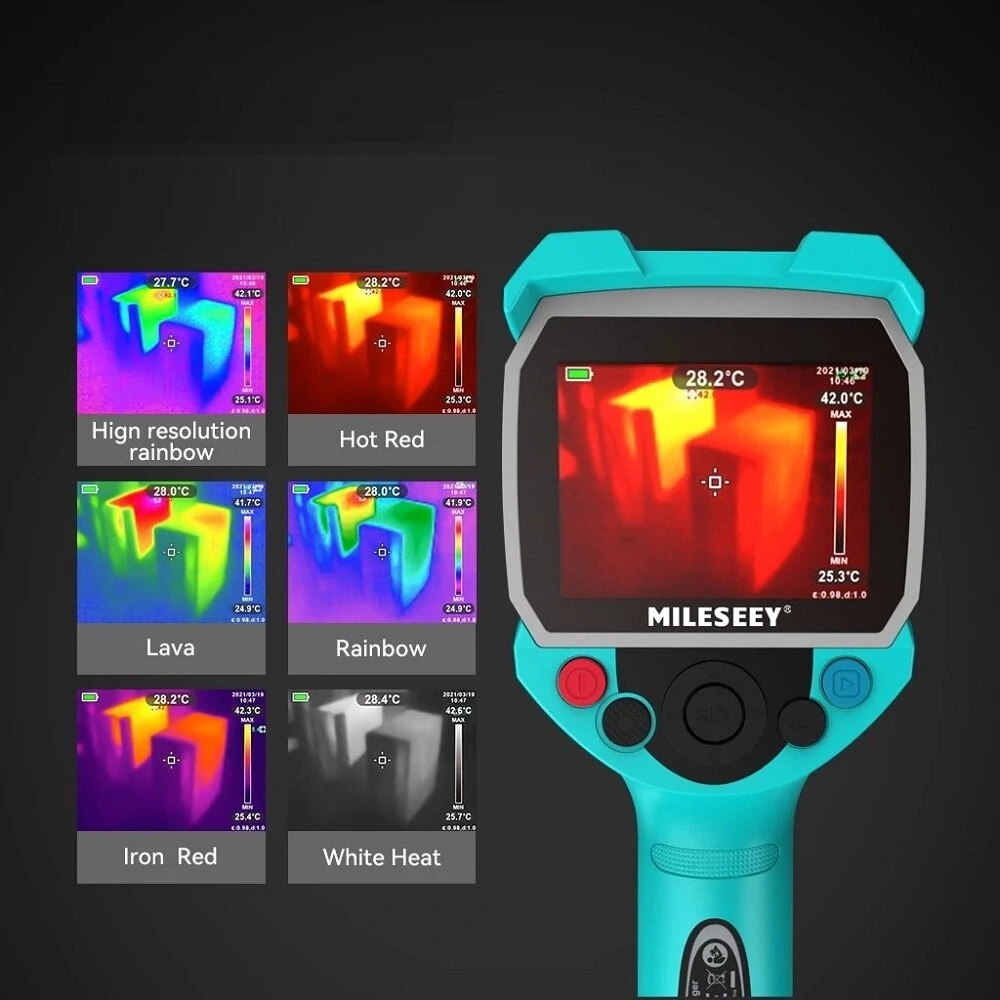

High sensitivity and accuracy, 4 object measurement modesTemperature range: -20?桫450?? (4?H??842?H), wide field view of 50??63.4??Automatic Hot/Cold Spot tracker, Adjustable Emisivity, 6 color palettesConnect to the computer via a USB cable, big memory with 2000 picturesWide application: home check, security check, overhaul, search and rescue, and risk assessment, traffic, farming, and electronic manufacturing, automotive Industry,chemical Industry, electrical industry
Specification:
Model | TR120 | Screen Size | 3.5 inch |
Accuracy | 1)-20??-0?? ??5?? 2)0??-100?? ??3?? 3)100??-400?? ??5% | Storage Memory | SDRAM: 256Mbit+SPI NOR FLASH: 64Mbit |
Thermal Imaging Pixels | 10800(120*90) | Display Resolution | 320*240 |
Spectral Response Band | 8~14pm | Visible Light Resolution | 640*480 |
Field of View | 50??*63.4?? | Storage | External 8G MicroSD Card |
Pixel Size | 17Hm | Communication Interface | USB2.0(FS) |
Output Frame Rate | <20Hz | Video Output | Can Be Chosen |
Thermal Sensitivity | 60mK | Light | High-Power White LED |
Working Temperature | 0??~35?? | Power | 26650 Lithium Battery 5000mAh/3.7V |
Temperature Rage | -20??-400?? | Protection Class | IP65 |
Measurable Distance | 0.5m~1.2m | Operating Temperature | -10??~+50?? |
Color Palette | Four | Storage Temperature | -40??~+70?? |
High/Low Temperature Alarm | Dimension | 238*95*85.5mm | |
Sensor Non-uniformity | <5% | Weight with Battery(g) | 540g |
Package included:
1 x Infrared Thermal Imager 1 x USB cable1 x User manual1 x Storage bag1 x Accessories1 x Box
