HT-C18 Thermal Monocular | 384x288 Resolution OLED Display | IP66 Waterproof

Product Description

Specifications:

Product Model: HT-C18

Detector Type: Vanadium oxide uncooled infrared focal plane

Resolution Ratio: 384x288

Pixel Size: 12??m

Focus Length: 25mm / 35mm / 54mm / 75mm

Field Angle: 10.5??x7.9?? / 7.5??x5.7?? / 4.9??x3.7?? / 3.5??x2.6??

Work Band: 8~14??m

NETD: ?? 40mk@25??C, @F/1.0

Frame Rate: ?? 50Hz

Focusing Mode: Manual

Display Screen Type: OLED

Display Resolution Ratio: 1440x1080

Display Size: 0.39 inches

Electronic Zoom: 1??/2??/4??/8??

Diopter Regulation: ??5SD

Storage Capacity: Built-in 16G EMMC (13.8G usable)

Image/Video Format: JPG/MP4

Battery: Detachable rechargeable lithium battery, 1400mAh x2 (model 18350)

Overall Power Consumption: ?? 1.8W

Time of Endurance: ?? 5 hours

Work Temperature: -20??C ~ +60??C

Storage Temperature: -30??C ~ +70??C

Impact Resistance: ?? 1000G

Protection Grade: IP66

Product Size: 198x57.5x64.3mm

Product Weight: 580g

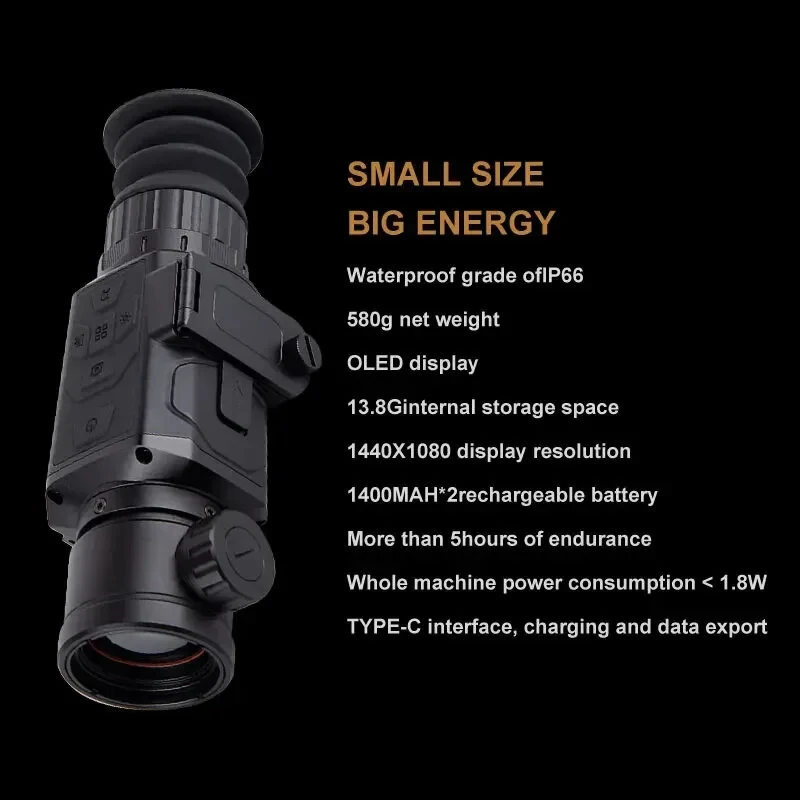

Features:

High Resolution and Clarity: 384x288 infrared resolution and 12??m pixel size ensure sharp and clear thermal imaging, essential for precise detection.

Versatile Focus Lengths: Interchangeable lenses (25mm, 35mm, 54mm, and 75mm) provide adaptability for various viewing needs and distances.

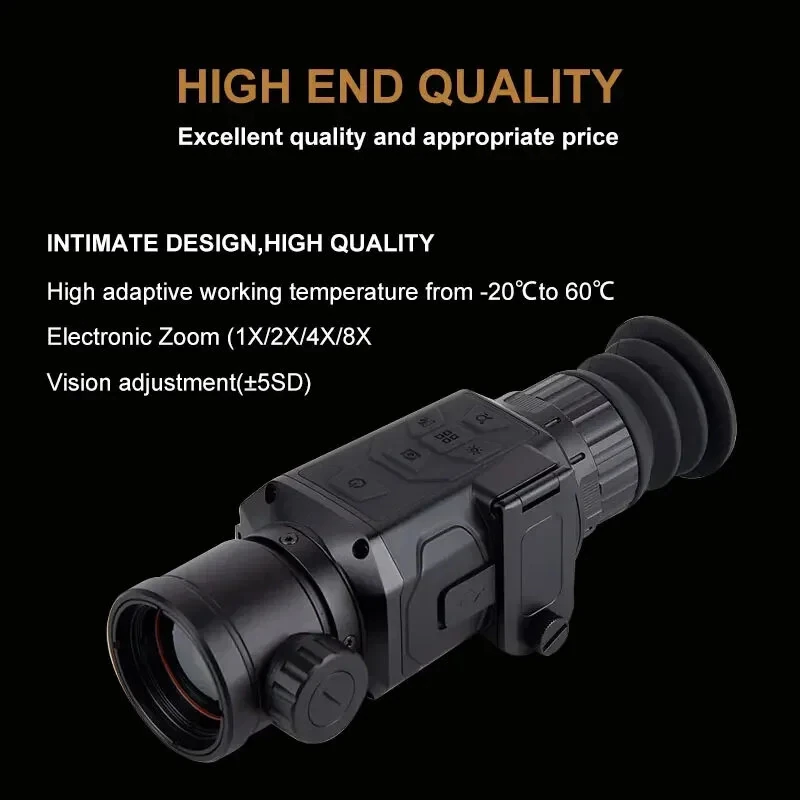

Robust Display: Equipped with a high-definition OLED screen (1440x1080) and electronic zoom (up to 8??) for ultra-clear images.

Built for Tough Conditions: IP66 protection grade and impact resistance up to 1000G, operable in a wide temperature range (-20??C to +60??C).

Extended Usage: Detachable rechargeable battery offers up to 5 hours of continuous use, featuring quick recharging via USB interface.

Package Included:

Type A:

1 x HT-C18-25mm Thermal Monocular

2 x Charging Cables

2 x Rechargeable lithium battery (1400mAh, model 18350)

1 x Battery Charger

1 x Guide

1 x User manual

Type B:

1 x HT-C18-35mm Thermal Monocular

2 x Charging Cables

2 x Rechargeable lithium battery (1400mAh, model 18350)

1 x Battery Charger

1 x Guide

1 x User manual

Type C:

1 x HT-C18-54mm Thermal Monocular

2 x Charging Cables

2 x Rechargeable lithium battery (1400mAh, model 18350)

1 x Battery Charger

1 x Guide

1 x User manual
