HT-18 Handheld Thermal Camera - 220x160 IR Imager & Digital Temperature Tester
$581.00
$715.18
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

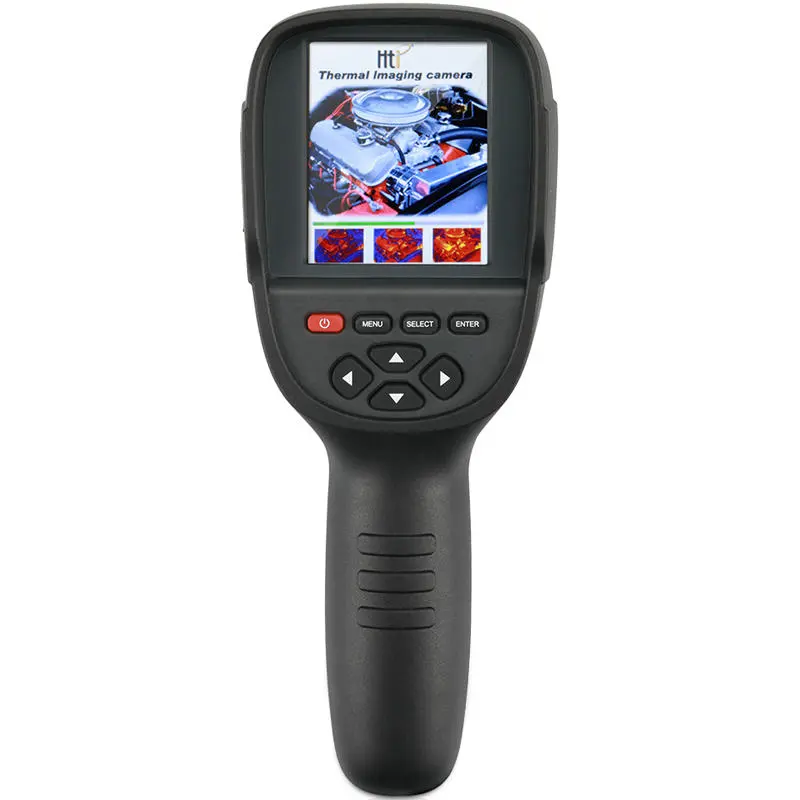

null Description:HT-18 is a inferred camera that integrates surface temperature measurement and real-time thermal image. The traditional inferred themometer needs to measure every component one by one while it is not necessary for thermal image, thus saving time. The potemtial problems may be displayed on color display screen clearly. This is helpful for uses to lacate teh measurement cursor of the central point quickly and measure the temperature. In order to increase teh differentiatin degree, the product is provided with a visual camera.The thermal images and full vision images can be stored in the device and can be called through USB or saved in a computer to generate report and printing. HT-18 is easy to use. Test may be conducted in several seconds after powering on. The product can be used in fields of medical treatment, fire fighting, archaeology, traffic, agriculture, geology, energy, smelting, electronic manufacture, etc. and is the ideal selection for electrician and maintenance personnel and technicians and can be used to find the problem area quickly. The following major functions increase the product's accuracy and usability:
The adjustable radiation coefficient increase the measurement accuracy of half reflection surface. The themal point and cold point temperature mark may guide teh users to the area with highest or lowest temperature of thermal image. The selectable color palette.
Specification:
Display screen: 3.2 full angle TFT display screen Infrared image resolution: 220 x 160 Visible image resolution: 0.3million pixel Thermal sensitivity: 0.07??
Field angle/shortest focus length: 27??x35??/0.5m Temperature range: -20??~300??(-4?H~572?H) Measuring accuracy: ??2.5?? or ??2.5% Emissivity: Adjustable from 0.1 to 1.0 Image capture frequency: 8Hz Wavelength range: 8-14??m Focus mode: Fixed
Color palette: Rainbow, iron oxide red, cold color, black&white, white&black View option: Full infrared and full vision visible image with 25% step legth Storage medium: Built-in 4G File format: JPG Power supply: Built-in chargeable 18650 batteries USB: Micro USB2.0 Automatic power-off time: Selectable: 5minute/20mintures/not power off automatically Product size: 90 x 105 x 223mm Product weight: 389g Work temperature: 0-50?? Storage temperature: -40-80?? Relative humidity: <85% RH
>>>>WANT TO DOWNLOAD ENGLISH USER MANUAL, PLEASE CLICK HERE<<<<
Package included: 1 x HT-18 220 x 160 Handheld Thermograph Camera 1 x Portabel Bag 1 x Gift Box 1 x English User Manual Detail Pictures:
