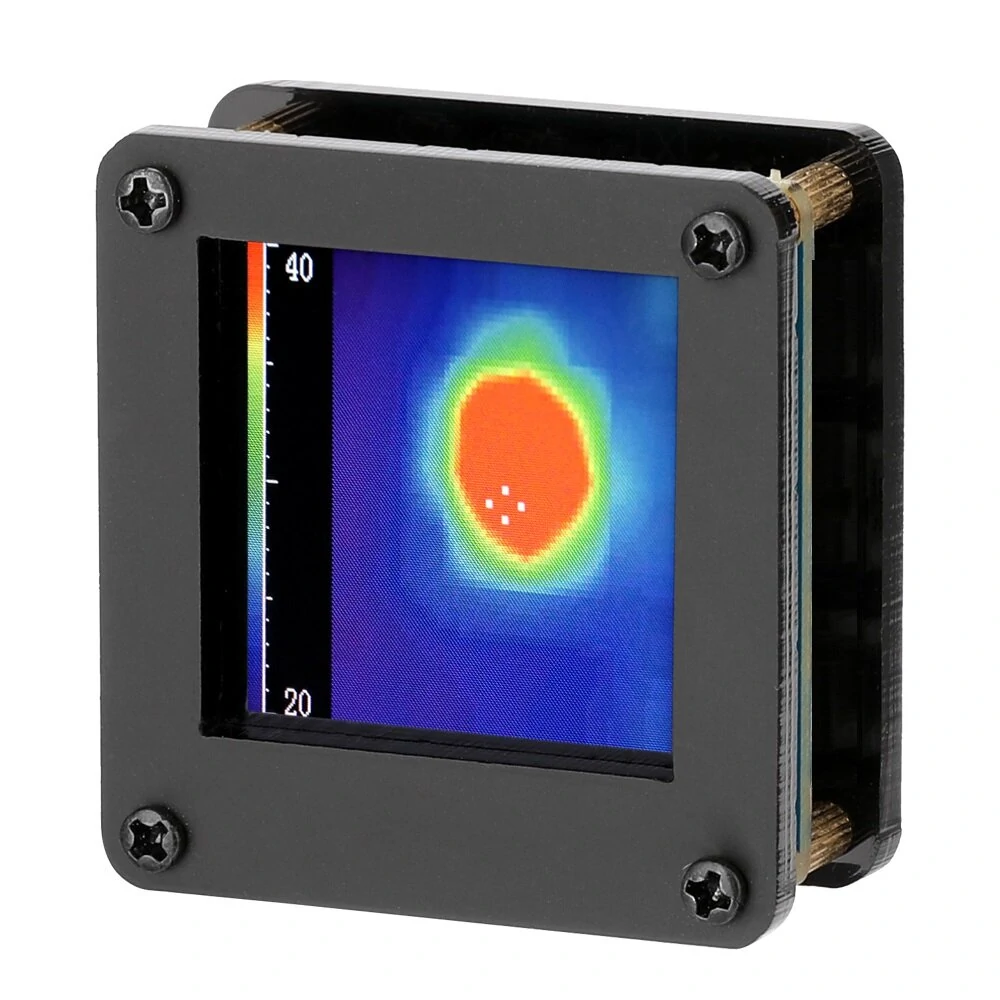

AMG8833 IR 8x8 Thermal Imager Sensor | 7M Detection Distance | Grid-EYE
$110.00
$135.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Note: The newest models now have no buttons, and they are automatically detected after the USB is powered on.
Description:
The module can be powered directly by USB 5V to produce infrared images.Use AMG8833 infrared thermal sensor. The resolution is 8*8, and the farthest detection distance is 7 meters.It can be applied to check electronic products.Portable and compact, high performance, easy to use. Specifications:

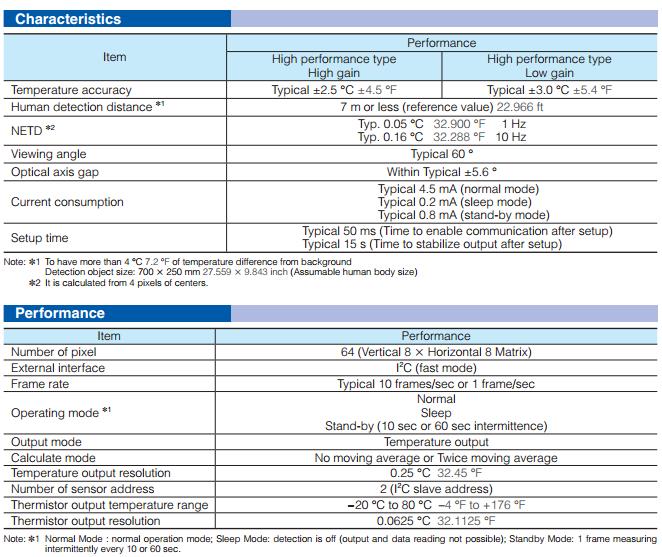

Material: PCBTemperature accuracy:High performance type high gain: typical ??2.5?? ??4.5?HHigh performance type low gain: typical ??3.0?? ??5.4?HHuman detection distance: 7m or less (reference value) 22.966 ftNETD:Typ. 0.05?? 32.900?H 1HzTyp. 0.16?? 32.288?H 10HzViewing angle: typical 60??Optical axis gap: within typical ??5.6??Current consumption:Typical 4.5mA (normal mode)Typical 0.2mA (sleep mode)Typical 0.8mA (stand-by mode)Setup time:Typical 50ms (time to enable communication after setup)Typical 15s (time to stabilize output after setup)Number of pixel: 64 (vertical 8 * horizontal 8 matrix)External interface: 12C (fast mode)Frame rate: typical 10 frames/sec or 1 frame/secOperating mode: normal, sleep, stand-by (10 sec or 60 sec intermittence)Output mode: temperature outputCalculate mode: no moving average or twice moving averageTemperature output resolution: 0.25?? / 32.45?HNumber of sensor address: 2 (12C slave address)Thermistor output temperature range: -20??~80?? (-4?H~176?H)Thermistor output resolution: 0.0625?? / 32.1125?HItem size: 42 * 37mm / 1.7 * 1.5inItem weight: 10g / 0.4ouncePackage size: 90 * 60 * 8mm / 3.5 * 2.4 * 0.3inPackage weight: 11g / 0.4ounce
>>Please Click Here to Download the Manual Code and Schematic <<Package Includes:

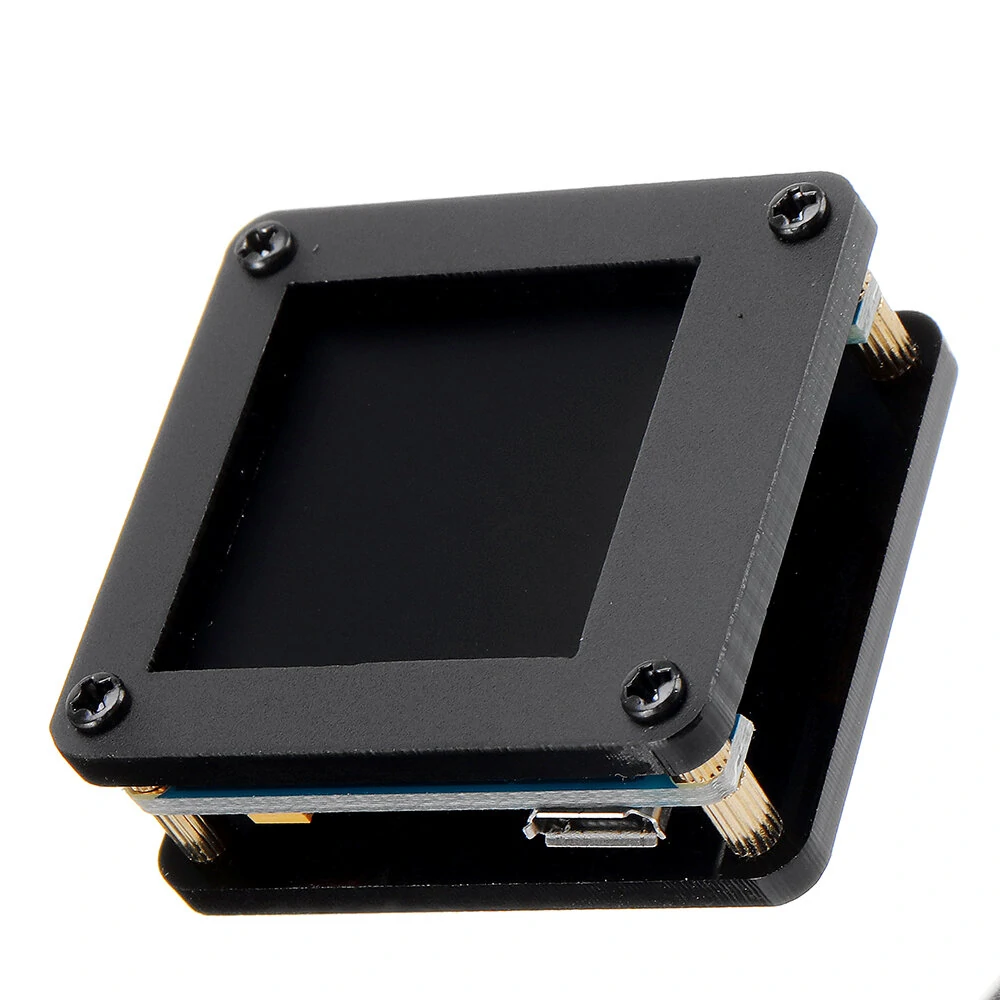

1 x AMG8833 Thermal Imager
Note: will send with the shell (updated from 2019/10/29)

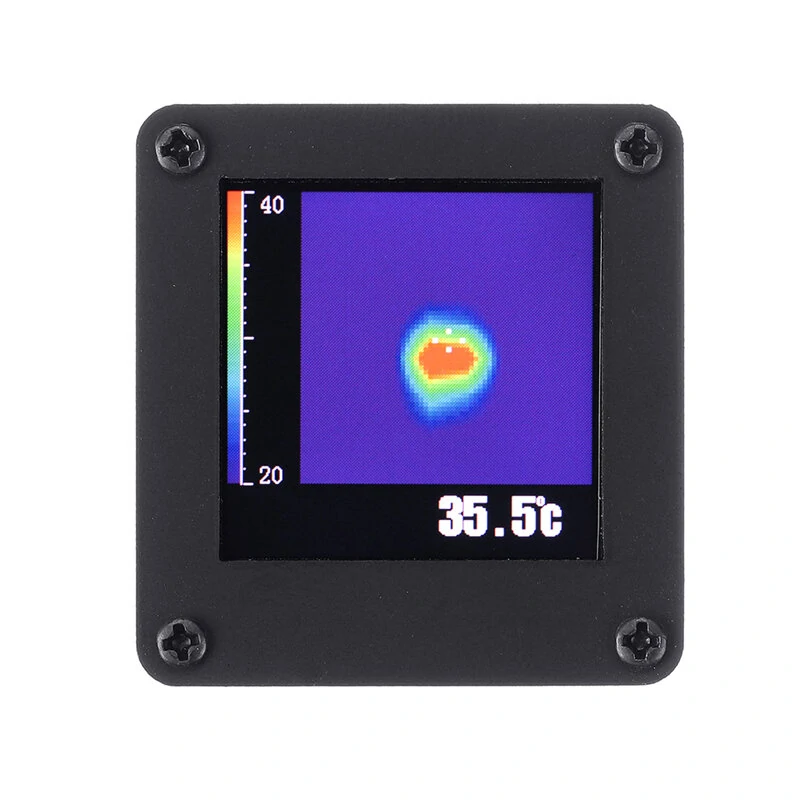

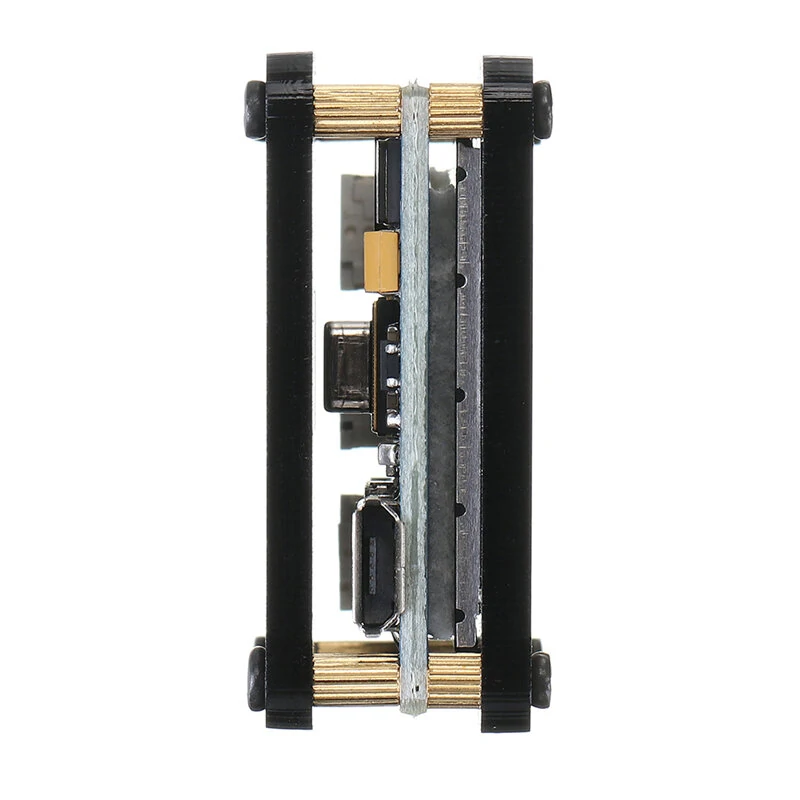

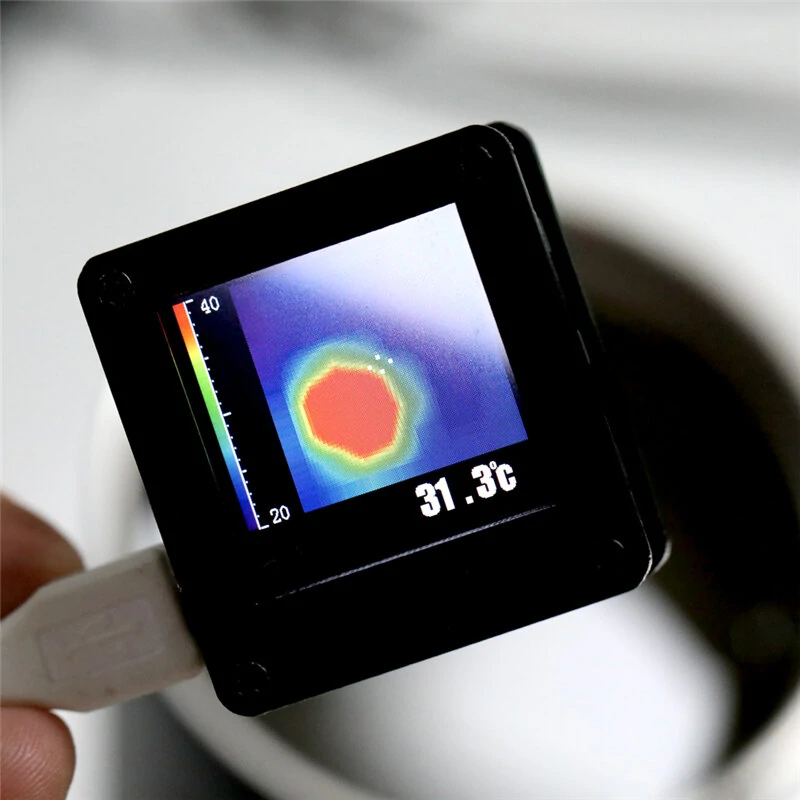

Detail Pictures:
