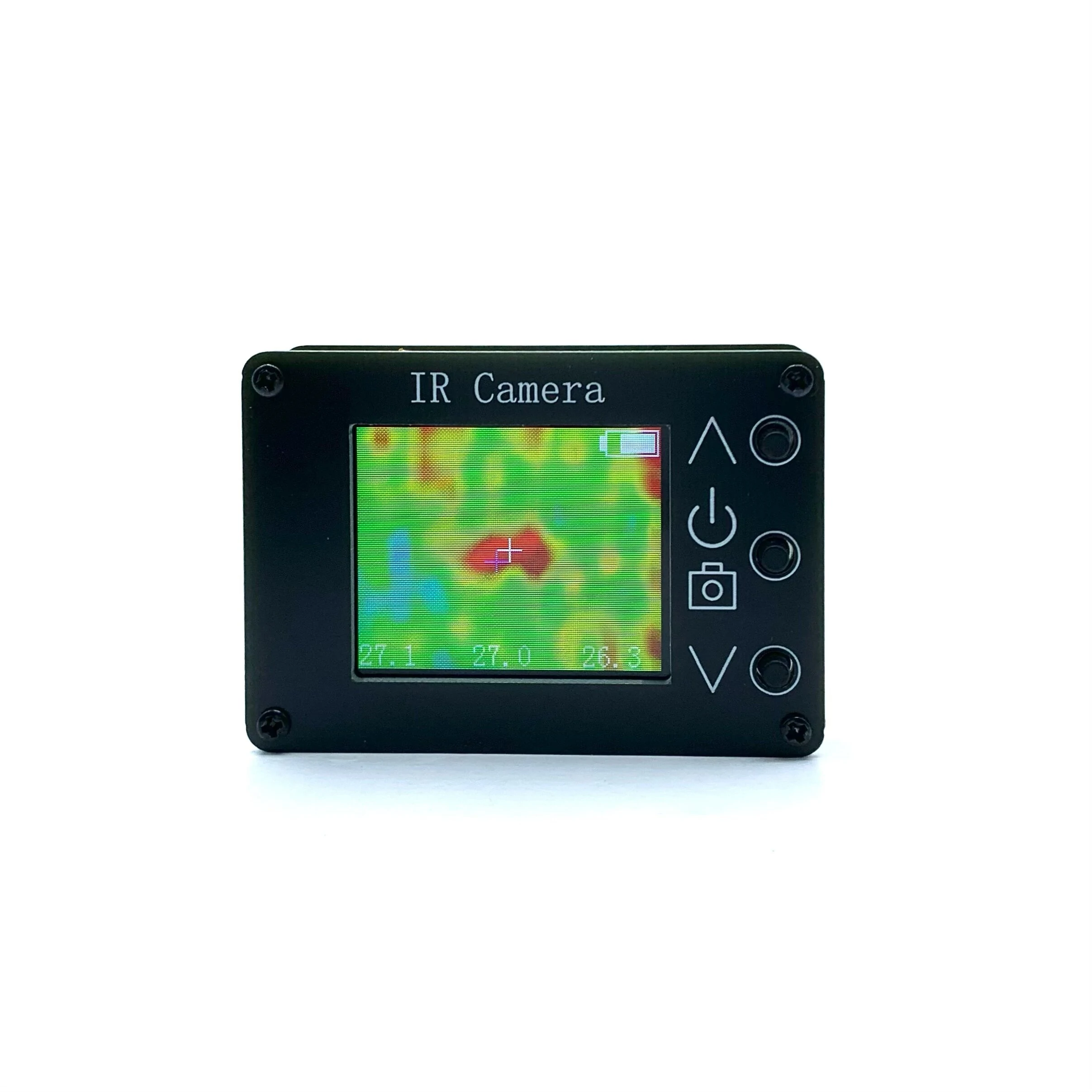

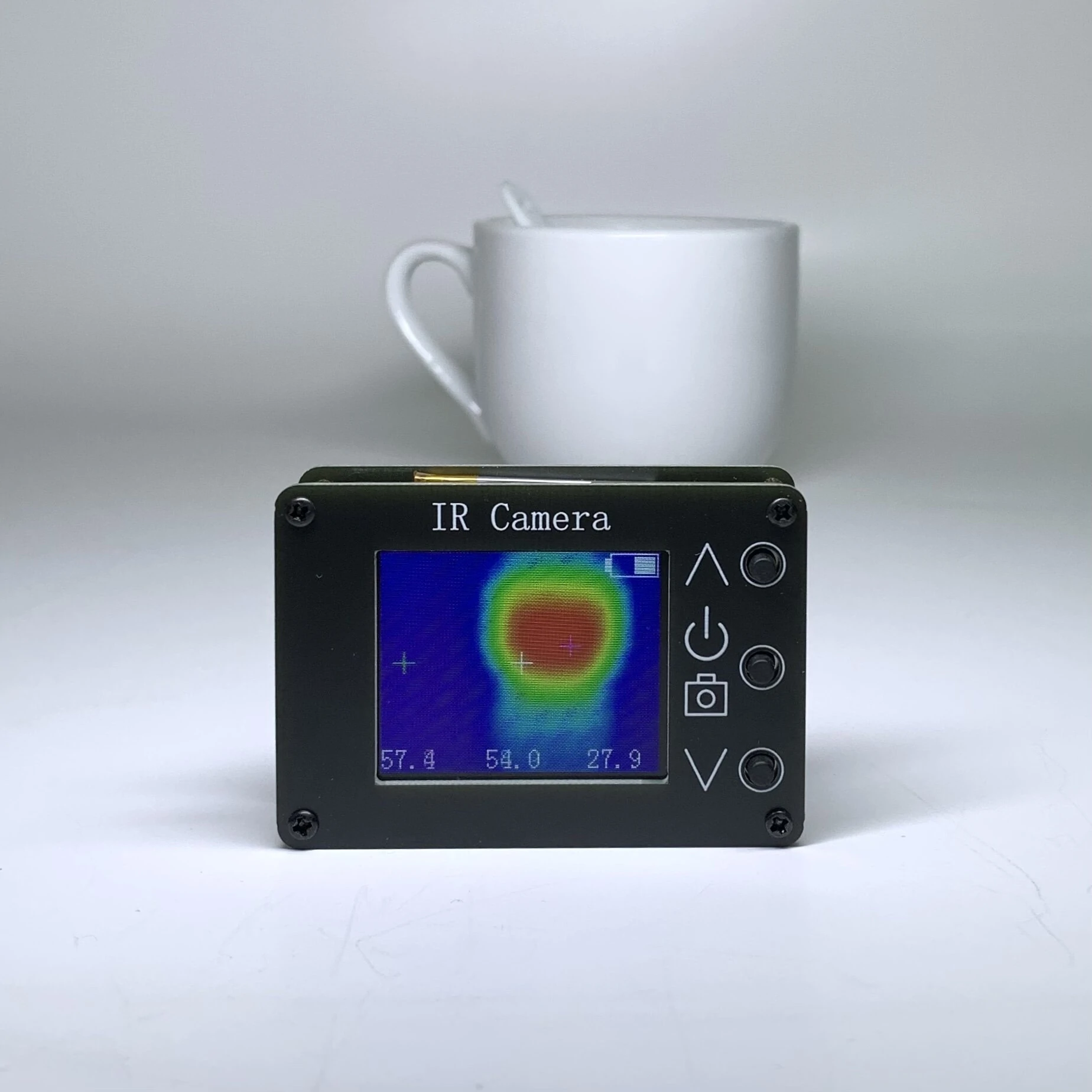

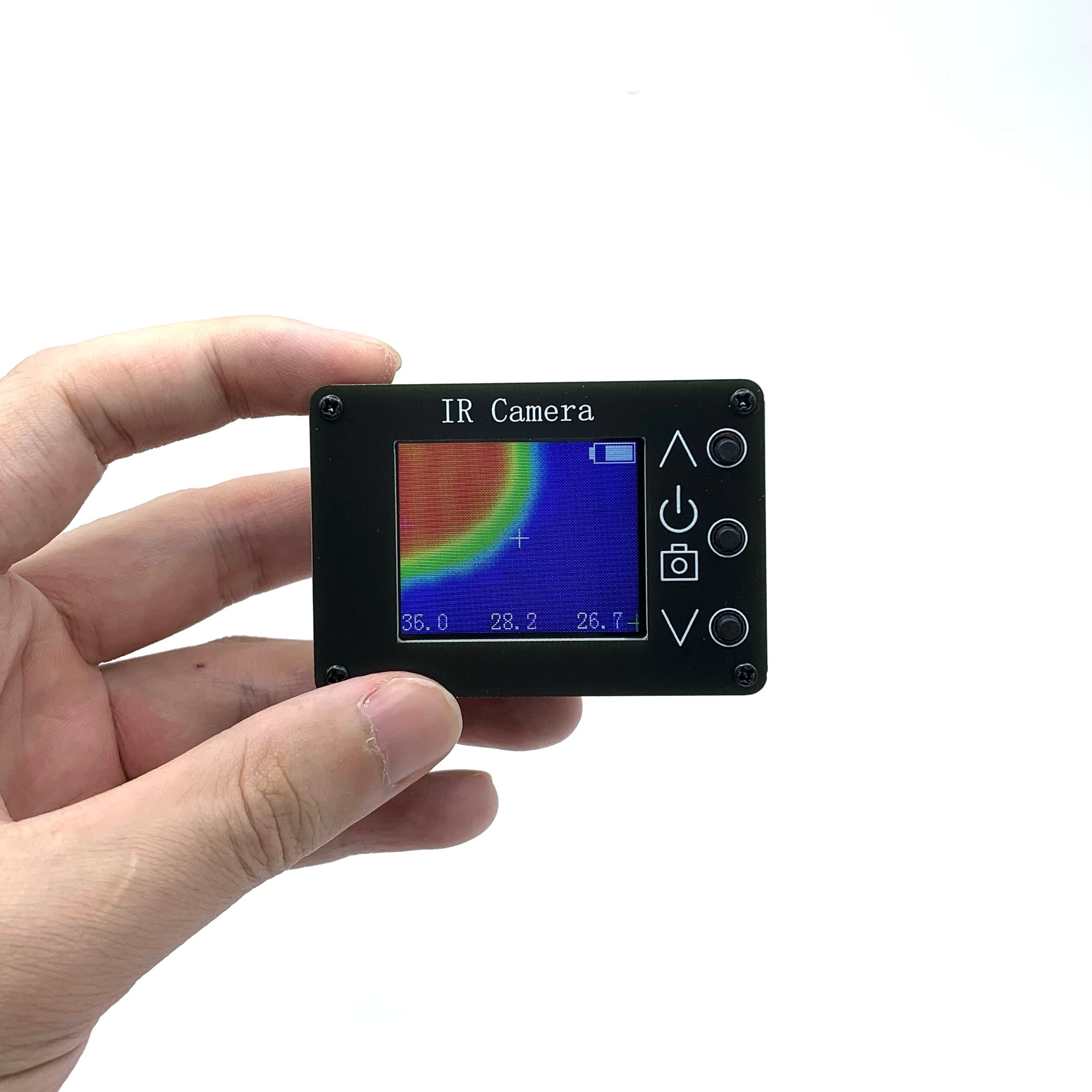

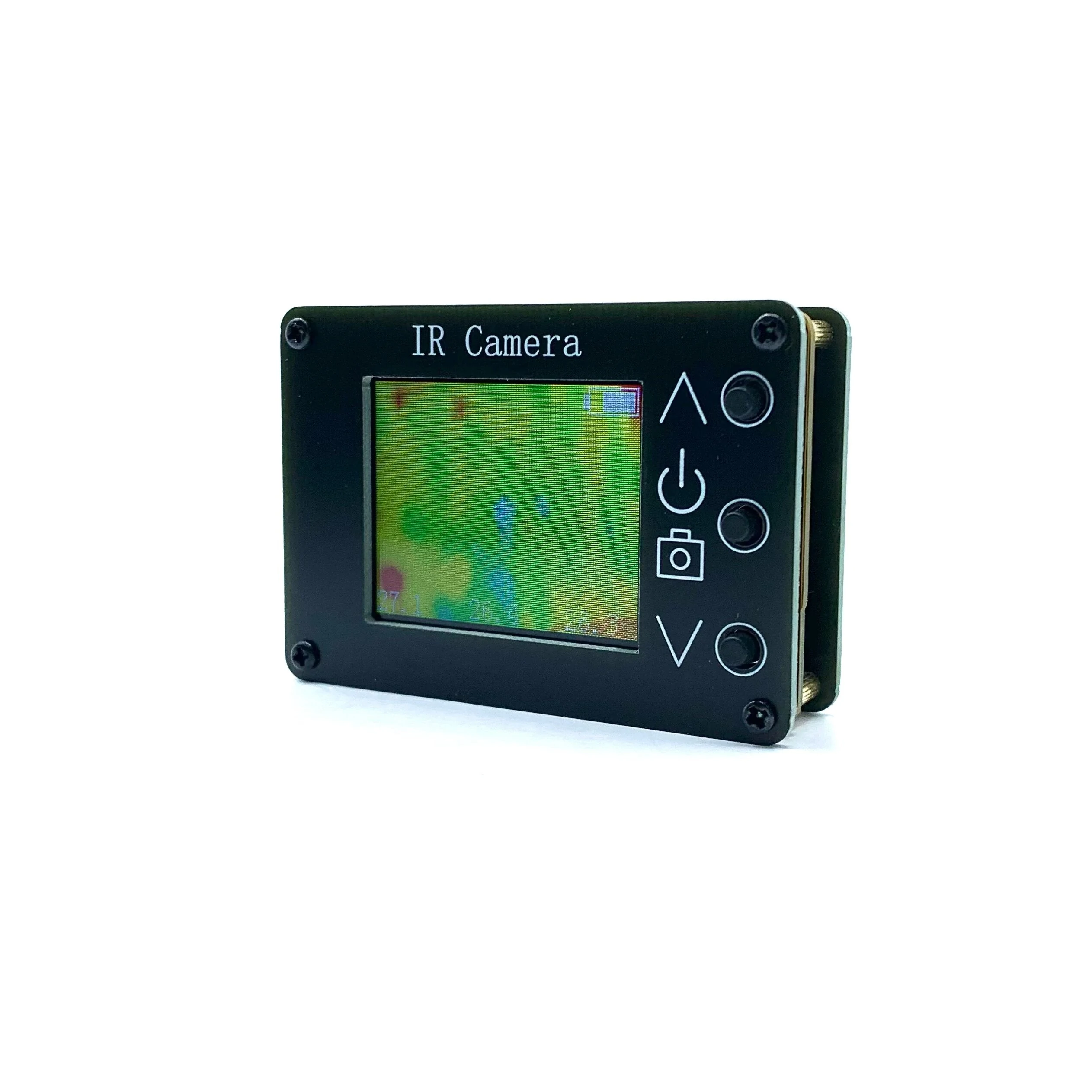

24x32 Pixel Thermal Imaging Camera -40°C to 300°C | Digital Infrared Thermal Imager

Product Description

Features: 1. Module: MLX90640_CSB 2. Use MLX90640ESF_BAB IR Sensor 3. Resolution : 32x24 4. Temperature measurement range : ?\40??~300?? 5. Measurement accuracy : +/?\2??(Central area,0~100??) 6. Operate temperature : 10??~50?? 7. Operate humidity: <=70% 8. Refresh rate : 8HZ 9. No need to calibrate 10. FOV : 55??x35?? 11. Display center point ,maximum and minimum temperature 12. Make photo(Can saved 90PCS photos, connect to computer, copy and delete) 13. Rechargeable Battery 14. TFT size : 1.8inch(display resolution??160x128) 15. Product size : 66x46x20mm 16. Power port : USB Type?\C 5V/1A 17. Built-in 4M memory chip, which can store about 90 pictures Operate description 1. Charging : Use USB Type?\C line, 5V/1A 2. Open/Close : Press Middle Key Long 4. Make photo: Press Middle Key 5. Review photo: Press Up or Down Key 6. Quit photo: Press Up or Down Key Long 7. Copy photo : connect computer with usb line, computer will get a disk. Note: can not change photo in disk or put other file into the disk. Before connect computer , pls fully charged and shutdown. Package included: 1 x Mini Thermal Imager
