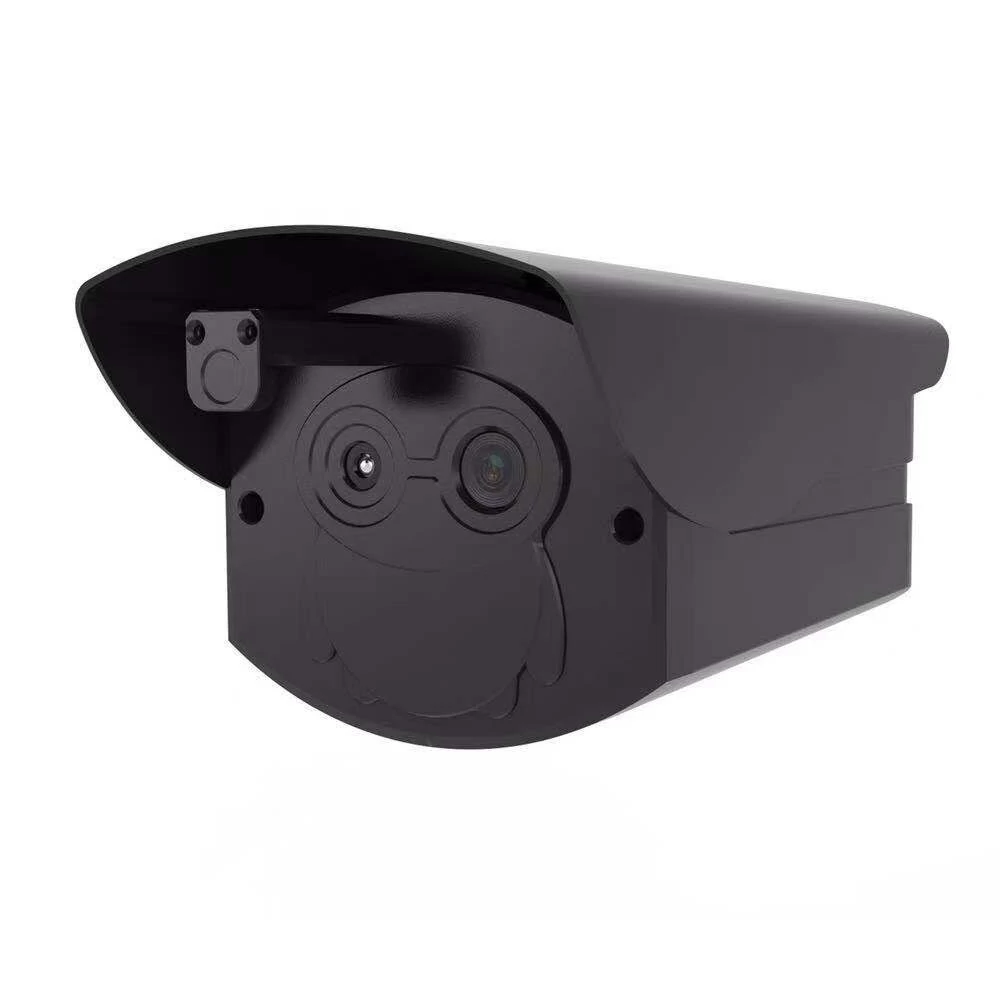

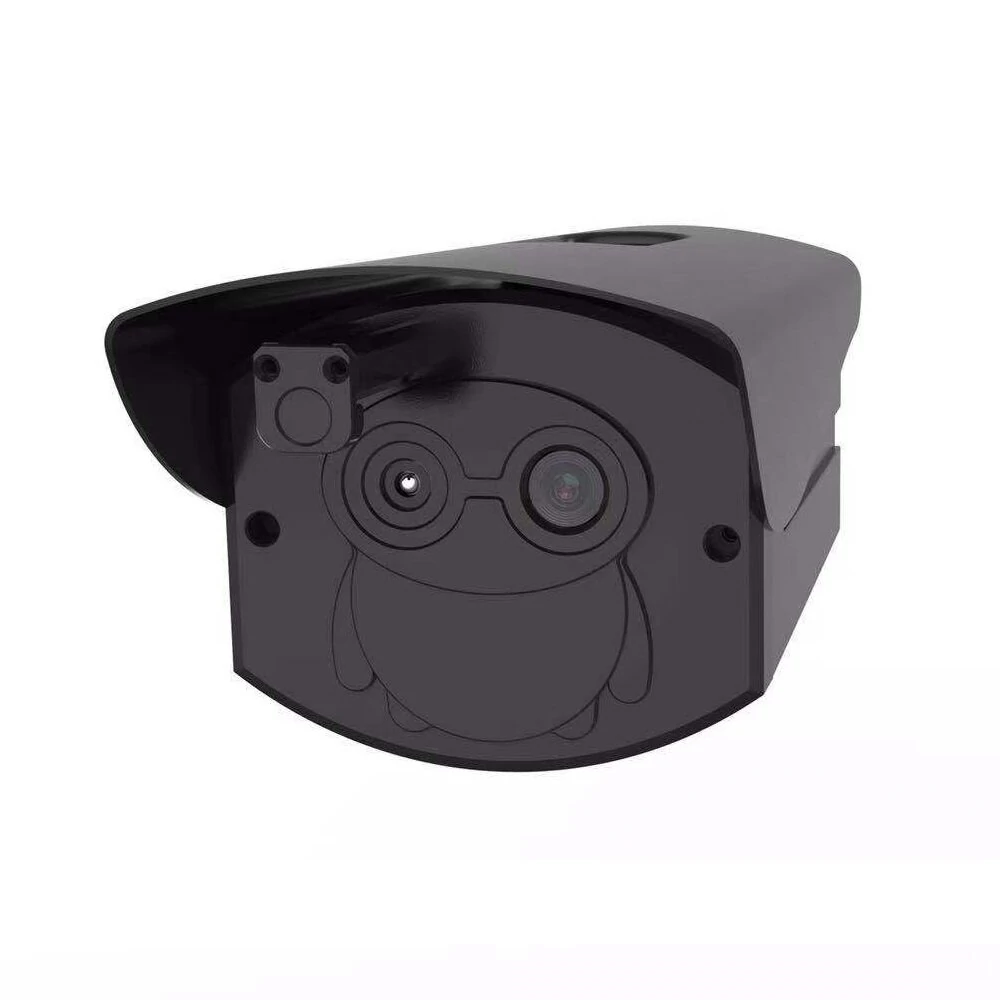

2 Million Pixel Thermal Camera - 256x192 IR Imager with Body Temperature Alarm & HDMI Output
Product Description
Description:
?
The product is composed of a security door temperature measurement camera and a display screen. It is an AI smart product with a built-in face intelligent capture algorithm, ISP image processing and other technologies. It has powerful functions such as face detection, body temperature detection, and face capture, and can be accurately captured. The body temperature and face picture of the person looking through the camera's field of view. It can effectively help users monitor the body temperature of people entering and exiting, and help prevent epidemics. It is widely used in entrance and exit scenarios such as school roads, office buildings, and stations.
Features:
1. Thermal imaging temperature measurement module with pixels up to 256x192.
2. Temperature measurement by non-contact personnel, accuracy: ??0.3?? (target temperature 30??~50??).
3. Comes with black body, automatic correction, not affected by complex environment on thermal imaging temperature measurement.
4. With its own accurate facial temperature measurement algorithm, it is not affected by the surrounding high temperature environment.
5. Equipped with 1080P high-definition visible light image sensor, the picture is clearer.
6. Provide deep intelligent learning algorithm, which can detect and measure temperature of multiple people at the same time.
7. Provide HDMI output video and voice broadcast, real-time display of the number of passers-by and abnormal temperature.
8. The built-in white light lamp fills in light, and it can be used normally at night.
9. Provides EMMC storage, which can keep 100,000 temperature measurement records, and can use tools to export data to PC.
Specifications:
Thermal imaging temperature measurement parameters | sensor type | Silicon oxide uncooled infrared focal plane detector |
Resolution | 256x192, pixel size 12??m | |
Lens | Focal length: 3.2mm, field of view: 56??x 42 | |
Temperature measurement accuracy | ??0.3??, target temperature 35??~38?? | |
Temperature measurement distance | 1m-4m | |
Blackbody parameter | Effective radiation area | 15mm*30mm |
Temperature range | 30??-50?? | |
Temperature resolution | 0.01?? | |
Stable accuracy | ??0.1?? | |
Visible light mode parameters | Image sensor | /2.8?? 2.0M Pixel Progressive Scan CMOS |
Wide dynamic range | ??80dB | |
Signal to noise ratio | ??46dB??AGC OFF?? | |
Focal length | 4mm | |
Field of view | Horizontal viewing angle 84??, vertical viewing angle 45 | |
AI | Face capture | Built-in deep learning AI algorithm, support simultaneous detection of 20 faces, face detection |
Abnormal temperature alarm | Voice alarm for abnormal body temperature (the default alarm threshold is 37.3??) | |
Hardware interface | Power interface | DC12V interface |
Network interface | 1 way 10/100BaseT Ethernet, RJ45 interface | |
Alarm interface | Support switch alarm signal output, which can be linked with external sound and light alarm | |
Audio and video interface | Support 1 HDMI high-definition audio and video output | |
Storage | Built-in EMMC storage, can store up to 100,000 temperature measurement records | |
General specification | Working temperature | -10?桫35?? |
Working humidity | 0%-90% RH (non-condensing)?? | |
Protection grade | IP64 | |
Power | 12VDC | |
Power consumption | ??6W | |
Product size | 235mm*136mm*92mm | |
Weight | ??1.2kg |
Package Included:
1 x AI Thermal Imager
Instructions:
- Installation location selection
(1) A camera is set up right in front of the passage, and the face is captured from the front;
(2) The recommended erection height h is about 2 meters; the recommended viewing angle of the camera is 0~5 degrees;
(3) In order to ensure the effect of body temperature detection, the distance between the equipment and the personnel collection point is 1 meter (range 1 ~ 2.5 meters).
- Installation environment specification
(1) According to the lighting requirements of the installation: no backlight, no obvious reflection on the face, uniform light and no shadows. In addition, in order to ensure sufficient lighting on the scene when capturing faces, it is recommended that if the face in the lens is not bright enough, lighting equipment should be added accordingly to fill the face of the person (generally should reach 250-800LUX).
(2) Light and wind requirements: It is recommended that the equipment be installed indoors to ensure that there is no wind and direct sunlight between the equipment and personnel, and to avoid the phenomenon of low and high temperature measurement caused by blowing heat and direct sunlight.
