Product Description
Features:
- Dual display for both set temperature and process temperature
- Size: 72*72mm
- Short Shell
- Uses it in Heating Control as well as for Cooling control
- Auto-tune function can find the best PID parameter automatically
- Displays temperature in Celsius (??C)
- Four digits LED display can go up to "9999
- Uses it for Kiln,Furnace,Oven,Incubator temperature contro
- It is used in various industries to control and monitor process temperatures
Specification:
Input Type | Thermocouple: K, E, S, R, J, T, B RTD: Pt100, Cu50 ( The User can set the input signal type according the requirement. ) |
Input Range | 0 ~+1300oC K (this is the default setting. User can set the temperature range which you wanted.) |
Display | Two lines, Four digits in Celsius ??C. |
Display Resolution | 1??C, or 0.1??C if Pt100 input |
Accuracy | +/-0.5% or +/-1 unit of full input range |
Control mode | PID, ON/OFF |
Control Output | Relay contact: 3A at 240 VAC. |
Alarm | Alarm 1 ( Upper-limit bias alarm , User can change to be other Alarm Mode.) |
Power Consumption | <2 Watt |
Power Supply | 100~240V AC, 50/60Hz. |
Item Dimensions | MC700 72*72*110mm |
Mounting Hole Size | MC700 68*68mm |
Package includes:
- 1 x PID Digital Temperature Controller (NOT included Thermocouple)

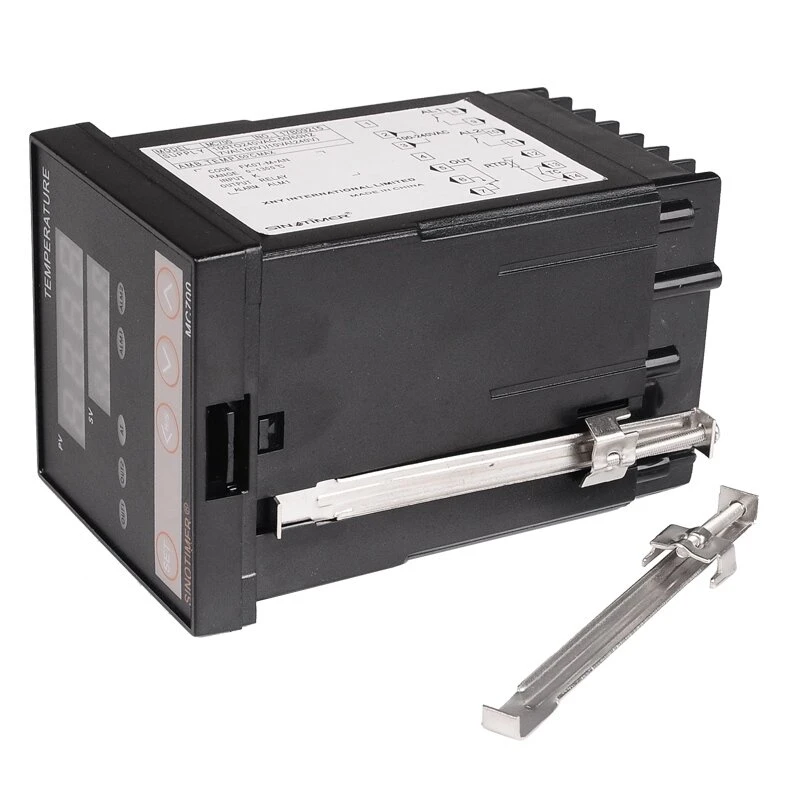

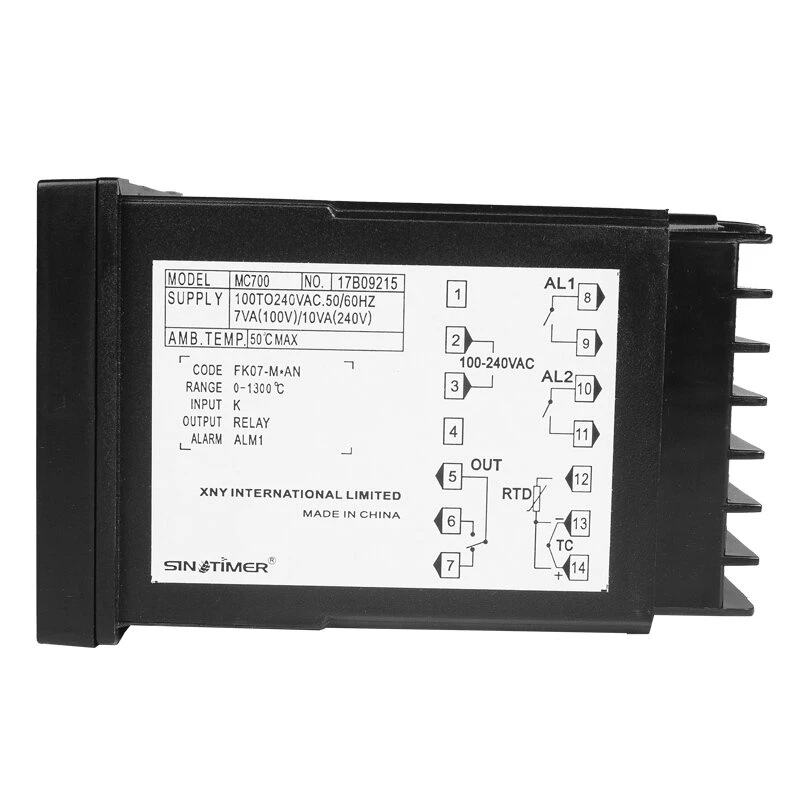

Details pictures:
