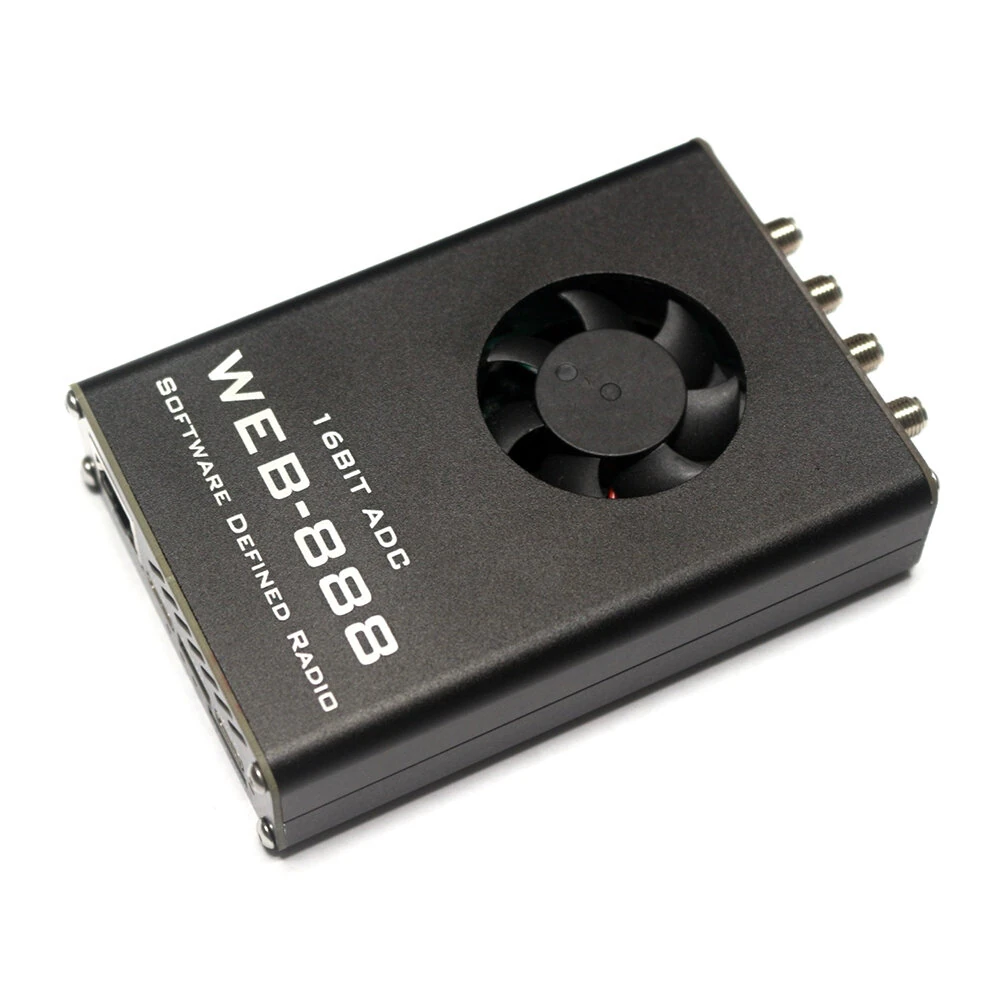

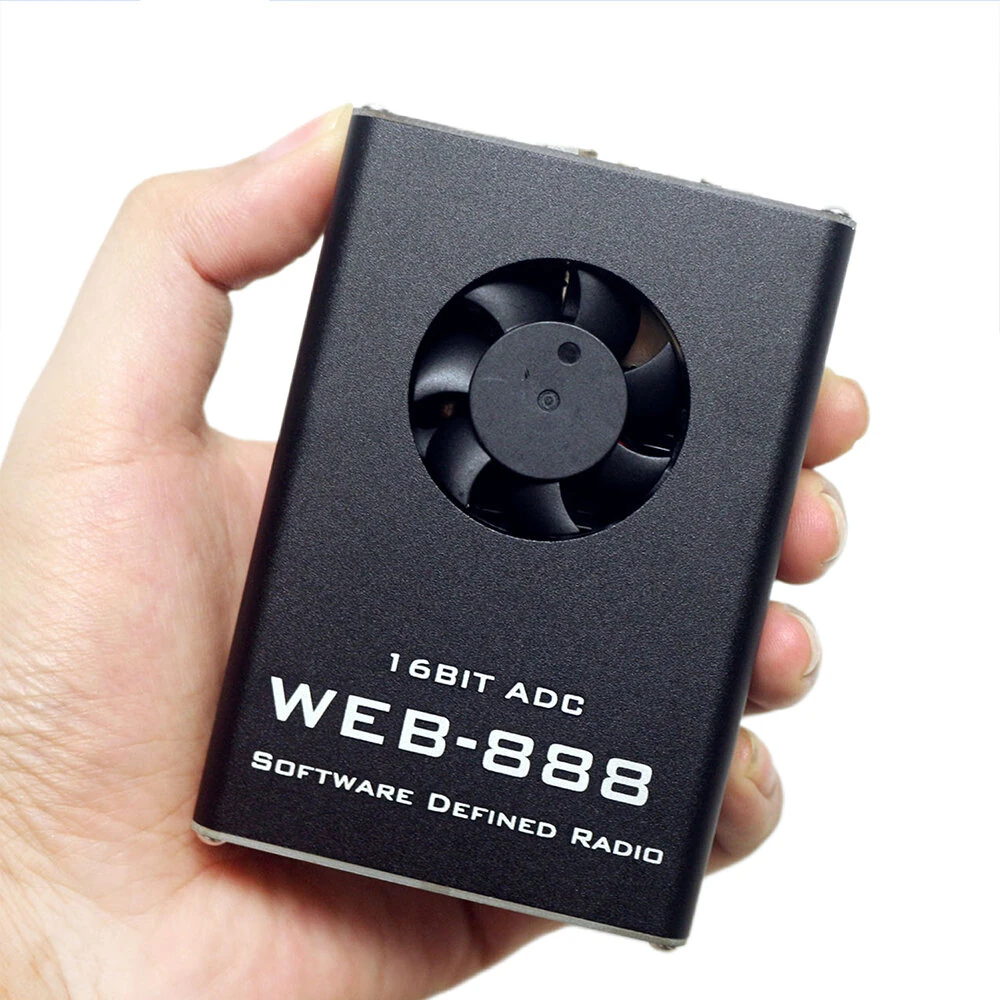

Web-888 SDR | 16-Bit ADC, 62MHz Bandwidth | Dual Antenna & GPS

Product Description

Specifications:

Dimensions: 100mm x 25.2mm x 17mm (excluding SMA)

Active Cooling Fan: 40mm

ADC: 16-bit, 130 MSPS LTC2208

Real-time Bandwidth: 61.44 MHz

GPS Module: Built-in all-constellation

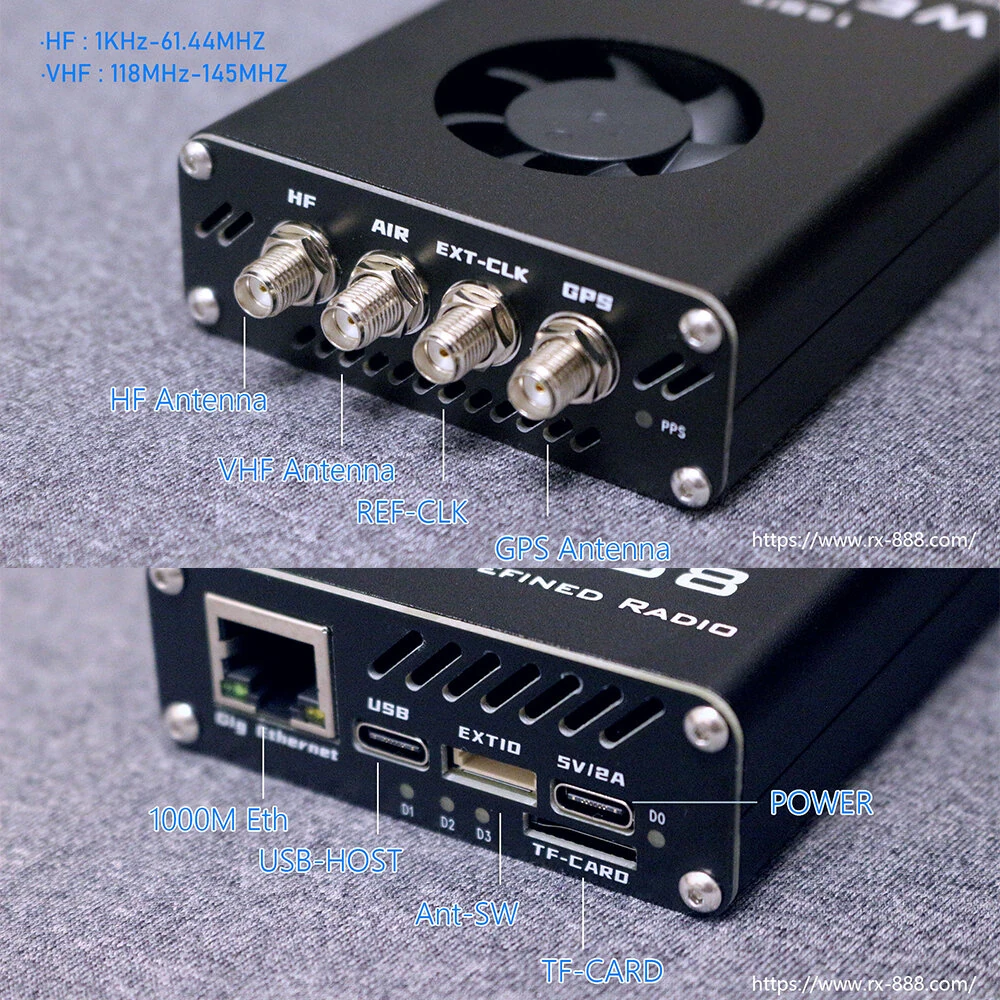

Antenna Inputs: Dual

Ethernet: Gigabit

Reference Clock: Input/output, 24.576MHz, 0.5 ppm TCXO

Expandable IOs: 8 for antenna switching

Operating System: Alpine Linux 3.20 with Linux 6.6 Kernel

Features:

Advanced SDR Capabilities: Utilizes a 16-bit ADC sampling with a 61.44 MHz bandwidth, offering high precision and detailed signal processing.

Powerful FPGA and ARM Cores: The Zynq7010 FPGA with dual A9 ARM cores delivers robust performance for SDR applications, enabling efficient data handling and processing.

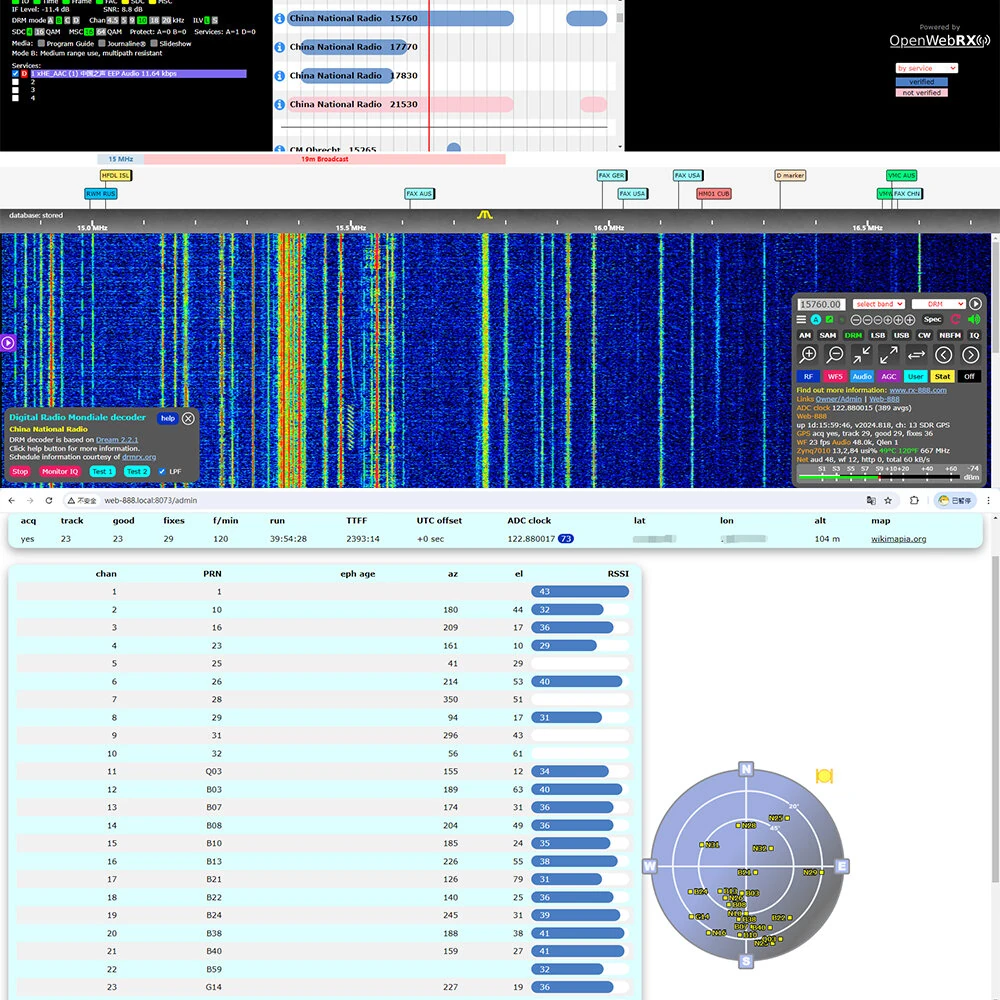

User-Friendly Web Interface: No need for extensive setup or learning curve; simply start using it through your web browser. Ideal for both beginners and advanced users.

Versatile Skimming Support: Covers 13 channels across all HF bands and the 6M band with FT4/FT8 and WSPR skimming capabilities, and future CW skimming support.

Expandable and Customizable: Includes support for various Red Pitaya applications, offering a flexible platform for experiments in FPGA, HF/VHF, and more.

Package Included:

1 x Web-888 SDR

1 x Data Cable
