UNI-T UTG9504T 500MHz Signal Generator | 4-Ch 2.5GSa/s 16-Bit Touchscreen

Product Description

Specifications:
Max Frequency: 500 MHz
Channels: 4
Arbitrary Waveform Length: 64 Mpts
Max Sampling Rate: 2.5 GSa/s
Vertical Resolution: 16 bits
Minimum Edge Time: ?? 1.5 ns, adjustable duty cycle
Maximum Output Amplitude: 20 Vpp
Digital Protocol Output: SPI, I2C, UART
Screen Display: 10.1-inch capacitive touchscreen, 1280 x 800 resolution
Features:
1.High-Precision Signal Generation:
With a maximum frequency of 500 MHz and 16-bit vertical resolution, the UTG9504T ensures precise waveform output for advanced testing applications.
2.Flexible Arbitrary Waveform Design:
Equipped with 64 Mpts arbitrary waveform memory and adjustable duty cycles, this generator supports highly customized testing scenarios.
3.Fast Sampling and Edge Performance:
Featuring a 2.5 GSa/s sampling rate and a minimum edge transition time of ??1.5 ns, the UTG9504T offers high-speed and accurate responses.
4.Advanced Communication Protocol Outputs:
Supports SPI, I2C, and UART for seamless integration with digital systems during protocol development and verification.

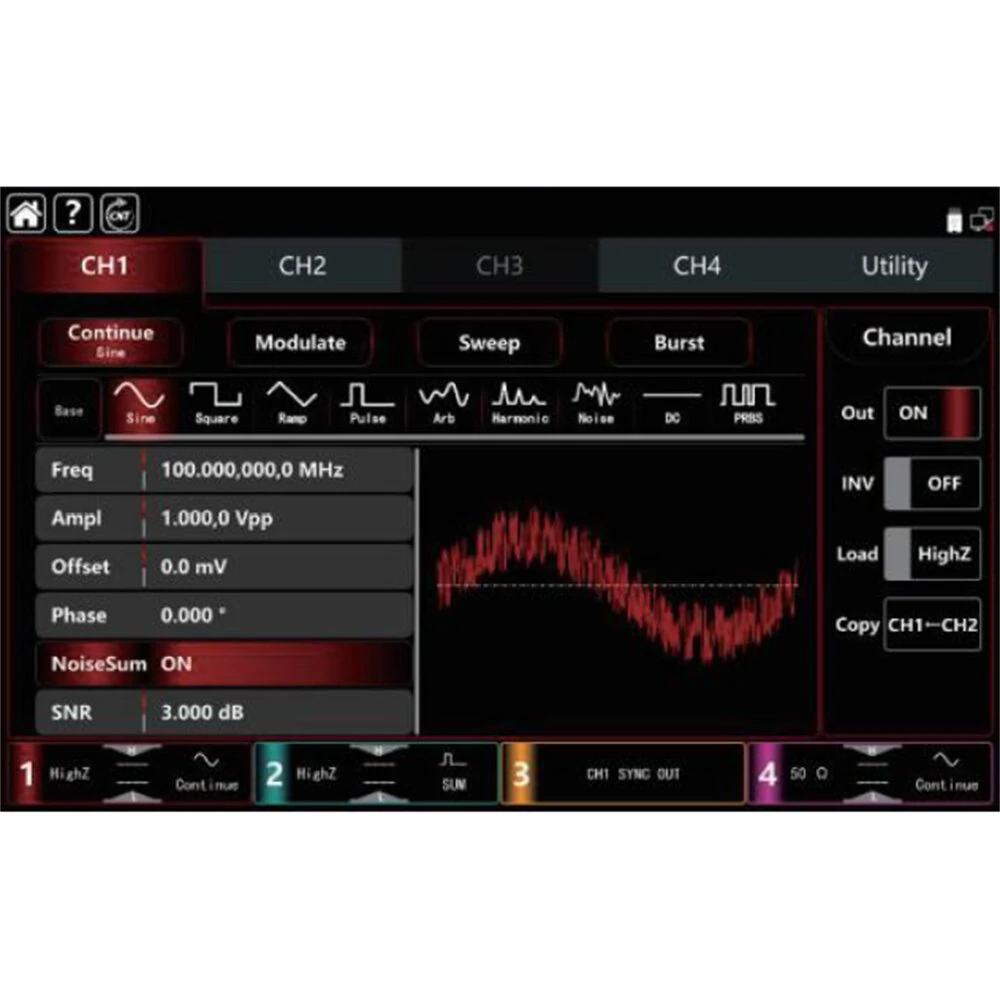

5.Enhanced Usability with Touchscreen Interface:
The 10.1-inch capacitive touchscreen with a resolution of 1280 x 800 provides intuitive navigation and clear visualization of waveform configurations.
Package Included:
1 x UTG9504T Arbitrary Waveform Generator
1 x Power Cord
4 x BNC Cable
1 x USB Cable
