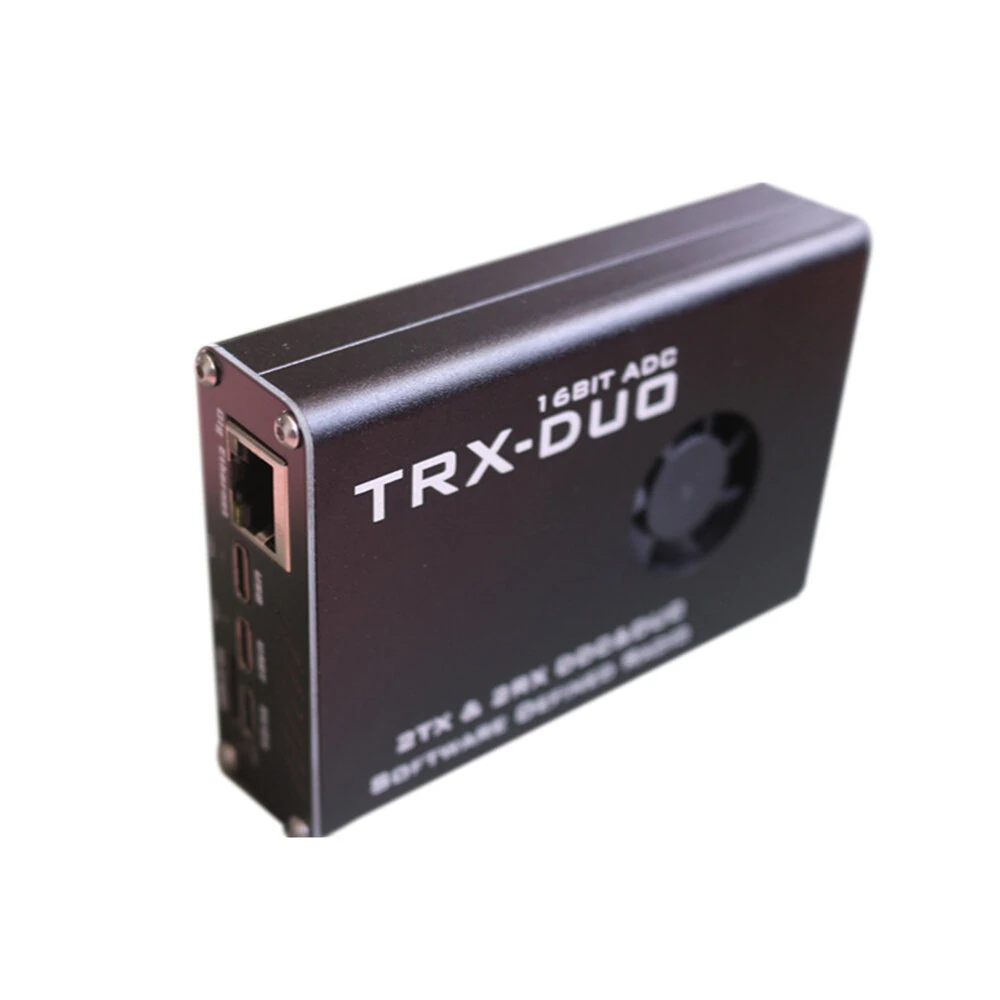

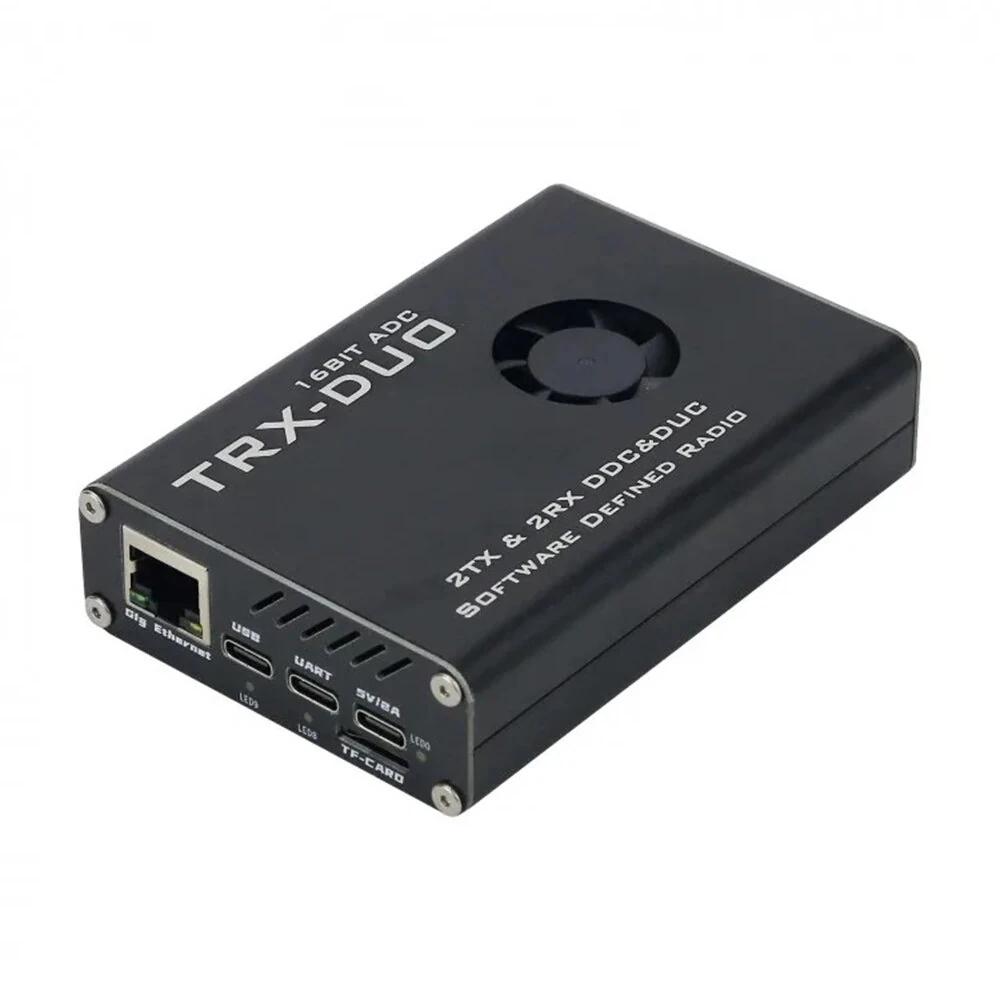

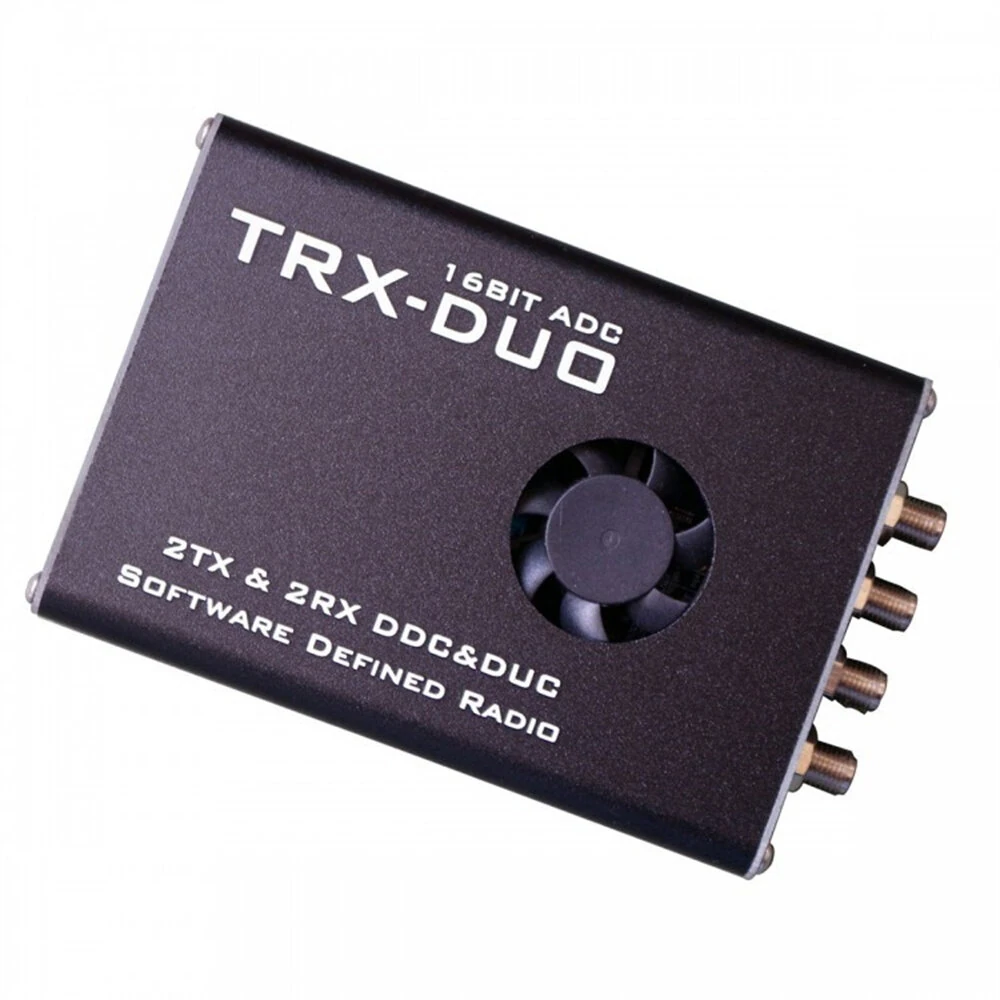

TRXDUO 10KHz-60MHz SDR Device | Dual 16-bit ADC, FPGA, Wi-Fi, USB-C

Product Description

Specifications:

Model: TRXDUO

Frequency Range: 10KHz-60MHz

Processor: Arm Cortex A9 dual-core

FPGA: Zynq 7010 SoC

Memory: 512MB

Connectivity:

Ethernet: 1Gbit

USB Type-C: USB 2.0

Wi-Fi: Requires Wi-Fi dongle (not included)

RF Input:

Channels: 2, SMA connectors

Sampling Rate: 125MS/s

ADC Resolution: 16-bit

Full-Scale Voltage Range: 0.5Vpp / -2dBm

Max Input Voltage Range: DC max 50V (AC coupled), RF 1Vpp

Input Protection: RF transformer and AC coupling

RF Output:

Channels: 2

Sampling Rate: 125MS/s

DAC Resolution: 14-bit

Voltage Range: 1Vpp / +4dBm

Load Impedance: 50 Ohms

Expansion Connector:

Digital I/O Pins: 16

Analog Inputs: 4

Analog Input Voltage Range: 0-3.3V

Sampling Rate: 100kS/s

Resolution: 12-bit

Analog Outputs: 4

Analog Output Voltage Range: 0-1.8V

Communication Interface: I2C, UART, SPI

Available Voltage: +3.3V

Features:

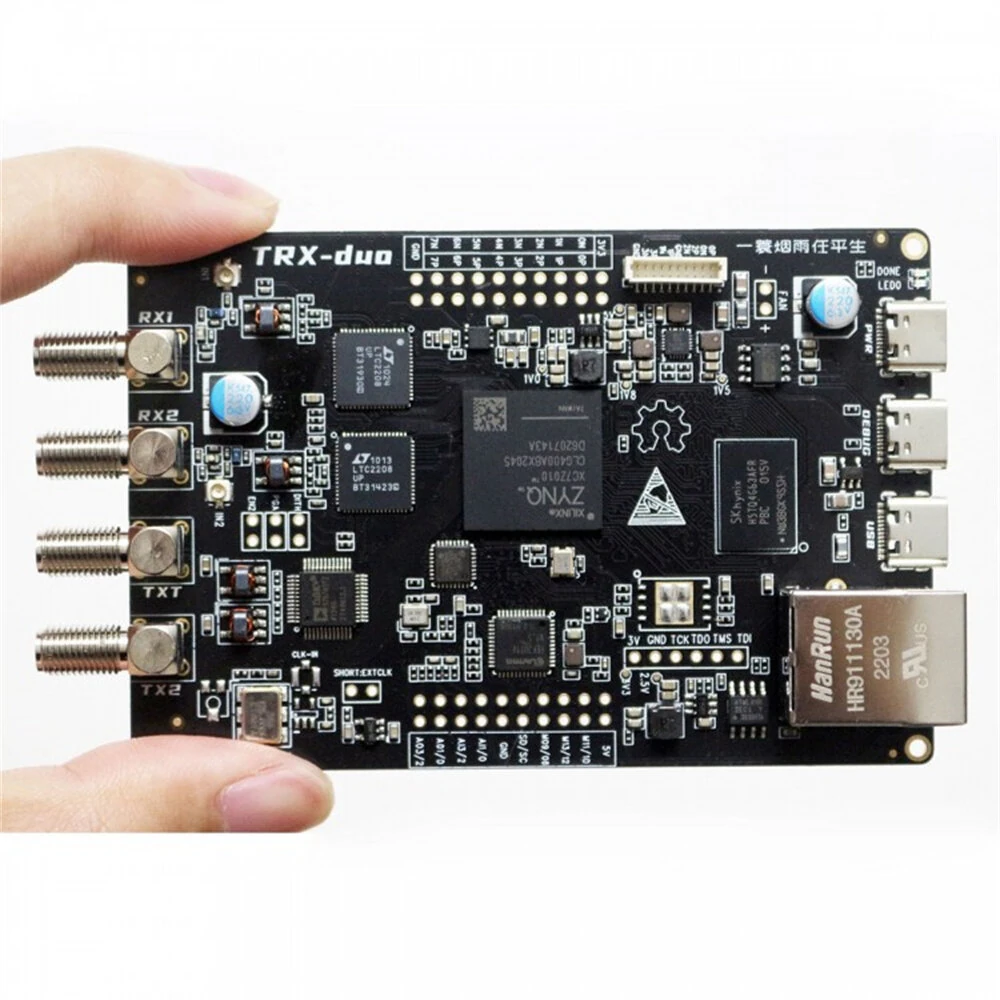

Wide Frequency Range and High Resolution: Direct sampling reception from 10KHz to 60MHz using 2x16-bit ADC LTC2208, providing high dynamic range and sensitivity.

Dual Channel Support: Supports dual physical channel reception and transmission with 125MS/s sampling rate, ensuring robust and parallel signal handling.

Compatible with Popular SDR Software: Seamlessly integrates with Red Pitaya SDR and is compatible with HDSDR, SDR#, PowerSDR, and SDRConsole (V3).

Powerful Processing Capability: Equipped with Arm Cortex A9 dual-core processor and Zynq 7010 SoC FPGA for efficient signal processing and data handling.

Extensive Connectivity: Features Ethernet, USB Type-C, and optional Wi-Fi (with a dongle), along with multiple digital and analog I/O options for versatile deployments.

Package Included:

1 x SDR Device

1 x Data Cable (Color sent at random)
