QM-SW-4ST/2ST Microwave RF Switch | 0.1-6GHz Wide Band | Low Insertion Loss & High Isolation

Product Description

Features:

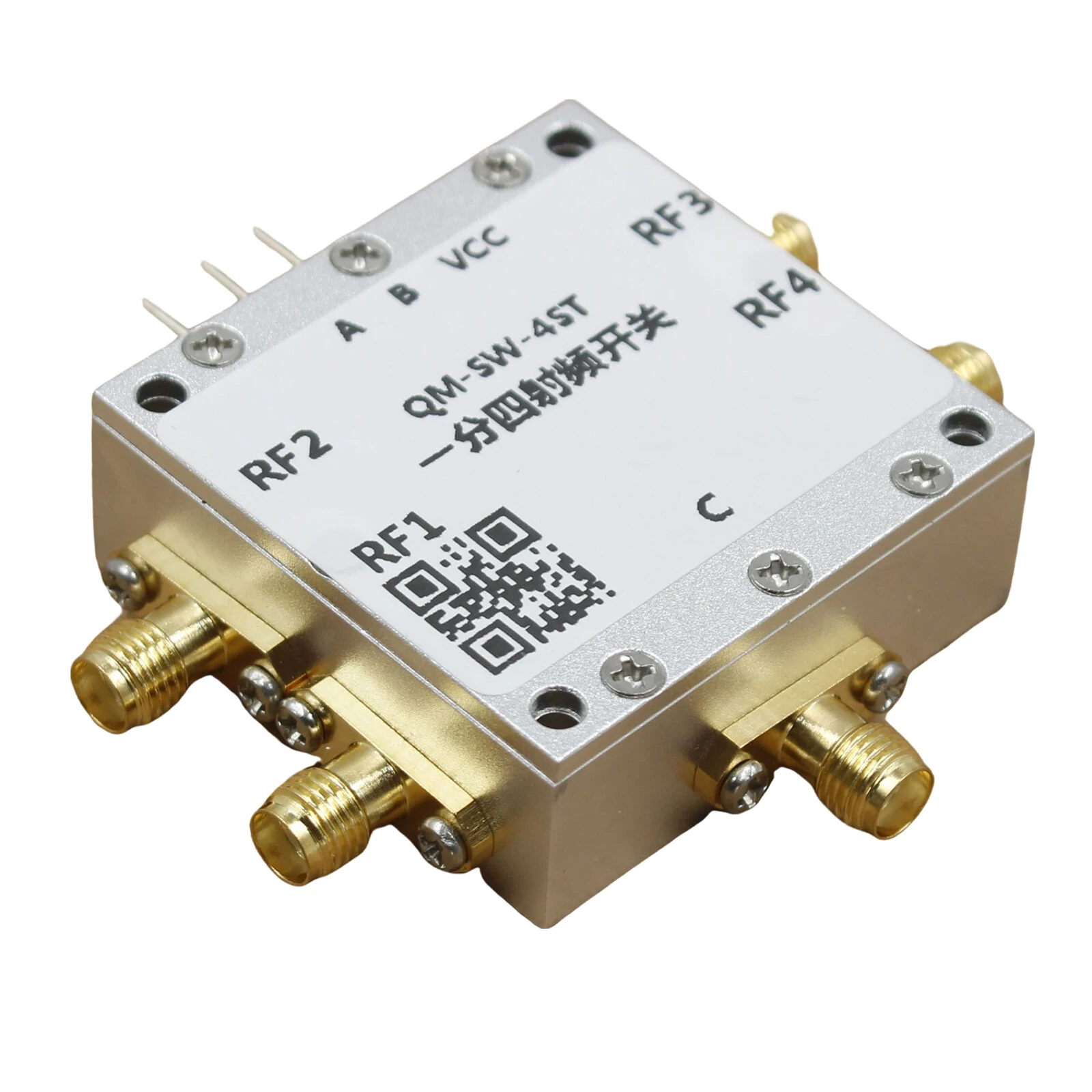

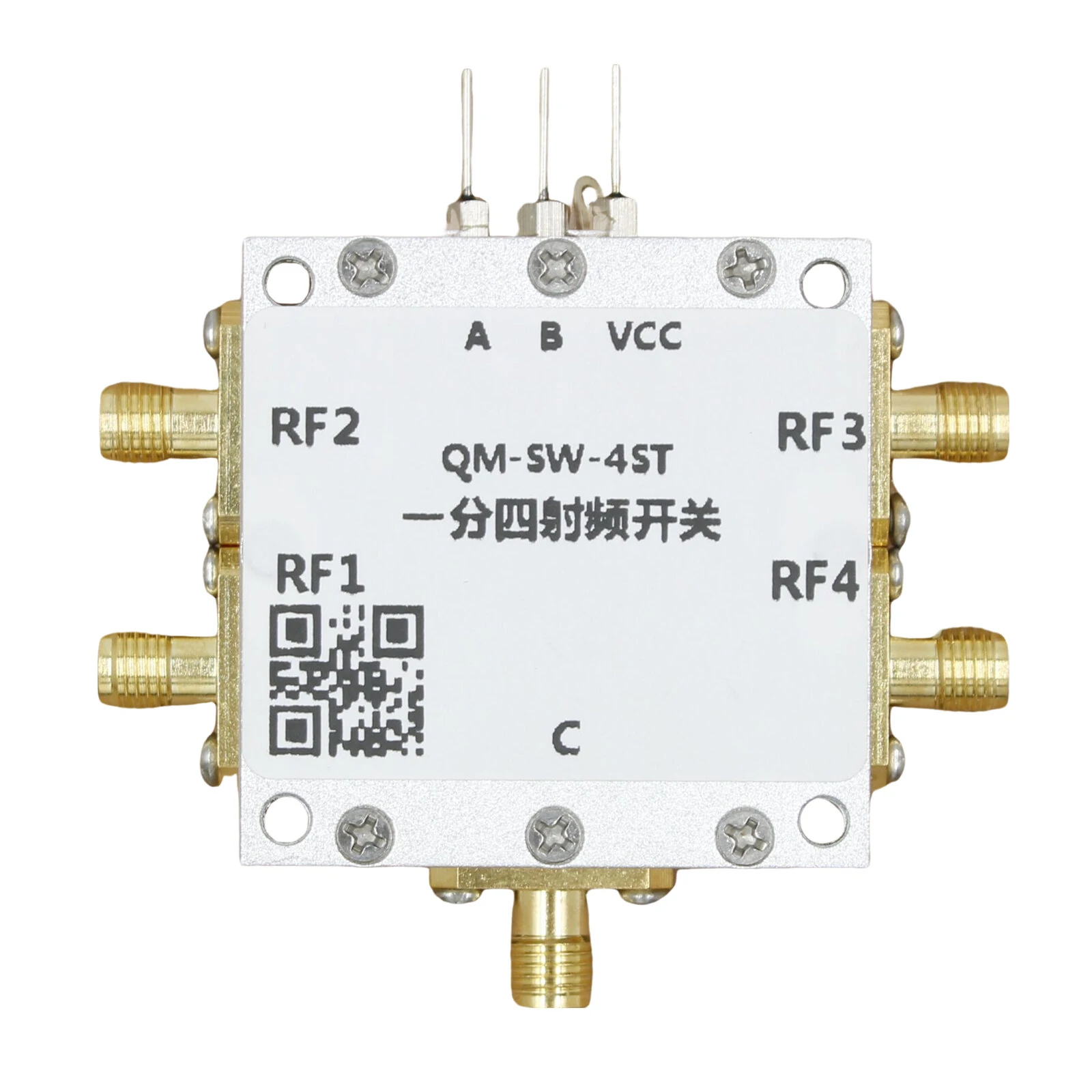

1. The microwave switch, also known as a radio frequency switch, realizes the control of microwave signal channel switching. It adopts the SP4T single-pole four-throw pattern to achieve four-channel signal switching.

2. Featuring low insertion loss, wide bandwidth, and high isolation degree, this module is extensively used in communication system equipment.

3. With a CNC structure shell, it is easy to install, and provides stable and reliable performance.

4. It has a working frequency of 0.1-6G and a typical insertion loss of 1dB. The port isolation is 45dB for type A and 60dB for type B.

5. This module is controlled by external voltage. With H standing for 3.3-5V and L for 0V or grounded, the RF output can be switched to different channels depending on the control port configuration.

Specifications:

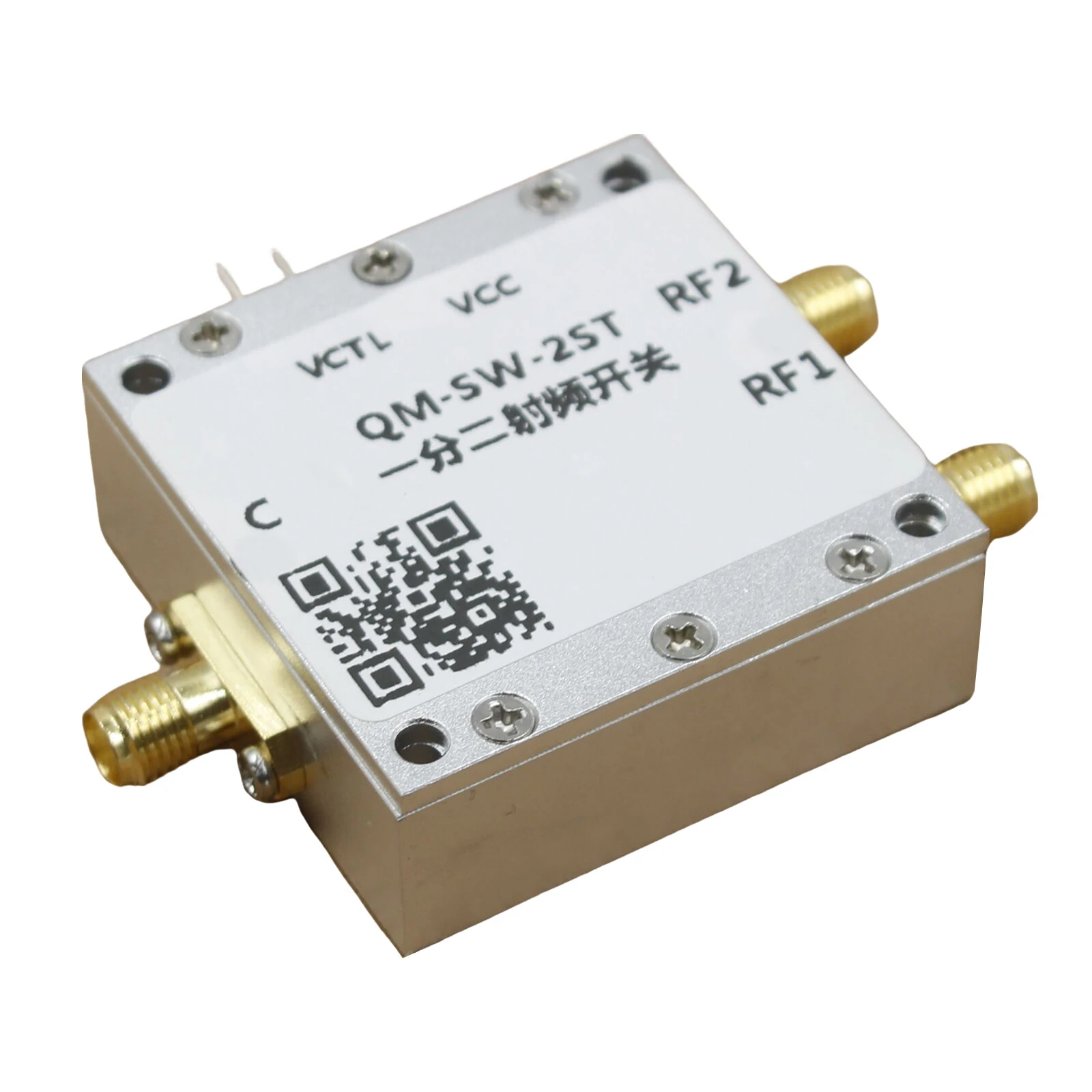

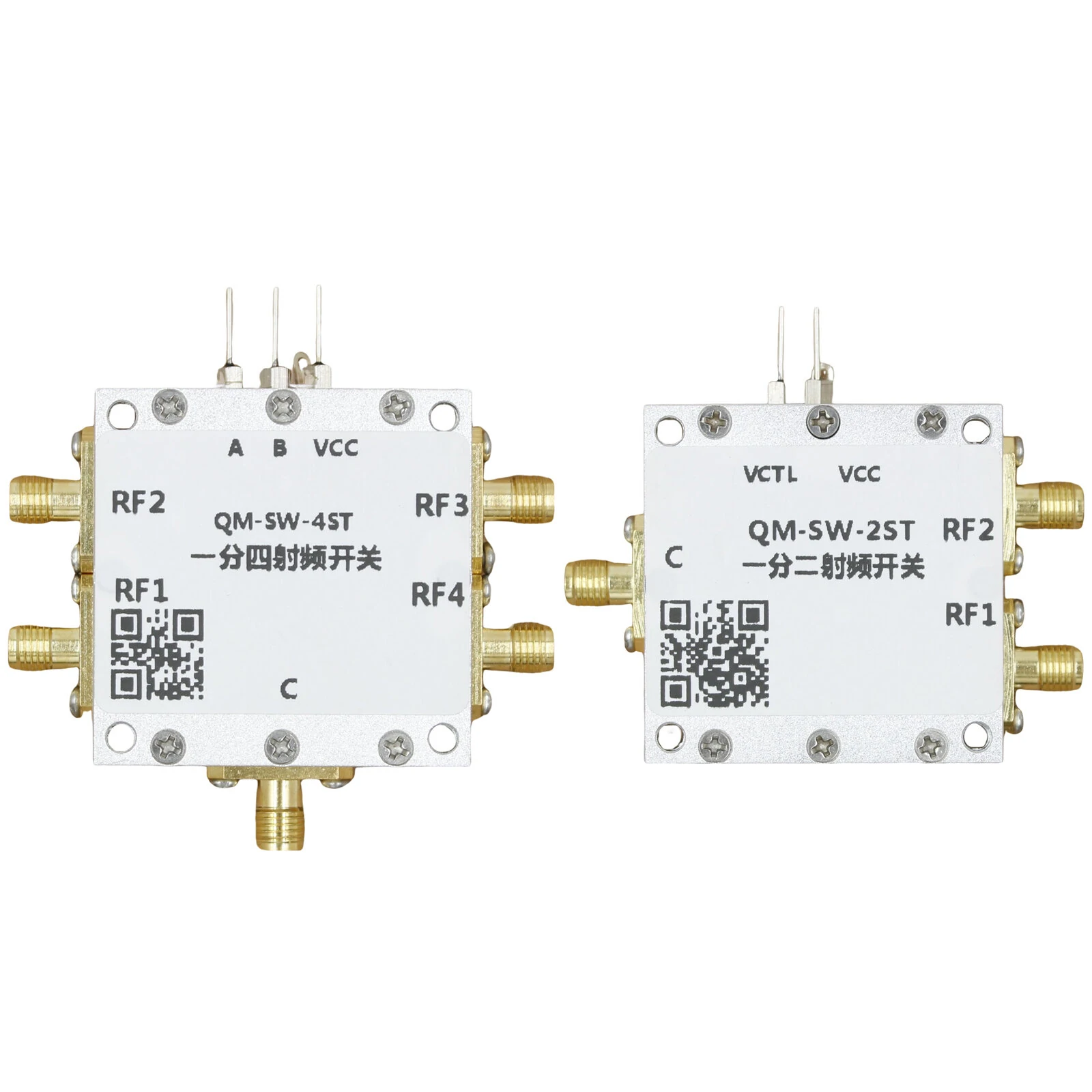

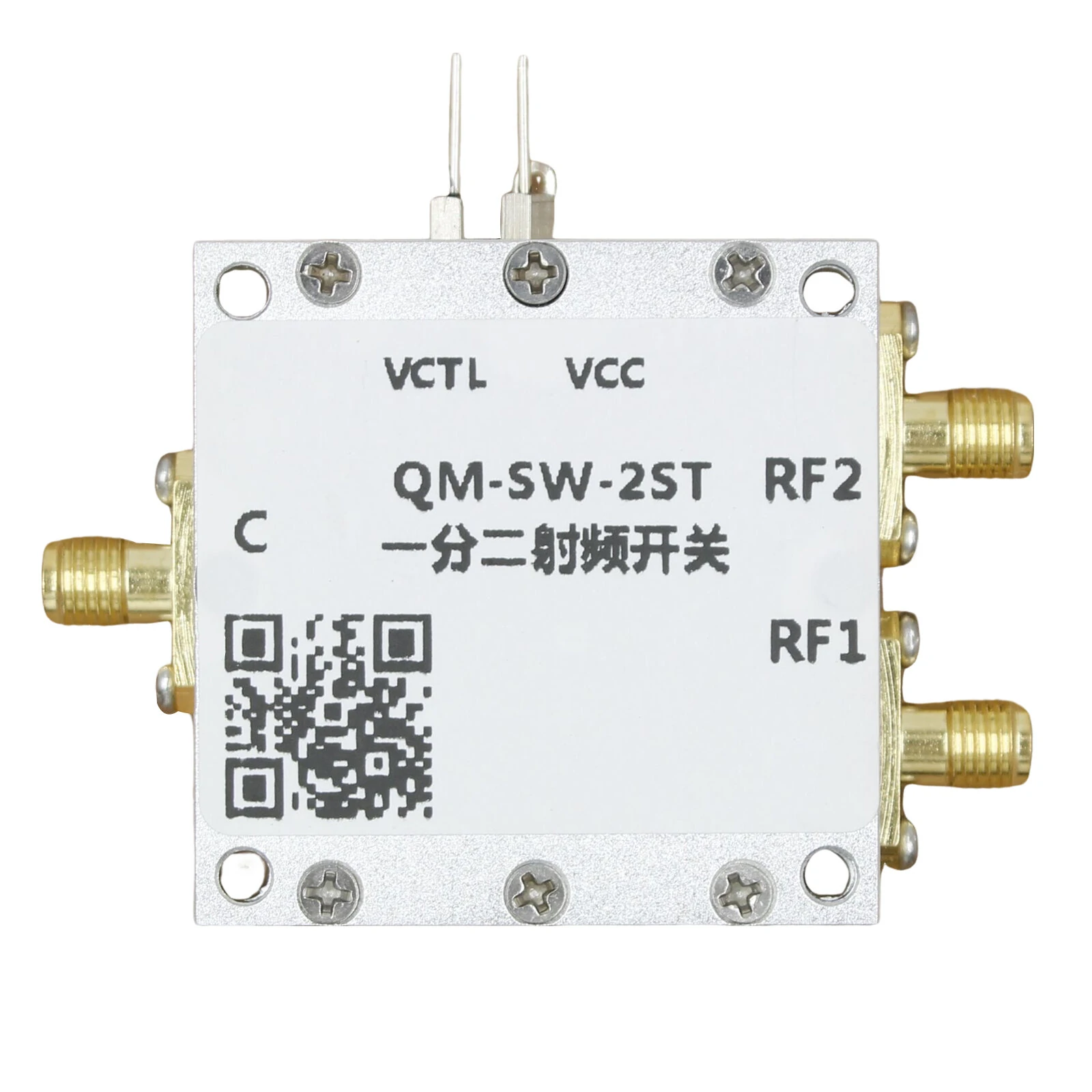

- Model: QM-SW-4ST/QM-SW-2ST

- Working frequency: 0.1-6G

- Working mode: Selective type

- Typical insertion loss: 1dB/0.8dB

- Port isolation: 45dB typical value/60dB typical value

- Impedance: 50??

- Maximum input power: 28dBm (only for QM-SW-4ST)

- Switching time: 150ns (only for QM-SW-4ST)

- Power supply: +3.3 to +5V

- Input and output interface: SMA (external screw internal hole)

- Module size: 40*40*15mm (QM-SW-4ST) / 40*40*14mm (QM-SW-2ST)

- Weight: 80g

Package Included:

1 x Microwave Switch (MODEL AS YOUR CHOICE)
