Portable uSDX 8 Band SDR Transceiver | USB LSB CW AM FM | HF SSB QRP with Battery

Product Description

Description:

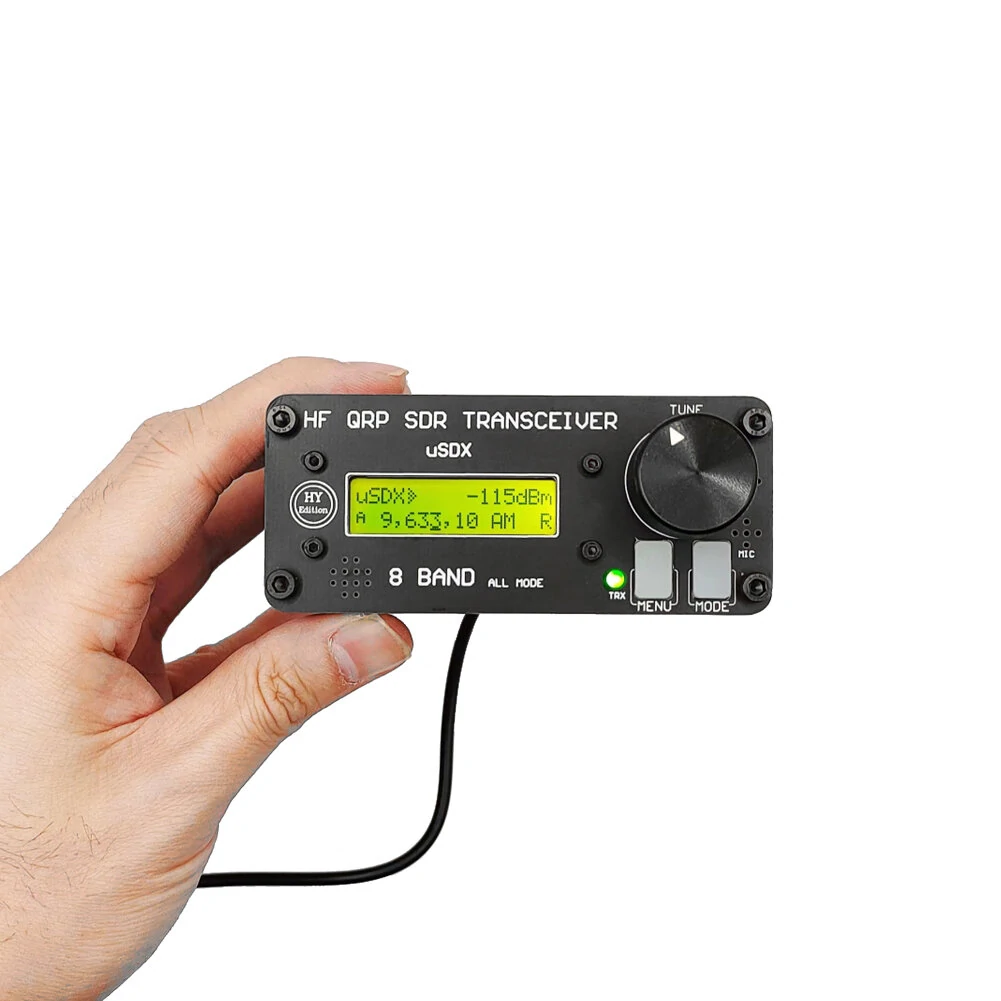

This is a HF QRP SSB/CW transceiver. The utra-small size is easy to carry to outdoor use, using 1602N LCD screen. Support to connect to PC and use FT8, JS8, FT4 and other digital mode software control, support CW automatic decoding. This transceiver kit includes a large number of features defined by the firmware in the ATmega328P microcontroller chip.

Features:

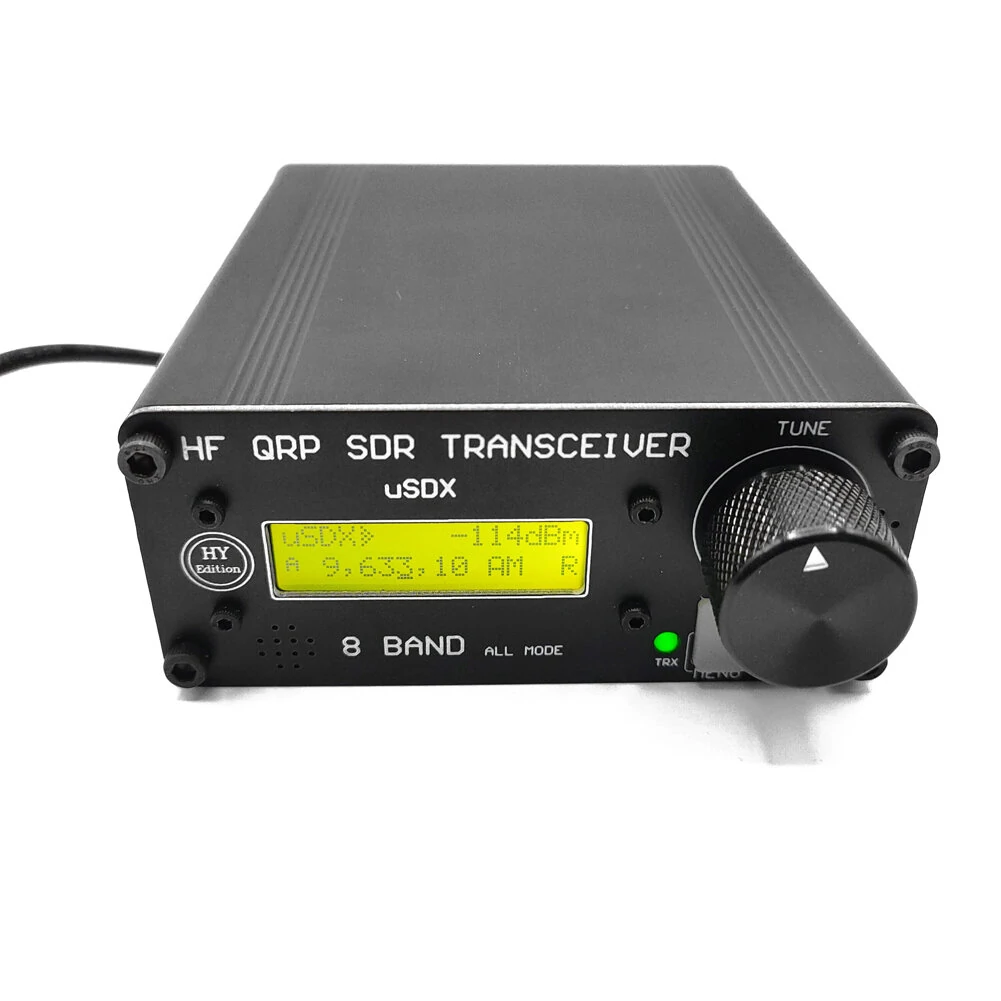

Shell size: 100 mm x 88mm x 38mm(3.9" * 3.5" * 1.5");

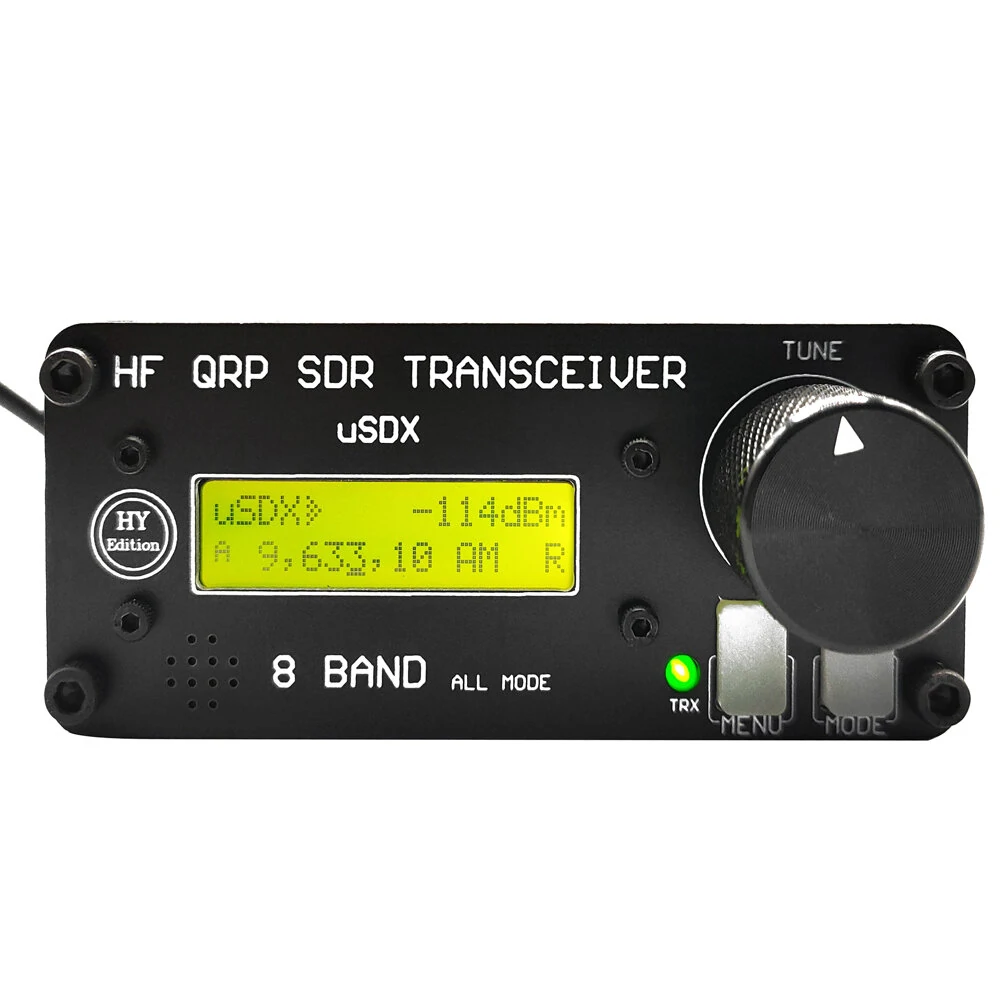

Interaction and display: rotary encoder; Menu + exit key; 1602N LCD.

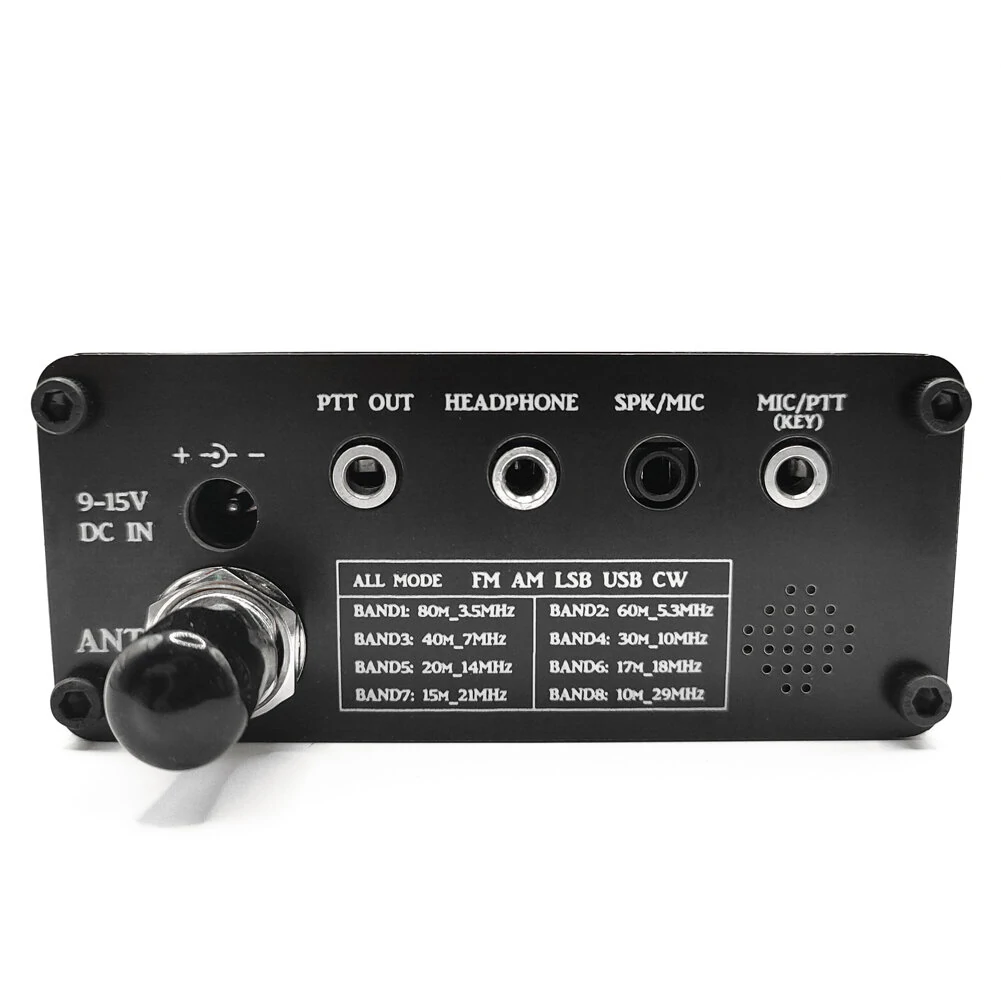

Headphone output connector (marked Headphone);

PTT_ Out interface (marked with PTT OUT);

Mic microphone and key interface and PTT (marked mic / PTT(key));

Handheld Speaker/Microphone/PTT combination (BaoFeng UV-3R, marked SPK/MIC);

The antenna interface is BNC interface(with BNC-SL16);

The power interface is 5.5 * 2.1(or 5.5 * 2.5);

Specifications:

Material: Aluminum

Plug: US plug

Working voltage: 9-13.8V (maximum 15V, but not recommended, and the transmission power will drop below 13.8V)

Mode support: USB, LSB, CW, AM, FM

DSP filter: 4000,2500,1700,500,200,100,50 Hz passband

Receiver noise floor MDS:-135dBm at 28MHz(in 200Hz BW)

Blocking dynamic ranges: 20kHz offset 123dB,2kHz offset 78 dB

Package size: 265 * 153 * 90mm / 10.4 * 6.0 * 3.5in

Package weight: 698g / 1.5lb

Package Included:

1 x Transceiver

1 x Microphone

1 x DC Adaptor (US plug)

1 x BNC-SL16

3 x Wrench
