NanoVNA Vector Network Analyzer 6.3GHz | 7-inch LCD | 1001 Points MF-HF-UHF
$1,430.00
$1,759.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

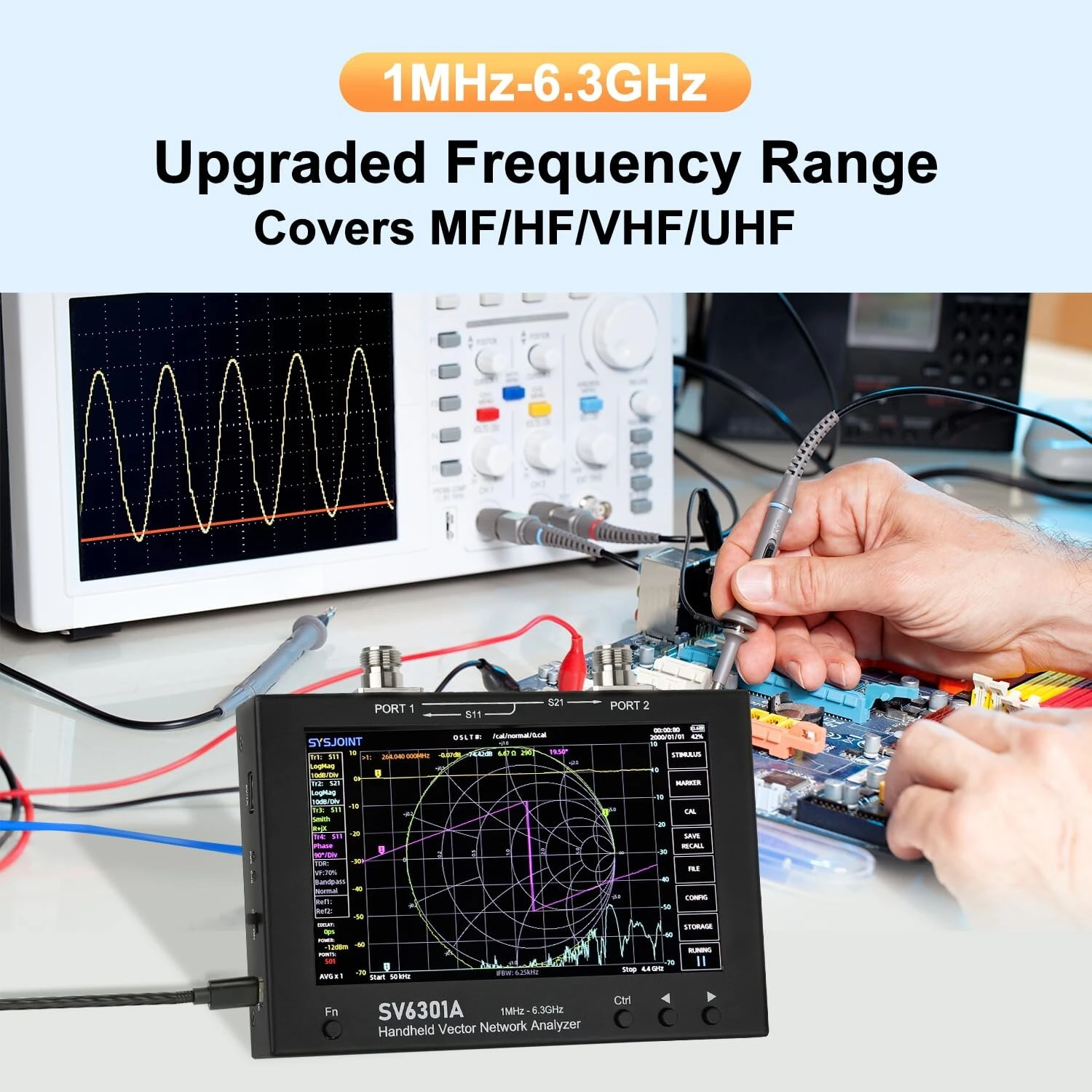

Features:- 1MHz - 6.3GHz frequency range
- 1001 points
- 100dB dynamic range

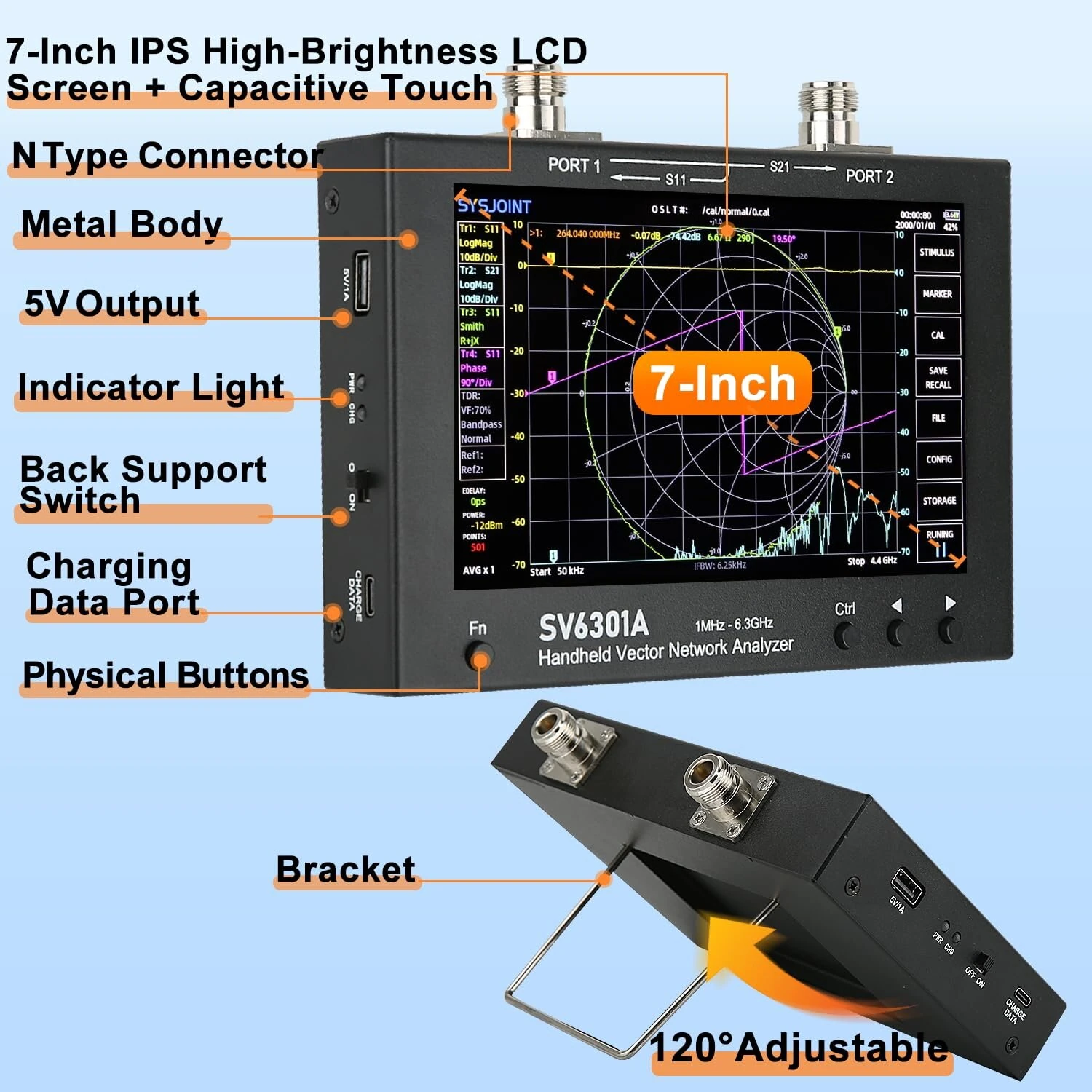

- 7?? IPS LCD
- Stable and N connectors
- Ergonomically designed with back bracket
- Adjustable excitation power: -40dm ~ -10dBm

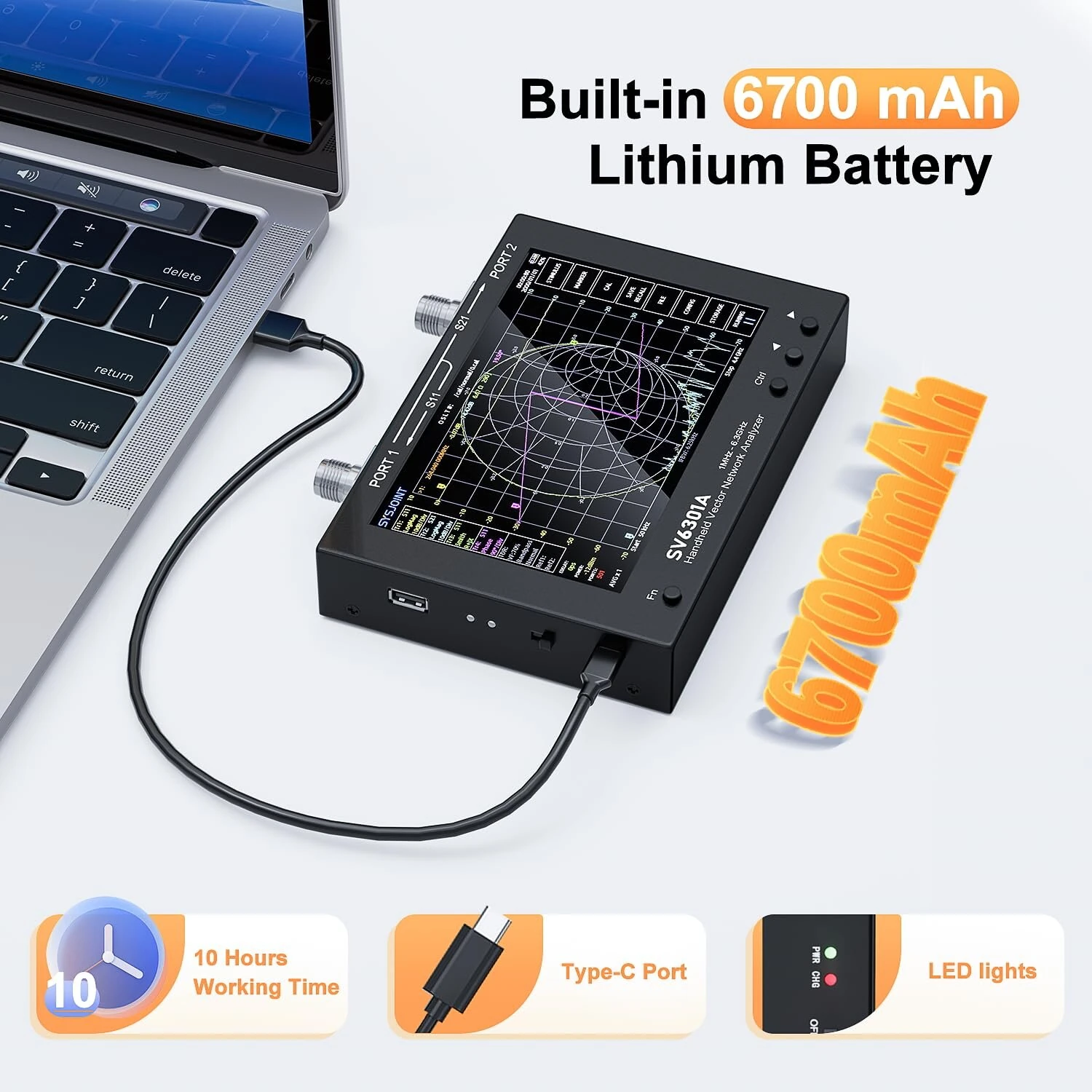

- Built-in 18650 lithium battery

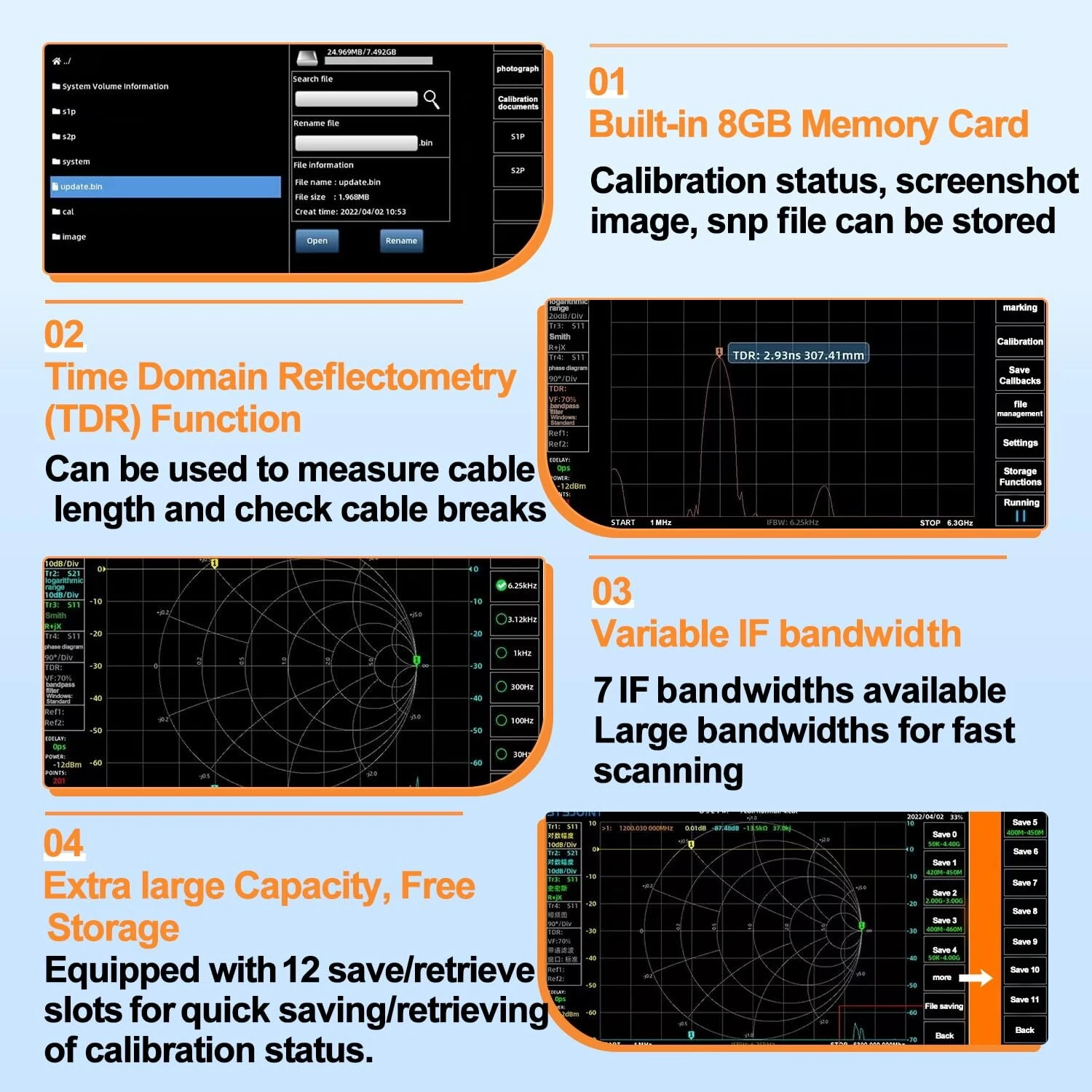

- Time domain reflector for cable length measuring and cable break point checking
Specification:
- Frequency range: 1MHz - 6.3GHz
- RF output power: -40dBm ~ -10dBm
- RF connector type: N Type female
- RF input power: 0dBm (Max)
- Frequency precision: <??1ppm
- S21 dynamic range: 75dB: <3GHz; 65dB: >3GHz
- S11 dynamic range: 50dB: <3GHz; 40dB: >3GHz
- Scanning point: 1001; can be set from 101 to 1001
- Scanning speed: 500pts/s; f > 25MHz
- Power consumption: 6.5W
- time: 3 hours
- Charging interface: USB Type-C
- Charging voltage: 4.7V ~ 5.5V
- Power output: USB 5V/1A
- Size: 190 x 130 x 30mm
- Weight: 1.15kg
- Working temperature: 0?? ~ 45??
Package Included:
1 x SV6301A Host
2 x N to SMA Adapter
1 x SMA LOAD/OPEN/SHORT Calibration Kit
2 x SMA Female to SMA Female Connector
1 x SMA Male to SMA Male Connector
2 x 60cm SS405 Cable
1 x USB Type-C Data Cable
1 x Storage Bag
