Product Description
>>Please Click Here to Download the English User Manual<<Features:
1. Use 0.5ppm TCXO: To ensure the frequency accuracy of high-frequency measurement using 0.5ppm TCXO network analyzer.2. Metal shell: The metal shell can fully protect the internal precision circuit and fully consider the protection of the external interface.3. High-performance calibration kit: The network analyzer is equipped with a high-performance calibration kit to ensure that the calibration SWR is less than 1.03 when it reaches 3GHz.4. Good amplitude and phase stability: 2 customized high-performance SS405 SMA RF cables provide good amplitude and phase stability.5. 5. Easy to carry: equipped with high-grade plastic outer packaging, the network analyzer is easier to carry and store.
Specification:
HDMB V2 ProFrequency range: 50kHz-3GHzSystem dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)S11 noise floor (calibration): -50dB (up to 1.5GHz), -40dB (up to 3GHz)Scanning speed: 100 points/secDisplay: about 3.2 inches (320 * 480)USB interface: USB Type-C communication mode: CDC (serial)Power supply: USB, maximum charging current 1ABattery: 1500mAh lithium ionBattery connector: JST-XH 2.0mmMaximum scanning point (on the device screen): 201Maximum scanning point (USB): 1024Port 2 return loss (1.5GHz): 20dBtypPort 2 return loss (3GHz): 13dB MIN
Item size: 142 x 75x 23mm /(5.1 x2.9x0.9in)Product weight: 405g/(14.3oz.av)Packing size: 245??142??50mm /(9.7* 5.6 * 2in)Package weight: 430 grams (15.1 ounces average)
Package includes:
1 *HDMB V2 Pro vector network analyzer (built-in 1500mAh battery) host1 * Touch paddle1 * Type C USB data cable2 * 200mm SMA male to male SS405 RF cable1 * SMA simple calibration setting is open1 * SMA simple calibration set1 * SMA simple calibration kit load1 * SMA female to female connector1 * SMAN / SMA-KJ1 * PP special tool box

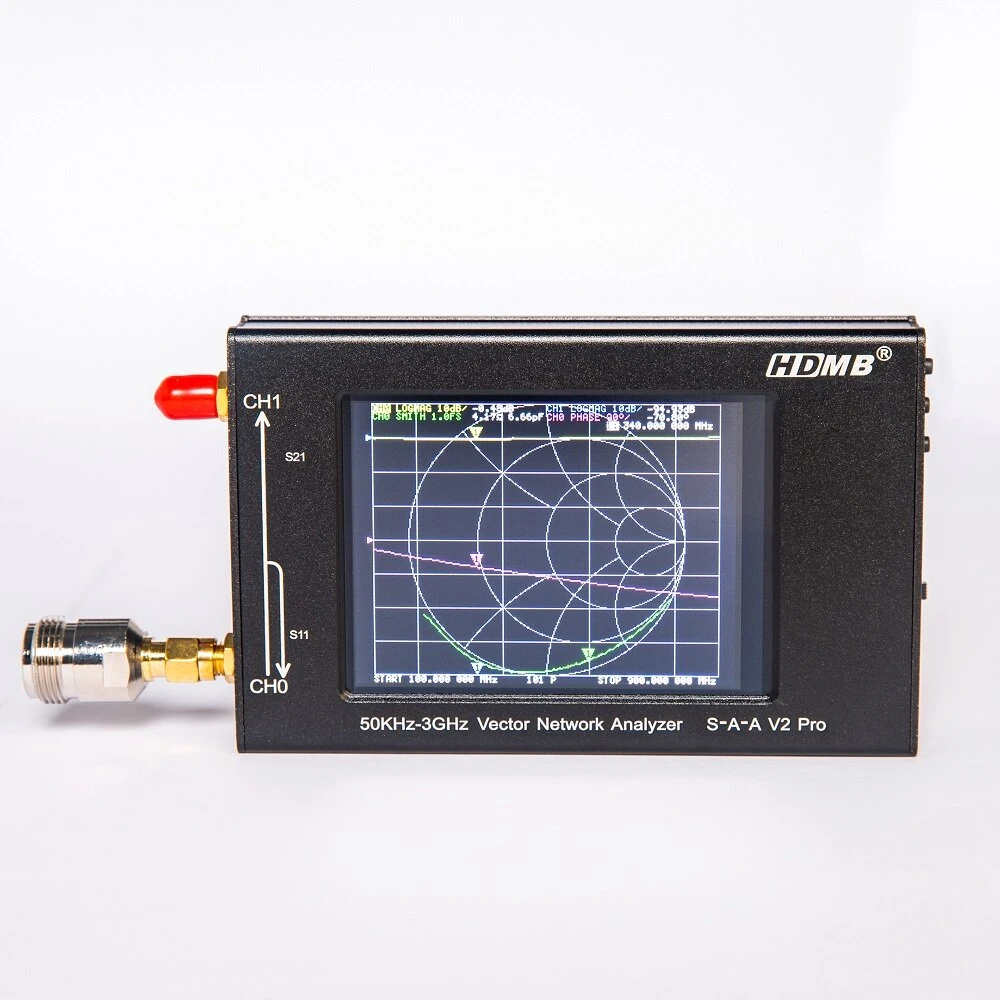

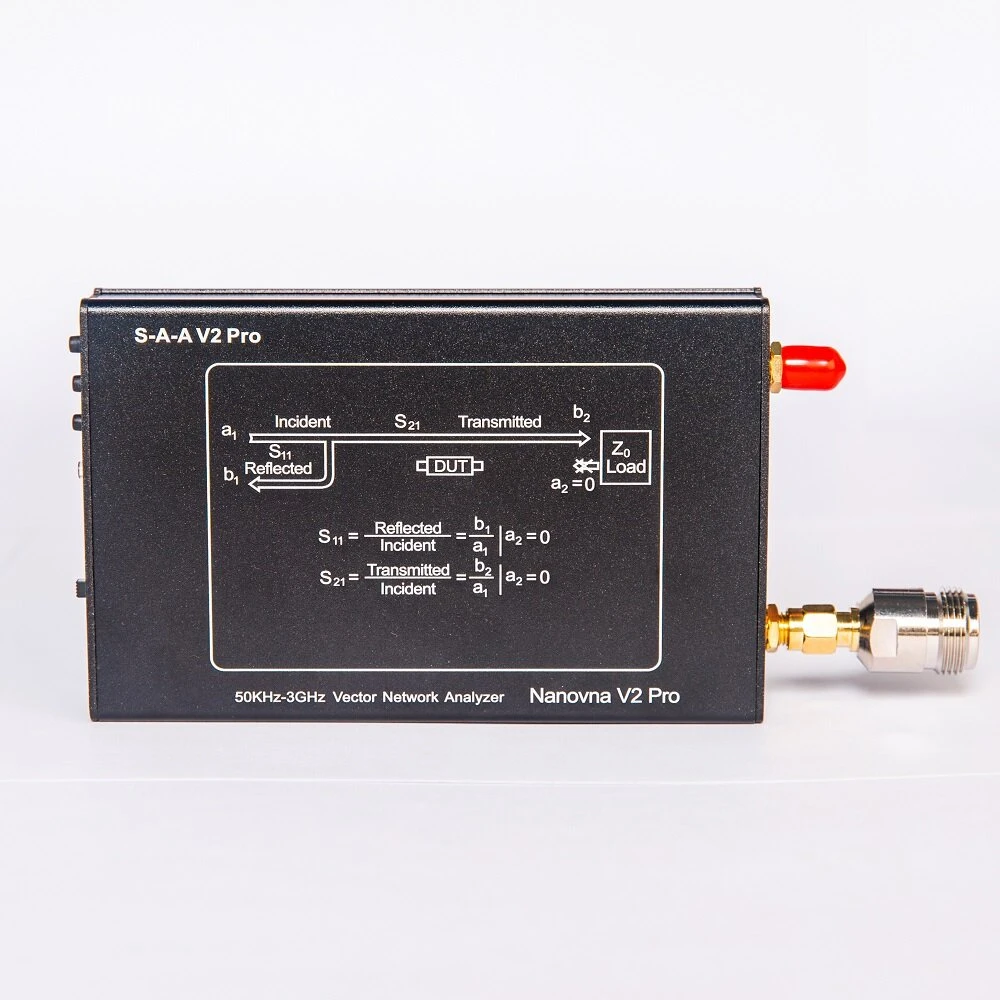

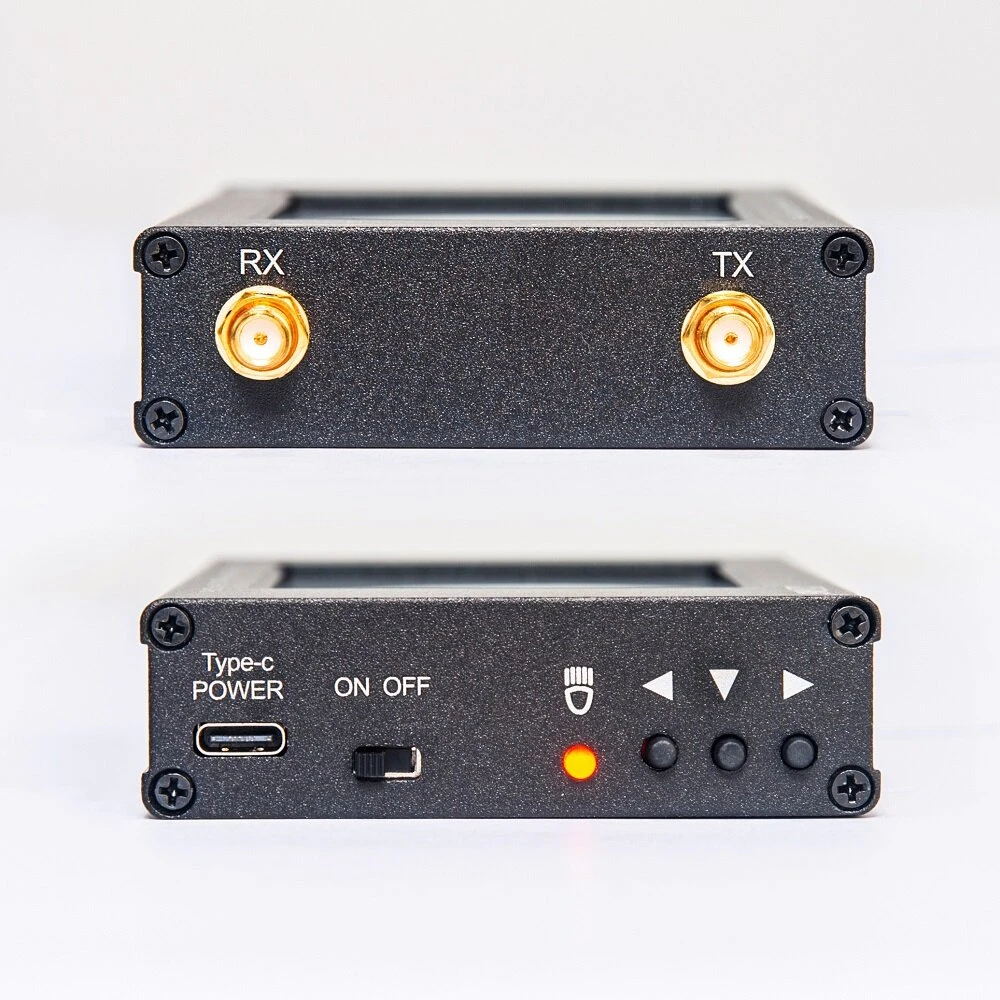

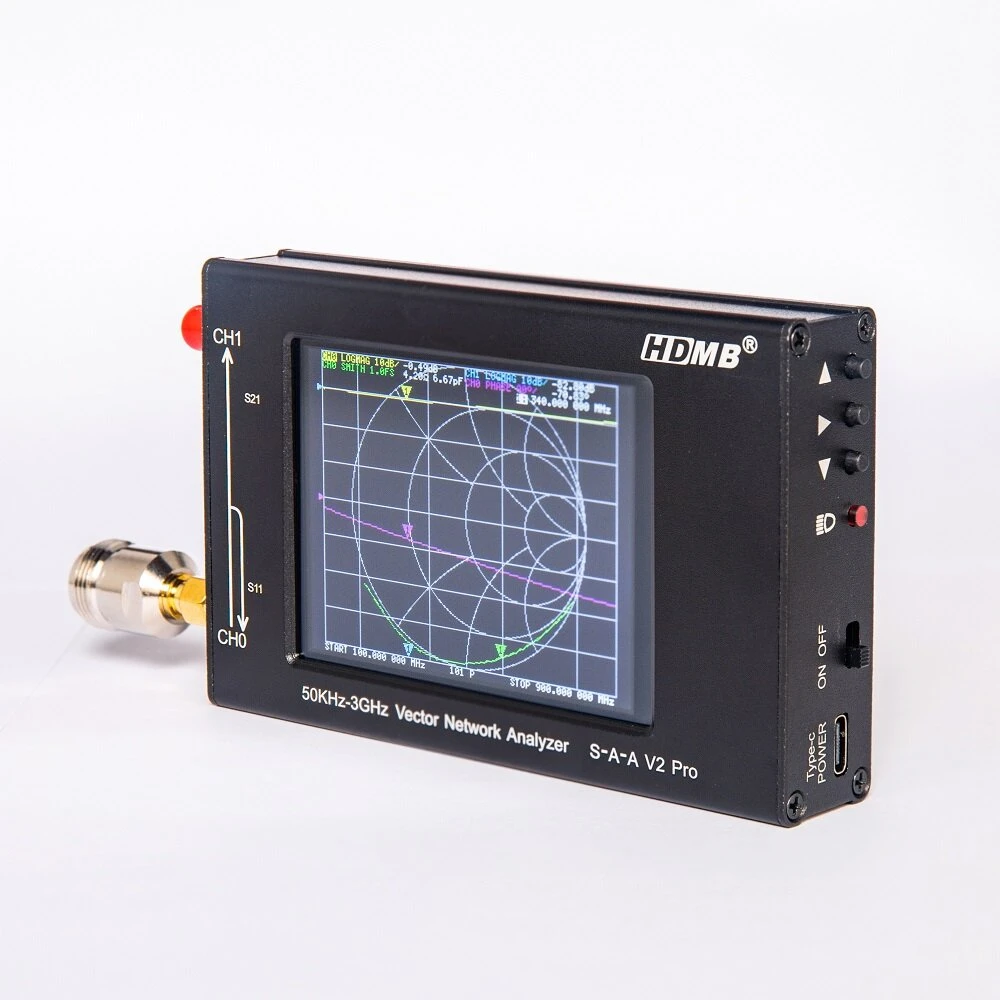

Details pictures:
