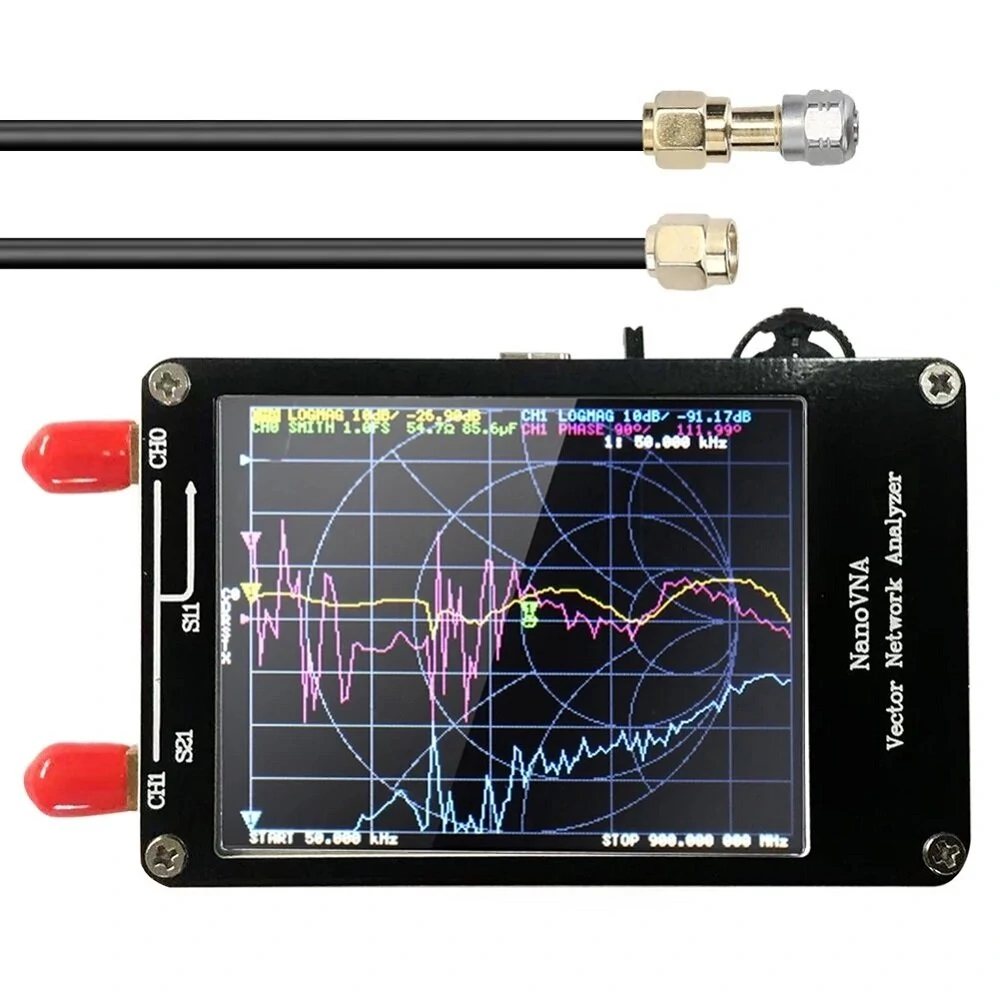

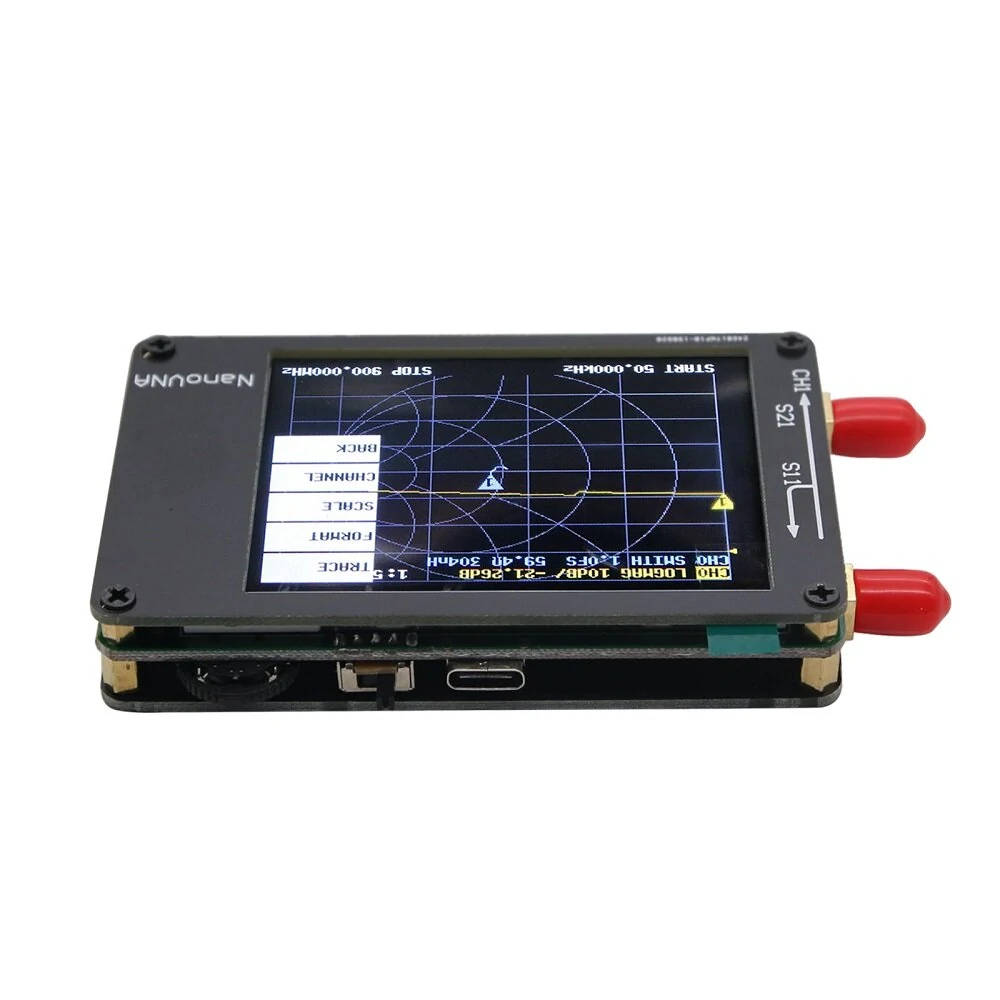

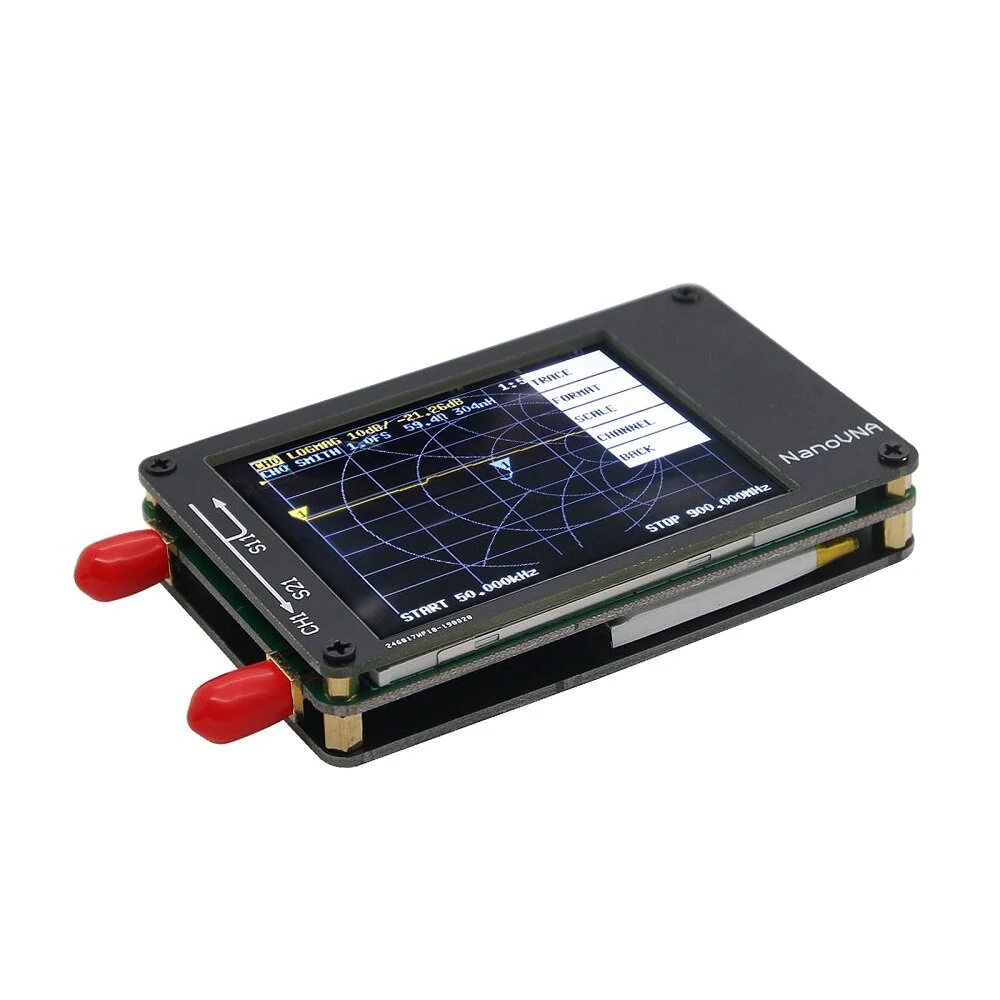

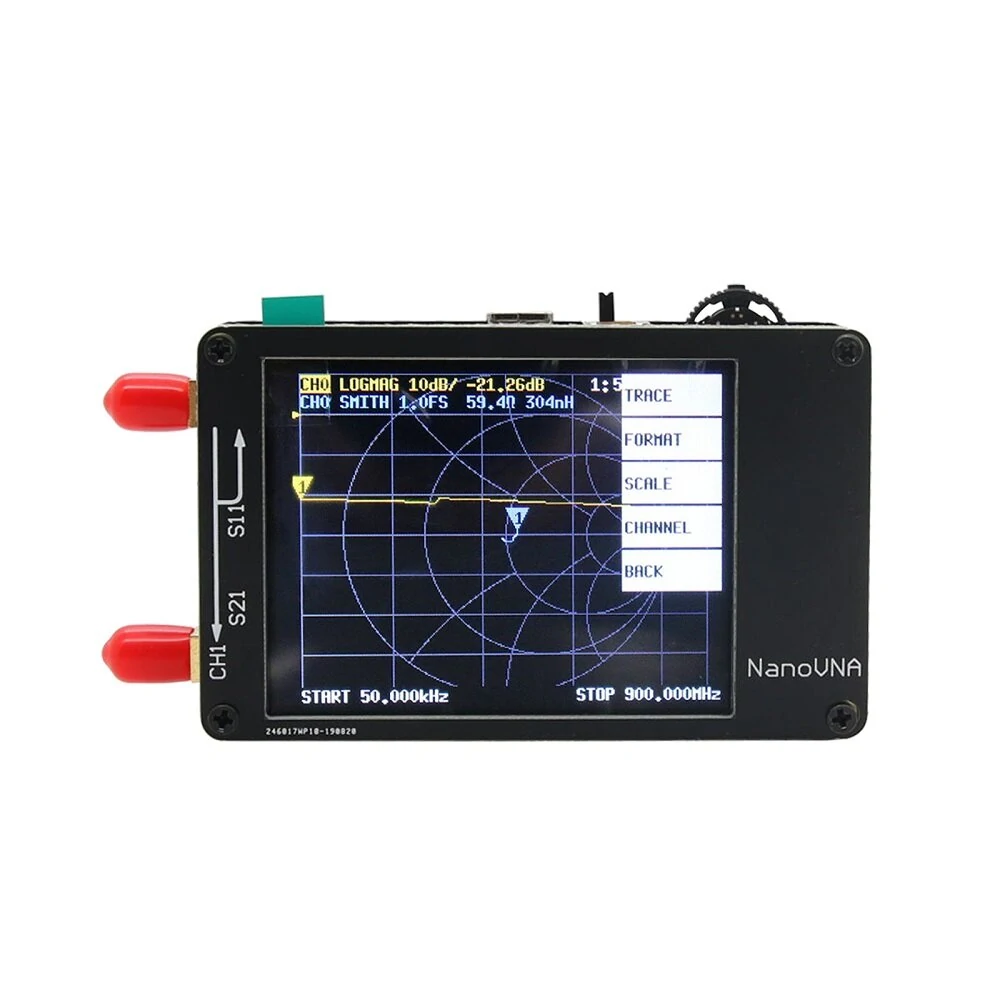

NanoVNA V2 Vector Network Analyzer | 50KHz-900MHz | 2.8 Touch Screen | HF VHF UHF
$88.00
$108.78
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:This is a DIY product with vector network measurement function. It includes a 2.8-inch touching screen, TX/RX measurement, can determine the complete S11 and S21 parameters, if you need to get S12 and S22, you need to manually replace the transceiver port wiring.
Features:
The PC control software can export SNP files, which can be used for various radio design and simulation software.The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 900MHz.The metal shield is designed to reduce the external interference and improve the measurement accuracy.The 50k-300MHz frequency ranges of the si5351 direct output provides better than 70dB dynamic.The extended 300M-600MHz band provides better than 50dB of dynamics, and the 600M-900M band is better than 40dB of dynamics.Small and portable, easy to use, this project aims to provide an RF gadget but useful instrument for enthusiast.
Specifications:
Measurement frequency: 50KHz~300MHz (50KHz~900MHz, enable extended firmware)(the products will be updated with the latest firmware before shipping, the actual measurement frequency is 50KHz~900MHz)RF output: -13dbm (maximum -9dbm)Frequency accuracy: <0.5ppmMeasurement ranges: 70dB (50KHz-300MHz), (50dB (300M-600MHz), 40dB (600M-900MHz) enable extended firmware)Port SWR: <1.1Display: 2.8 inch TFT (320*240)USB interface: USB type-CCommunication mode: CDC (serial)Power: USB 5V 120mA, maximum recharging current 0.8ABattery: 1 x lithium battery, 600mAh (included)Number of calibration points: 101 (fixed)Number of scanning points: 101 (fixed)Display tracking: 4, Marking: 4, Setting save: 5PCB size: 85.5 x 54 x 11mm / 3.4 x 2.1 x 0.4in (without connectors and switches)Package size: 120 x 78 x 40mm / 4.7 x 3.1 x 1.6inPackage weight: 160g / 5.6ounceMaterial: PCBColor: black
Package included:
1 x Host1 x USB Type-C Data Cable2 x 30mm SMA Male to Male Cable1 x SMA Female to Female Connector
