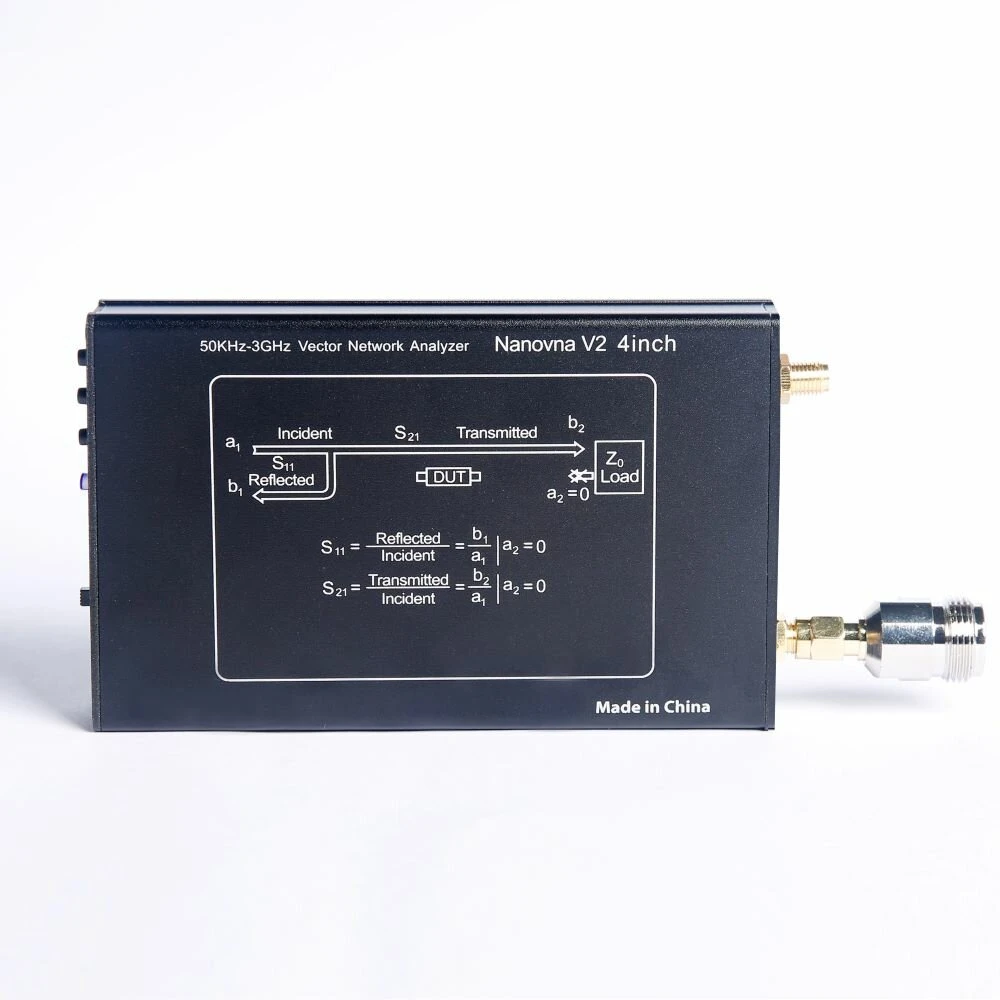

NanoVNA V2 3GHz Vector Network Analyzer | 4 Inch LCD Display | HF VHF UHF Antenna Analyzer

Product Description

Description:

Used for GS-400 V2 Pro 4inch Vector Network Analyzer NanoVNAV2 3GHz LGPL-based license agreement, based on the design of OwOComm, developed and produced a vector network analyzer that is more convenient to carry and use.

The vector network analyzer for SAA-2 / NanoVNA uses a user interface similar to that used for NanoVNA, but uses a different technical architecture. The network analyzer for SAA-2 / NanoVNAV2 will not load the initial calibration data at startup, and will not automatically insert the calibration data after the user changes the frequency. After each startup and frequency change, you must recalibrate or recall the calibration data. Please read the instructions carefully before use to avoid damage to the equipment.

Features:

1. Use 0.5ppm TCXO: In order to ensure the frequency accuracy of high frequency measurement using 0.5ppm TCXO network analyzer.

2. It uses an exquisite aluminum alloy shielded shell, with a reasonable structure and convenient operation, which can fully protect the internal precision circuits, and

A more reasonable definition of the external interface is made.

3. High-performance calibration kit: The network analyzer is equipped with a high-performance calibration kit to ensure that SWR is calibrated when reaching 3GHz

Less than 1.03.

4. Good amplitude and phase stability: 2 customized high-performance SS405 SMA RF cables can provide good amplitude and phase

Bit stability.

5. Updated to crystal two-color LED indicator

6. The latest Type-c data cable is used, and the performance of connecting to the computer is better.

7. Easy to carry: equipped with high-grade plastic outer packaging, the network analyzer is easier to carry and store.

Specification:

Model: GS-400 V2 Pro

Frequency range: 50kHz-3GHz

Frequency tolerance: less than 2ppm

Frequency stability: less than 0.5ppm

System dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)

S11 noise floor (calibration): -50dB (up to 1.5GHz), -40dB (up to 3GHz)

Scanning speed: 100 points/sec

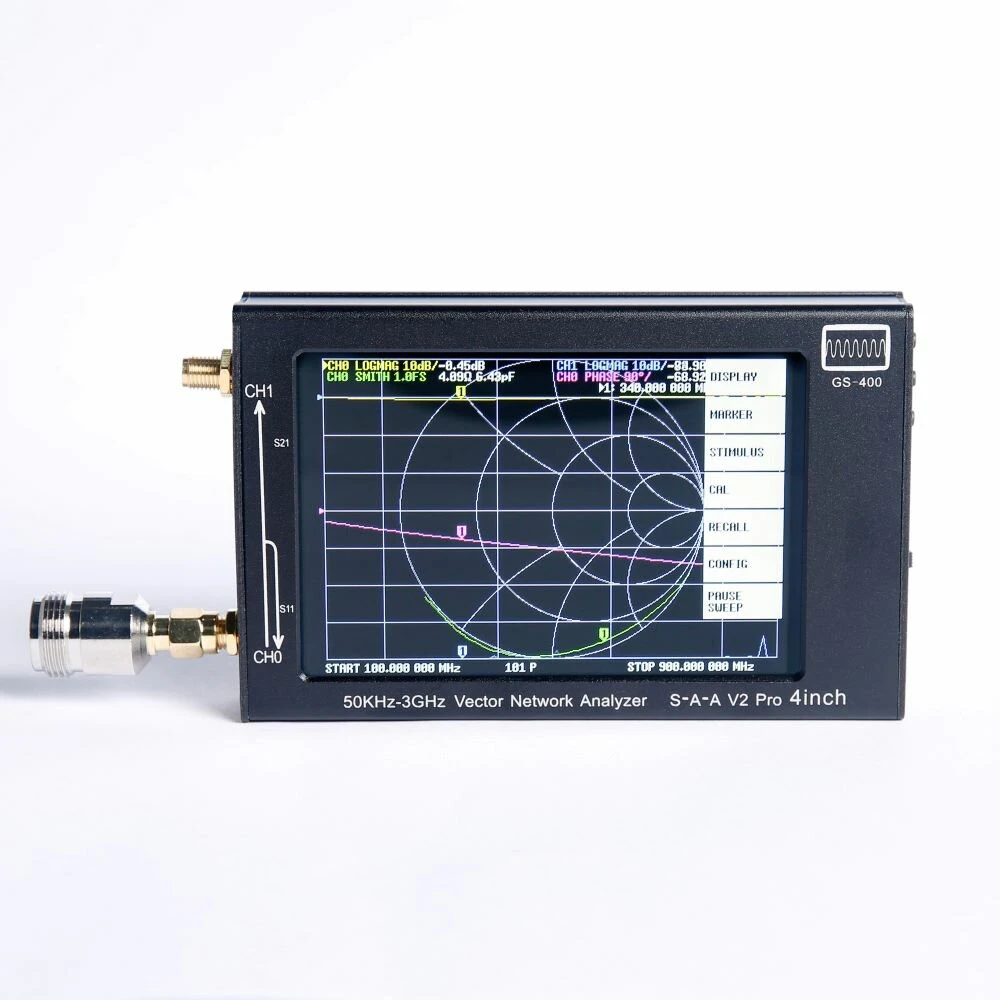

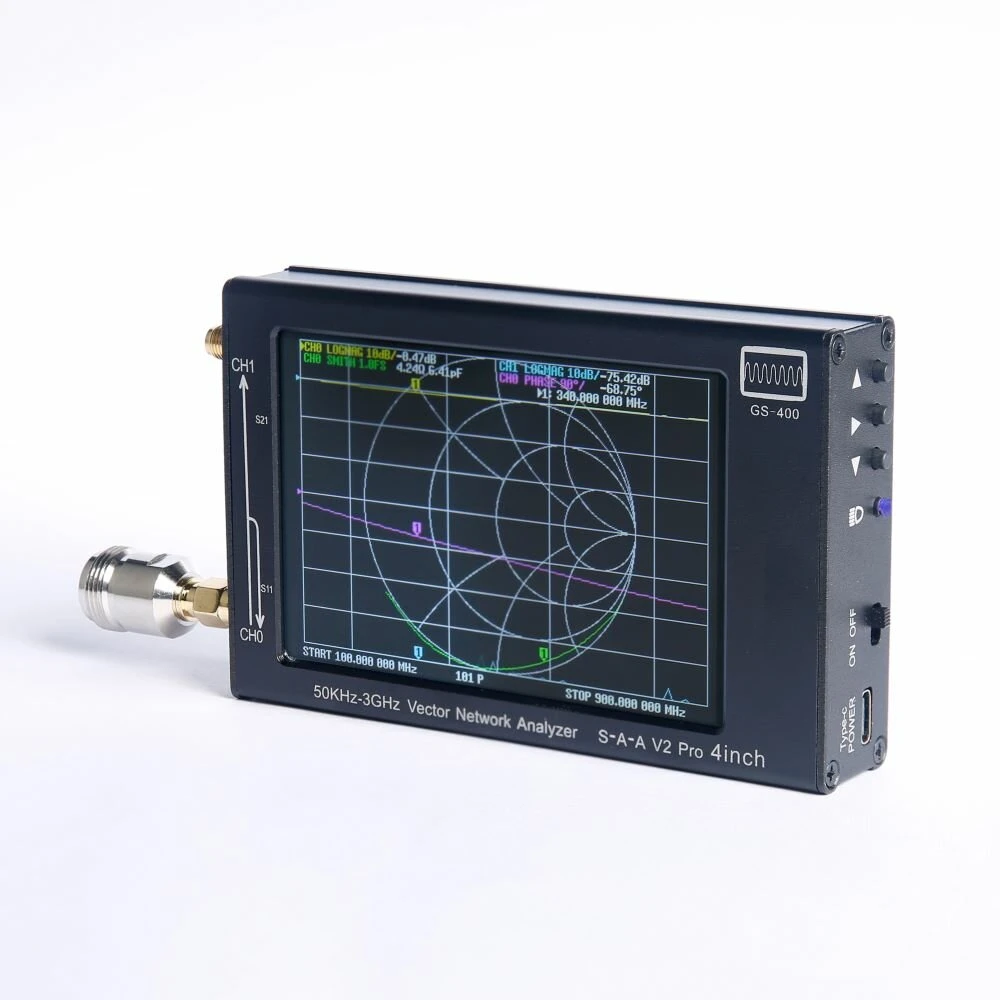

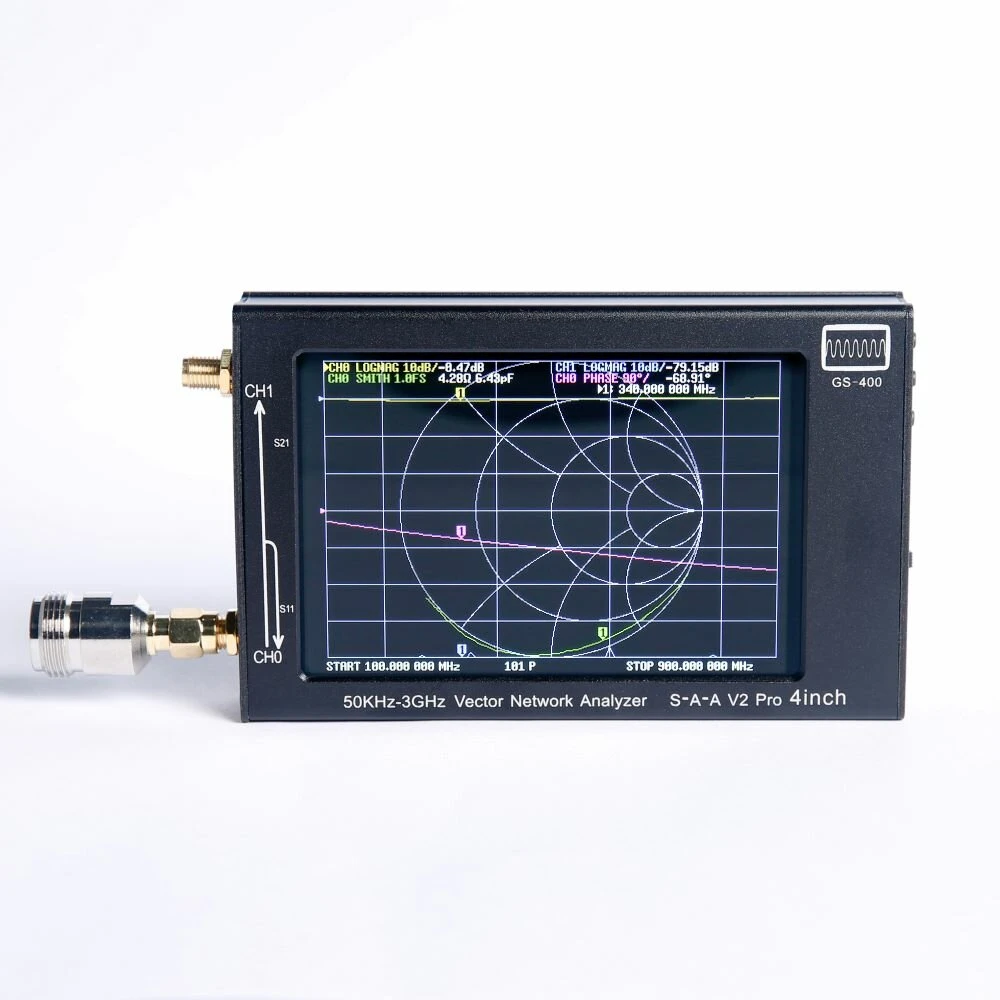

Display: about 4.0 inches LCD TFT, (320RGBx480 resolution and 65Kcolor)

USB interface: USB interface: USB Type-C communication mode: CDC (serial)

Power supply: USB, maximum charging current 1A

Battery: 2000mAh Lithium ion (certified by sea and air transportation)

Battery connector: JST-XH 2.0mm Maximum scanning point (on the device): 201

Maximum scanning point (USB): 1024

Port 2 return loss (1.5GHz): 20dBtyp

Port 2 return loss (3GHz): minimum 13dB Project size: 142 x 75x 23mm / (5.1 x2.9x0.9in)

Product weight: 208 g/(7.4 oz.av)

Packing size: 250??142??40mm /(9.7* 5.6 * 2in)

Package weight: 470 grams (17 ounces average)

Package Includes:

1 * GS-400 V2 Pro vector network analyzer (built-in 2000 mAh battery) host

1 * Type-C USB data cable

2 * SMA cable and barrel connector

1 * SMA simple calibration set open

1 * SMA simple calibration set

1 * SMA simple calibration kit

1 * SMA female to female connector

1 * SMAN/SMA-KJ

1 * Touch pen

1 * Pick
