N7DDC ATU15 1.8-30MHz Automatic Antenna Tuner | 1W-15W QRP | LED Indicator

Product Description

Description:

- The tuner is housed in a stable mini metal housing (100x71x25mm) with front and rear panels acting as PCBs in the same way as the main printed circuit board.

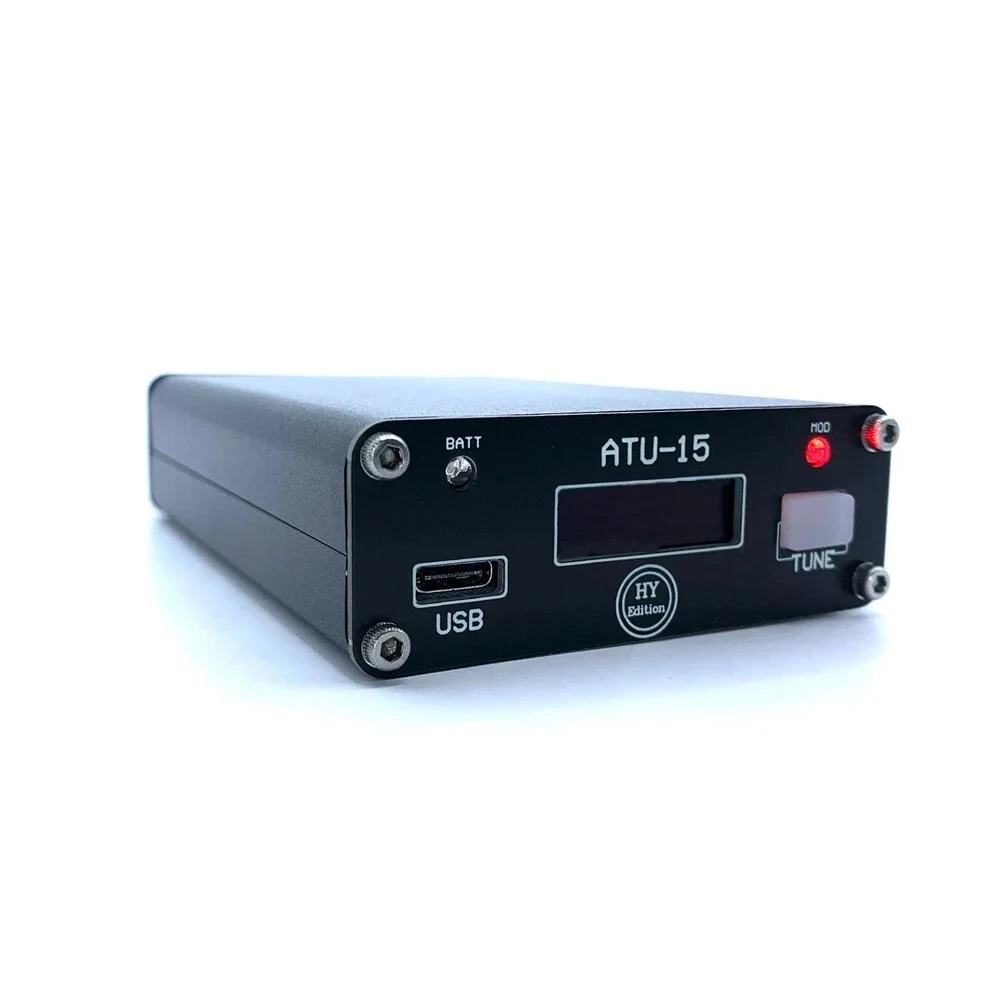

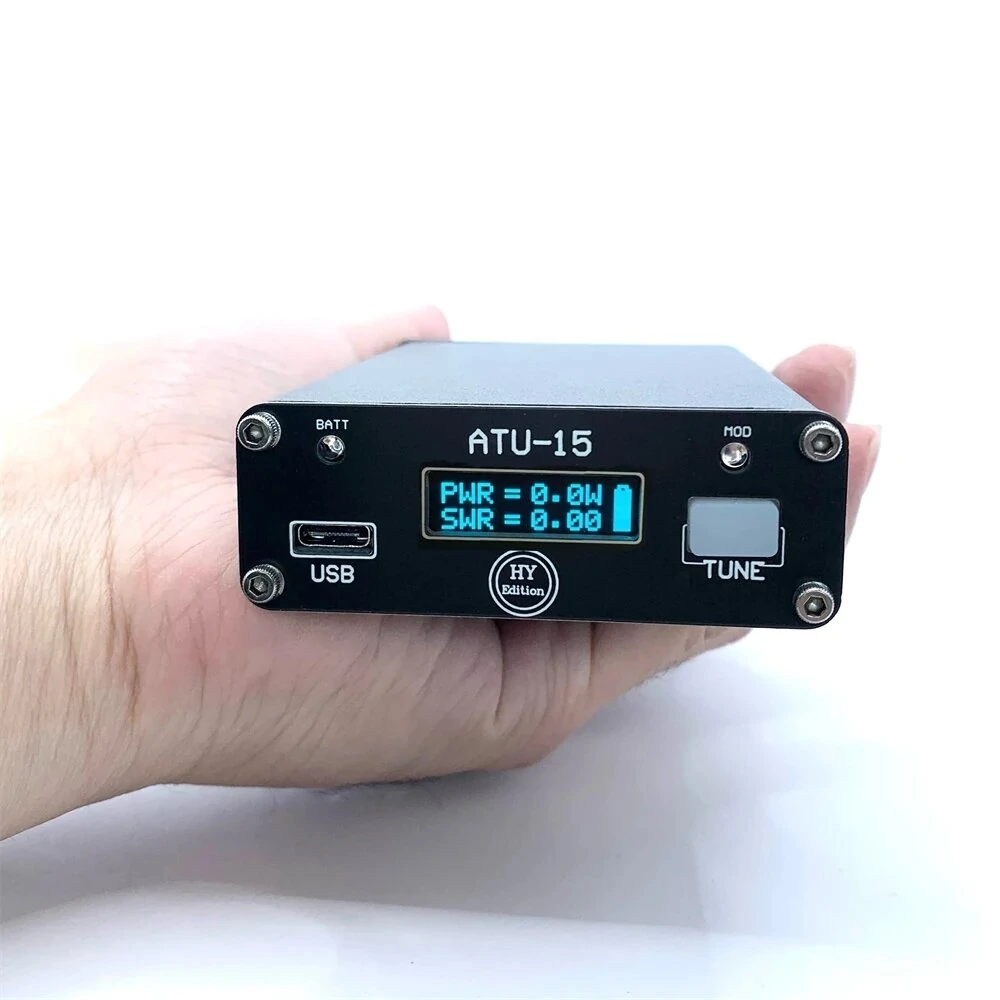

- The front panel has a control button, two led indicators, a small 0.91-inch OLED 128*32 display and a USB Type C port for charging the tuner's built-in battery and connecting to a computer to change the firmware. The left LED indicates the battery charging process and the right LED indicates the operation. In operational mode, it flashes briefly every three seconds, depending on the battery charge level.

Parameter:

Power supply working voltage: 5V DC (type C)

Input power: Minimum 1W, Maximum 15W

Maximum operating current: 12 mA

Maximum operating power: 10 watts

Maximum measurable power: 15 watts

Minimum tuning power: 1 watts

Minimum measurable power: 0.1 watts

Power measurement step: 0.1 Watt

Power measurement accuracy: 10%

Maximum tuning inductance: 18.37 ??H

Minimum tuning inductance: 0.1 ??H

Maximum tuning capacitance: 4079 pF

Minimum tuning capacitance: 22 pF

Tuning frequency range: 1.8 ~ 30MHz (can be extended to: 1.8-50MHz or higher)

Control protocol: Icom protocol

Equipment size: L*W*H:100*75*26 mm

Equipment weight: 0.3kg

Display screen: 0.91" OLED 128*32

Charging voltage: 5V DC (Type C)

Built-in battery: 2xLi-Ion 14500 (3.7V/ 850 mAh)

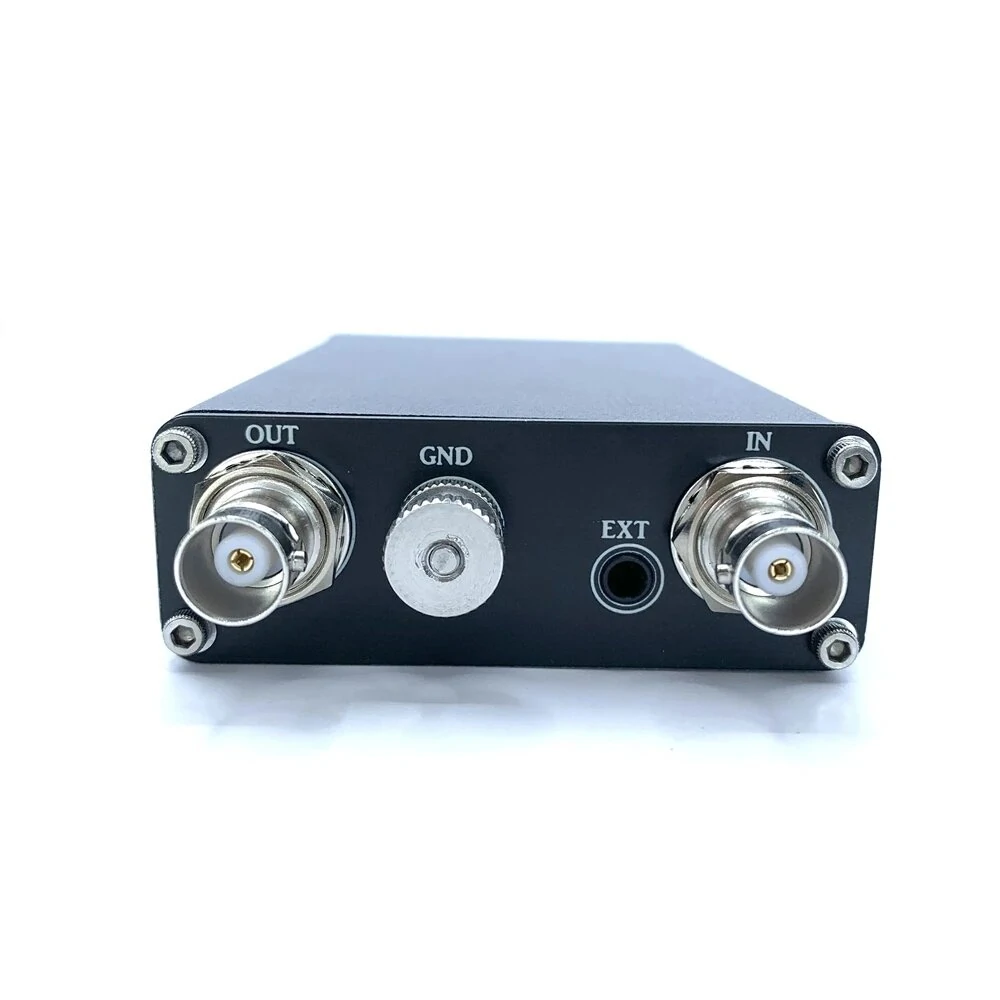

RF interface: BNC

Current consumption: 12 mA in active mode, 170 ??A in sleep mode, 37 ??A in shutdown state

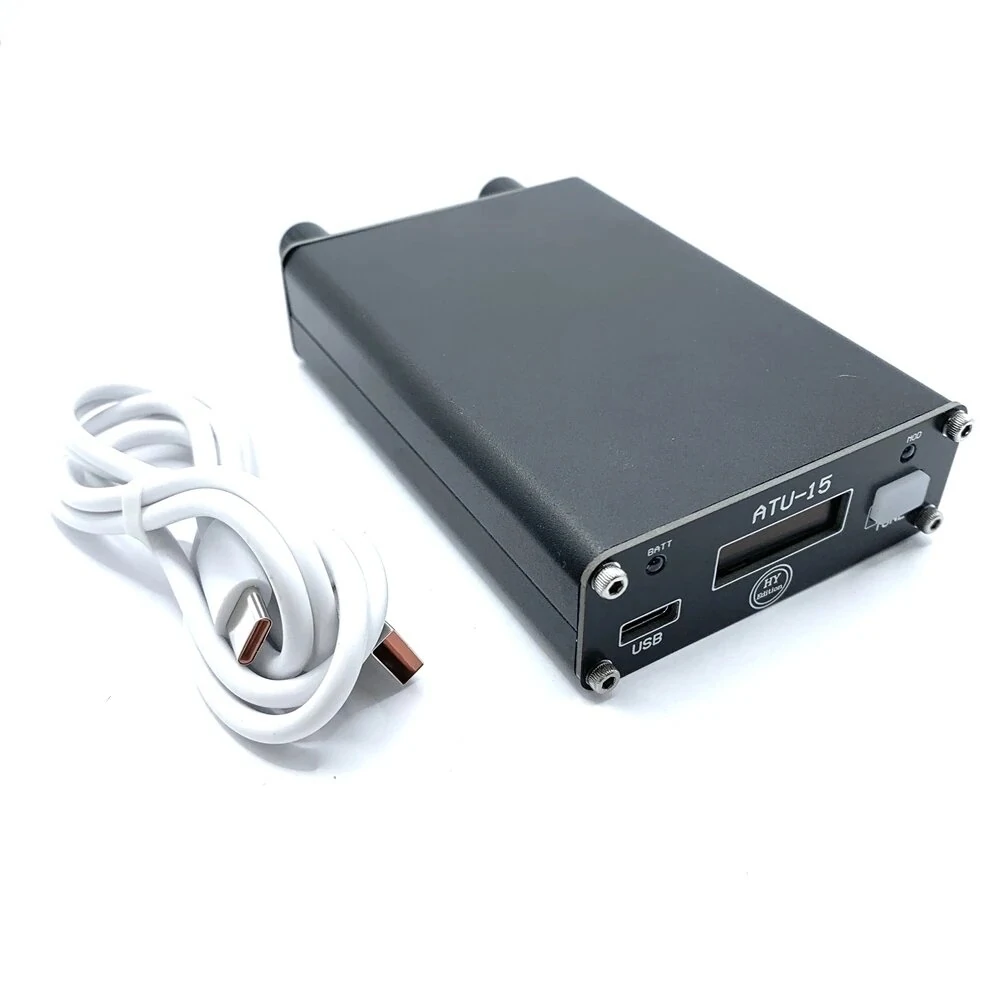

Package included:

1 x ATU15

1 x Type-C Cable
