Mini1300 Antenna Analyzer | 0.1-1300MHz HF/VHF/UHF SWR Tester | 4.3 LCD with TF Card
$299.00
$367.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

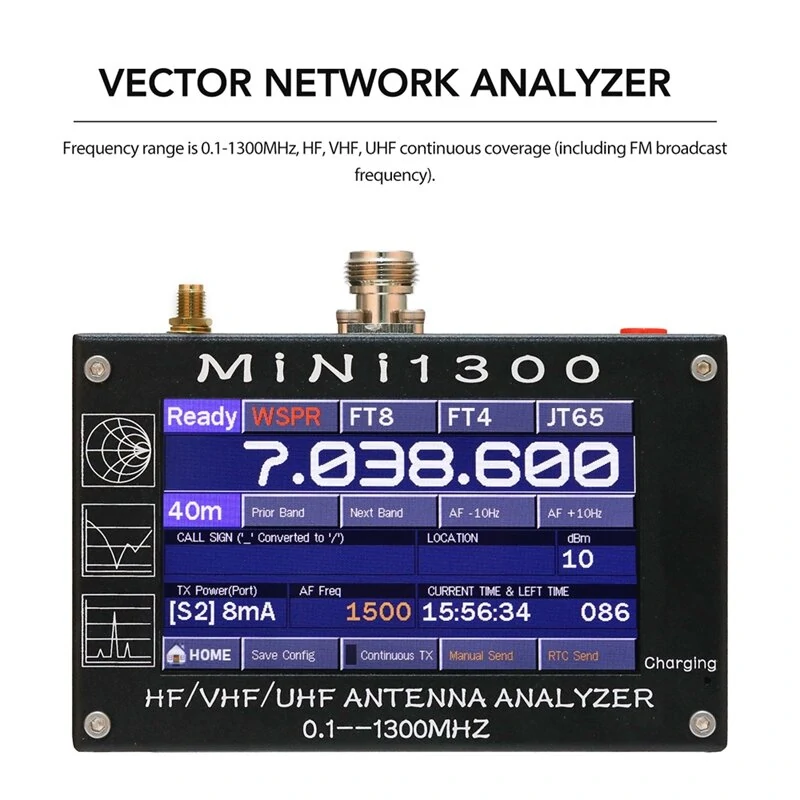

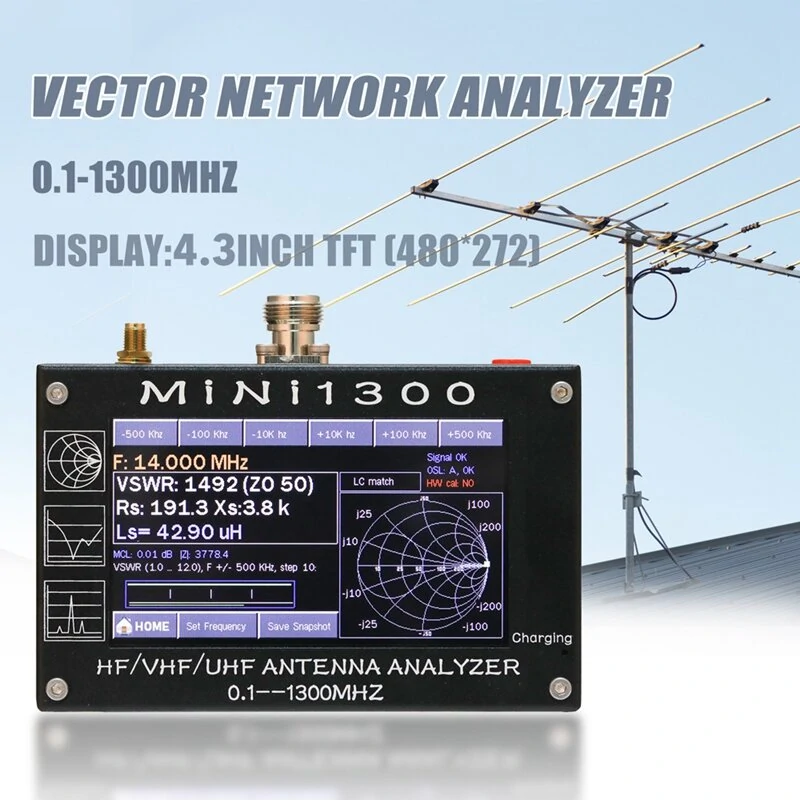

Feature:4.3 inch large-sn LCD touching sn display.Frequency range is 0.1-1300MHz, HF, VHF, UHF continuous coverageMeasurement Mode: Single point measurement, Scanning (Frequency ), and TDR ModeSWR Measure Ment Range: 1.0-1999(Single Point Mode), 1.0-20.0 (Scan Mode)Portable and compact, easy to operate and carry

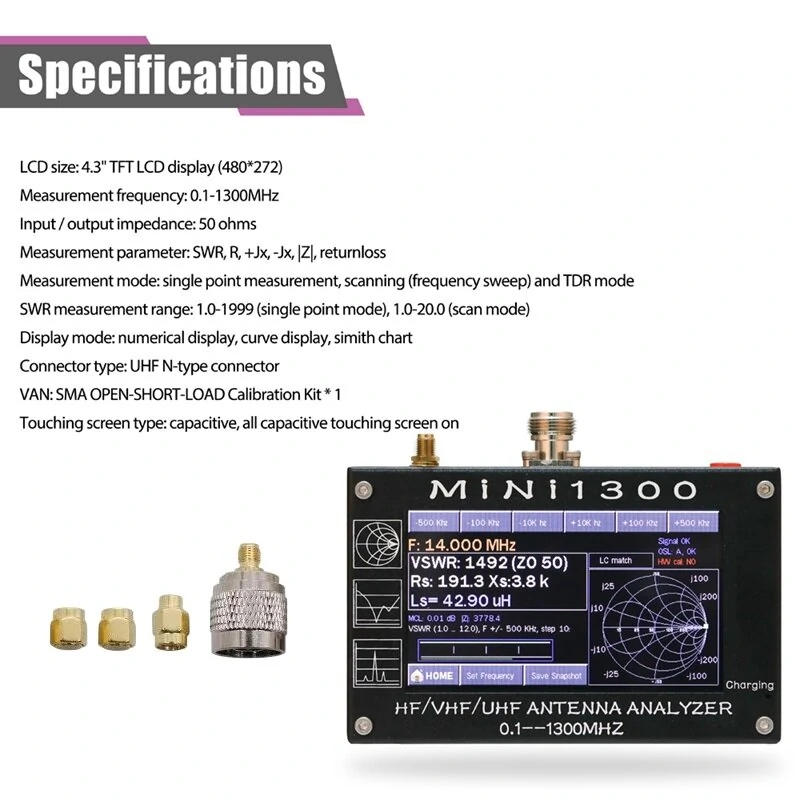

Specification:

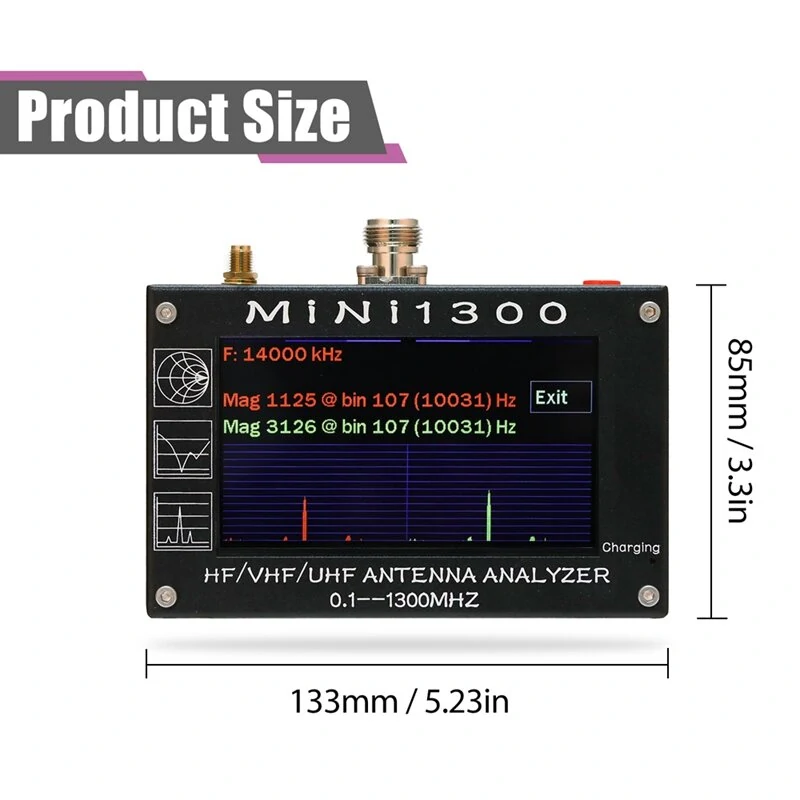

In/Out Impedance: 50 ohmConnector Type: UHF N-type connectorDisplay Modes: Numerical display, curve display, simith chartCapacitive Press Sn 480x272 4.3inch TFT LCD displayPower Source: USB or Internal Li-ionBuilt-in Li-ion charging circuitry and DC-DC boosterMaximum charging current: 5V/1.5AExternal Storage Method: TF cardColour: BlackMaterial: Electronic componentSize: 13.4 x 8.6 x 3 cm
Package included:
1 x Mini1300 HF VHF UHF Antenna Analyzer 0.1-1300MHz1 x 4G Memory Card1 x Calibration kit (open circuit 50 ohm short circuit adapter)
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Details picture:
