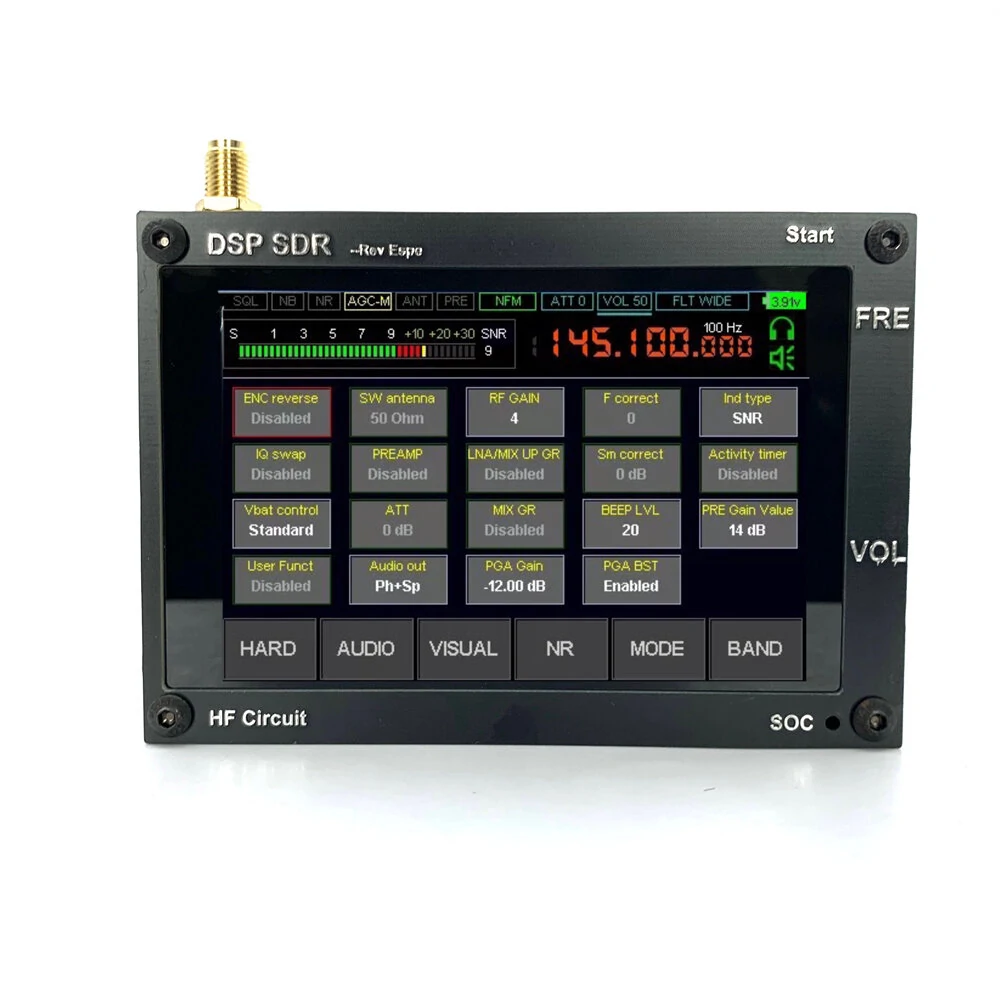

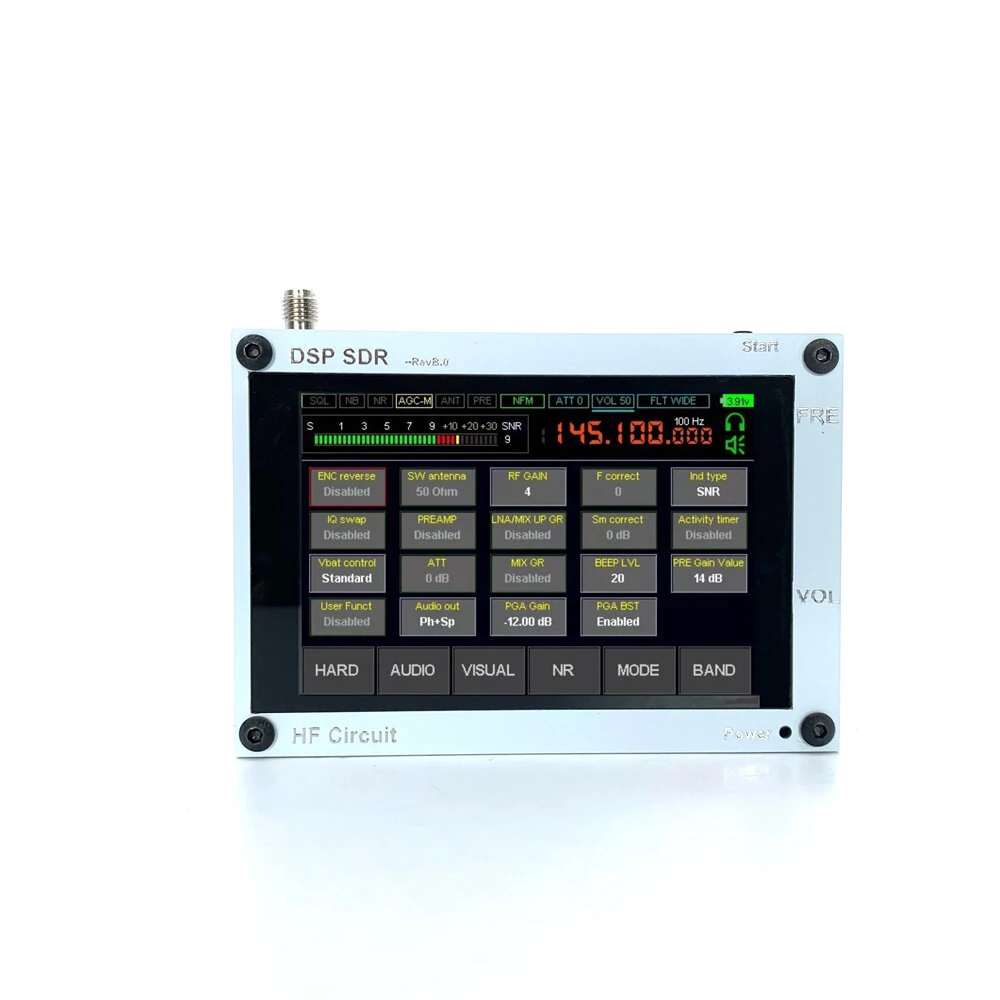

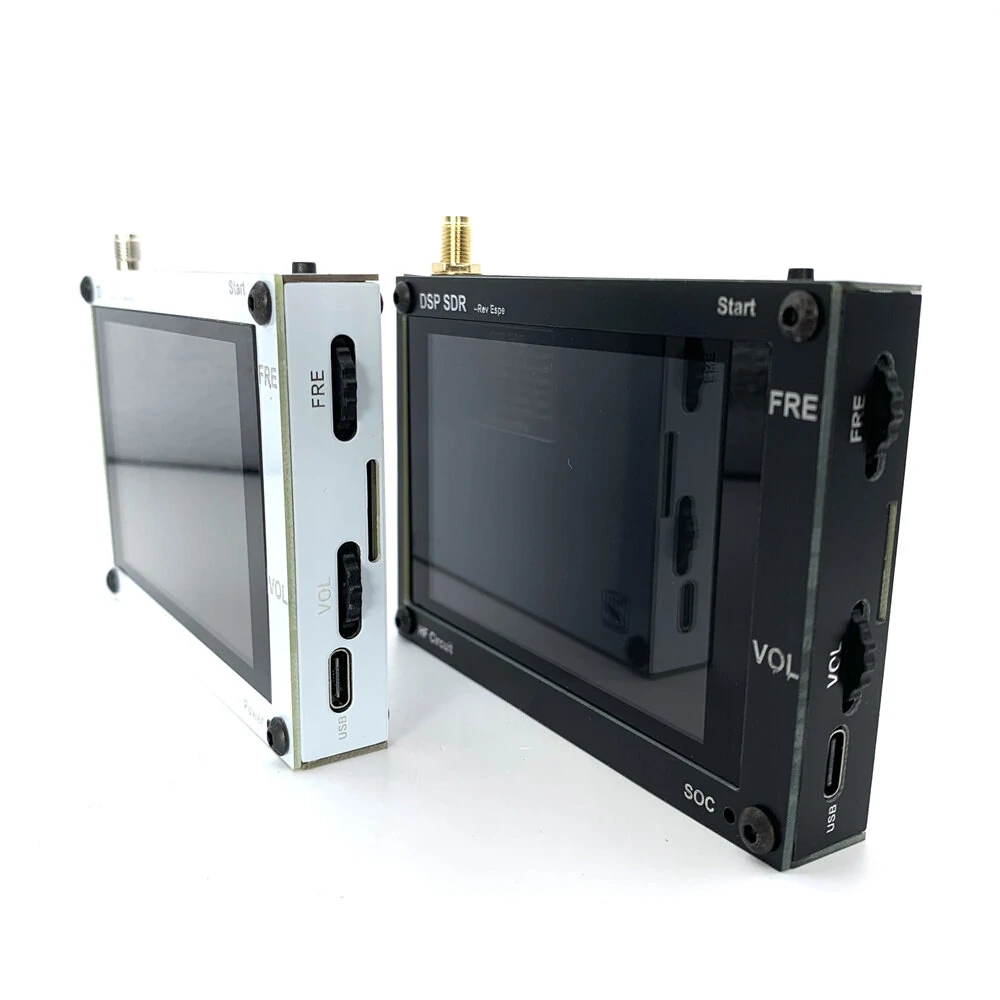

Malahit SDR DSP Radio Receiver | 50kHz-2GHz AM SSB NFM WFM | Ultrathin Firmware

Product Description

Highlights:

1. 3.5-inch capacitive screen

2. 4-layer board structure, higher performance than two-layer PCB

3. Adopt a sound unit, 2 vibrating chambers, the speaker comes with a sound chamber, the bass sound quality is very full

4. Aluminum alloy shell

5. The speaker has a built-in bass diaphragm, the bass is thick and the treble is clear

Features:

- 4-layer board structure, higher performance

- 3.5-inch IPS capacitive screen

- Built-in 3000mA rechargeable lithium battery

- Using bass diaphragm sound cavity speakers, better sound quality

- Flash via USB cable

- Integrated CNC aluminum alloy knob, EC11 encoder

- Supported frequency range 50KHz-2GHz (250MHz-400MHz is blocked by the author)

- With registration code

- Demodulation mode USB, AM, SSB, NFM, WFM, CW, DSB

- Firmware version 1.10c

- If you order the version with the built-in expansion board, then we will install the expansion board for you before shipping to you. The expansion board is optional.

Specifications:

1. The radio is built on the principle of SDR-the function is determined by loaded software;

2. Supported frequency range 50KHz-2GHz (250MHz-400MHz is blocked by the author)

3. All types of analog modulation AM, SSB, NFM, WFM;

4. Powerful functions variable filter width, adaptive noise suppressor, threshold noise suppressor, for Noise Blanker, AGC, equalizer;

5. Use cheap but fully functional chip msi001;

6. The powerful stm32h743 with a clock frequency of 480 MHz is applied;

7. There is a built-in UHF;

8. Controls 2pcs; encoders with buttons and touch screen;

9. Consumption 300mA when listening to headphones;

10. Connect to computer via TYPE-C, which can transfer CAT, IQ and audio.

11. 160kHz span, with scalability;

12. Sensitivity Under the condition of up to 250MHz, sw is 0.3??V = 10dB; due to lack of measurement equipment, so the above measurements were not taken;

13. Due to the characteristics of msi001 chip used, dynamic blocking range is about 85dB.

14. With backlight control;

15. SMA female antenna socket;

16. Size about 122 x 105 x 29mm (without the sizes of connectors).

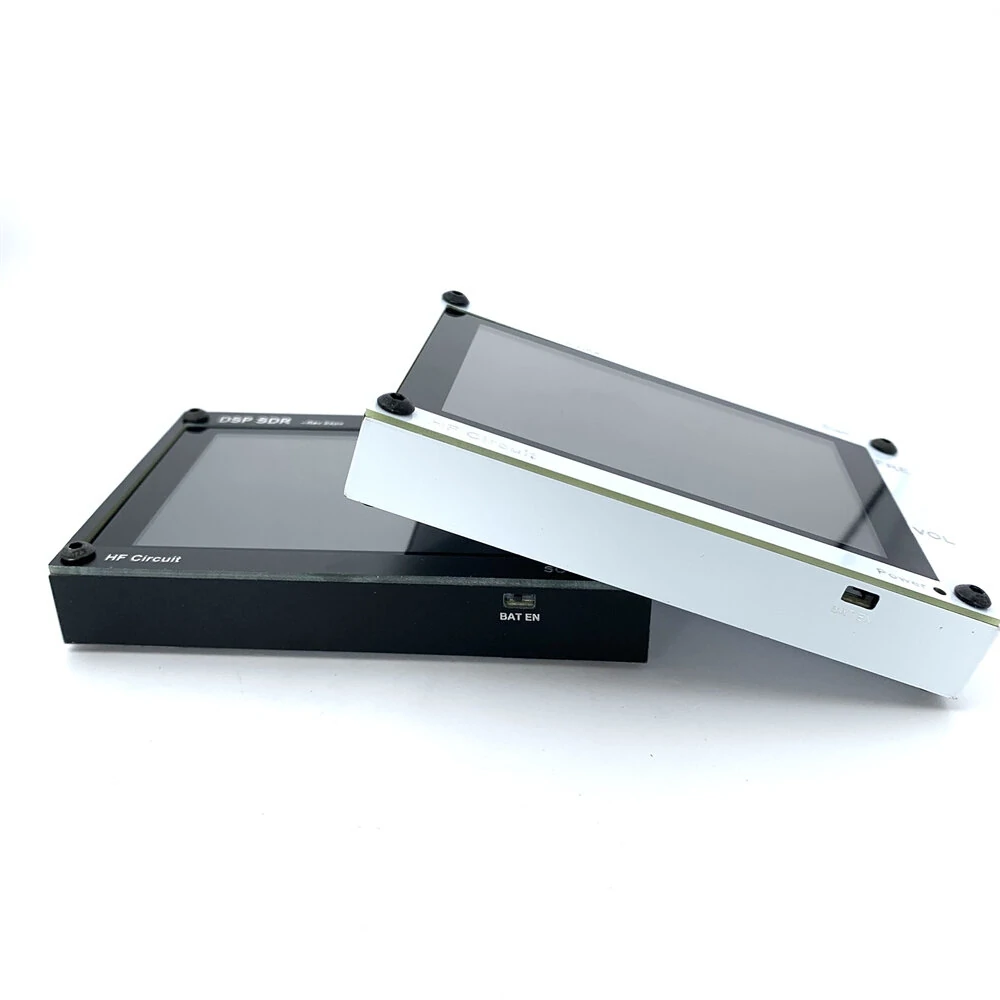

Optional Color: White/Black

Optional Version: Standard/Upgraded

Package Included:

1 x SDR Receiver??If you order the version with the built-in expansion board, then we will install the expansion board for you before shipping to you. The expansion board is optional.??

1 x SMA Antenna
