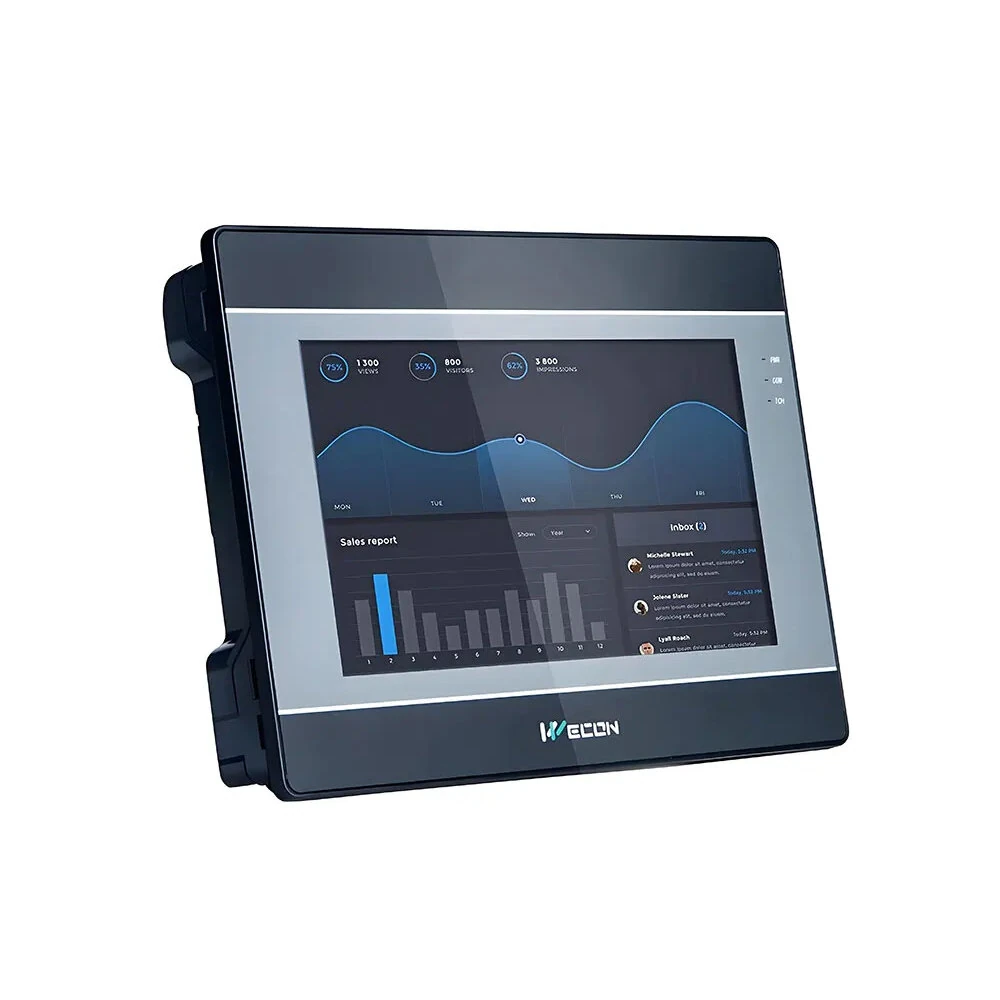

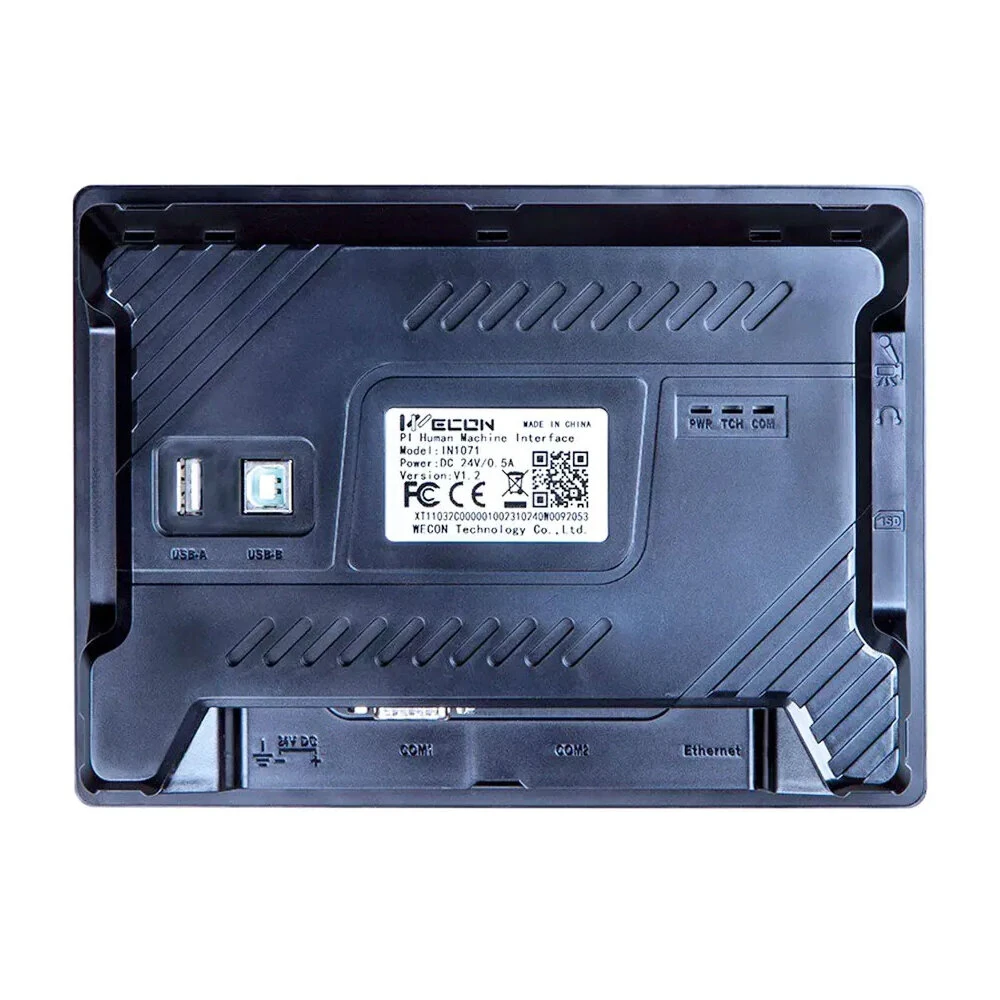

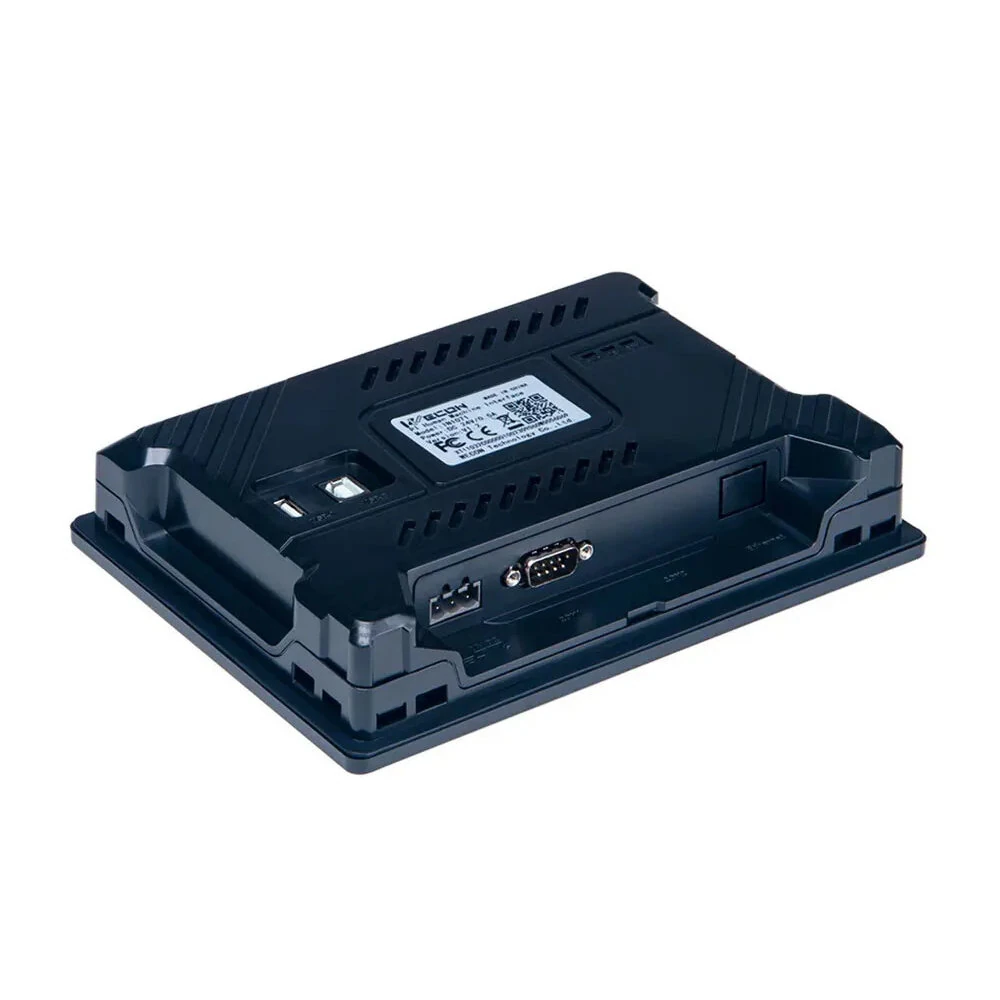

HMI 7 Inch & 10 Inch Industrial Display Screen | Ethernet Interface IN1071 IN1072 IN1101

Product Description

Specifications:

IN1071

- Display Size: 7"

- Resolution: 800*480px

- Display Color: 1600 colors

- Backlight: LED

- Brightness: 250cd/m2

- LCD Life: >20,000 hours

- Touch Panel: Resistive

- Communication: RS232*1, RS422 RS485 2 in 1*1

- Program Download: USB

- USB: USB Host : USB 2.0*1, USB Client : USB 2.0*1

- Ethernet: No

- ROM: Flash 128MB

- RAM: 64MB

- Backlight Time: 20,000 hours

- Input Power: <8W

- Power Consumption: <8W

- Shell Material: PC+ABS

- Shape Size: 201.2*147.2*39.0mm

- Cutout Size: 192.0*138.0mm

- Weight: Approx. 0.52 kg

- RTC: Support

- Working Temperature: -10?桫45??

- Working Humidity: 10%~90%RH (Non-condensing)

- Storage Temperature: -20?桫70??

- Storage Humidity: 10%~90%RH (Non-condensing)

- Cooling Mode: Natural air cooling

- Configuration Software: PI Studio

- Panel Protection Grade: IP65 (front panel)

- CE Certification: Yes

IN1072

- Display Size: 7"

- Resolution: 800*480px

- Display Color: 1600 colors

- Backlight: LED

- Brightness: 250cd/m2

- LCD Life: >20,000 hours

- Touch Panel: Resistive

- Communication: RS232*1, RS422 RS485 2 in 1*1

- Program Download: USB

- USB: USB 2.0*1, Type C *1

- Ethernet: No

- ROM: Flash 128MB

- RAM: 64MB

- Backlight Time: 20,000 hours

- Input Power: 24V DC(12-28V DC)

- Power Consumption: <8W

- Shell Material: PC+ABS

- Shape Size: 201.2*147.2*39.0mm

- Cutout Size: 192.0*138.0mm

- Weight: Approx. 0.52 kg

- RTC: Support

- Working Temperature: -10?桫45??

- Working Humidity: 10%~90%RH (Non-condensing)

- Storage Temperature: -20?桫70??

- Storage Humidity: 10%~90%RH (Non-condensing)

- Cooling Mode: Natural air cooling

- Configuration Software: PI Studio

- Panel Protection Grade: IP65 (front panel)

- CE Certification: Yes

IN1101

- Display Size: 10"

- Resolution: 1024*600px

- Display Color: 1600 colors

- Backlight: LED

- Brightness: 350cd/m2

- LCD Life: >20,000 hours

- Touch Panel: Resistive

- Communication: RS232*1, RS485*1, RS422 RS485 2 in 1*1

- Program Download: USB

- USB: USB Host : USB 2.0*1, Type C *1

- Ethernet: Yes

- ROM: Flash 128MB

- RAM: 64MB

- Backlight Time: 20,000 hours

- Input Power: <10W

- Power Consumption: <10W

- Shell Material: PC+ABS

- Shape Size: 271.0*214.0*41.5mm

- Cutout Size: 259.0*202.0mm

- Weight: Approx. 1.30 kg

- RTC: Support

- Working Temperature: -10?桫45??

- Working Humidity: 10%~90%RH (Non-condensing)

- Storage Temperature: -20?桫70??

- Storage Humidity: 10%~90%RH (Non-condensing)

- Cooling Mode: Natural air cooling

- Configuration Software: PI Studio

- Panel Protection Grade: IP65 (front panel)

- CE Certification: Yes

Features:

1. Enhanced Visuals: Equipped with high-resolution displays and vibrant color options, these HMIs provide clear and visually appealing interfaces, making monitoring and control more efficient.

2. Long-lasting Performance: With an LCD life exceeding 20,000 hours, these interfaces are designed to provide reliable service over extended periods, ideal for demanding industrial applications.

3. Multipurpose Connectivity: Featuring various communication ports including RS232, RS422, and RS485, the HMIs facilitate seamless integration with different devices and systems, ensuring versatility in usage.

4. Effortless Data Management: The devices come with ample storage, encapsulating flash ROM and sufficient RAM, to handle essential data logging and management tasks effectively.

5. Intuitive Interface: Designed with resistive touch panels, the HMIs deliver an intuitive user experience, allowing for precise control and interaction in industrial environments.

Package Included:

1 x Human Machine Interface (HMI)
