HF UV AW07A Antenna Analyzer - 160M to 490Mhz HF/VHF/UHF - SWR Meter for Ham Radio

Product Description

>>Please click here to download the AW07A product manual<<

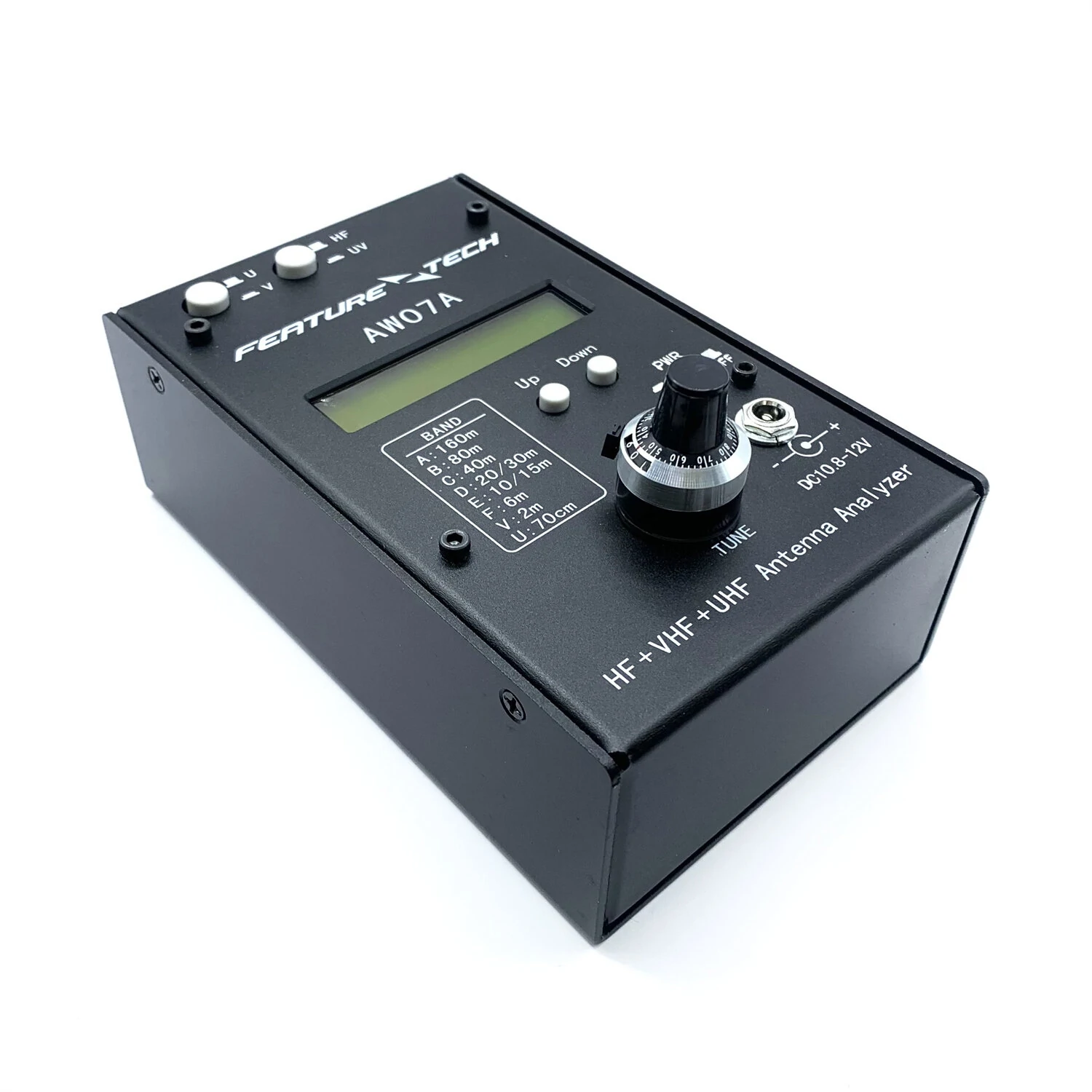

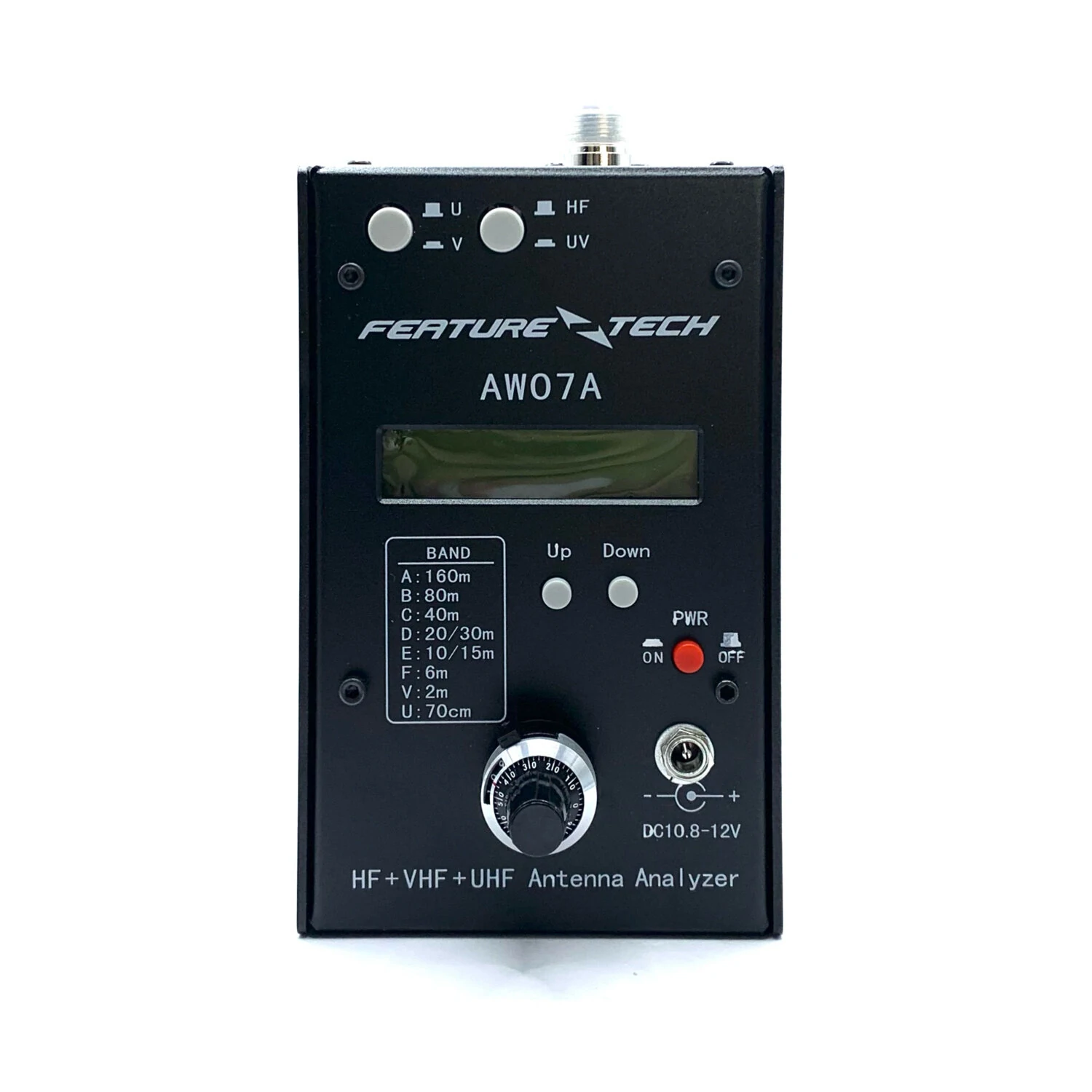

AW07A antenna analyzer is a compact battery powered RF impedance analyzer. It can test the SWR status of your antenna, measure the impedance and reactance component and help you to solve antenna problems. This unit combines six basic parts: a variable oscillator, frequency counter, independent oscillator, 50 ohm RF bridge detector, an A-D converter, and microcontroller. This compact product was built to feed the need for the solid construction and field test. The operating frequency range of this unit goes from HF, and extends up to 490MHz. The operating frequency range of this unit extends from 1.5 to 71 MHz in six overlapping bands, and includes SWR measurements on 110-185MHz, 300-490MHz.

Features:

The antenna analyzer is specially designed for analyzing 50 ohm antenna system.

Can test the SWR status, measure the impedance and reactance component and help you to solve antenna problems.

Combines six basic parts: a variable oscillator, frequency counter, independent oscillator, 50 ohm RF bridge detector, an A-D converter and microcontroller.

The operating frequency range of this unit goes from HF, and extends up to 490MHz.

Functions:

-Signal Source

-Capacitance Meter

-Inductance Meter

-Show Reactance Value

-Show Impedance Value

-SWR Value from 1.1 to 9.99

-RF Strength Meter

-Frequency Counter

Note:

It does not have a built-in battery, and needs to be powered by a power adapter (external power supply, lower than 12 V, higher than 11 V. Internal positive and external negative.). Or you can disassemble the housing and install a battery for it.

Specifications:

Band Coverage: 160m, 80m, 40m, 20/30m, 10/15m, 6m, 2m, 70cm

RF Output Level: 2Vpp

SWR Range: 1~9.9

Impedance Range: 10~500ohm

External Power: DC 10.8~12V

Battery: 8 * AA Alkaline Battery(NOT INCLUDED)

Power Consumption: <150mA(HF Bands, B/F Off); <165mA(VU Bands, B/L Off)

Product Size: 155 * 100 * 55mm / 6.1 * 3.9 * 2.2in

Product Weight: 534g

Package Size: 18 * 14 * 10cm

Package Weight: 723g

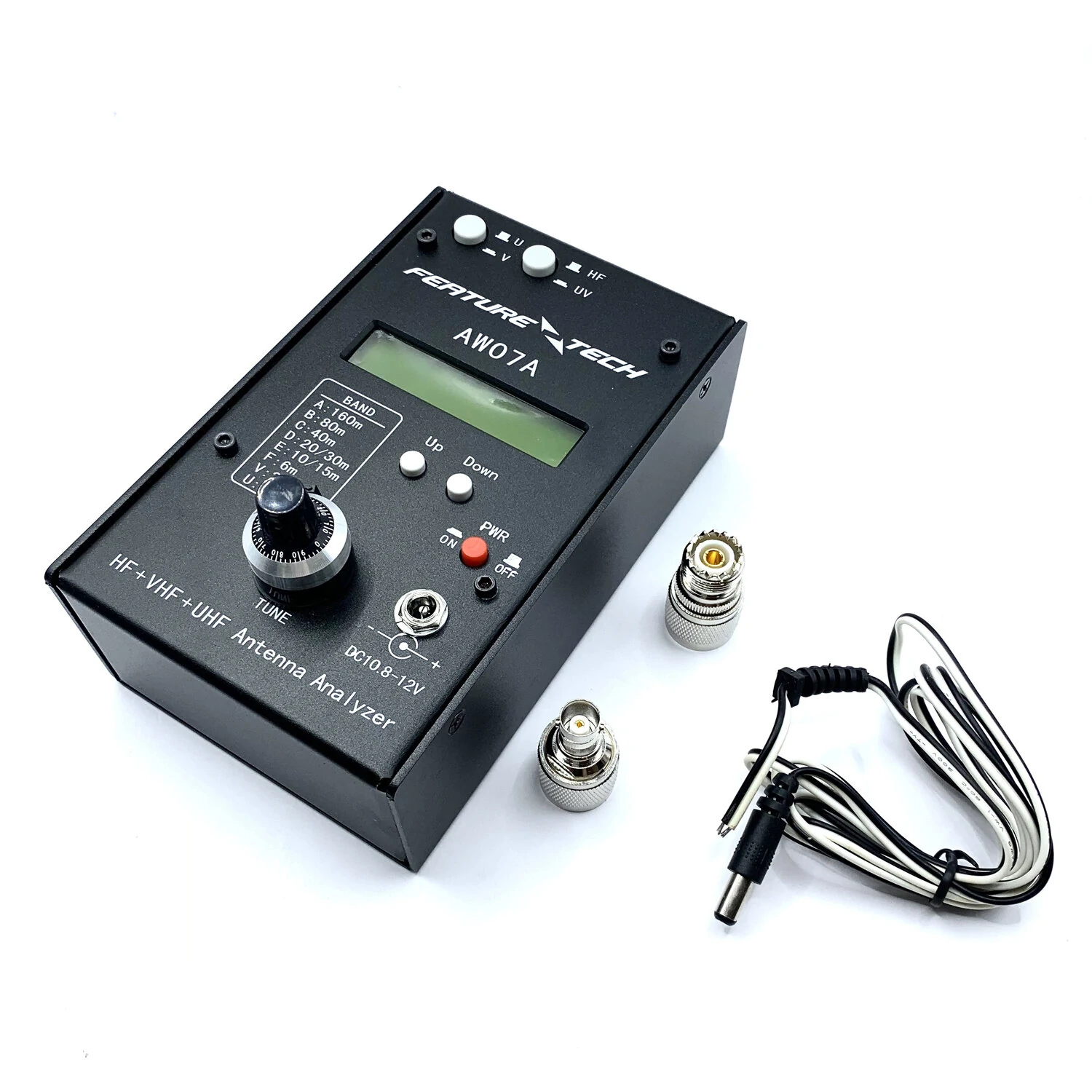

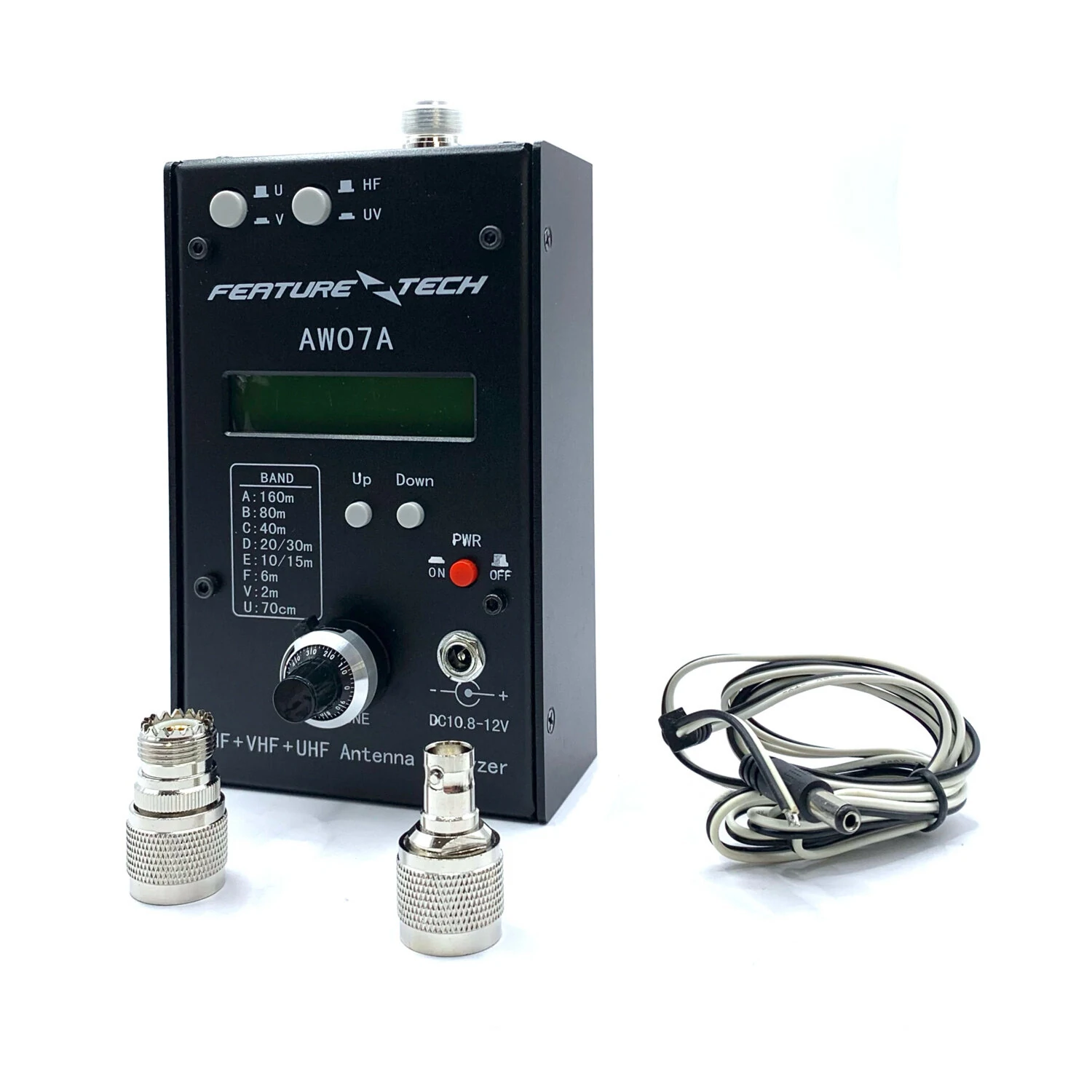

Package included:

1 x Antenna Analyzer

2 x Antenna Connector Adapters

1 x Connecting Cable
